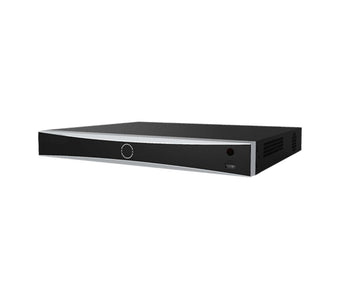

Hikvision DS-7616NXI-I2/16P/S(C) 16-Channel 4K PoE AcuSense NVR with Facial Recognition & 12MP Recording
Hikvision DS-7616NXI-I2/16P/S(C) 16-Channel 4K PoE AcuSense NVR with Facial Recognition & 12MP Recording
Detección de personas y vehículos
Agotado
Descripción
Descripción
OCB-8716MXI-I2/16 puertos/S NVR 4K AcuSense de 16 canales 1U 16 POE
Soporte de productos y detalles de envío
Soporte de productos y detalles de envío
Nos movemos rápidamente para que no tenga que esperar, realice su pedido antes de las 3 p.m. EST y se envía el mismo día, con todo lo demás saliendo el siguiente día hábil. La mayoría de los clientes ven su paquete en aproximadamente 3 días hábiles, lo que le brinda una experiencia de entrega fluida y predecible.
Para soporte, nunca estará solo con nosotros. si surge algo, nuestro equipo de soporte con sede en EE. UU. está aquí para ayudarlo a solucionar problemas, configurar o obtener respuestas rápidamente. Nos aseguramos de que siempre sepa exactamente qué hacer a continuación para que su producto siga funcionando de la forma en que lo necesita.
30 días de devoluciones y garantía de devolución del dinero
30 días de devoluciones y garantía de devolución del dinero
Si el producto no es el adecuado, no te preocupes: nuestra garantía de devolución de dinero de 30 días te da la oportunidad de probarlo sin presión. Puedes devolverlo en un plazo de 30 días siempre que esté en su estado original. Y para simplificar las cosas, puedes iniciar la devolución directamente desde tu cuenta, sin complicaciones ni largos trámites.
Downloads
Product Manuals, data sheets.
Downloads
Su información de pago se procesa de forma segura. No almacenamos los datos de la tarjeta de crédito ni tenemos acceso a la información de su tarjeta de crédito.
Technical Specifications
Hikvision DS-7616NXI-I2/16P/S(C) 16-Channel 4K PoE AcuSense NVR
The Hikvision DS-7616NXI-I2/16P/S(C) is a 16-channel 1U network video recorder designed for IP surveillance systems that need built-in PoE, high-resolution recording, and intelligent video analytics in one unit.
With 16 independent PoE interfaces, support for recording resolutions up to 12MP, 4K HDMI output, facial recognition, perimeter protection, Motion Detection 2.0, and support for up to two hard drives, this NVR provides a powerful foundation for residential and commercial security installations.
H.265+ compression can reduce storage requirements by up to 75%, while 16-channel synchronous playback, smart search, Hik-Connect support, and multiple VCA functions help make recorded footage easier to manage and review.
Key Features
- 16-channel IP camera input
- 16 independent PoE camera interfaces
- Built-in AcuSense intelligent analytics based on deep learning
- Up to 4-channel perimeter protection
- Up to 1-channel facial recognition for video stream
- Up to 4-channel facial recognition for face pictures
- Up to 16 face picture libraries with up to 10,000 face pictures total
- Face picture comparison, human face capture, and face picture search
- Motion Detection 2.0
- ANPR support through compatible cameras on all channels in supported countries and regions
- Recording resolution up to 12MP
- Up to 16-channel 1080p decoding at 30 fps
- 16-channel synchronous playback
- 4K HDMI output up to 3840 × 2160 at 60 Hz
- Independent HDMI and VGA outputs
- H.265+, H.265, H.264+, H.264, and MPEG4 decoding support
- H.265+ compression can reduce storage space by up to 75%
- Dual-stream recording support
- Two SATA interfaces supporting up to 10TB per disk
- Up to 20TB total supported HDD capacity using two 10TB drives
- 160 Mbps incoming bandwidth
- 256 Mbps outgoing bandwidth
- Smart search and smart playback functionality
- Multiple VCA event support
- POS information overlay on live view and playback
- POS-triggered recording and alarms
- Two-way audio support
- ONVIF 2.5 and RTSP camera access support
- Hik-Connect support for network management
- 4 alarm inputs and 1 alarm output
- HTTPS encryption support
- 1U chassis
Intelligent Analytics
AcuSearch
Perimeter Protection
Facial Recognition & Target Recognition
Motion Detection 2.0
ANPR
Devices and Servers
Video and Audio
Decoding & Recording
Storage & Playback
Smart & POS Functions
Network
PoE
Auxiliary Interfaces
Physical Interfaces
General
Certification
Cyber Security
Accessories Found
Ideal Applications & Common Uses
- 16-Camera IP Security Systems: Ideal for installations requiring up to 16 network cameras connected to a single recorder.
- PoE Surveillance Installations: The 16 built-in PoE ports allow compatible cameras to receive both network connectivity and power through the NVR.
- Homes and Larger Residential Properties: Suitable for multi-camera systems covering entrances, driveways, yards, garages, and other areas from one recorder.
- Retail Stores: POS information overlay, POS-triggered recording, alarms, and multiple VCA functions make the recorder suitable for retail surveillance applications.
- Offices and Commercial Properties: Supports centralized monitoring, 4K display output, intelligent event detection, and up to 16 cameras.
- Sites Requiring Intelligent Perimeter Monitoring: AcuSense perimeter protection and Motion Detection 2.0 can be used where intelligent event analysis is required.
- Facial Recognition Applications: Supports face libraries, face capture, face picture comparison, and face picture searches for compatible surveillance deployments.
- High-Resolution Camera Systems: Supports recording resolutions up to 12MP for applications where high-detail video is required.
- Long-Term Recording Applications: Two SATA interfaces support up to 10TB per disk, while H.265+ compression can help reduce required storage space.
- ANPR Systems: Can support ANPR through compatible cameras on all channels in the countries and regions specified by Hikvision.
- Local Monitoring Stations: Independent HDMI and VGA outputs, including HDMI output up to 4K, support high-resolution local viewing.
Downloads
Frequently Asked Questions
The DS-7616NXI-I2/16P/S(C) supports up to 16 IP camera inputs, allowing you to build a surveillance system with as many as 16 cameras connected to the NVR.
Yes. The NVR includes 16 independent RJ-45 PoE interfaces rated at 10/100 Mbps. The PoE system supports IEEE 802.3af/at with a total PoE power rating of up to 200W.
The NVR supports recording resolutions up to 12MP. Supported resolutions include 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.
The NVR has two SATA interfaces and supports hard drives with a capacity of up to 10TB per disk. This allows for up to 20TB of supported storage when two 10TB drives are installed.
Yes. The HDMI output supports resolutions up to 4K (3840 × 2160) at 60Hz or 30Hz. It also supports 2K (2560 × 1440) at 60Hz and 1920 × 1080 at 60Hz. HDMI and VGA can operate as independent video outputs.
The DS-7616NXI-I2/16P/S(C) supports H.265, H.265+, H.264, H.264+, and MPEG4 decoding formats. Hikvision states that H.265+ compression can reduce required storage space by up to 75%.
The NVR uses deep-learning-based intelligent analytics and supports facial recognition, perimeter protection, and Motion Detection 2.0. It supports up to 4-channel perimeter protection, up to 1-channel facial recognition for video streams, and up to 4-channel facial recognition for face pictures.
Yes. The NVR supports face picture comparison, human face capture, and face picture search. It can store up to 16 face picture libraries containing up to 10,000 face pictures in total and supports a 4-channel face picture comparison alarm.
The NVR supports 16-channel synchronous playback. Its listed decoding capability is 16 channels at 1080p and 30 frames per second.
Yes. The datasheet lists ONVIF Version 2.5 and RTSP as supported camera access protocols. The NVR also provides 1-channel two-way audio through an RCA connection, along with a separate 1-channel RCA audio output.
