ADI PRO 0E-CAT6PWH Cat6 Plenum CMP Cable 23AWG Solid Copper 1000ft White UL Verified
ADI PRO 0E-CAT6PWH Cat6 Plenum CMP Cable 23AWG Solid Copper 1000ft White UL Verified
Out of stock
Description
Description

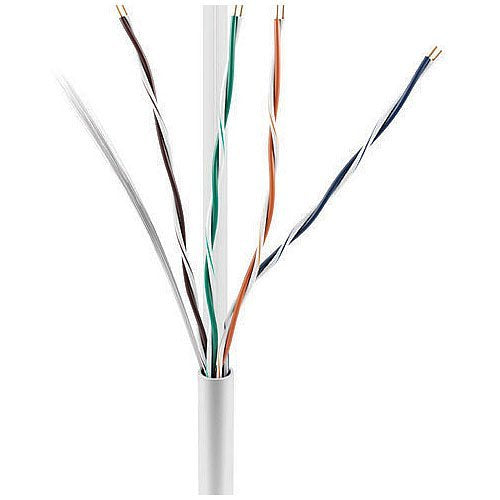

0E-CAT6PWH — Cat6 Plenum CMP 23AWG Solid Copper, 1000 ft White
If you’ve ever dealt with network dropouts or signal noise that stops work in its tracks, you know how frustrating bad cabling can be. The 0E-CAT6PWH was engineered to end those headaches — delivering dependable Gigabit performance, PoE stability, and building-code safety in one clean pull. Made with 23 AWG solid bare copper and FEP insulation, this plenum-rated cable keeps your data clean, installs easy, and lasts for years without the signal loss or crackling that cheaper CCA lines cause.
Why Buyers Choose This Model
- Plenum-Rated CMP/FT6 Safety — Installs confidently in air-handling spaces while meeting NEC fire codes, so inspections pass the first time.
- 23 AWG Solid Copper Conductors — Deliver stronger, cleaner signals and full PoE power with less resistance, avoiding heat build-up or voltage drop.
- FEP Insulation with FR Spline — Maintains pair geometry and suppresses crosstalk for crisp, stable performance up to 500 MHz.
- UL Verified & TIA-568 Certified — Independently tested to Cat6 specs, giving you assurance that every run performs like it should.
- Installer-Friendly Design — A smooth 0.232″ diameter, rip cord, and 25 lb pull rating make long pulls cleaner with fewer snags and re-terminations.
- Wide Temperature Range — From freezing basements to warm ceilings (-4 °F – +167 °F), it stays flexible and dependable.
Key Features & Buyer Benefits
What This Helps You Avoid
Think about the frustration of chasing random disconnects, blurry IP-camera feeds, or network lag right after an install. Those problems usually trace back to cheap cable, voltage drop, or interference — not the switch or camera. With this cable’s solid-copper conductors and tight-twist FEP insulation, you eliminate those weak links before they happen. That means fewer service calls, happier clients, and a system that just works day after day.
From Frustration to Confidence
Most installers learn the hard way — a few months after the job, the customer calls about camera dropouts or network noise. When the cause ends up being cheap, aluminum-core cable or poor grounding, the time lost is yours. Upgrading to 0E-CAT6PWH means no callbacks, stable gigabit links, and reputation-building reliability. You finish the job once and move on to the next with confidence.
What’s in the Box

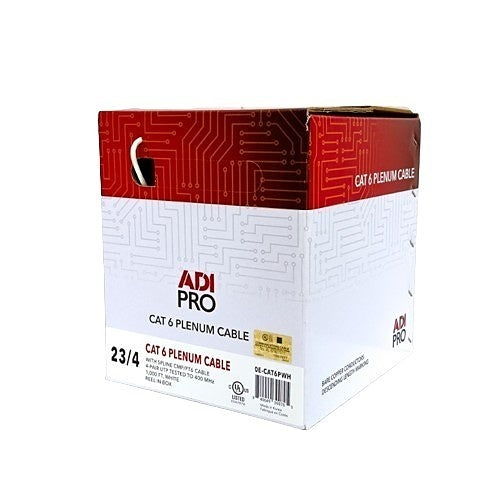

- 1 × 1000 ft (305 m) pull-box of 0E-CAT6PWH Cat6 Plenum CMP cable
- Printed footage markers on jacket for easy measurement
- Integrated rip cord for jacket removal
- Factory test certification (UL E507576, TIA Cat6 Verified)
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
0E-CAT6PWH — Cat6 Plenum (CMP), 23AWG Solid, 1000 ft, White
Need reliable gigabit cabling that passes plenum code and just works? This Cat6 CMP reel-in-box uses 23 AWG solid bare copper, FEP insulation, and a low-smoke, flame-retardant plenum PVC jacket to deliver clean signal, easier pulls, and peace-of-mind in air-handling spaces. Sweep tested to 500 MHz and verified to TIA Cat6, it’s built for 10/100/1000BASE-T, PoE, and digital video runs without the interference gremlins.
Key Features
- Plenum-rated CMP/FT6 — Low-smoke, flame-retardant jacket for code-compliant installs in return-air spaces.
- 23 AWG solid copper conductors — Better performance over distance vs. CCA; stable termination and PoE.
- FEP insulation + FR spline — Helps maintain pair geometry and crosstalk performance up to 500 MHz sweep.
- Verified to ANSI/TIA-568 Cat6 — UL verified; sweep tested to 500 MHz for headroom.
- Installer-friendly — Nominal Ø 0.232", 1.0" min bend radius, 25 lb max pulling force for cleaner runs.
- Wide temp range — Install +32 to +140 °F; storage/operation −4 to +167 °F.
- PoE-ready — Supports IEEE 802.3af DTE Power with 10/100/1000BASE-T and digital video.
Product Identification
Physical Characteristics
Standards & Compliance
Electrical Characteristics
Ideal Applications / Common Uses
- Ethernet networks: 10BASE-T, 100BASE-TX, 1000BASE-T
- Power over Ethernet (IEEE 802.3af DTE Power)
- Digital video transport over Cat6
- Plenum-space installations requiring CMP/FT6
Downloads
Frequently Asked Questions
Yes — the jacket is rated CMP / FT6 (plenum), meaning it’s low-smoke and flame-retardant for use in building plenum or air-handling areas.
This cable is built with **4 solid bare annealed copper pairs** at **23 AWG**.
The cable supports up to 300 V.
The cable is sweep-tested to **500 MHz** and compliant with ANSI/TIA-568 Cat 6 standards.
The minimum bend radius is **1.0 inch**.
Maximum pulling force allowed is **25 lbs**. Exceeding this can damage the cable.
For installation: +32 °F to +140 °F. For operation & storage: –4 °F to +167 °F.
It complies with ANSI/TIA-568, IEC 11801, ICEA S-102-700 (Cat 6), UL 444, and is UL verified to TIA-568 Cat 6. It also meets RoHS and ISO 9001 / ISO 14001 / OHSAS 18001 standards.
No — the datasheet does not specify any included accessories.
Yes. It supports IEEE 802.3af DTE Power (PoE), along with data transport like 10/100/1000BASE-T Ethernet.
