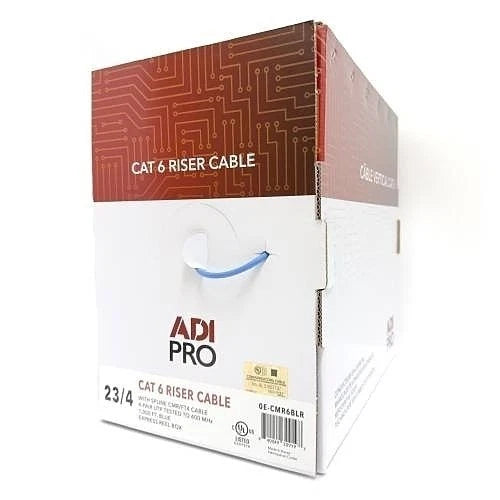

ADI PRO blue 0E-CAT6RWHP Cat6+ 23AWG Riser Cable 1000ft ‒ UL/ETL 550-600MHz White Reel
ADI PRO blue 0E-CAT6RWHP Cat6+ 23AWG Riser Cable 1000ft ‒ UL/ETL 550-600MHz White Reel
Hurry up, only 5 items left in stock.
products.product.pickup_availabilities
Description
Description
ADI PRO 0E-CAT6RWHP Cat6+ Riser Cable – What Makes It Stand Out
If you're tired of underperforming cables slowing your network, this ADI PRO Cat6+ Riser Cable is engineered to deliver reliability and high-speed performance in demanding environments. Perfect for riser runs between floors where fire safety, signal integrity, and long lengths matter.
Key Benefits
- High-frequency performance up to ~550-600 MHz – Exceeds standard Cat6 concerns so you get margin for future-proofing.
- Solid 23 AWG bare annealed copper conductors – Ensures strong, low-resistance signal paths and better handling over long runs.
- Riser / FT4) rated jacket – Meets safety codes for vertical pathways between floors. Flame retardant and RoHS compliant. :contentReference[oaicite:2]{index=2}
- Long 1000-foot reel box – Less joins, fewer weak points; good for large jobs. :contentReference[oaicite:3]{index=3}
- Warranty & certifications – UL/ETL tested, compliant with ANSI/TIA-568.2-D, plus a 30-year limited warranty for peace of mind. :contentReference[oaicite:4]{index=4}
Technical Specifications
| Spec | Details |
|---|---|
| Part Number | 0E-CAT6RWHP |
| Length | 1000 ft (≈ 304.8 m) |
| Conductor | 23 AWG, solid bare annealed copper (4 pairs, UTP) |
| Jacket Rating | CMR / FT4 – Riser |
| Nominal Diameter | 0.232 in |
| Weight (per 1000 ft) | 27.60 lbs |
| Max Pulling Force | 25 lbs |
| Min Bend Radius | 1.0 in |
| Operating Temp | −4°F to +167°F |
| Installation Temp | +32°F to +140°F |
| Tested Frequency | ~550-600 MHz (ANSI/TIA-568.2-D compliant) :contentReference[oaicite:5]{index=5} |
Why Choose This Cable?
For installers or network designers, this cable minimizes signal loss, supports high data rates (including PoE), and ensures compliance with safety standards—so you can pull long runs without compromising on performance or code. For building managers, it's a resilient, UL/ETL certified option that stands up to riser-fire code demands. And because you're getting a full 1000 ft reel, you cut down on waste and install headaches.
