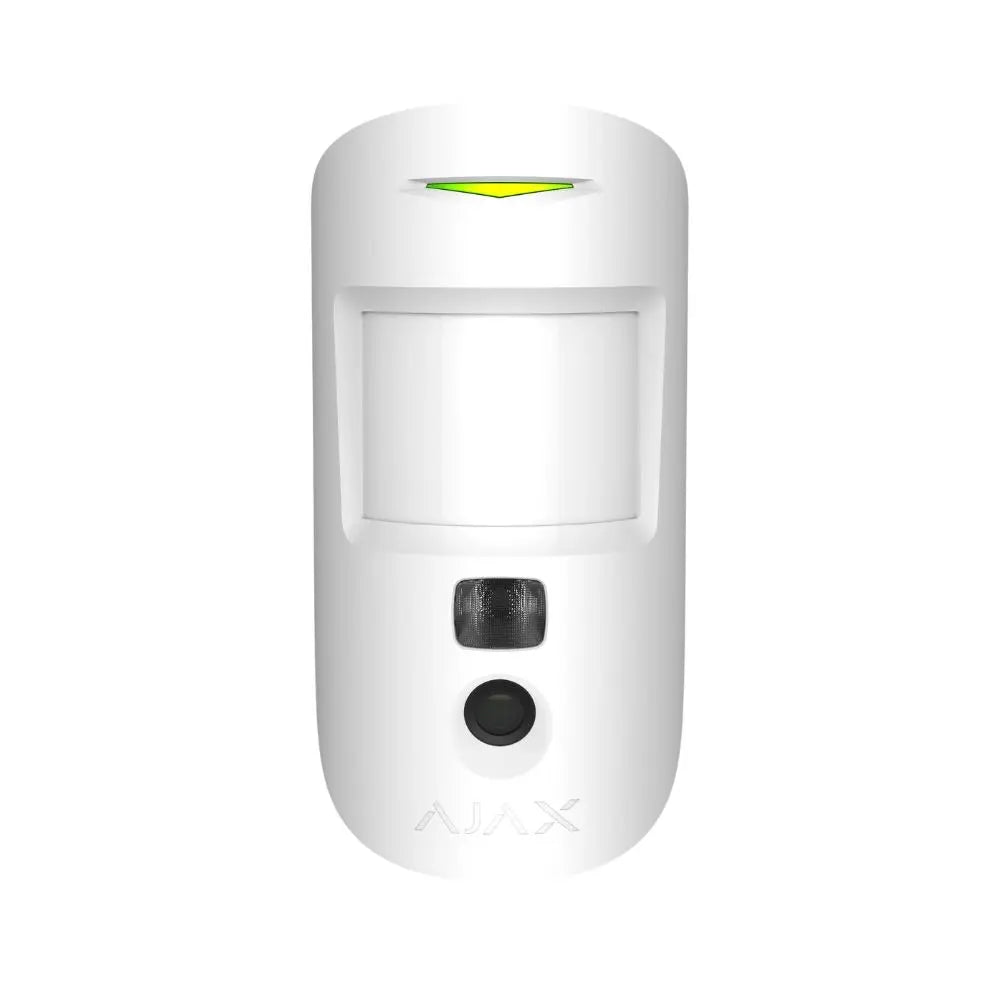

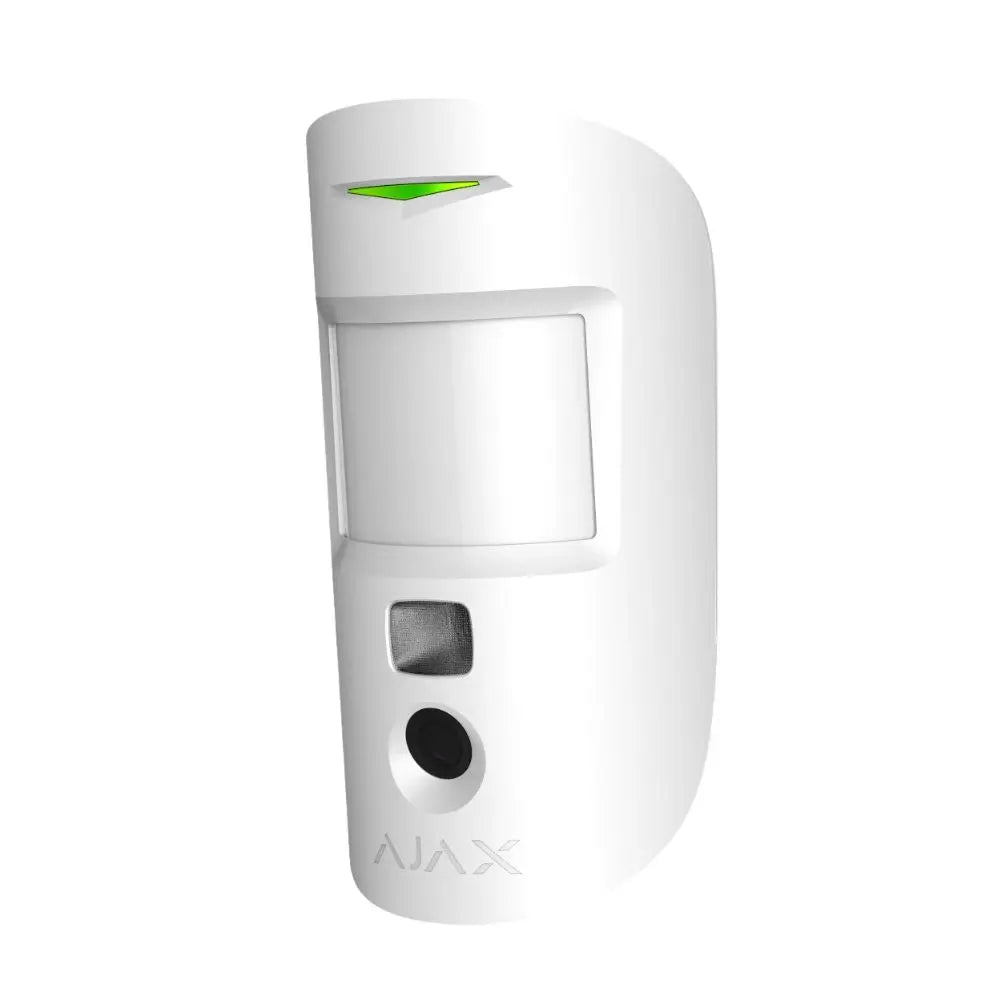

Ajax MotionCam Jeweller White Wireless PIR Detector with Photo Verification(9NA).
The Ajax MotionCam Jeweller is a wireless indoor motion detector with a built-in camera for instant photo verification of alarms. Designed for seamless integration with Ajax hubs, it delivers fast, reliable security with encrypted communication, false alarm prevention, and up to four years of battery life. Ideal for homes, offices, and retail spaces, it provides dependable protection and user confidence.
Key Features
- Photo Verification – Built-in camera captures a photo when motion is detected
- Fast Alarm Response – Alarm delivery in 0.3 s, first photo in under 9 s
- Pet Immunity – Ignores pets up to 20 kg and 50 cm tall
- Wireless Range – Up to 1,700 m in open space with Ajax hub
- Long Battery Life – Up to 4 years on pre-installed CR123A batteries
- SmartDetect Algorithm – Filters false alarms using advanced IR analysis
- Privacy Protection – Encrypted transmission and storage of images
- Easy Installation – SmartBracket mount with pre-installed batteries
Technical Specifications
| Category | Details |
|---|---|
| Detection Distance | Up to 12 m |
| Detection Angles | 88.5° horizontal, 80° vertical |
| Detection Speed | 0.3–2.0 m/s |
| Photo Resolution | 640 × 480 / 320 × 240 (default) / 160 × 120 |
| Photos per Series | 1–5 |
| IR Backlight | For low-light photo capture |
| Wireless Range | Up to 1,700 m (open space) |
| Communication | Jeweller & Wings protocols, encrypted |
| Battery | 2 × CR123A, up to 4 years |
| Pet Immunity | Up to 20 kg / 50 cm |
| Operating Temp | –10 °C to +40 °C |
| Humidity | Up to 75% |
| Protection Class | IP50 |
| Dimensions | 110 × 65 × 50 mm |
| Weight | 86 g |
| Compliance | EN 50131 (Grade 2), PD 6662:2017 |
Accessories & Compatible Mounts
- SmartBracket mounting panel (included)
- Ajax ReX 2 range extender (compatible)
Ideal Applications
- Residential homes and apartments
- Retail shops and offices
- Warehouses and commercial facilities
The Ajax MotionCam Jeweller combines smart photo verification with reliable PIR motion detection, offering an effective, privacy-conscious security solution with effortless installation and long-lasting operation.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
Ajax MotionCam (PhOD) Jeweller (9NA) UPC white.UL.
Only 5 left
Choose your option
AJAX MOTIONCAM PHOD JEWELLER WHITE WIRELESS MOTION DETECTOR AJAX WITH CAMERA (9NA) WHITE
Out of stock
Choose your option
AJAX MOTIONCAM HDR PHOD JEWELLER WIRELESS MOTION DETECTOR AJAX WITH CAMERA (9NA) WHITE
Out of stock
Choose your option
27383.23.WH3 AJAX MOTIONCAM WHITE WIRLESS MOTION DETECTION
Out of stock
Choose your option
Technical Specifications
Ajax MotionCam Jeweller Wireless Indoor IR Motion Detector with Photo Verification, White (42820.23.WH3)
MotionCam Jeweller is a wireless indoor IR motion detector with a built-in camera for photo verification of alarms. It detects motion up to 12 m with 88.5°/80° angles, ignores pets up to 20 kg and 50 cm tall, and sends alarms in 0.3 s and the first photo in 9 s over the Jeweller and Wings protocols. An Ajax hub is required for operation; it runs up to 4 years on pre-installed batteries.
Ideal applications
- Indoor intrusion detection with visual alarm verification
- Homes with pets (pet immunity up to 20 kg / 50 cm)
- Facilities connected to a monitoring station supporting Ajax photo verification
Key Features
- Up to 12 m detection distance, 88.5°/80° viewing angles
- Built-in camera for photo verification: up to 640 × 480 pixels, up to 5 photos in a series
- IR backlight for low light conditions
- Pet immunity and temperature compensation
- SmartDetect false alarms prevention algorithm
- Alarm delivery within 0.3 s, first photo delivery in 9 s
- Up to 1,700 m communication range in an open space
- Up to 4 years of operation on pre-installed batteries
- Remote control and setup via the app; connecting via QR code
