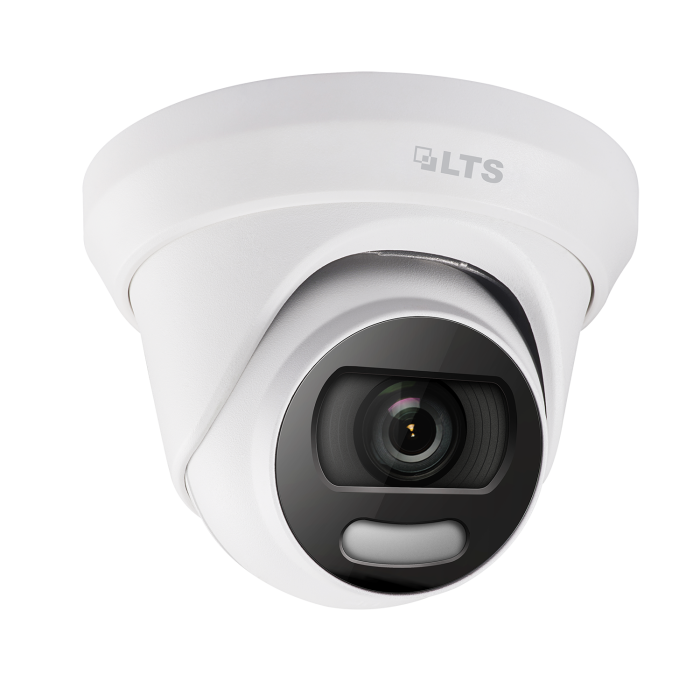

CMHT1752W-28CF Platinum 5 MP True Color 24/7 Turret Camera
What happens when an important incident occurs at night, but your camera cannot capture enough color or detail to show you what really happened? The CMHT1752W-28CF delivers sharp 5 MP video and 24-hour color imaging, helping you see people, vehicles, clothing, and surroundings more clearly.
Its ultra-low-light F1.0 lens and built-in Smart Light maintain useful color footage even in darkness. With a wide 2.8 mm viewing angle, true WDR, flexible 4-in-1 video output, and IP67 protection, this camera gives you dependable coverage without unnecessary complexity.
Why Buyers Choose This Model
```5 MP Resolution — See More of the Details That Matter
The 2560 × 1944 resolution provides a detailed view of your property, helping you review events with greater clarity instead of relying on soft or heavily pixelated footage.
24/7 True Color — Preserve Useful Visual Information at Night
Would identifying a person or vehicle be easier if nighttime footage retained color? This camera records in color around the clock, helping preserve details that conventional black-and-white night video may lose.
F1.0 Ultra-Low-Light Performance — Get a Clearer Image in Dim Areas
With minimum illumination down to 0.0005 lux when AGC is enabled, the camera makes better use of limited ambient light. You receive more usable footage in areas where ordinary cameras may struggle.
Smart White Light up to 66 Feet — Maintain Color in Darkness
When no ambient light is available, the built-in white light supports color imaging at distances up to 66 ft (20 m). Automatic light control provides illumination when needed without requiring a separate light source.
130 dB True WDR — Balance Bright and Dark Areas
Entrances, windows, and outdoor scenes often contain deep shadows and intense highlights at the same time. True WDR helps balance these difficult scenes so important areas remain easier to examine.
3D Digital Noise Reduction — Enjoy Cleaner Recorded Video
3D DNR reduces visible image noise in challenging lighting, giving you cleaner footage and fewer distracting artifacts when reviewing an event.
Wide 2.8 mm Lens — Cover More Area with One Camera
The lens provides a 99.7° horizontal and 139.8° diagonal field of view. This broad perspective makes it easier to monitor entrances, rooms, storefronts, patios, and other open areas without creating an excessively narrow view.
4-in-1 Video Output — Gain Greater Installation Flexibility
Switchable TVI, AHD, CVI, and CVBS output gives installers more flexibility when connecting the camera to a compatible analog surveillance system.
Up to 30 fps at Supported Resolutions — Follow Movement More Smoothly
The camera supports 5 MP video at 20 fps and selected 4 MP or 1080p modes at up to 30 fps. This gives you the option to prioritize maximum image detail or smoother motion where the selected video format allows it.
IP67 Protection — Dependable Indoor or Outdoor Coverage
Its IP67-rated construction helps protect the camera against dust and water exposure. With an operating range from -40°F to 140°F, it is prepared for demanding indoor and outdoor environments.
Flexible Turret Adjustment — Aim Coverage Where You Need It
Wide pan and rotation adjustment makes it easier to position the camera toward the area that matters most, helping reduce poorly framed views after installation.
Privacy and Motion Zones — Put More Control in Your Hands
Four programmable privacy masks help exclude sensitive areas, while four programmable motion-detection zones let you define the parts of the scene that require attention.
Remote OSD Control — Simplify Camera Configuration
When connected to a Platinum DVR, UTC technology provides access to the camera’s OSD menu through the video connection. This makes it easier to adjust brightness, sharpness, white balance, exposure, and Smart Light settings.
What This Helps You Avoid
Imagine discovering that something happened outside your home or business, only to find that the nighttime recording is too dark, too noisy, or missing the color details you needed. A security camera may have recorded the event, but footage that cannot clearly show the surrounding scene can leave you with more questions than answers.
```The CMHT1752W-28CF addresses that problem with detailed 5 MP imaging, continuous color operation, ultra-low-light sensitivity, and built-in white illumination. True WDR helps prevent entrances and windows from becoming washed out, while 3D DNR keeps difficult scenes cleaner and easier to review.
Its wide viewing angle helps reduce incomplete coverage, and its four switchable video formats make system integration more flexible. Instead of wondering whether your camera will capture useful evidence when conditions become difficult, you gain a clearer, more dependable view of the areas you want to protect.
- Avoid dark, black-and-white footage that loses useful color information.
- Avoid washed-out entrances and overly dark shadows.
- Avoid narrow views that leave important areas outside the frame.
- Avoid excessive image noise in low-light recordings.
- Avoid unnecessary installation limitations with one fixed video format.
- Avoid using an indoor-only camera where weather exposure is a concern.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
CMHT1752W-28CF Platinum 5 MP True Color 24/7 Turret Camera
Capture clear, full-color security footage around the clock with the LTS CMHT1752W-28CF. Its 5 MP image sensor, F1.0 aperture, 130 dB true WDR, and built-in white light help preserve useful details in darkness and difficult high-contrast scenes. A wide 2.8 mm fixed lens makes it especially practical for monitoring entrances, rooms, storefronts, and other broad areas.
The camera supports TVI, AHD, CVI, and CVBS video formats, making it a flexible choice for compatible analog HD surveillance systems. Its IP67-rated construction is designed to withstand demanding indoor and outdoor environments.
Key Features
- 5 MP resolution at up to 2560 × 1944
- 24-hour full-color imaging
- Ultra-low-light performance down to 0.0005 lux
- Built-in Smart Light with up to 66 ft (20 m) white-light range
- 130 dB true WDR for challenging lighting conditions
- 3D digital noise reduction
- Wide-angle 2.8 mm fixed lens
- Switchable TVI, AHD, CVI, and CVBS video output
- Four programmable privacy masks
- Four programmable motion-detection areas
- Strobe light alarm support
- IP67 weather-resistant protection
- OSD menu control through UTC technology when used with a Platinum DVR
Technical Specifications
```Camera
Image and OSD Menu
Video Interface
Power and Environmental
Construction and Physical Specifications
Detailed Mounting Dimensions
Compatible Accessories
Ideal Applications and Common Uses
- Monitoring residential entrances, driveways, patios, and side yards
- Capturing full-color nighttime video around homes and businesses
- Storefront, lobby, hallway, and indoor retail surveillance
- Parking-area and building-perimeter monitoring within the white-light range
- Locations with bright backlighting, shadows, or changing illumination
- Upgrading compatible TVI, AHD, CVI, or CVBS analog surveillance systems
- Outdoor installations requiring an IP67-rated turret camera
- Wall, vertical-pole, or corner installations using the listed optional mounts
Specification Note
The specification table in the source document prints the metric dimensions as “Ø 109.82 × 5.56 mm.” The dimensional drawing identifies the camera height as 85.56 mm, which correctly corresponds to the listed 3.37-inch measurement; therefore, the specifications above use 85.56 mm.
Downloads
Frequently Asked Questions
Yes. The camera provides 24-hour color imaging and can operate at 0 lux when its built-in white light is active.
It uses a 5 MP CMOS sensor and produces a maximum resolution of 2560 × 1944 pixels.
Its Smart Light provides a white-light range of up to 66 ft (20 m). The white light can be configured to operate automatically or remain off.
The camera has a switchable 4-in-1 video output supporting TVI, AHD, CVI, and CVBS formats.
It supports 5 MP video at 20 fps in TVI and AHD modes. It can also provide up to 30 fps at supported 4 MP and 1080p settings, depending on the selected video format.
The fixed 2.8 mm lens provides a 99.7° horizontal, 72° vertical, and 139.8° diagonal field of view.
Yes. It has an IP67 protection rating and is specified to operate from -40°F to 140°F (-40°C to 60°C) in humidity levels of 90% or less, non-condensing.
The camera provides at least 130 dB true WDR and supports WDR, BLC, HLC, Global, HLS, and anti-banding exposure modes. It also uses 3D DNR to reduce image noise.
Yes. It supports four programmable motion-detection areas and four programmable privacy masks.
The camera requires 12 VDC ±25% and consumes a maximum of 3.5 W. LTS recommends using one power adapter per camera. Listed accessories include the LTB301 wall mount, LTB378 vertical pole mount, and LTB379 corner mount.
