LTS CMHT2122-28LF 2MP Smart Dual-Light Fixed Turret HD-TVI Camera, 2.8mm, 20m IR/White Light, IP67
LTS CMHT2122-28LF 2MP Smart Dual-Light Fixed Turret HD-TVI Camera, 2.8mm, 20m IR/White Light, IP67
Hybrid Light
Infrared (IR)
Available in stock (21)
products.product.pickup_availabilities
Description
Description

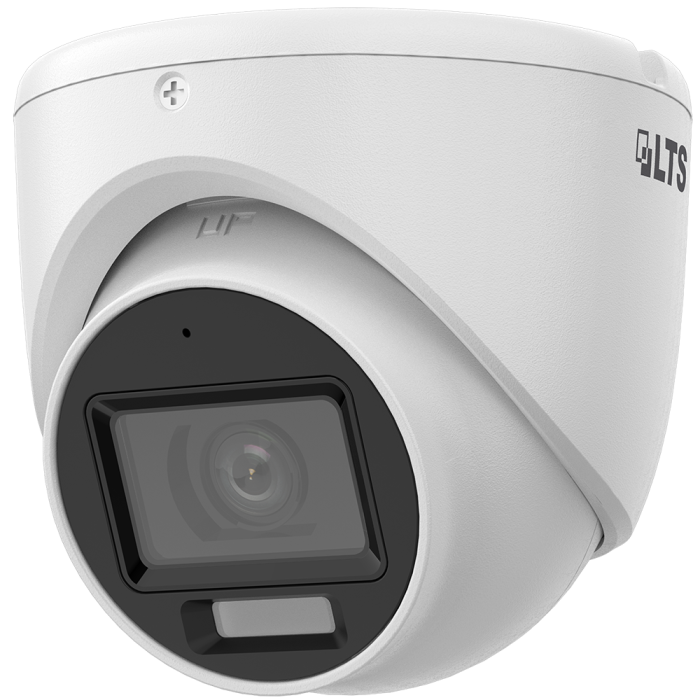

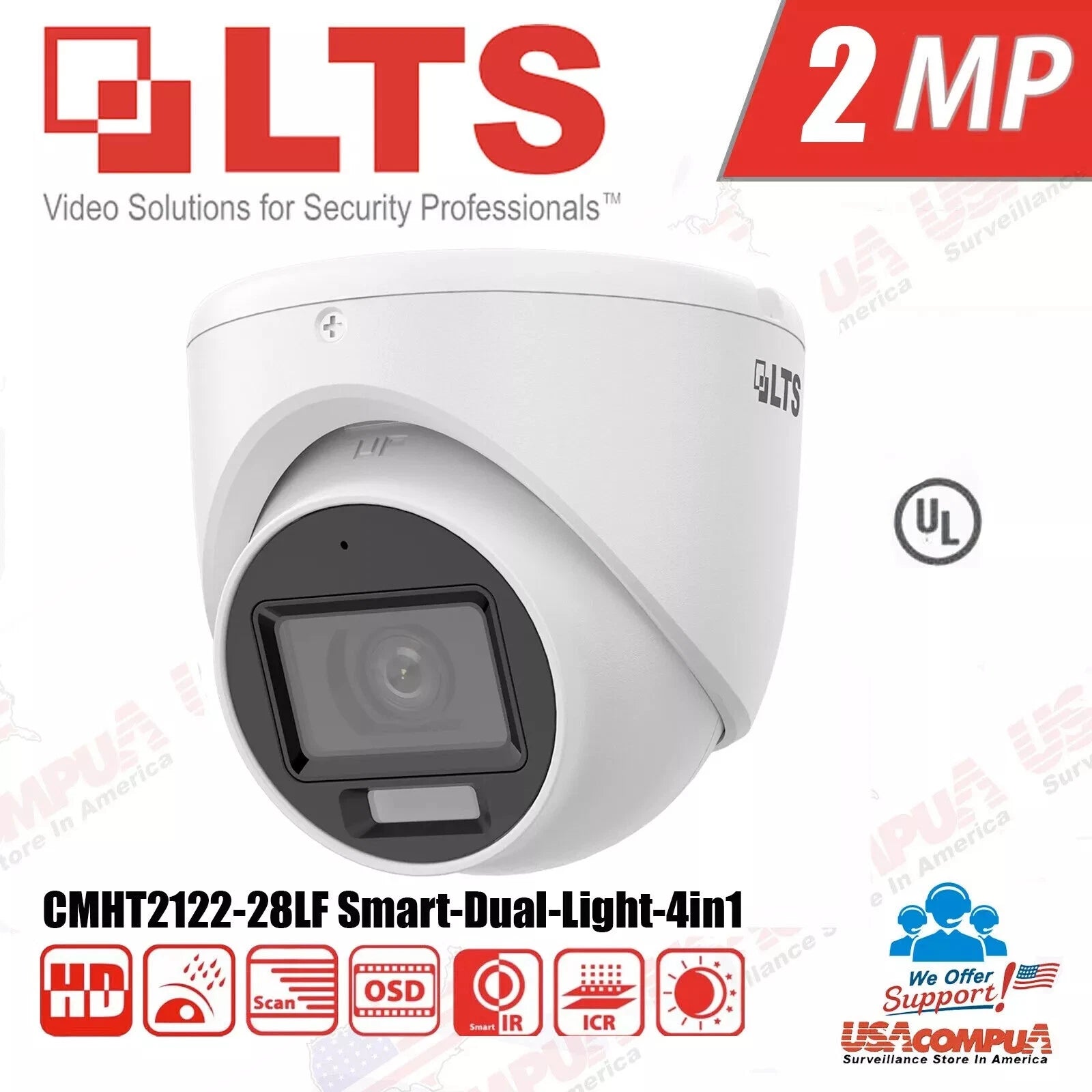

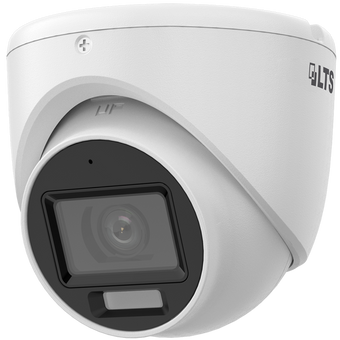

LTS CMHT2122-28LF 2 MP Smart Dual Light Fixed Turret Camera
What would it mean to have clearer visibility around your property without replacing your entire coaxial surveillance system?
The LTS CMHT2122-28LF delivers dependable 1080p monitoring with infrared and white-light illumination for flexible nighttime coverage. Its wide 2.8 mm lens, durable metal housing, and IP67 protection make it a practical choice for monitoring important indoor or outdoor areas.
With four switchable video formats, it gives you greater flexibility when integrating the camera into a compatible surveillance system.
Why Buyers Choose This Model
```2 MP Full HD Resolution — See Important Activity More Clearly
The 2 MP CMOS sensor produces video at up to 1920 × 1080 resolution, helping you see people, movement, and everyday activity with greater clarity than standard-definition video.
Smart Dual Light — Gain More Flexibility After Dark
Infrared and white-light illumination give you flexible lighting options for nighttime surveillance. Both light types provide a specified range of up to 20 meters, helping you maintain visibility when surrounding light is limited.
2.8 mm Wide-Angle Lens — Monitor More of the Scene
The fixed 2.8 mm lens provides a 97° horizontal field of view, allowing you to cover entrances, rooms, walkways, and other broad areas without creating an unnecessarily narrow view.
Four Switchable Video Formats — Simplify System Integration
Support for TVI, AHD, CVI, and CVBS gives you more options when matching the camera to a compatible recorder. This flexibility can make upgrading or expanding an existing coaxial system more convenient.
Up to 1080p at 30 fps — Follow Movement More Smoothly
The camera supports 1080p at 25 or 30 frames per second in TVI, AHD, and CVI modes, helping moving activity appear smoother and easier to review.
Digital WDR and Image Enhancement — Improve Difficult Scenes
Digital WDR, BLC, HLC, Smart IR, brightness, and sharpness controls help optimize the image when a scene contains glare, backlighting, bright points, or uneven illumination.
IP67 Metal Housing — Install with Greater Confidence
The metal body and IP67 water- and dust-resistant rating make this camera suitable for demanding indoor and outdoor environments.
Wide Operating Range — Dependable Through Temperature Changes
Operation from -40 °C to 60 °C (-40 °F to 140 °F) helps the camera continue working through extreme hot and cold conditions.
Flexible Turret Adjustment — Aim Coverage Where It Matters
With 360° pan, 75° tilt, and 360° rotation adjustment, the camera can be positioned to capture the area most important to you.
Multiple Mounting Options — Adapt to the Installation Site
Available accessories include the LTB345 junction box, LTB378 vertical pole mount, and LTB379 corner mount, providing additional installation choices for different locations.
What This Helps You Avoid
When nighttime footage is too dark, a camera covers too little of the scene, or a replacement camera does not support the required video format, important activity can become harder to understand.
That uncertainty can leave you reviewing incomplete-looking footage and questioning whether the area was properly covered when it mattered most.
The CMHT2122-28LF helps address those concerns with 1080p imaging, dual-light coverage up to 20 meters, a wide 97° horizontal view, and four selectable video signals. Instead of settling for limited visibility and fewer integration options, you gain a durable camera designed to provide broader, more dependable surveillance coverage.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
CMHT2122-28LF
LTS 2 MP Smart Dual Light Fixed Turret Camera
The LTS CMHT2122-28LF is a 1080p fixed turret camera designed to provide clear day-and-night surveillance with flexible infrared and white-light illumination. Its wide 97° horizontal field of view helps cover more of the scene, while Digital WDR and selectable image-enhancement settings help improve visibility under challenging lighting conditions.
With a durable metal housing, IP67 weather resistance, and support for TVI, AHD, CVI, and CVBS video formats, this camera is suitable for dependable indoor or outdoor security installations.
Key Features
- 2 MP Full HD imaging: Captures video at up to 1920 × 1080 resolution.
- Smart dual-light illumination: Uses infrared and white light to provide flexible nighttime visibility.
- Up to 20 m night coverage: Both the infrared and white-light illuminators have a maximum range of 20 meters.
- Wide viewing angle: The 2.8 mm fixed lens provides a 97° horizontal field of view.
- Four switchable video signals: Supports TVI, AHD, CVI, and CVBS through one video output.
- Digital WDR: Helps improve image visibility in scenes containing both bright and dark areas.
- Multiple image-enhancement options: Includes DWDR, BLC, HLC, Smart IR, brightness, and sharpness controls.
- Flexible positioning: Supports 360° pan, 75° tilt, and 360° rotation adjustment.
- Durable construction: Features a metal housing with an IP67 water- and dust-resistant rating.
- Extreme-temperature operation: Rated to operate from -40 °C to 60 °C (-40 °F to 140 °F).
Camera
Lens
Illuminator
Interface
General
Protection
Compatible Accessories
Ideal Applications and Common Uses
- Monitoring residential entrances, driveways, garages, and side yards
- Covering retail stores, offices, reception areas, and interior hallways
- Watching building entrances, loading areas, and exterior walkways
- Indoor or outdoor installations exposed to dust, rain, or extreme temperatures
- Wide-area monitoring where a 97° horizontal field of view is beneficial
- Nighttime surveillance requiring infrared or visible white-light illumination
- Upgrading compatible analog HD systems using TVI, AHD, CVI, or CVBS video
- Pole- or corner-mounted installations when used with the listed accessories
Downloads
Frequently Asked Questions
It uses a 2 MP CMOS image sensor and provides a maximum resolution of 1920 × 1080 pixels.
Yes. It has infrared and white-light illumination, with each light type providing a maximum specified range of 20 meters (approximately 65.6 feet).
It has a 2.8 mm fixed focal lens with a 97° horizontal, 54° vertical, and 113° diagonal field of view.
Yes. Its metal housing carries an IP67 protection rating, making it resistant to water and dust.
The camera has one switchable video output that supports TVI, AHD, CVI, and CVBS signal formats.
In TVI, AHD, and CVI modes, it supports 1080p at 25 fps or 30 fps. In CVBS mode, it supports PAL or NTSC video.
The camera supports Digital WDR, BLC, HLC, Global image enhancement, automatic or manual white balance, AGC, Smart IR, brightness adjustment, and sharpness adjustment.
It requires a 12 VDC power supply with a ±25% tolerance and consumes a maximum of 3.5 W. The datasheet recommends using one power adapter per camera.
It is rated to operate from -40 °C to 60 °C (-40 °F to 140 °F) in humidity levels of 90% or less without condensation.
The datasheet lists the LTB345 junction box, LTB378 vertical pole mount, and LTB379 corner mount as compatible accessories.
