CMHT2152-28LFA
CMHT2152-28LFA
In stock
products.product.pickup_availabilities
Description
Description

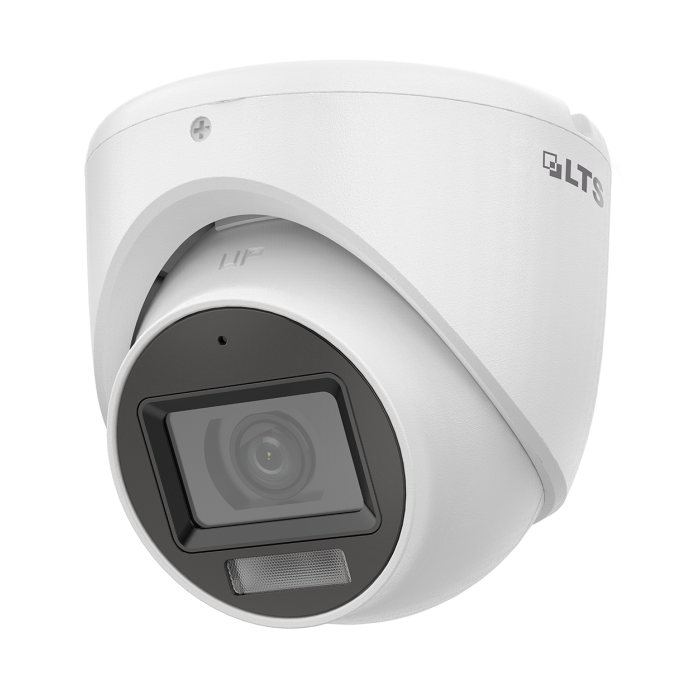

Platinum 5 MP Dual-Light Turret HD-TVI Camera
Platinum, 5 MP, TVI, Dual-Light, Fixed Lens, Turret, 2.8 mm, Up to 100 ft (30 m) IR Range for Bright Night Imaging, 4-Signals-in-1 (TVI / CVI / AHD / CVBS), IP67
- High quality imaging with 5 MP, 2960 x 1665 resolution
- 2.8 mm fixed lens
- Up to 98 ft (30 m) IR distance for bright night imaging
- Up to 66 ft (20 m) supplemental white light range for a bright night imaging
- One switchable port for four signals - TVI / AHD / CVI / CVBS
- Water and dust resistant (IP67)
- Event triggered white light at night
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
Platinum 5 MP Dual-Light Turret HD-TVI Camera
Platinum, 5 MP, TVI, Dual-Light, Fixed Lens, Turret, 2.8 mm, Up to 100 ft (30 m) IR Range for Bright Night Imaging, 4-Signals-in-1 (TVI / CVI / AHD / CVBS), IP67
- High quality imaging with 5 MP, 2960 x 1665 resolution
- 2.8 mm fixed lens
- Up to 98 ft (30 m) IR distance for bright night imaging
- Up to 66 ft (20 m) supplemental white light range for a bright night imaging
- One switchable port for four signals - TVI / AHD / CVI / CVBS
- Water and dust resistant (IP67)
- Event triggered white light at night
Specifications
Camera
Image Sensor 3K CMOS
Max. Resolution 2960 (H) ? 1665 (V)
Min. Illumination 0.01 Lux @ (F1.2, AGC on), 0 Lux with IR
Shutter Time PAL: 1/25 to 1/50,000 sec.; NTSC: 1/30 to 1/50,000 sec.
Day & Night ICR
Angle Adjustment Pan: 0 to 360?, Tilt: 0 to 75?, Rotation: 0 to 360?
Signal System PAL / NTSC
Lens
Lens Type 2.8 mm fixed focal lens
Focal Length & Field of View 2.8 mm: Horizontal: 107?, vertical: 64?, diagonal: 129?
Lens Mount M12
Illuminator
Supplemental Light Type White Light, IR
Supplemental Light Range
IR: Up to 98 ft (30 m)
White Light: Up to 66 ft (20
Imaging m)
Image Settings Brightness, Sharpness, Smart IR
Frame Rates
TVI: 5 MP @ 20 fps, 4 MP @ 25 fps / 30 fps, 1080p @ 25 fps / 30 fps
AHD: 5 MP @ 20 fps, 4 MP @ 25 fps / 30 fps
CVI: 4 MP @ 25 fps / 30 fps
CVBS: PAL / NTSC
Day / Night Mode IR / White Light
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement Yes
White Balance Auto / Manual
AGC Yes
Interface
Video Output Switchable TVI / AHD / CVI / CVBS
Audio Microphone built-in, audio over coax cable
General
Materials Metal
Dimensions 3.1 ? ? 3.4 in. (80 ? ? 85.1 mm)
Weight Approx. 0.66 lbs (300 g)
Operating Conditions -40? to 140? F (-40? to 60? C); humidity: 90% or less (non-condensation)
Language English
Power Supply
12 VDC ? 25%
*LTS recommends using one power adapter for each camera.
Consumption Max. 2.9 W
Certfications
Protection IP67
