CMIP3C42W-28SDL Lts w/ audio IP PoE Camera Platinum 4 MP Lens Turret Active

Data sheet PDF

Product Description

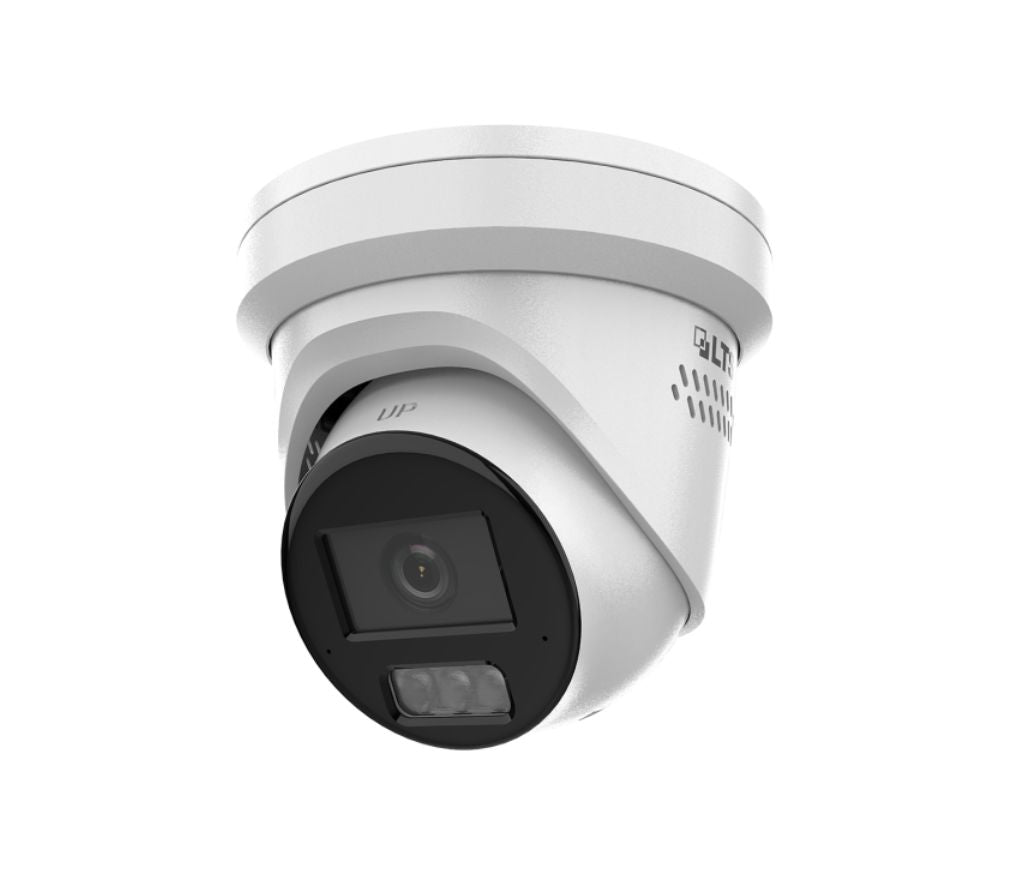

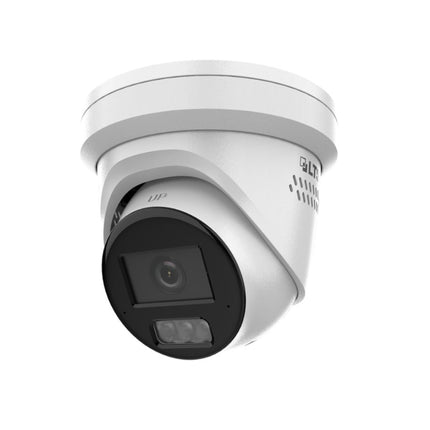

Platinum 4 MP Fixed Turret IP Camera

Platinum Active Deterrence, Fixed Lens, 4 MP, Color 24/7, Turret, IP Camera, Strobe Light and Audible Warning, MD 2.0 - Human and Vehicle Detection, 1/1.8" Sensor, 2.8 mm, True WDR 130 dB, Built-in microphone + speaker

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight with 130 dB WDR technology
• Focus on human and vehicle target classification based on deep learning
• 24/7 color imaging
• Active strobe light and audio alarm to deter intruders
• Real-time security via built-in two-way audio
• Audio and alarm interface available
• Water and dust resistant (IP67)
• MD 2.0 - Human and Vehicle Detection







Specifications
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 ? 1520
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time 1/3 sec. to 1/100,000 sec.
Angle Adjustment Pan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
Lenses
Focal Lengths & FOV
2.8 mm: horizontal 111.9?, vertical 60.5?, diagonal 133.6?
4 mm: horizontal 95.2?, vertical 50.6?, diagonal 114.7?
Lens Mount M16
Iris Type Fixed
Aperture F1.0
Depth of Field
2.8 mm: 3.1 m to ?
4 mm: 5.4 m to ?
Detection, Observation, Recognition, Identification
DORI
2.8 mm, D: 190 ft (58.2 m), O: 75 ft (23.1 m), R: 38 ft (11.6 m), I: 19 ft (5.8 m)
4 mm, D: 252 ft (77 m), O: 100 ft (30.5 m), R: 50 ft (15.4 m), I: 25 ft (7.7 m)
Illuminator
Supplemental Light Type White light
Supplemental Light Range Up to 98 ft (30 m)
Smart Supplemental Lighting Yes
Video
Main Stream
50 Hz: 25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)
60 Hz: 30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)
Sub-Stream
50 Hz: 25 fps (640 ? 480, 640 ? 360)
60 Hz: 30 fps (640 ? 480, 640 ? 360)
Third Stream
50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
*Third stream is supported under certain settings.
Video Compressions
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264
*Third stream is supported under certain settings.
Video Bit Rates 32 Kbps to 8 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
H.265 Type Main Profile
Bit Rate Control CBR / VBR
Scalable Video Coding (SVC) H.265 and H.264 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Compression G.711 ulaw / G.711 alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC
Audio Bit Rates
64 Kbps (G.711 ulaw / G.711 alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192
Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC)
Audio Sampling Rates (kHz) 8 / 16 / 32 / 44.1 / 48
Environmental Noise Filtering Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User / Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP / HTTPS, TLS 1.1 / 1.2,
WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD / SDHC / SDXC
cards (256 GB) for local storage
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Day / Night Switch Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ? 52 dB
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, supports MicroSD / SDHC / SDXC cards, up to 256 GB
Built-in Microphone Yes
Built-in Speaker 1.2 W, 10 cm: 95 dB
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 K?, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 ?, interface type: non-equilibrium
Alarm
Visual alarm
1 input, 1 output (max. 24 VDC / 24 VAC, 1 A)
Reset Key Yes
Event Types
Basic Events
Motion detection (human and vehicle targets classification), video tampering alarm,
exception/anomaly
Smart Events
Line crossing, intrusion, region entrance, region exiting (supports alarm triggering by
specified target types (human and vehicle)) and scene change detections
Linkage
Upload to NAS / memory card / FTP, notify surveillance center, trigger recording,
trigger capture, send email, strobe light, audible warning, trigger alarm output
Deep Learning Functions
Face Capture Yes
General
Power
12 VDC ? 25%, 0.54 A, max. 6.5 W, ? 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
Dimensions ? 5.4 ? 4.5 in. (? 138.3 ? 115.4 mm)
Package Dimensions 6.7 ? 6.7 ? 5.9 in. (170 ? 170 ? 150 mm)
Weight Approx. 1.7 lbs (760 g)
Package Weight Approx. 2.3 lbs (1,040 g)
Storage Conditions -22? to 140? F (-30? to 60? C); Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-22? to 140? F (-30? to 60? C); Humidity 95% or less (non-condensing)
Languages (33)
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Functions
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter
Certifications
EMC
FCC SDoC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,
EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC VoC: ICES-003: Issue 6, 2016
KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 60950-1
CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014
CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014
LOA: IEC/EN 60950-1
Environmental
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protections IP67: IEC 60529-2013
