Description
Description

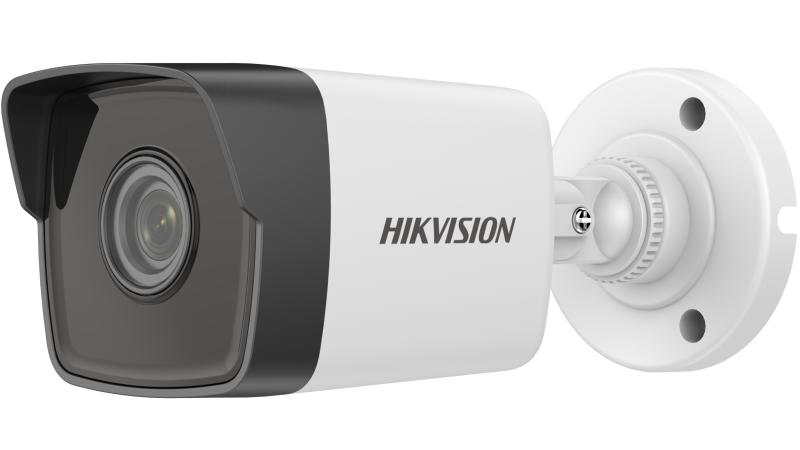

5 MP Fixed Bullet Network Camera
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
- -UF: Built-in microphone for real-time audio security
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
5 MP Fixed Bullet Network Camera
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
- -UF: Built-in microphone for real-time audio security
Specification
Camera
Lens
Illuminator
Video
Audio
Network
Interface
Event
General
Approval
Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
2560 ? 1920
Min. Illumination
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0? to 360?, tilt: 0? to180?, rotate: 0? to 360?
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98.0?, vertical FOV 71.7?, diagonal FOV 127.0?
4 mm, horizontal FOV 75.3?, vertical FOV 55.5?, diagonal FOV 98.2?
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (2560 ? 1920)
25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
60 Hz: 20 fps (2560 ? 1920)
30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
Sub-Stream
50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main profile
Region Of Interest (ROI)
1 fixed region for main stream
Audio
Audio Compression
-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate
-UF: 8 kHz/16 kHz
Environment Noise Filtering
-UF: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
User/Host
Up to 32 users. 3 levels: administrator, operator and user
3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
-UF: Built-in memory card slot, support microSD card, up to 256 GB
Built-In Microphone
-UF: Yes
Reset Key
-UF: Yes
Event
Basic Event
Motion detection, video tampering, exception
Linkage
Upload to FTP, notify surveillance center, send email
-UF also supports: upload to memory card, trigger recording, trigger capture
General
Power
12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension
177.6 mm ? 67.8 mm ?66.2 mm (7" ? 2.7" ? 2.6")
Package Dimension
216 mm ? 121 mm ? 118 mm (8.5" ? 4.8" ? 4.6")
Weight
Approx. 270 g (0.6 lb.)
With Package Weight
Approx. 481 g (1.1 lb.)
Storage Conditions
-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 7;
KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 62368-1;
CB: IEC 62368-1:2014+A11;
CE-LVD: EN 62368-1:2014/A11:2017;
BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
