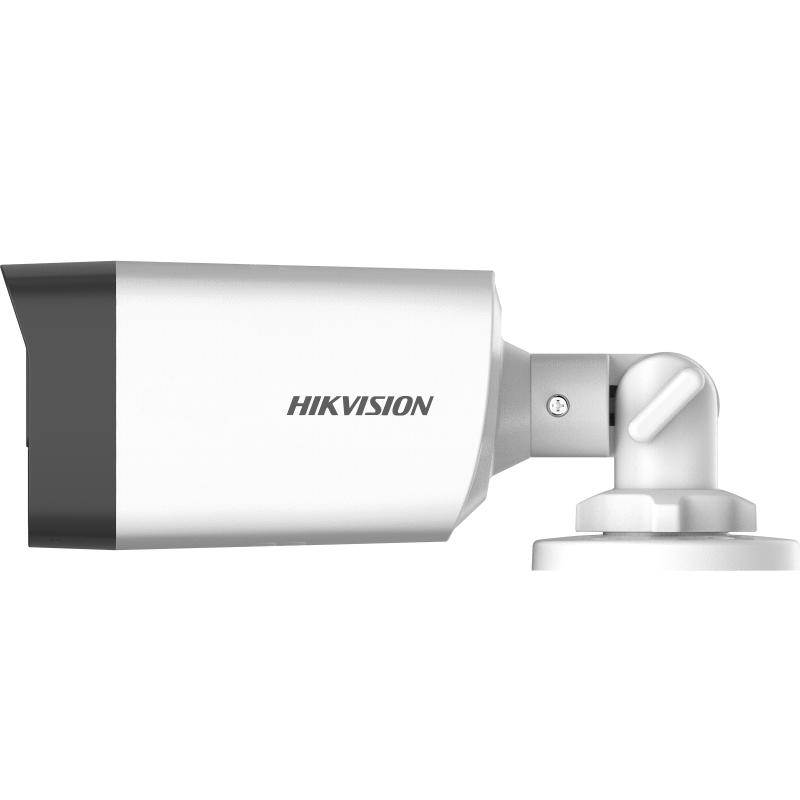

DS-2CE17H0T-IT1F Hikvision CCTV Camera 5 MP Bullet w/ 2560 ÔøΩ 1944
DS-2CE17H0T-IT1F Hikvision CCTV Camera 5 MP Bullet w/ 2560 ÔøΩ 1944
Infrared (IR)
Out of stock
Description
Description
DS-2CE17H0T-IT1F Hikvision CCTV Camera 5 MP Bullet w/ 2560 ? 1944
This listing includes:
-  (1) ANALOG CAMERA: DS-2CE17H0T-IT1F
DS-2CE17H0T-IT1F  view data sheet
5 MP Fixed Bullet Camera
- High quality imaging with 5 MP, 2560 ? 1944 resolution
- 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Up to 30 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
5 MP Fixed Bullet Camera
- High quality imaging with 5 MP, 2560 ? 1944 resolution
- 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Up to 30 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Specification
Camera
Lens
Interface
General
Approval
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) ? 1944 (V)
- Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation 0 to 360?
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
2.4 mm, horizontal FOV: 103?, vertical FOV: 81?, diagonal FOV: 142?
2.8 mm, horizontal FOV: 86?, vertical FOV: 63?, diagonal FOV: 120?
3.6 mm, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV: 112?
6 mm, horizontal FOV: 55?, vertical FOV: 40?, diagonal FOV: 70?
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementDWDR/BLC/HLC/Global
- Noise ReductionYes
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video OutputTVI/AHD/CVI/CVBS
- General
- Material
Front Cover: Metal
Main Body: Plastic
- Dimension78.9 mm ? 75.4 mm ? 216.6 mm (3.10" ? 2.97" ? 8.53")
- WeightApprox. 330 g (0.73 lb.)
- Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ? 25%
- Consumption
Max. 4.3 W
- IR RangeUp to 30 m
- Approval
- ProtectionIP67
