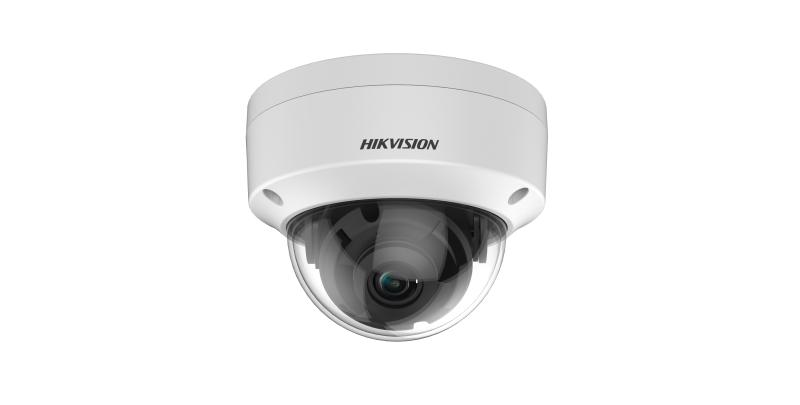

DS-2CE57H0T-VPIT Hikvision CCTV Camera 5 MP Vandal Dome EXIR 2.0: advanced
DS-2CE57H0T-VPIT Hikvision CCTV Camera 5 MP Vandal Dome EXIR 2.0: advanced
Infrared (IR)
Hurry up, only 1 item left in stock.
products.product.pickup_availabilities
Description
Description
DS-2CE57H0T-VPIT Hikvision CCTV Camera 5 MP Vandal Dome EXIR 2.0: advanced
This listing includes:
-  (1) ANALOG CAMERA: DS-2CE57H0T-VPIT
DS-2CE57H0T-VPIT  view data sheet
5 MP Vandal Fixed Dome Camera
- 5 MP dome camera
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
5 MP Vandal Fixed Dome Camera
- 5 MP dome camera
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specification
Camera
Image Sensor 5 MP CMOS image sensor
Max. Resolution 2560 (H) ? 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 355?, Tilt: 0 to 75?, Rotation 0 to 355?
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 86?, vertical FOV: 63?, diagonal FOV: 120?
3.6 mm, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV: 112?
6 mm, horizontal FOV: 55?, vertical FOV: 40?, diagonal FOV: 70?
Lens Mount M12
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, DNR, Mirror, Smart IR
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement Yes
Image Enhancement Yes
White Balance ATW/MANUAL
AGC Support
Interface
Video Output TVI/AHD/CVI/CVBS
General
Material Metal
Dimension ? 110.8 mm ? 84.7 mm (? 4.4" ? 3.3")
Weight Approx. 362 g (0.80 lb.)
Operating Condition -40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ?25%
Consumption Max. 4.3 W
IR Range Up to 20 m
Approval
Protection IP67 IK10
