Technical Specifications

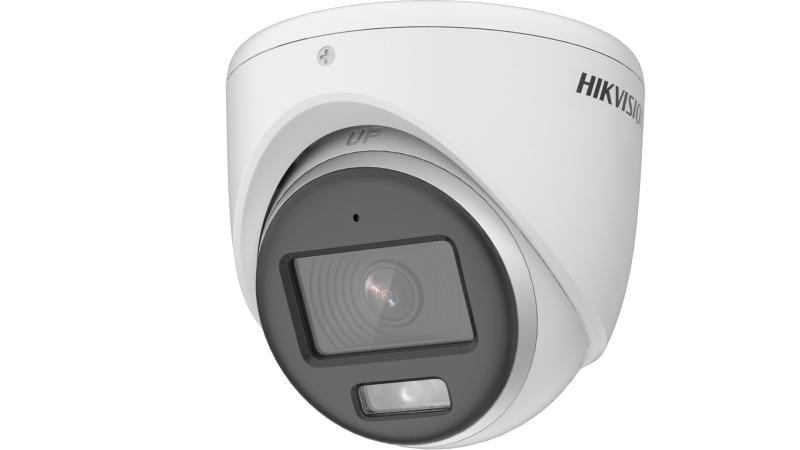

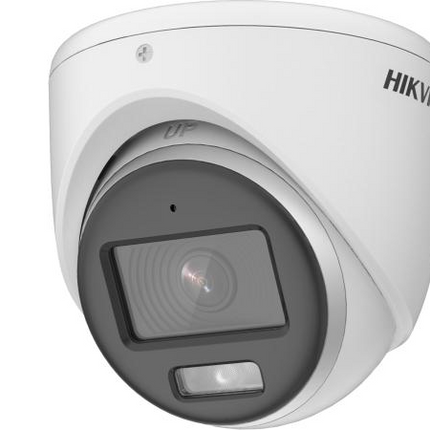

Hikvision DS-2CE70DF0T-MFS 2MP ColorVu Audio Fixed Turret Camera

Capture clear, full-color video around the clock with the Hikvision DS-2CE70DF0T-MFS. Its 2MP resolution, F1.0 aperture, built-in microphone, and up to 20-meter white-light range help you see and hear important activity—even after dark.

With four switchable video signals, a durable metal body, and IP67 weather protection, this camera offers a practical upgrade for compatible analog surveillance systems.

Key Features

  • 2MP Full HD imaging: Records at up to 1920 × 1080 resolution.
  • 24/7 ColorVu imaging: The F1.0 aperture supports full-color surveillance during the day and at night.
  • Built-in microphone: Captures high-quality audio and transmits it over the coaxial cable.
  • Up to 20 m white-light range: Provides bright nighttime imaging in dark areas.
  • Smart Supplement Light: Automatically supports clearer illumination when additional light is needed.
  • 3D and 2D digital noise reduction: Helps deliver cleaner, sharper images.
  • Four switchable signals: Supports TVI, AHD, CVI, and CVBS through one video-output port.
  • Digital WDR: Helps improve visibility in scenes containing bright and dark areas.
  • Flexible lens options: Available with a 2.8 mm or 3.6 mm fixed lens.
  • IP67 protection: Resistant to water and dust for indoor or outdoor installation.
  • Metal construction: Provides a durable housing for long-term surveillance use.
```

Camera

Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.001 Lux @ F1.0, AGC ON; 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Signal System
PAL/NTSC

Lens

Lens Type
2.8 mm or 3.6 mm fixed focal lens
2.8 mm Field of View
Horizontal: 105°; Vertical: 55°; Diagonal: 125°
3.6 mm Field of View
Horizontal: 84°; Vertical: 45°; Diagonal: 99°
Lens Mount
M12

Illuminator

Supplement Light Type
White light
Supplement Light Range
Up to 20 m
Smart Supplement Light
Yes


Image Parameter Modes
STD, HIGH-SAT, HIGHLIGHT
Image Settings
Brightness, sharpness, anti-banding, AGC
TVI Frame Rate
1080p at 25 fps or 30 fps
CVI Frame Rate
1080p at 25 fps or 30 fps
AHD Frame Rate
1080p at 25 fps or 30 fps
CVBS Frame Rate
PAL/NTSC
Day/Night Mode
Color
Wide Dynamic Range
Digital WDR
Image Enhancement
DWDR, BLC, HLC, Global
Noise Reduction
3D DNR and 2D DNR
White Balance
Auto, Manual

Video, Audio and Alarm

Video Output
Switchable TVI, AHD, CVI, and CVBS
Audio
Built-in microphone with audio over coaxial cable
Alarm
Solid light alarm (white light)

General

Material
Metal
Power Supply
12 VDC ±25%
Power Consumption
Maximum 2 W
Power Recommendation
Use one power adapter to supply power to one camera
Dimensions
Ø 85.11 mm × 77.62 mm (3.35 × 3.05 inches)
Weight
Approximately 310 g (0.68 lb.)
Operating Temperature
-40°C to 60°C (-40°F to 140°F)
Operating Humidity
90% or less, non-condensing
Communication
HIKVISION-C
Language
English

Protection and Available Models

Protection Rating
IP67
Available Model
DS-2CE70DF0T-MFS
Available Lens Options
2.8 mm and 3.6 mm

Optional Accessories

DS-1272ZJ-110-TRS
Wall mount
DS-1275ZJ-SUS
Vertical pole mount
DS-1280ZJ-XS
Junction box
DS-1276ZJ-SUS
Corner mount
```

Ideal Applications and Common Uses

  • Home entrances, driveways, patios, and side yards
  • Retail stores and customer-facing areas
  • Office entrances, hallways, and reception areas
  • Warehouses and small commercial properties
  • Parking areas and building perimeters within the camera’s coverage range
  • Locations where full-color nighttime video is preferred over conventional black-and-white night vision
  • Installations that benefit from video and audio transmission over existing coaxial cabling
  • Indoor or outdoor surveillance locations exposed to dust, rain, or changing temperatures
