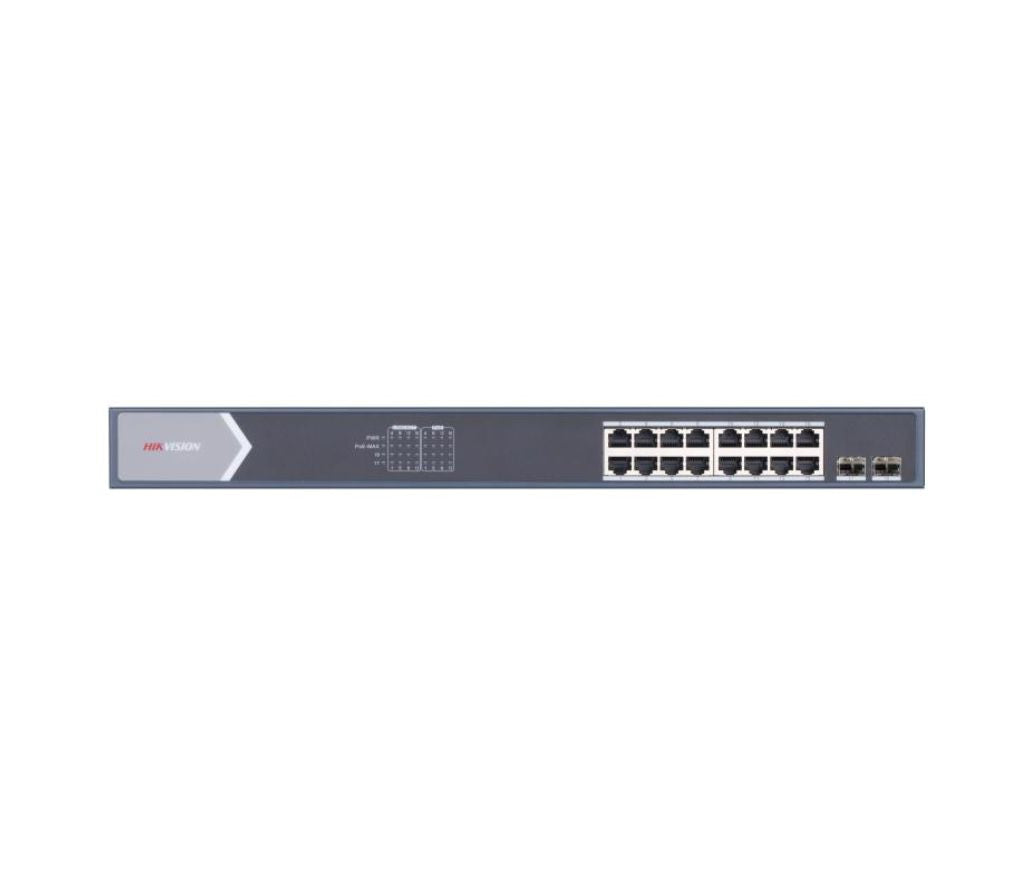

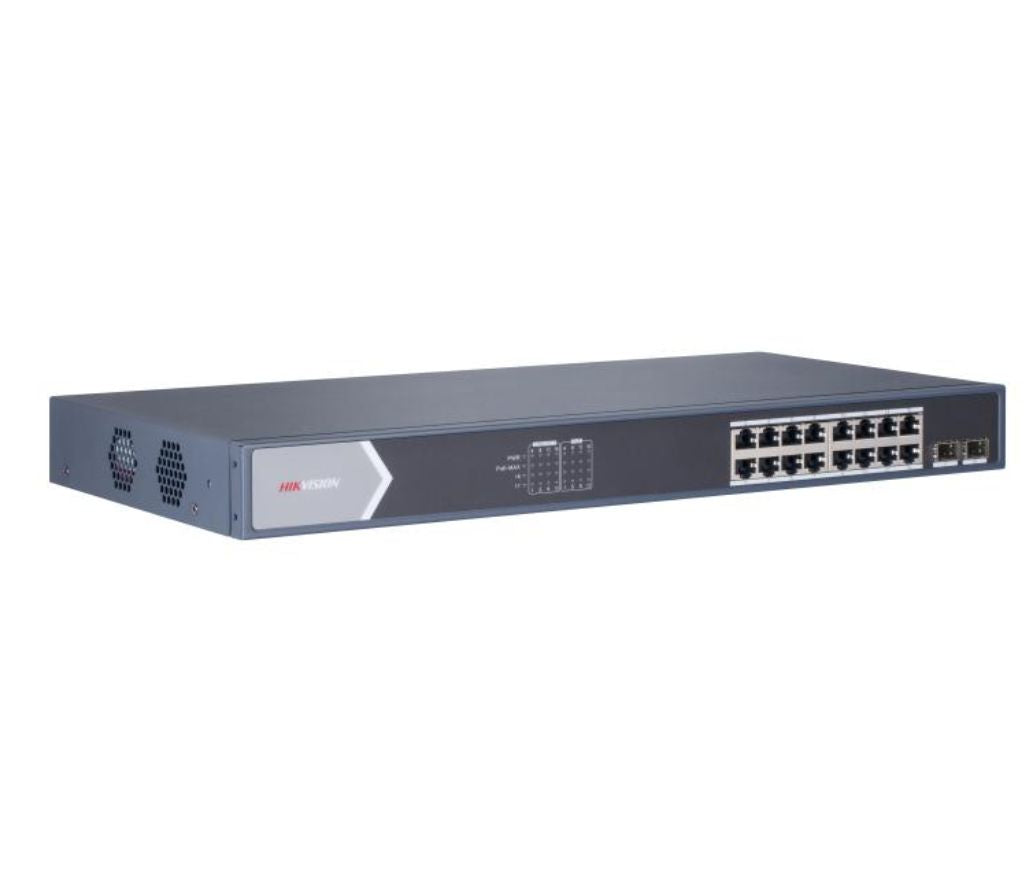

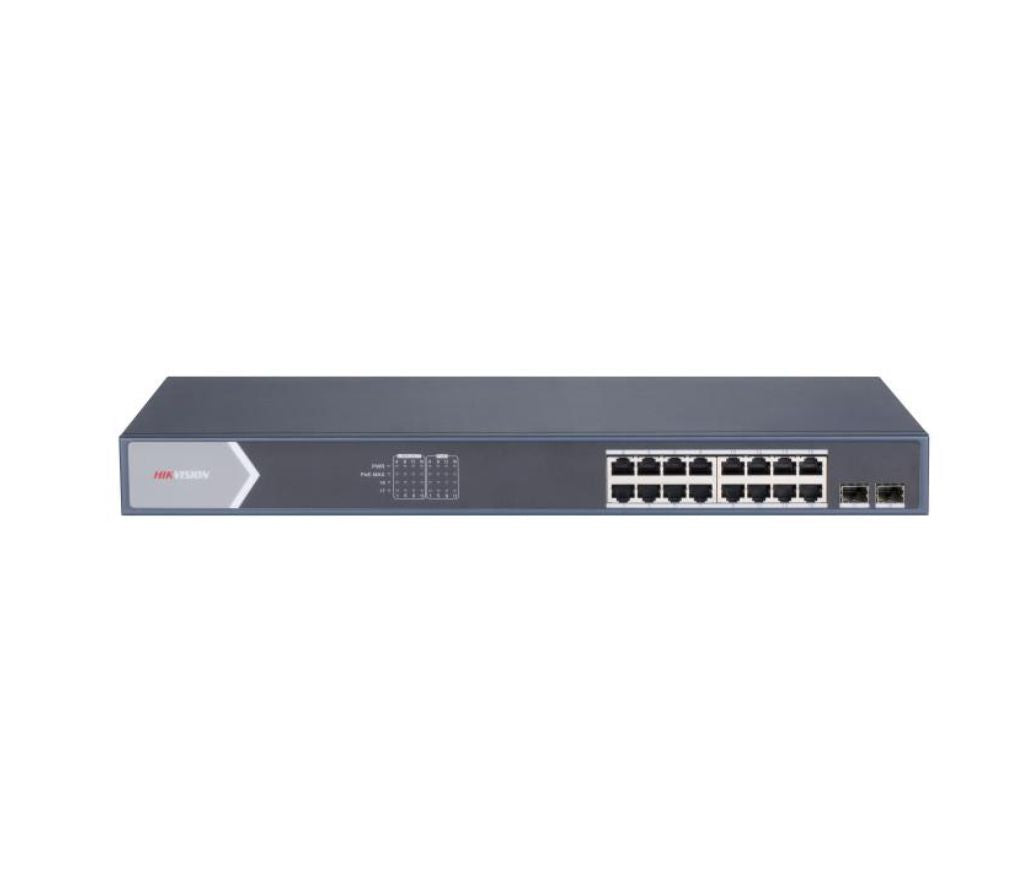

DS-3E0518P-E/M Hikvision 16 Port Gigabit Unmanaged POE Switch
DS-3E0518P-E/M Hikvision 16 Port Gigabit Unmanaged POE Switch
Hurry up, only 2 items left in stock.
products.product.pickup_availabilities
Description
Description
DS-3E0518P-E/M Hikvision 16 Port Gigabit Unmanaged POE Switch
This listing includes:
-  (1) ACCESSORIES: DS-3E0518P-E/M
DS-3E0518P-E/M  view data sheet
16 Port Gigabit Unmanaged POE Switch
- 16 ? Gigabit PoE ports, 2 ? Gigabit SFP fiber optical ports
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding
- Store-and-forward switching
- Solid high-strength metal shell
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
16 Port Gigabit Unmanaged POE Switch
- 16 ? Gigabit PoE ports, 2 ? Gigabit SFP fiber optical ports
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding
- Store-and-forward switching
- Solid high-strength metal shell
Specification
- Network Parameters
- Ports16 ? Gigabit PoE ports, and 2 ? Gigabit fiber optical ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding ModeStore-and-forward switching
- MAC Address Table8 K
- Switching Capacity36 Gbps
- Packet Forwarding Rate26.784 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPorts 1 to 16
- Max. Port Power30 W
- PoE Power Budget125 W
- General
- Dimensions (W ? H ? D)440 mm ? 44 mm ? 220.8 mm (17.3? ? 1.7? ? 8.7?)
- ShellMetal material, fan-free design
- Gross Weight2.50 kg (5.51 lb)
- Net Weight3.57 kg (7.87 lb)
- Operating Temperature?10 ?C to 55 ?C (14 ?F to 131 ?F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature?40 ?C to 85 ?C (?40 ?F to 185 ?F)
- Storage Humidity5% to 95% (no condensation)
- Power Supply100 to 240 VAC, 50/60 Hz, 2.5 A (Max)
- Power Consumption In Idle25 W
- Max. Power Consumption150 W
- Approval
- EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 12)
- SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2022)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2011)
