Technical Specifications

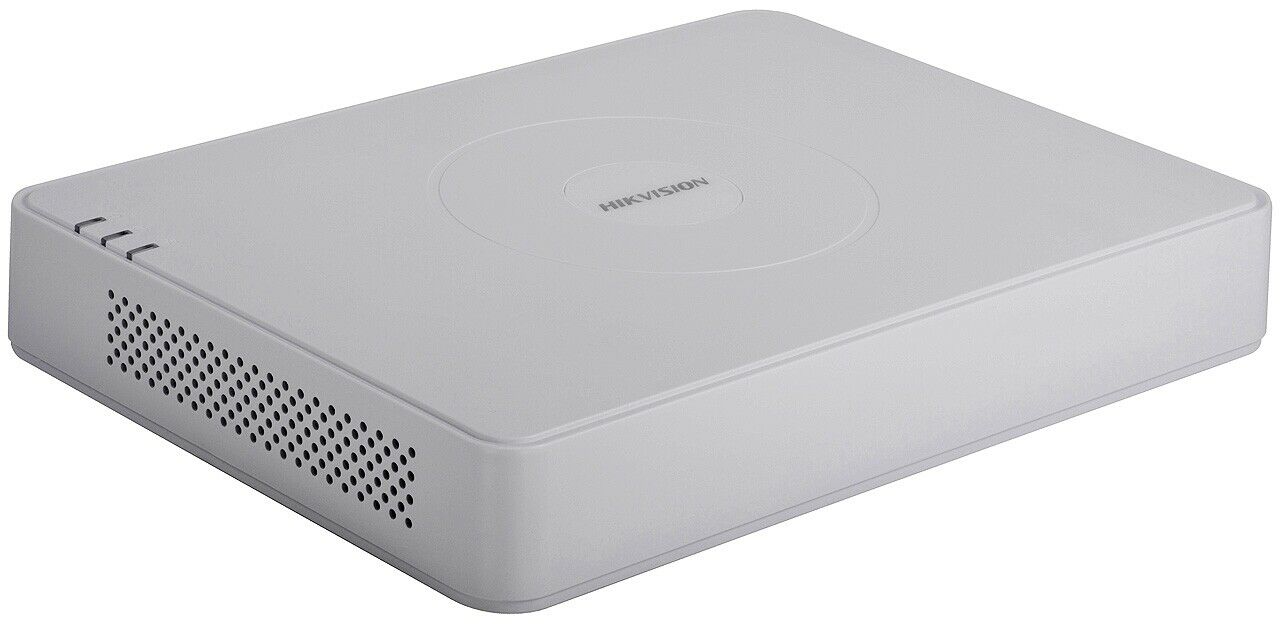

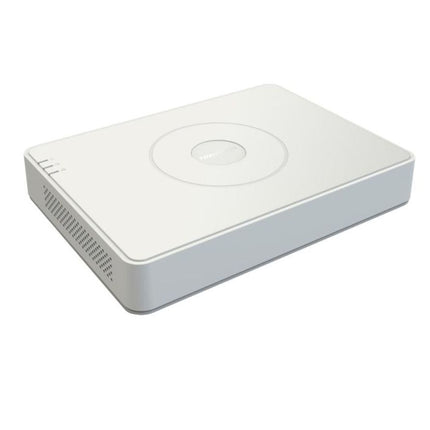

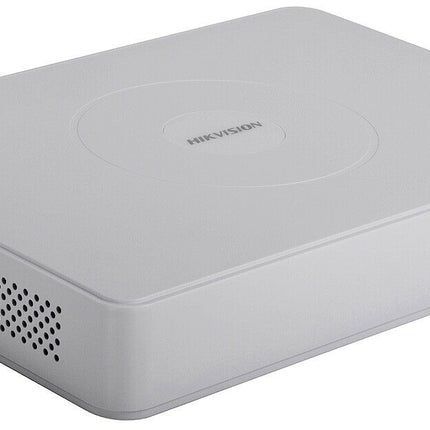

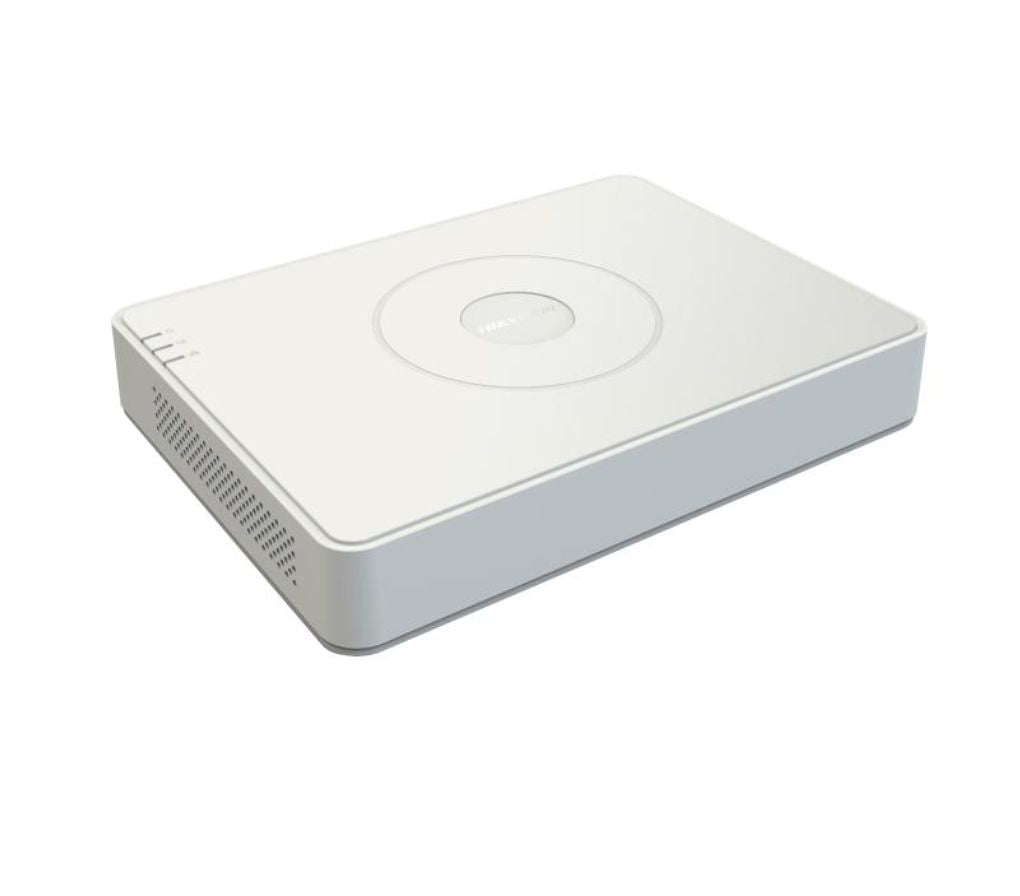

Hikvision DS-7108NI-Q1/8P Value 7 Series NVR

The DS-7108NI-Q1/8P is an 8-channel PoE network video recorder built for users who want simple camera deployment, reliable everyday recording, and easy remote management in one compact unit. With 8 built-in PoE ports, support for up to 8 network cameras, up to 6 MP input resolution, H.265+ compression, and smart playback tools, it is designed to keep setup cleaner while helping you store footage more efficiently. It also supports line crossing and intrusion detection, giving buyers a more practical way to monitor important activity without overcomplicating the system. For homes, offices, retail spaces, and small business sites, this model is a strong fit when you want straightforward IP surveillance with fewer installation headaches.

Ideal Applications

  • Home and residential IP camera systems
  • Retail stores and front counter monitoring
  • Small offices and professional workspaces
  • Small business surveillance with plug-and-play PoE cameras
  • Entry points and perimeter areas using basic smart event detection
  • Sites that need simple remote viewing through Hik-Connect

Common Uses

  • Powering and connecting up to 8 PoE IP cameras directly from the NVR
  • Recording full channels at up to 4 MP resolution
  • Using smart search and smart playback to review events faster
  • Monitoring live and recorded video locally over HDMI or VGA
  • Managing cameras remotely through Hik-Connect
  • Using line crossing and intrusion detection for basic event-based monitoring

Key Features

  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 8-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
  • HDMI and VGA simultaneous output
  • H.265+ compression effectively reduces the storage space by up to 75%
  • Full channel recording at up to 4 MP resolution
  • 2-ch@4 MP or 4-ch@1080p playback resolution
  • 1 SATA interface (up to 6 TB capacity per HDD)
  • Supports line crossing and intrusion detection
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Automatically search and add network cameras after device is activated
  • 8 independent PoE network interfaces
  • 1 self-adaptive 10/100 Mbps Ethernet interface
  • Hik-Connect for easy network management

Video and Audio


IP Video Input
8-ch; Up to 6 MP resolution
Incoming Bandwidth
60 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output
1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA simultaneous output


Decoding


Decoding Format
H.265+/H.265/H.264+/H.264
Recording Resolution
6 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
4-ch
Decoding Capability
4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Stream Type
Video, Video & Audio


Network


Remote Connection
16
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
Network Interface
1, RJ-45 10/100Mbps self-adaptive Ethernet interface


PoE


Interface
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 75 W
Standard
IEEE 802.3 af/at


Auxiliary Interface


SATA
1 SATA interface
Capacity
Up to 6TB capacity for each disk
Alarm In/Out
N/A
USB Interface
Rear panel: 2 × USB 2.0


General


Power Supply
48 VDC, 1.8 A
Consumption
≤ 10 W
Working Temperature
-10 to +55º C (+14 to +131º F)
Working Humidity
10% to 90%
Dimension (W × D × H)
285 × 210 × 48 mm (11.2" × 8.3" × 1.9")
Weight
≤ 1 kg (2.2 lb)


Certification


CE
EN50130-4, EN 61000-3-2, EN 61000-3-3

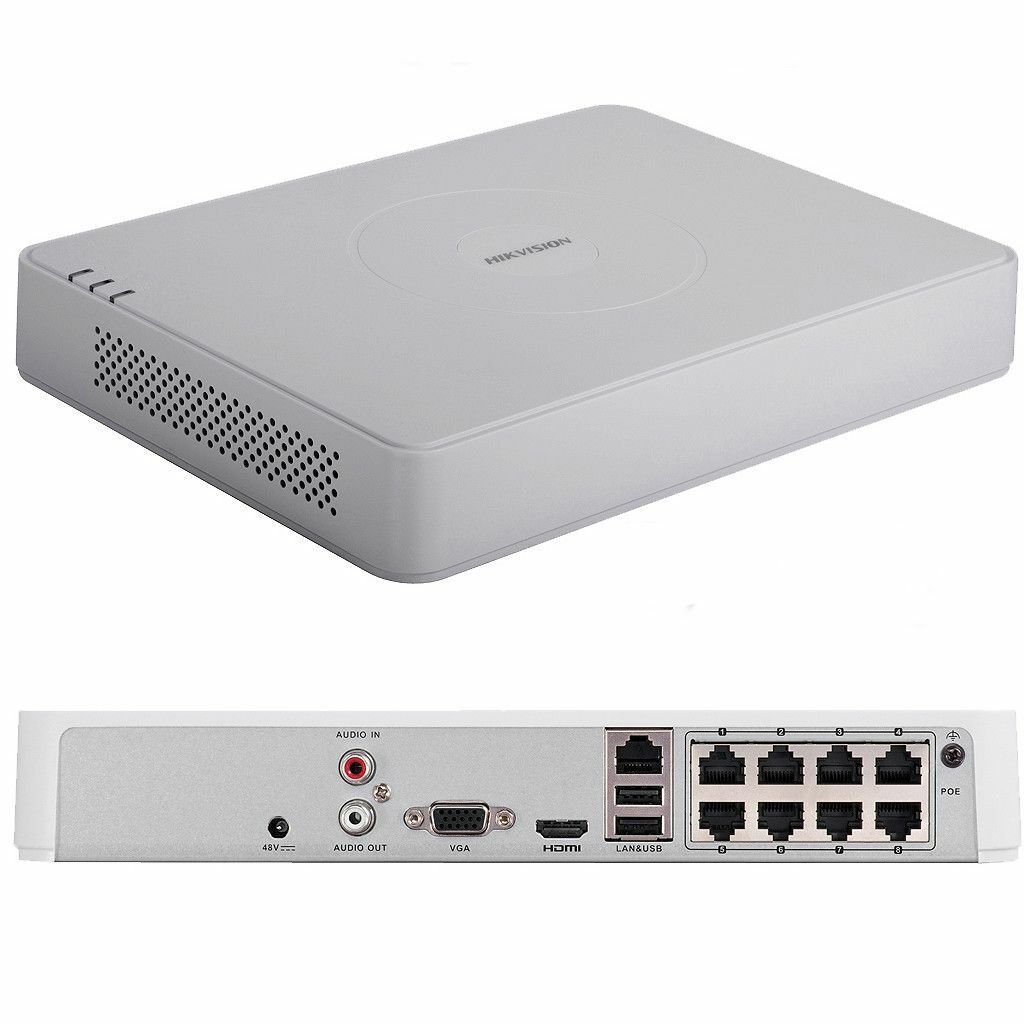

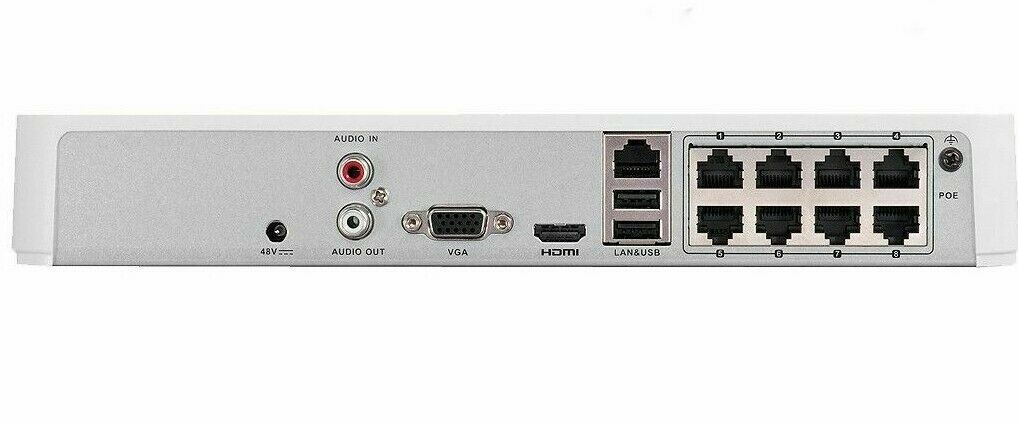

Physical Interface


1
Network interfaces with PoE function
2
LAN network interface
3
HDMI interface
4
VGA interface
5
USB interfaces
6
GND
7
Power supply


Available Model


Available Model
DS-7108NI-Q1/8P(D)


Accessories Found


Included Accessories
No accessories or box contents are listed in the provided datasheet.
