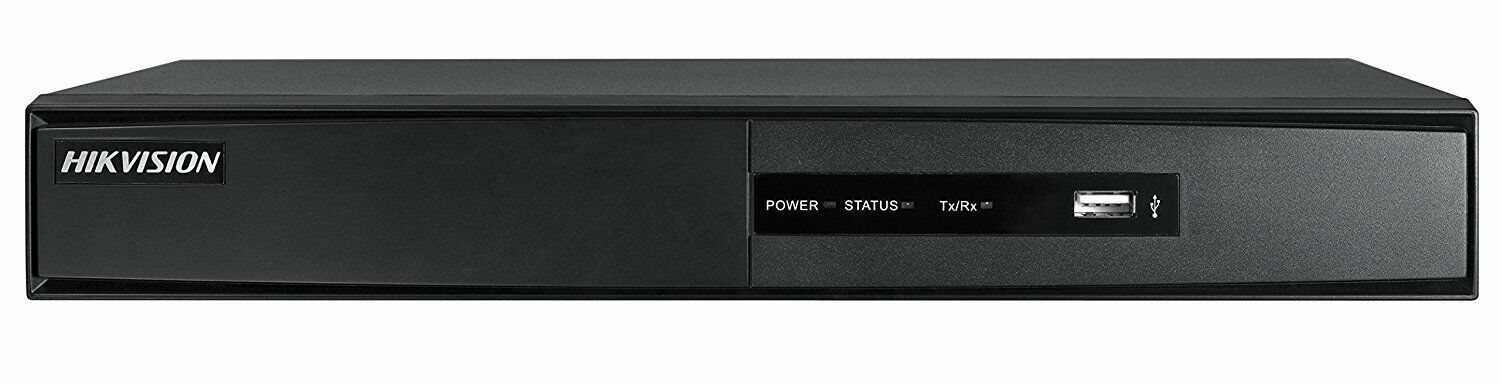

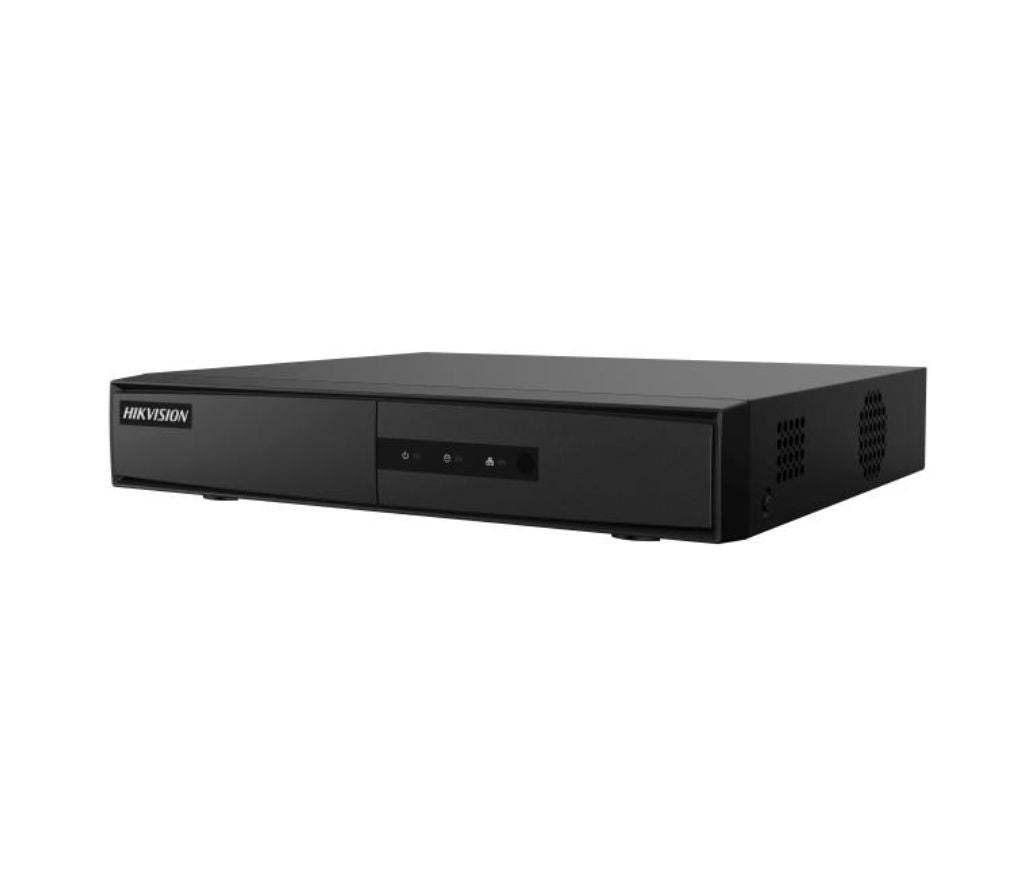

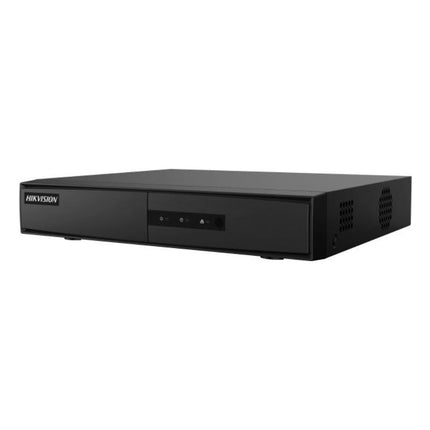

Hikvision DS-7200HGHI-F1 Series Turbo HD DVR
Are you looking for a practical way to modernize your surveillance system without immediately replacing every existing camera? The Hikvision DS-7200HGHI-F1 Series gives you the flexibility to connect HDTVI, AHD, CVI, traditional analog, and compatible IP cameras through one recorder.
Available in 4-, 8-, and 16-channel models, this DVR combines 1080p Lite recording, efficient H.264+ compression, smart playback tools, and remote connectivity in a compact design.
That means you can protect the camera investment you already have while gaining a clearer, easier-to-manage security system that can adapt as your needs change.
Why Buyers Choose This Model
- Supports five popular video-signal formats for easier system upgrades.
- Records all analog channels at up to 1080p Lite resolution.
- Uses H.264+ compression to reduce storage requirements.
- Offers smart search for faster investigation of recorded events.
- Supports a hard drive capacity of up to 6 TB.
- Provides Hik-Connect and DDNS support for convenient network access.
- Available with 4, 8, or 16 analog channels to match different property sizes.
Features That Make a Difference
```Five-Signal Compatibility — Keep More of Your Existing Equipment
The recorder supports HDTVI, AHD, CVI, CVBS, and compatible IP video inputs. Instead of being forced into a single camera format, you gain more flexibility when replacing cameras, expanding coverage, or upgrading an older analog system.
1080p Lite Recording — See More Useful Detail
With 1080p Lite enabled, every analog channel can record with an image effect similar to 1080p at up to 25 or 30 frames per second. This helps produce smoother, more useful footage when reviewing activity around your home or business.
H.264+ Compression — Store More Without Unnecessary Storage Costs
H.264+ improves encoding efficiency and reduces the amount of storage required for surveillance footage. You get better use from the installed hard drive without sacrificing the dependable recording your property needs.
Up to 6 TB of Storage — Maintain a More Useful Video History
The single SATA interface supports one hard drive with a capacity of up to 6 TB. With the appropriate drive and recording settings, this gives you room to preserve more footage before older video must be overwritten.
Smart Search — Find Important Footage Faster
When something happens, searching through hours of video manually can delay your response. Smart search helps make playback more efficient, allowing you to focus your attention on relevant recorded activity.
Video Content Analytics Support — Make Compatible Cameras More Useful
The DVR supports multiple VCA events from compatible analog and smart IP cameras. This helps transform your recorder from a basic video archive into a more intelligent part of your security system.
Video Quality Diagnostics — Identify Image Problems More Efficiently
Video Quality Diagnostics can help detect problems affecting the video feed. This makes it easier to recognize when an image needs attention instead of discovering an unusable recording only after an incident.
Hik-Connect and DDNS Support — Stay Connected to Your System
Built-in support for Hik-Connect and DDNS simplifies network management and compatible remote-access setups. You can manage your surveillance system more conveniently without always needing to stand in front of the recorder.
Expandable IP Camera Support — Add Coverage as Your Needs Grow
The DS-7204HGHI-F1 supports up to five IP channels at up to 960p, while the 8- and 16-channel models support up to 10 and 18 IP channels respectively at up to 1080p. This gives you a practical path for adding network cameras without immediately replacing the entire recorder.
Long-Distance HDTVI Transmission — Cover Larger Properties
The series supports transmission distances of up to 1,200 meters for a 720p HDTVI signal. This makes the recorder a practical option for installations where cameras must be positioned far from the recording location.
Full-HD Local Display Output — Review Footage on a Larger Screen
The HDMI and VGA output supports display resolutions up to 1920 × 1080 at 60 Hz. This gives you a clear local view for live monitoring, system management, and recorded-video review.
Synchronous Playback — Review Multiple Angles Together
Depending on the selected model, the DVR supports synchronized playback of 4, 8, or 16 channels. Reviewing multiple camera angles together can help you understand how an event developed instead of relying on one isolated view.
Audio and Two-Way Audio Support — Add Context Beyond Video

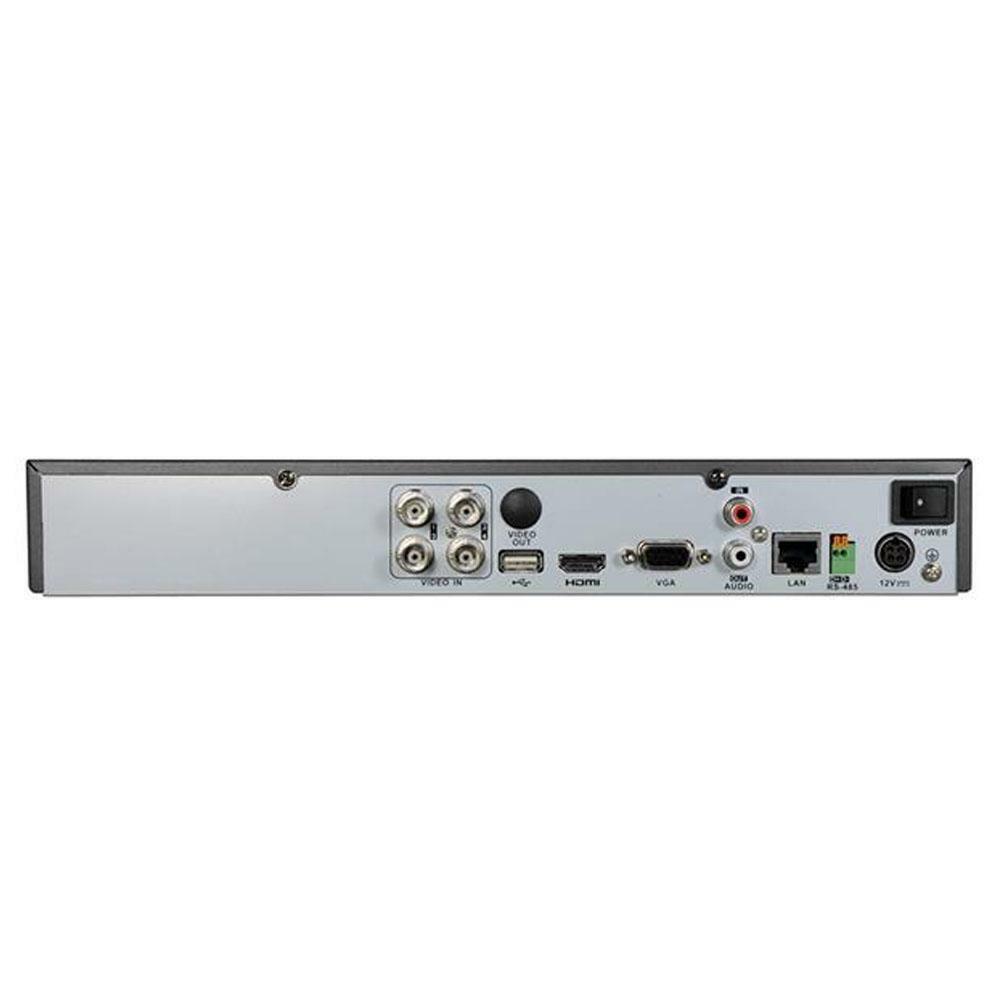

The recorder includes one RCA audio input, one RCA audio output, and two-way audio through the first audio input. When used with compatible equipment, audio can provide valuable context that video alone may not capture.
Compact, Energy-Conscious Design — Easier Everyday Installation
All three models use a compact 260 × 222 × 45 mm enclosure. Their low power consumption without a hard drive helps provide continuous surveillance functionality without requiring a large recorder footprint.
What This Helps You Avoid
Imagine discovering that upgrading your recorder also requires replacing every camera, rerunning cables, and rebuilding a system that was still partly functional. The expense grows, installation becomes more disruptive, and you may still end up with a recorder that is difficult to search or expand.
The DS-7200HGHI-F1 Series helps you avoid that unnecessary disruption by supporting multiple analog standards alongside compatible IP cameras. You can continue using suitable existing equipment, improve recording quality, and add newer cameras as your priorities and budget allow.
Instead of losing time scrolling through endless footage or wondering whether an image problem went unnoticed, smart search and video diagnostics help make the system easier to manage. The result is a more flexible surveillance foundation that helps you stay informed, investigate incidents faster, and protect your property with greater confidence.
Product capabilities were verified using the supplied manufacturer data sheet and Hikvision's official product information for the DS-7204HGHI-F1, DS-7208HGHI-F1, and DS-7216HGHI-F1.
