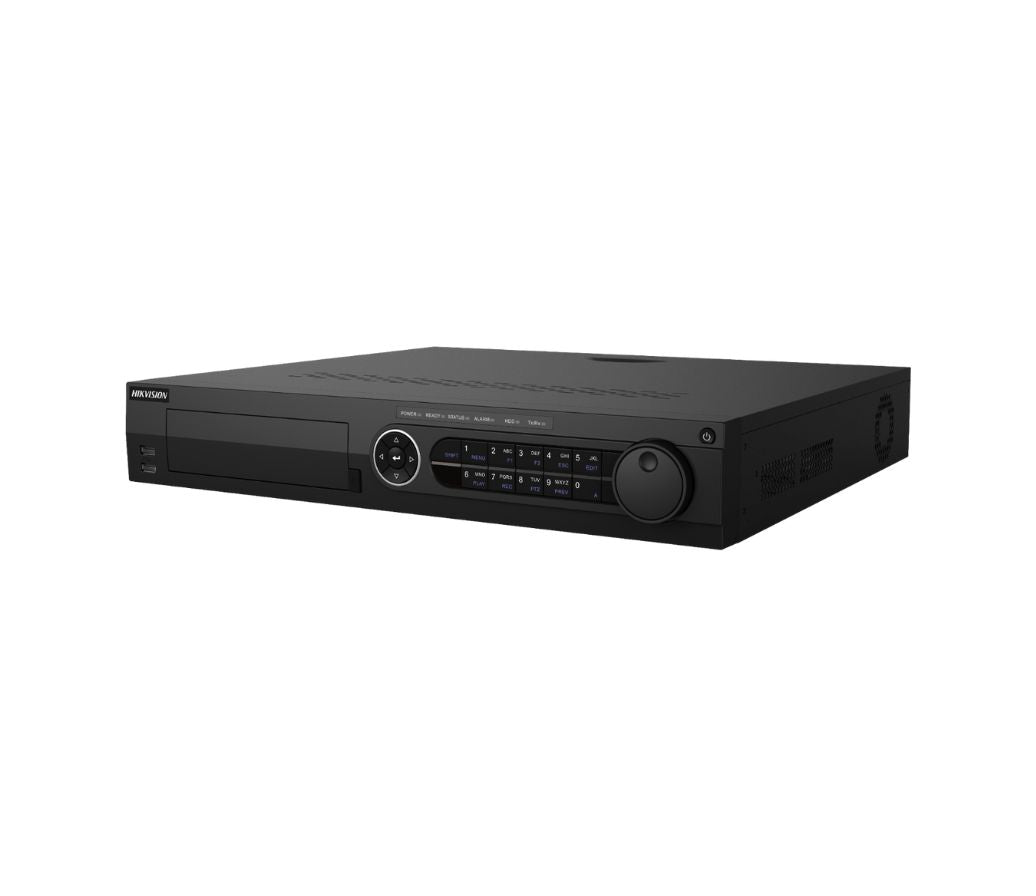

Hikvision DS-7332HUHI-K4 32-Channel 8 MP Turbo HD DVR
What happens when your surveillance system grows, but your recorder no longer has the capacity or flexibility to keep up? The Hikvision DS-7332HUHI-K4 gives large properties a centralized recording platform for analog HD and IP cameras, helping you expand without immediately replacing your existing infrastructure.
With 32 analog inputs, support for configurations of up to 48 IP camera channels, four hard-drive bays, and RAID support, it is built for installations where coverage and recording reliability matter. You gain a more flexible way to manage cameras, storage, playback, remote access, and high-resolution video from one recorder.
Why Buyers Choose This Model
Buyers choose the DS-7332HUHI-K4 when a basic recorder would create limitations as their surveillance needs expand. Its hybrid compatibility lets you continue using supported coaxial cameras while adding newer analog HD or IP cameras where needed.
32 Analog Channels
Connect cameras across entrances, hallways, registers, parking areas, warehouses, and other important locations without dividing the property between several smaller recorders.
Expandable IP Camera Support
Support for 16 IP camera channels and configurations of up to 48 IP channels gives you room to expand coverage as your property or security requirements change.
Five Adaptive Signal Formats
Compatibility with HDTVI, AHD, HDCVI, CVBS, and IP video provides greater freedom when upgrading an existing system or working with different supported camera technologies.
Up to 8 MP Encoding
Record supported cameras at resolutions up to 8 MP, giving you access to more image detail when reviewing important activity and investigating incidents.
H.265 Pro+ Compression
Efficient H.265 Pro+ compression helps use available storage and network resources more effectively, which becomes especially important when recording numerous high-resolution cameras.
Four-Hard-Drive Storage Capacity
Four SATA interfaces supporting up to 10 TB per disk give you the flexibility to build substantial local storage around your camera count and recording requirements.
RAID and eSATA Support
RAID support helps create a more reliable storage environment and reduce data-loss risks, while eSATA provides another option for connecting compatible storage equipment.
4K HDMI Video Output
HDMI 2 can display video at up to 4K resolution, helping you view supported high-resolution cameras on a compatible monitor with greater visual clarity.
Dual HDMI Outputs
Two HDMI connections provide more flexibility when building a local monitoring station or sending video to supported displays with different resolution requirements.
16-Channel Synchronous Playback
Review up to 16 channels simultaneously so you can follow activity across multiple camera angles instead of checking each recording separately.
POS-Triggered Recording and Information Overlay
Associate supported point-of-sale activity with surveillance video, making it easier to review transactions alongside what occurred at the register.
Audio and Two-Way Audio Connections
Four RCA audio inputs, one audio output, and an independent two-way audio connection let you add supported audio capabilities where video alone may not provide enough context.
Dual Gigabit Ethernet Interfaces
Two self-adaptive Gigabit Ethernet ports provide the network connectivity needed for a large hybrid surveillance system and its supported remote-access functions.
Remote Connectivity and Hik-Connect
Support for Hik-Connect and up to 128 remote connections helps authorized users stay connected to the surveillance system without depending exclusively on the local recorder.
Alarm Integration
Sixteen alarm inputs and four alarm outputs allow the recorder to become part of a more complete supported security setup instead of operating only as a video-recording device.
What This Helps You Avoid
A surveillance system can become difficult to manage when the recorder runs out of channels, supports only one camera format, or lacks enough storage for a growing property. That can leave you juggling separate devices, limiting camera placement, or replacing equipment that may still be useful.
The DS-7332HUHI-K4 addresses those problems with hybrid signal compatibility, high camera capacity, flexible storage, and centralized playback. Instead of designing your security system around the limitations of a smaller recorder, you can create a system that better reflects how the property actually needs to be protected.
- Avoid reaching your recorder’s camera limit too quickly.
- Avoid replacing supported coaxial cameras solely to introduce IP technology.
- Avoid managing multiple small recorders across the same property.
- Avoid unnecessarily inefficient storage usage when recording many cameras.
- Avoid checking numerous camera recordings one at a time during an investigation.
- Avoid losing transaction context when reviewing supported POS activity.
- Avoid building a large system without storage-reliability options.
- Avoid limiting local monitoring to lower-resolution display output.
When an incident happens, the real question is not simply whether cameras were installed. It is whether your recorder captured the necessary views, preserved the footage, and gave you an efficient way to understand what happened.
With the DS-7332HUHI-K4 at the center of the system, you gain the capacity and flexibility to bring more of your surveillance operation together—so you can spend less time working around recorder limitations and more time protecting the property.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7332HUHI-K4 32-Channel 8 MP Turbo HD DVR
The Hikvision DS-7332HUHI-K4 is a high-capacity 1.5U digital video recorder designed for large surveillance systems requiring centralized recording, flexible camera compatibility, and dependable storage. Its 32 analog channels can be combined with supported IP cameras for configurations of up to 48 network-camera channels.
Adaptive support for HDTVI, AHD, HDCVI, CVBS, and IP signals makes it easier to maintain an existing coaxial system while gradually introducing newer cameras. Four SATA interfaces, eSATA support, RAID mode, H.265 Pro+ compression, dual Gigabit Ethernet ports, and dual HDMI outputs provide the storage capacity and connectivity needed for demanding commercial installations.
Key Features
- 32-channel, four-HDD, 1.5U digital video recorder
- Efficient H.265 Pro+ video compression technology
- Encoding capability up to 8 MP at 8 fps and 5 MP at 12 fps
- Adaptive HDTVI, AHD, HDCVI, CVBS, and IP signal input
- Supports configurations of up to 48 IP camera channels
- Supports POS-triggered recording and POS information overlay
- RAID mode helps improve storage reliability and reduce data-loss risks
- Four SATA interfaces with support for drives up to 10 TB each
- eSATA support for additional storage connectivity
- Independent HDMI outputs, including HDMI 2 output at up to 4K resolution
- Dual RJ45 Gigabit Ethernet interfaces
- 16-channel synchronous playback
- 16 alarm inputs and four alarm outputs
Recording
Video and Audio
Network
Storage and Auxiliary Interfaces
General
Physical Interfaces
Available Model
Accessories
Ideal Applications and Common Uses
- Large retail stores and shopping environments
- Warehouses and distribution facilities
- Schools, campuses, and institutional buildings
- Hotels and hospitality properties
- Office buildings and commercial properties
- Multi-building and multi-area surveillance systems
- Hybrid surveillance upgrades using existing coaxial cabling
- POS monitoring where transaction information needs to be associated with video
- Installations requiring redundant or more reliable RAID-based storage
- Systems requiring local monitoring through multiple video outputs
- Projects combining analog HD and IP cameras under one recorder
Downloads
Frequently Asked Questions
The recorder provides 32 BNC analog video inputs and supports coaxitron connections.
Yes. It supports 16 IP camera channels and configurations of up to 48 IP channels, with resolutions up to 8 MP.
The DVR adaptively supports HDTVI, AHD, HDCVI, CVBS, and IP video signals. The supported resolution depends on the selected signal format.
The DVR supports encoding at up to 8 MP. Its main stream can encode 8 MP at 8 fps, 5 MP at 12 fps, 4 MP at 15 fps, and 3 MP at 18 fps.
It supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression.
The recorder has four SATA interfaces and supports up to 10 TB of capacity per disk. It also supports an eSATA connection.
Yes. The datasheet confirms support for RAID mode to improve storage reliability and help reduce the risk of data loss.
Yes. HDMI 2 supports up to 4K resolution at 3840 × 2160 and 30 Hz. HDMI 1 supports output resolutions up to 1920 × 1080 at 60 Hz.
The DVR supports synchronous playback of up to 16 channels.
Yes. It provides four RCA audio inputs, one RCA audio output, and one independent RCA connection for two-way audio. It supports up to 128 remote connections, Hik-Connect, POS-triggered recording, and POS information overlay.
