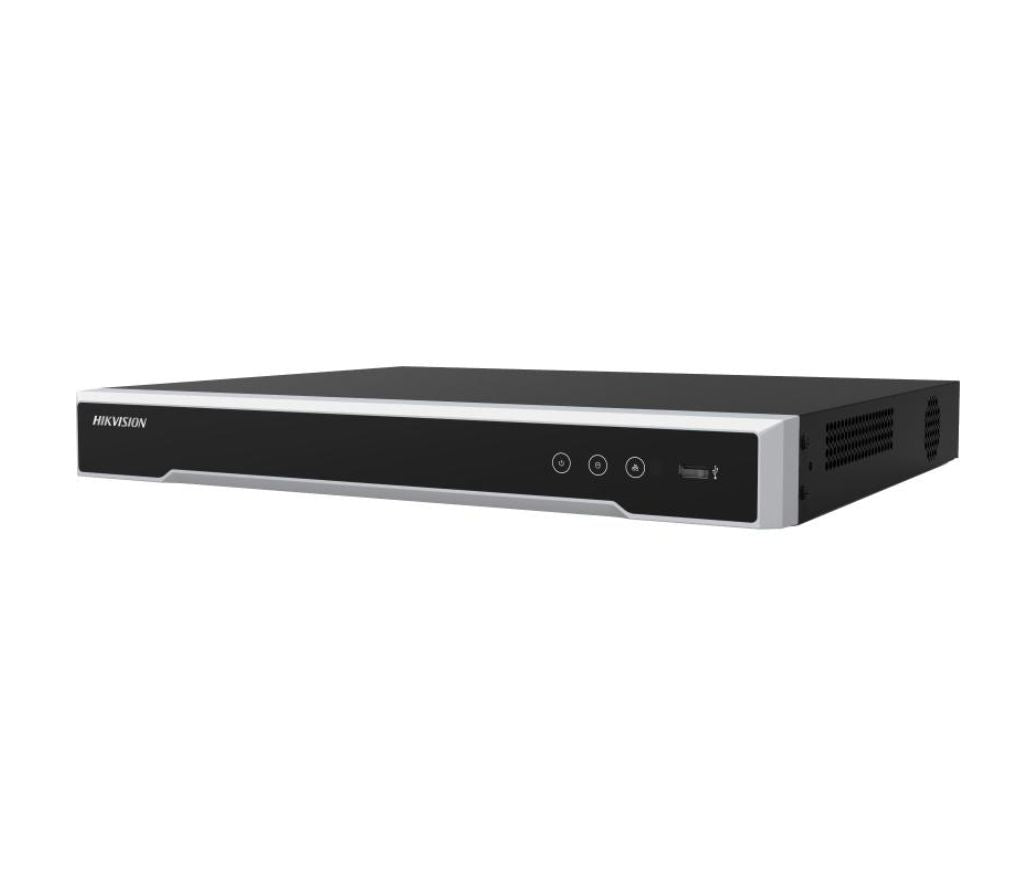

DS-7608NI-K2/8P UL Hikvision 8ch IP PoE Recorder w/ HDD 1U 8 4K NVR

The Hikvision DS-7608NI-K2/8P is a network video recorder. Highlights include H.265+/H.265/H.264+/H.264 video formats, up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity and 1 HDMI and 1 VGA interfaces, both interfaces support independent video output.

Ideal applications

  • Centralized recording and playback for multi-camera security systems
  • Homes, small businesses and retail sites
  • Plug & play installations with PoE cameras

Key Features

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
  • 1 HDMI and 1 VGA interfaces, both interfaces support independent video output
  • 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
  • Up to 80 Mbps incoming bandwidth
  • Plug-and-play with 8 power over Ethernet (PoE) interfaces
  • H.265+ compression effectively reduces the storage space by up to 75%
  • Adopt stream over TLS encryption technology which provides more secure stream transmission service

Video and Audio

IP Video Input
8-ch
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
160 Mbps
HDMI Output
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz,; 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output
1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode
HDMI/VGA independent output
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)

Decoding

Decoding Format
H.265/H.265+/H.264/H.264+
Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
8-ch
Decoding Capability
2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726

Network

Remote Connection
128-ch
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,; UPnP™, HTTP, HTTPS
Network Interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; PoE
Interface
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 80 W
Standard
IEEE 802.3 af/at

Auxiliary Interface

SATA
2 SATA interfaces
Capacity
Up to 10 TB capacity for each HDD
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out
4/1

General

Power Supply
48 VDC, 2.5A
Consumption
≤ 15 W (without HDD and PoE off)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Dimension (W × D × H)
380 × 317 × 51.5 mm (15.0" × 12.5" × 2.0")
Weight
≤ 3 kg (without HDD, 6.6 lb.)

Certification

FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
No.
Description; No.; Description
1
Network interfaces with PoE function; 7; VGA Interface
2
LAN network interface; 8; USB interface
3
AUDIO OUT; 9; 48 VDC power supply
4
AUDIO IN; 10; GND
5
HDMI interface; 11; Power switch
6
Alarm in/alarm out
