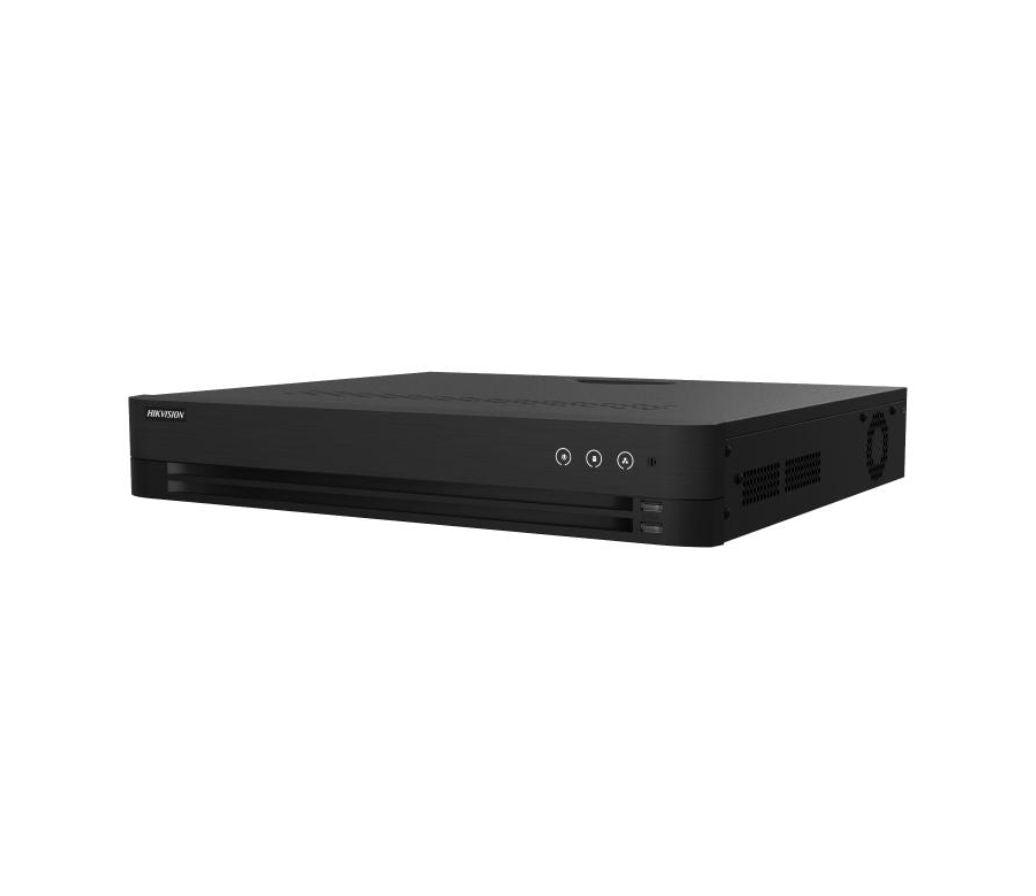

DS-7732NI-Q4/16P No Hard Drive H265 Hikvision 32 Channel 4K 8MP NVR w/ 16 CH POE
DS-7732NI-Q4/16P No Hard Drive H265 Hikvision 32 Channel 4K 8MP NVR w/ 16 CH POE
Out of stock
Description
Description
Hikvision DS-7732NI-Q4 32-Channel 8MP NVR
What happens when your surveillance system grows, but your recorder becomes the part holding everything back? The Hikvision DS-7732NI-Q4 is built for larger IP camera systems, supporting up to 32 cameras, resolutions up to 8 MP, and up to 160 Mbps of incoming bandwidth.
With four HDD bays, H.265+ compression, 4K HDMI output, smart VCA support, and 16-channel synchronous playback, it gives you the capacity to record, review, and manage more of your property from one central system.
Instead of choosing a recorder that may need to be replaced as your surveillance needs expand, the DS-7732NI-Q4 gives you room to build a more capable system from the start.
Why Buyers Choose the Hikvision DS-7732NI-Q4
A recorder is easy to overlook until you run out of camera channels, storage capacity, bandwidth, or the ability to quickly review what happened. The DS-7732NI-Q4 combines high channel capacity, flexible storage, high-resolution recording, and surveillance-focused smart functions in one NVR.
32 IP Camera Channels — Build a Larger System Without Outgrowing Your Recorder
Connect up to 32 IP cameras to one recorder. That gives you the flexibility to cover more entrances, parking areas, hallways, offices, warehouses, or other important areas while keeping recordings centralized.
Up to 8 MP Camera Support — Preserve More Visual Detail
The DS-7732NI-Q4 supports IP cameras with resolutions up to 8 MP. When paired with compatible high-resolution cameras, you can build a system designed to capture greater image detail instead of limiting your cameras with a lower-resolution recorder.
160 Mbps Incoming Bandwidth — Handle More Video Across Your System
With up to 160 Mbps of incoming bandwidth, the recorder is designed to manage video from a substantial multi-camera network. That becomes especially important as you add cameras or increase recording resolution.
4 HDD Bays — Give Your Surveillance System More Storage Flexibility
Four SATA interfaces support up to 8 TB per HDD. That gives you considerably more flexibility when designing your recording storage instead of being restricted to a single-drive recorder.
H.265+ Compression — Store More Video With Less Storage Demand
Hikvision states that H.265+ compression can reduce storage requirements by up to 75%. That can help you make more efficient use of your hard-drive capacity while maintaining a high-resolution surveillance system.
4K HDMI Output — Get a High-Resolution Local Viewing Experience
Connect the NVR to a compatible display using HDMI with output resolutions up to 4K. This gives you a clearer way to monitor and review your surveillance system directly from the recorder.
Simultaneous HDMI and VGA Output — More Flexibility for Your Monitoring Setup
The recorder can output through HDMI and VGA simultaneously, giving you additional flexibility when configuring local displays and monitoring stations.
16-Channel Synchronous Playback — Review Multiple Cameras Together
When something happens, looking at only one camera may not tell the whole story. The DS-7732NI-Q4 supports synchronous playback of up to 16 channels, allowing you to review activity across multiple camera views from the same period.
VCA Smart Functions — Get More From Compatible Smart Cameras
The NVR supports multiple Video Content Analytics events and configurable functions from compatible cameras, including motion, line-crossing, and intrusion detection. This allows your surveillance system to do more than simply record continuous video.
Hik-Connect and DDNS Support — Simplify Network Management
Hik-Connect and DDNS support provide options for easier network management, helping you build a surveillance system that is easier to access and administer.
Dual Gigabit Ethernet Interfaces — More Network Connectivity
Two self-adaptive 10/100/1000 Mbps Ethernet interfaces provide additional networking flexibility for larger surveillance environments.
Up to 64 Remote Connections — Designed for Broader Access Requirements
With support for up to 64 remote connections, the recorder can accommodate environments where surveillance access may need to extend beyond a single local monitoring station.
16 Alarm Inputs and 4 Alarm Outputs — Integrate More Than Cameras
The built-in alarm connections give compatible installations additional flexibility for integrating external alarm devices into the surveillance system.
Stream-Over-TLS Encryption — More Secure Video Transmission
Hikvision includes stream-over-TLS encryption technology to provide more secure stream transmission, adding another layer of protection to the way video travels across the network.
What This Helps You Avoid
Imagine building out a surveillance system only to discover that your recorder no longer has enough channels for the next cameras you want to add. Or realizing that increasing camera resolution is putting pressure on bandwidth and storage that your original recorder was never designed to handle.
Then something important happens, and instead of quickly reviewing several camera angles together, you're jumping between individual recordings trying to reconstruct the event. A recorder that looked sufficient at the beginning can become a limitation once the system grows.
The DS-7732NI-Q4 addresses those concerns with support for up to 32 IP cameras, 8 MP recording, four HDDs, H.265+ compression, 160 Mbps incoming bandwidth, smart VCA functions, and 16-channel synchronous playback.
The result is a surveillance foundation designed to give you more room for cameras, more flexibility for storage, and better tools for reviewing what your cameras captured—so the recorder supports the system you're building instead of becoming the reason you have to redesign it.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7732NI-Q4 32-Channel 8MP Network Video Recorder
The Hikvision DS-7732NI-Q4 is a 32-channel Network Video Recorder designed for larger IP surveillance systems that require high camera capacity, dependable storage, and 4K video output. It supports IP cameras up to 8 MP, provides up to 160 Mbps of incoming bandwidth, and includes four SATA interfaces for continuous video recording.
With H.265+ compression, up to 16-channel synchronous playback, multiple VCA event capabilities, dual Gigabit Ethernet interfaces, and support for Hik-Connect and DDNS, the DS-7732NI-Q4 provides the recording and network capabilities needed for multi-camera surveillance installations.
Key Features
- Up to 32-channel IP camera inputs
- Supports IP camera resolutions up to 8 MP
- H.265+, H.265, H.264+, and H.264 video formats
- Up to 1-channel at 8 MP or 6-channel at 1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- Four HDD interfaces for continuous video recording
- Up to 8 TB capacity per HDD
- Up to 32 TB total theoretical HDD capacity across four 8 TB drives
- H.265+ compression can reduce storage requirements by up to 75%
- Stream-over-TLS encryption for more secure stream transmission
- Simultaneous HDMI and VGA video outputs
- HDMI output at up to 4K resolution
- 16-channel synchronous playback
- Supports multiple VCA (Video Content Analytics) events
- Supports compatible camera smart functions including motion, line-crossing, and intrusion detection
- Two self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Hik-Connect and DDNS support for network management
- 64 remote connections
- 16 alarm inputs and 4 alarm outputs
Video and Audio
Decoding and Playback
Storage
Smart Functions
Network
Auxiliary Interfaces

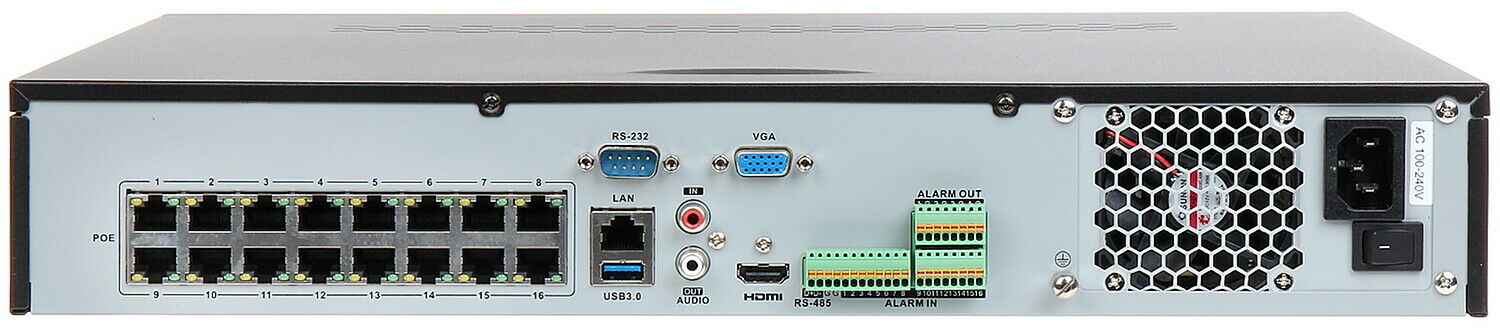

Physical Interfaces
General
Certifications
Available Model
Accessories
No accessories are specifically listed in the provided manufacturer datasheet.
Ideal Applications & Common Uses
Based on its 32-channel capacity, four-drive storage design, high incoming bandwidth, and support for IP cameras up to 8 MP, this NVR is suited to larger multi-camera surveillance installations.
- Commercial security camera systems
- Retail stores and larger retail locations
- Warehouses and storage facilities
- Office buildings
- Multi-camera residential properties
- Multi-building or larger property surveillance systems
- Sites requiring centralized recording of up to 32 IP cameras
- Applications requiring extended recording storage using multiple HDDs
- Installations requiring 4K local monitor output
- Systems using compatible VCA-enabled IP cameras
Note: These application examples are based on the recorder's published capabilities; the datasheet itself does not provide a dedicated "recommended applications" list.
Downloads
Frequently Asked Questions
The DS-7732NI-Q4 supports up to 32 IP camera inputs, making it suitable for larger multi-camera surveillance systems.
The NVR supports IP camera input resolutions up to 8 MP. Supported recording resolutions include 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.
The DS-7732NI-Q4 includes four SATA interfaces and supports up to four hard drives, with a maximum supported capacity of up to 8 TB per disk.
Yes. Its HDMI output supports resolutions up to 4K, including 4096 × 2160 at 30 Hz and 3840 × 2160 at 30 Hz. The recorder also provides simultaneous HDMI and VGA video output.
Yes. The recorder supports H.265+, H.265, H.264+, and H.264 video formats. According to the datasheet, H.265+ compression can reduce required storage space by up to 75%.
The DS-7732NI-Q4 supports synchronous playback of up to 16 channels.
Yes. The datasheet lists support for Hik-Connect and DDNS for network management and specifies support for up to 64 remote connections.
The NVR can decode up to 1 channel at 8 MP and 30 fps or up to 6 channels at 1080p and 30 fps. The datasheet notes that the length or width of each camera resolution track cannot exceed 4096 pixels.
Yes. The recorder supports multiple VCA (Video Content Analytics) events and configurable smart functions from compatible cameras, including motion detection, line crossing detection, and intrusion detection.
The DS-7732NI-Q4 provides up to 160 Mbps of incoming bandwidth and 80 Mbps of outgoing bandwidth. It also includes two self-adaptive RJ-45 10/100/1000 Mbps Ethernet interfaces.
