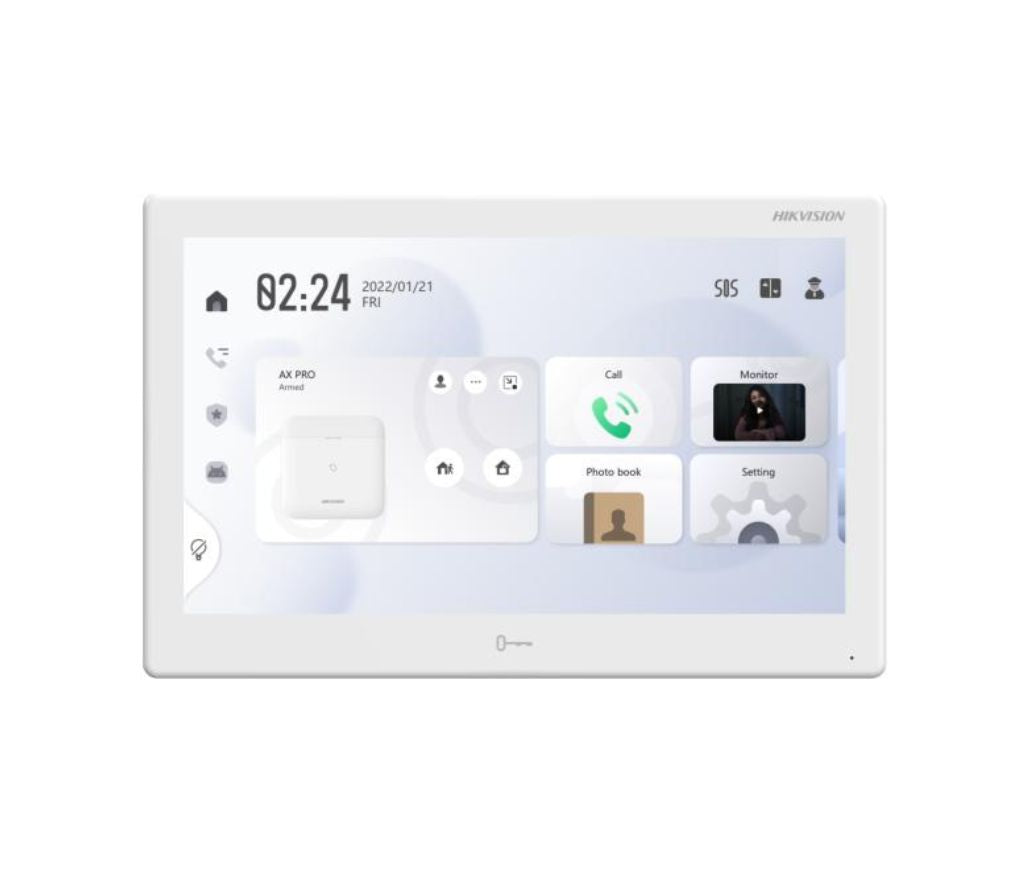

DS-KH9510-WTE1(B) Hikvision All-in-one Indoor Station 10.1-inch colorful touch
DS-KH9510-WTE1(B) Hikvision All-in-one Indoor Station 10.1-inch colorful touch
Out of stock
Description
Description
DS-KH9510-WTE1(B) Hikvision All-in-one Indoor Station 10.1-inch colorful touch
This listing includes:
-  (1) ACCESSORIES: DS-KH9510-WTE1(B)
DS-KH9510-WTE1(B)  view data sheet
All-in-one Indoor Station
- 10.1-inch colorful touch screen with 1024 ? 600 resolution
- Built-in Android System
- Supports Android APP installation
- Support for three-party software integration
- Built-in Hik-Connect APP
- For all-in-one management of Hikvision?s devices on tablet
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
All-in-one Indoor Station
- 10.1-inch colorful touch screen with 1024 ? 600 resolution
- Built-in Android System
- Supports Android APP installation
- Support for three-party software integration
- Built-in Hik-Connect APP
- For all-in-one management of Hikvision?s devices on tablet
Specification
- System Parameters
- Operation SystemAndroid 10.1
- ROM8 GB
- RAM2 GB
- ProcessorEmbeded high performance processor
- Display Parameters
- Screen Size10.1-inch
- Operation MethodCapacitive touch screen
- TypeColorful IPS
- Resolution1024 ? 600
- Video Parameters
- Lens/
- Resolution/
- FOV/
- Wide Dynamic Range (WDR)/
- Video Compression Standard/
- Focal Length/
- Audio Parameters
- Audio Input1 built-in omnidirectional microphone
- Audio Compression StandardG.711U, G.711A
- Audio Output1 built-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- Message Capacity200 captured pictures, 200 alarm records
- Notice Capacity200
- Linked Indoor Extensions Capacity16
- Linked Network Camera Capacity16
- Linked Doorphone Capacity17
- Network Parameters
- Network ProtocolTCP/IP, SIP, RTSP
- Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device Interfaces
- Alarm Input8
- Network Interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-4851 RS-485 (Half duplex)
- TF CardSupport TF card, up to 128 G
- Alarm Output1
- Lock Control1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)
- General
- Button/
- InstallationSurface mounting
- Indicator/
- Weight
Net weight: 875 g
Gross weight: 1060 g
- Protective Level/
- Working Temperature-10 ?C to 50 ?C (14 ?F to 122 ?F)
- Working Humidity10% to 90% (no-condensing)
- Dimension (W ? H ? D)254 mm ? 166 mm ? 26.65 mm (10.0" ? 6.54" ? 1.05")
- Battery/
- Power Supply12 VDC, 1 A, IEEE802.3af, standard PoE
- Application EnvironmentIndoor
- Power Consumption? 12 W
- LanguageEnglish, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian
