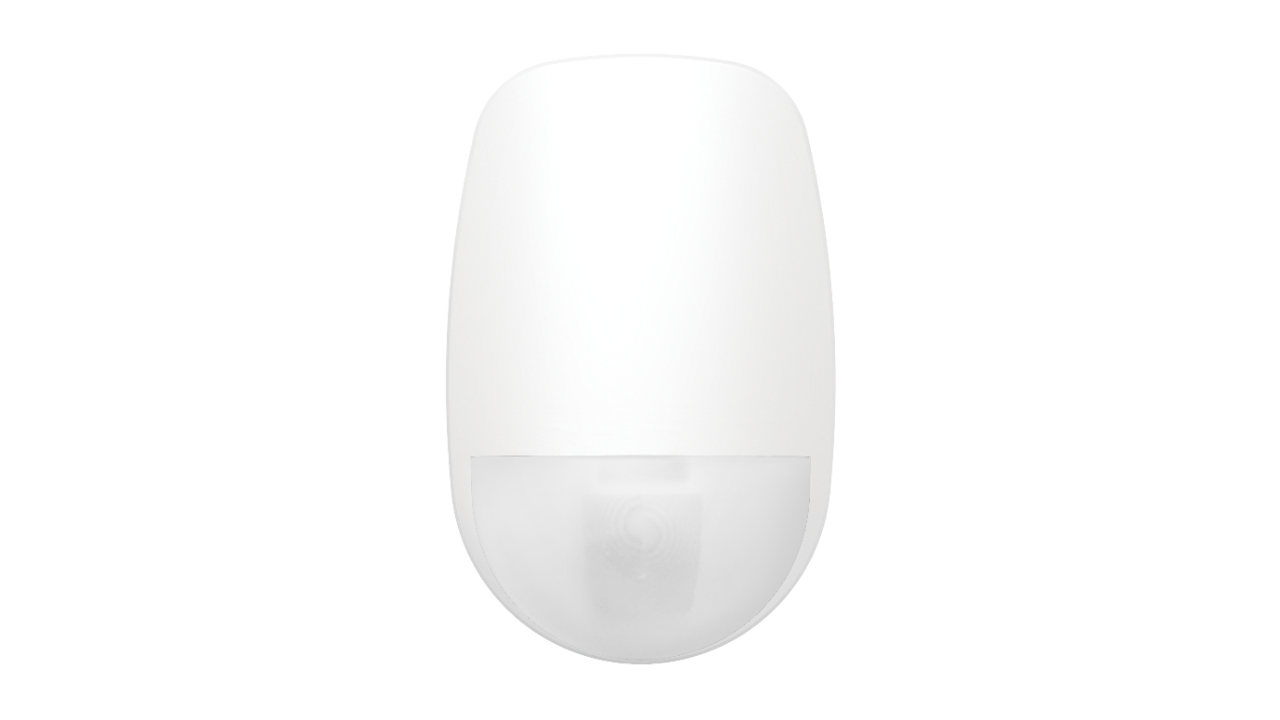

DS-PDC15-EG2-WB Hikvision Wireless PIR Curtain Detector Long range
DS-PDC15-EG2-WB Hikvision Wireless PIR Curtain Detector Long range
Out of stock
Description
Description
DS-PDC15-EG2-WB Hikvision Wireless PIR Curtain Detector Long range w/
This listing includes:
-  (1) ACCESSORIES: DS-PDC15-EG2-WB
DS-PDC15-EG2-WB  view data sheet
Wireless PIR Curtain Detector
- Long range with narrow angle detection
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
Wireless PIR Curtain Detector
- Long range with narrow angle detection
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
Specification
Detection Performance
Feature
Interface
Transmission
Electrical Characteristics
General
- Detection Performance
- Detection MethodPassive Infrared
- Detection Range15m
- Detection Angle6.3?
- Detection Zones18
- Detectable Speed0.3?2m/s
- Pet ImmunityNone
- White Light Filter6500lux
- Digital Temperature CompensationSupport
- Creep Zone ProtectionSupport
- Feature
- Digital ProcessingSupport
- Sealed OpticsSupport
- Tamper ProtectionFront;Rear
- Environment Temperature IndicatorSupport
- Signal Strength IndicatorSupport
- Interface
- Power SwitchPower Up Enrolling
- LED IndicatorBlue(Alarm)
- Transmission
- Transmission TechnologyTri-X Wireless
- Transmission MethodTwo-Way RF Wireless
- Transmission Frequency433MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1.2Km
- Frequency HoppingSupport
- Enrolling MethodPower up;Remote ID;QR Code
- Electrical Characteristics
- Standard Battery LifeUp to 5 years (standby time)
- Power SupplyBattery Powered
- Battery TypeCR123A ? 1
- Typical Voltage3V
- General
- Operation Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Storage Temperature-20 ?C to 60 ?C (-4 ?F to 140 ?F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)65.5mm ? 103mm ? 48.5mm
- Weight128g
- Mounting Height2.4 to 3.6m
- Mounting MethodWall
- Application ScenarioIndoor
- BracketOptional Wall & Ceiling Accessor
