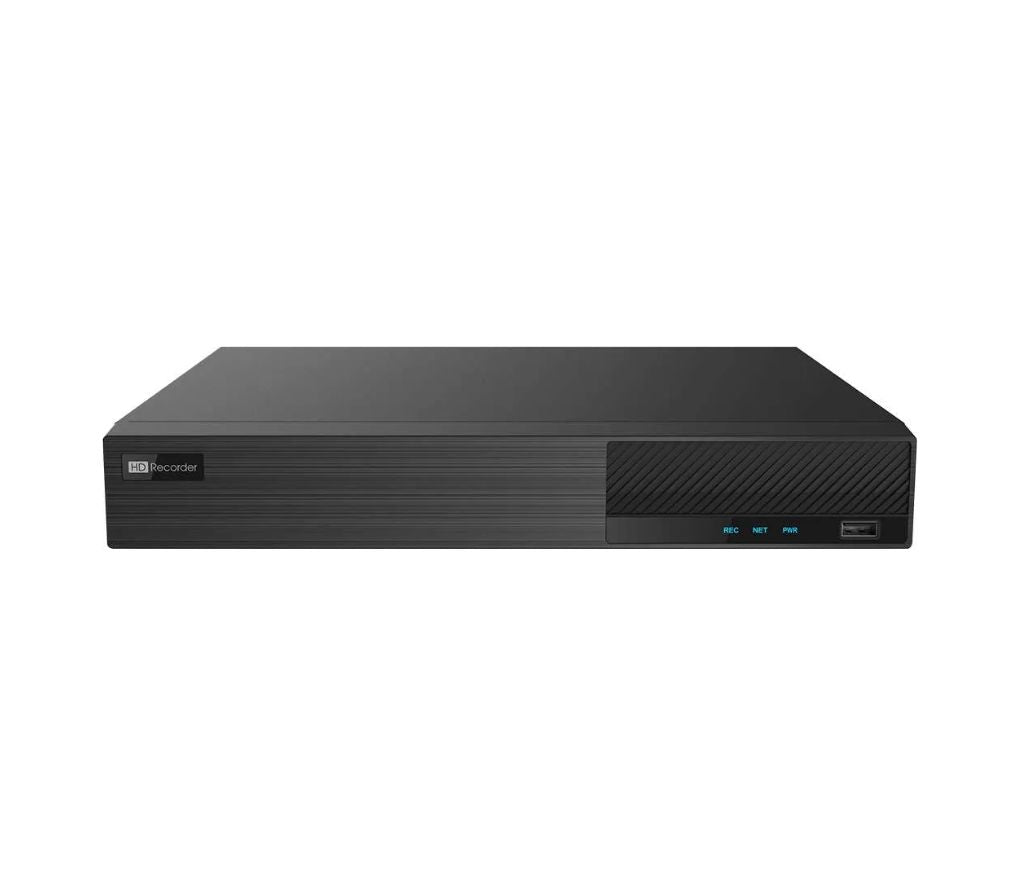

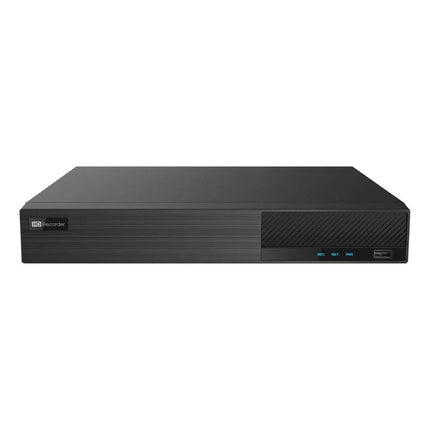

ED9516H5NV-16P-3N 16-Channel PoE 4K NVR
When you are protecting an entire home or business, what happens if the recorder becomes the weakest part of the system? The ED9516H5NV-16P-3N is designed to bring up to 16 IP cameras together in one powerful recording platform, with built-in PoE, support for resolutions up to 8MP, 4K display output, smart video analytics, and flexible remote access.
Instead of building a system that becomes harder to manage as more cameras are added, this NVR gives you centralized recording, playback, search, storage, and remote monitoring. With two SATA drive interfaces, advanced H.265-series compression, and simultaneous multi-camera playback, it is built for buyers who want both capacity and easier day-to-day control of their surveillance system.
The result is a security system that does more than simply record video—it helps you find important events faster, monitor your property when you are away, and maintain a clearer picture of what is happening across multiple areas.
Why Buyers Choose This Model
A surveillance system can have excellent cameras, but if the recorder is difficult to manage, limited in capacity, or inconvenient to access, how useful will the system be when something actually happens? The ED9516H5NV-16P-3N combines the features homeowners and businesses typically need most in a larger IP surveillance system: 16-camera capacity, integrated PoE, high-resolution recording, expandable storage, smart event capabilities, and remote viewing.
It is especially well suited for buyers who want room for a larger camera system without turning everyday playback and monitoring into a complicated process.
Features That Make a Difference
16 IP Camera Channels — Protect More Areas From One Recorder
Connect and manage up to 16 IP camera channels from one NVR. That gives you the flexibility to cover entrances, driveways, parking areas, hallways, offices, warehouses, backyards, and other important locations without needing a separate recorder for every group of cameras.
16 Built-In PoE Ports — A Cleaner, Simpler Installation
The recorder includes 16 integrated PoE network ports with IEEE 802.3AF/AT support. Compatible PoE cameras can connect directly to the NVR while receiving network connectivity and PoE power, helping simplify the infrastructure required for a typical direct-connected camera system.
Up to 8MP Camera Support — Preserve the Detail Your Cameras Capture
Why invest in higher-resolution cameras if your recorder cannot properly support them? The ED9516H5NV-16P-3N accepts resolutions up to 8MP, along with 6MP, 5MP, 4MP, 3MP, 1080P, and additional lower resolutions, giving you flexibility when building or upgrading your system.
4K HDMI Output — See More Detail on a Compatible Display
HDMI output supports resolutions up to 3840 × 2160, allowing the recorder to display surveillance video on a compatible 4K monitor or television. This gives you a high-resolution local viewing experience when reviewing cameras from the recorder.
Two SATA Drive Interfaces — More Room for Your Recording History
Two SATA 3.0 interfaces support hard drives up to 10TB each. That gives you significantly more storage flexibility when you need to retain footage from multiple cameras rather than being restricted to a single-drive recorder.
H.265S / H.265+ / H.265 / H.264 — Efficient Video Compression
Support for multiple modern video compression formats gives the system flexibility when balancing image quality, storage requirements, and network transmission. That becomes increasingly important when recording higher-resolution video across numerous cameras.
Up to 16-Channel Simultaneous Playback — Review the Bigger Picture
When an incident involves several parts of a property, looking at only one camera can leave part of the story missing. The NVR supports simultaneous playback of up to 16 channels, helping you review activity across multiple camera angles and better understand how an event developed.
Smart Search — Spend Less Time Looking for the Right Recording
Searching through hours of footage should not become another problem after an incident occurs. The recorder supports time slice, time, event, tag, and smart search options, giving you multiple ways to locate relevant recordings more efficiently.
Video Content Analytics — Turn Video Into More Useful Information
The NVR supports multiple VCA events including region intrusion, tripwire, object abandoned or missing, and video exception events. Rather than depending exclusively on continuous video recording, compatible analytics can help organize surveillance around meaningful activity.
Human & Vehicle Classification — Focus on Activity That Matters
Human and vehicle classification support adds another layer of intelligence to compatible surveillance configurations. This can make a security system more useful when your goal is not simply to collect footage, but to identify meaningful activity involving people and vehicles.
Plate Recognition Support — More Capability for Vehicle Monitoring
The recorder lists plate recognition support, making it suitable for compatible surveillance configurations where vehicle and license plate information is important, such as entrances, parking areas, and controlled-access locations.
iOS & Android Remote Surveillance — Your Cameras Don't Stay Behind When You Leave
You should not have to stand in front of the recorder to know what is happening at your property. Mobile surveillance is supported on iOS and Android devices, while NAT and QR-code functionality help support convenient mobile connectivity.
Web Client & CMS Access — Manage the System Beyond the Local Monitor
Remote functionality includes preview, playback, backup, PTZ control, and configuration through Web Client or CMS. This gives authorized users greater flexibility when the recorder itself is located somewhere inconvenient or when the property needs to be monitored remotely.
Dual-Stream Technology — Built for Local and Remote Surveillance
Dual-stream technology allows the system to accommodate high-definition local storage while also supporting network transmission and remote mobile surveillance. This provides greater flexibility when the same camera system needs to serve both recording and remote-viewing purposes.
Flexible Recording Modes — Record Around the Way Your Property Operates
The recorder supports multiple recording methods including manual, timed, motion, sensor, POS, AI, exception, and smart-event recording modes. Instead of being limited to one recording strategy, the system can be configured around different surveillance requirements.
USB & Network Backup — Make Important Footage Easier to Preserve
When you find the footage you need, being able to preserve it can be just as important as recording it in the first place. The NVR supports local backup using USB storage devices as well as network backup, giving you practical options for exporting important recordings.
ONVIF Support — Greater Integration Flexibility
ONVIF is included among the supported network protocols, providing additional flexibility when integrating compatible IP surveillance equipment. Compatibility with a specific third-party camera should still be confirmed before installation.
Two-Way Audio & IPC Audio Support — Go Beyond Video
The recorder supports 16-channel IPC audio input along with RCA two-way audio and local audio output. With compatible equipment, your surveillance system can capture important audio information in addition to video.
Pentaplex Operation — Keep the System Working While You Use It
Preview, recording, playback, backup, and remote access are supported as part of the recorder's Pentaplex functionality. That means the system is designed to handle the different jobs required from a modern surveillance recorder instead of forcing you to treat each task as a separate process.
What This Helps You Avoid
Imagine something happens outside your property overnight. You know the cameras recorded it—but now you have to determine when it happened, which camera captured it, whether another camera saw where the person or vehicle came from, and how to save the footage.
That is when a recorder's capabilities start to matter. A system that is difficult to search, limited in playback, inaccessible when you are away, or short on storage can turn the footage you invested in into another source of frustration.
- Helps avoid outgrowing a smaller recorder by supporting up to 16 IP camera channels.
- Helps simplify direct camera connections with 16 integrated PoE ports.
- Helps prevent a lower-resolution recorder from becoming the bottleneck for cameras up to 8MP.
- Helps reduce the frustration of manually searching long periods of footage with multiple search methods and smart search.
- Helps you understand incidents involving several areas through simultaneous multi-channel playback.
- Helps provide more storage flexibility with two SATA interfaces supporting up to 10TB per drive.
- Helps you stay connected when you are away through mobile, Web Client, and CMS remote-access options.
- Helps preserve important evidence through USB and network backup options.
- Helps make recorded video more actionable through supported VCA, human/vehicle classification, and plate recognition functions.
Instead of wondering whether your recorder will give you what you need after an incident, the ED9516H5NV-16P-3N gives you a centralized platform designed to record, organize, review, access, and preserve surveillance footage from a larger IP camera system.
Because when something happens, the real question isn't simply, "Did my cameras record it?" It's "Can I quickly find the footage I need and understand what actually happened?"
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
ED9516H5NV-16P-3N 16-Channel PoE 4K Network Video Recorder
The ED9516H5NV-16P-3N is a 16-channel PoE NVR built for high-resolution IP surveillance systems that need centralized recording, playback, storage, and remote access. With 16 integrated PoE network ports, support for IP cameras up to 8MP, 4K ultra-high-definition video output, advanced H.265-series compression, and simultaneous 16-channel playback, it provides a capable foundation for both residential and commercial security installations.
Dual HDD support, smart video analytics, mobile surveillance, ONVIF compatibility, flexible recording modes, and remote management make it suitable for systems that require reliable local recording while still allowing convenient access from computers and mobile devices.
Key Features
- 16-channel IP camera input
- 16 integrated PoE network ports for direct IPC connection
- Supports IP video resolutions up to 8MP
- 4K ultra-high-definition HDMI output
- H.265S, H.265+, H.265, and H.264 video compression
- Up to 16-channel simultaneous playback
- Manual, timed, motion, sensor, POS, and AI recording modes
- Smart search by time slice, time, event, tag, and analytics events
- Video Content Analytics including region intrusion, tripwire, object abandoned/missing, and video exception
- Human/vehicle classification support
- Plate recognition support
- POS information overlay on live view and playback
- Pentaplex operation: preview, record, playback, backup, and remote access
- Remote management through Web Client or CMS
- iOS and Android mobile surveillance support
- NAT and QR-code mobile setup support
- Dual-stream technology for local recording and remote viewing
- Two SATA 3.0 HDD interfaces with up to 10TB per HDD
- USB and network backup support
- ONVIF network protocol support
- Maximum 10 simultaneous client connections
System
Video
Audio
Recording
Playback
Decoding Capability
Alarm
Video Analytics & Smart Functions
Network
Mobile Surveillance
Storage
Backup
USB & Control
PoE
Power & Environmental
Physical Specifications
Certifications & Compliance
Accessories Found
- Optional remote controller
The data sheet also confirms support for USB flash drives, USB mobile hard drives, and mouse operation, but does not state that these items are included with the NVR.
Ideal Applications & Common Uses
- Residential surveillance systems requiring multiple IP cameras
- Retail stores and commercial properties
- Offices and enterprise security installations
- Financial and banking environments
- Transportation surveillance applications
- Government facilities
- 16-camera PoE systems requiring centralized power and recording
- High-resolution installations using cameras up to 8MP
- Systems requiring local 4K monitor output
- Installations requiring remote mobile or CMS monitoring
- Applications using human/vehicle classification, plate recognition, or VCA events
- Security systems requiring extended storage with two hard drives
Downloads
Frequently Asked Questions
The ED9516H5NV-16P-3N supports up to 16 IP camera channels, making it suitable for surveillance systems with as many as 16 connected cameras.
The NVR supports IP camera input resolutions up to 8MP. It also supports 6MP, 5MP, 4MP, 3MP, 1080P, 1280 × 1024, 960P, 720P, 960H, D1, and CIF resolutions.
Yes. It includes 16 built-in RJ45 100Mbps PoE ports for direct connection of compatible IP cameras. The PoE ports support IEEE 802.3AF/AT standards and provide up to 150W of PoE output power.
The ED9516H5NV-16P-3N has two SATA 3.0 hard drive interfaces and supports a maximum capacity of 10TB per hard drive.
Yes. The HDMI output supports resolutions up to 3840 × 2160 for 4K ultra-high-definition display. The NVR also provides VGA video output for local monitoring.
Yes. The NVR supports remote access through a Web Client or CMS for preview, playback, backup, PTZ control, and configuration. Mobile surveillance is supported on iOS and Android devices, and the NVR also supports NAT and QR-code scanning for mobile access.
Yes. ONVIF is included in the NVR's supported network protocols. The datasheet does not specify compatibility with every individual third-party camera model, so camera compatibility should be confirmed separately when using equipment from another manufacturer.
The NVR supports multiple recording modes including manual, timed, motion, sensor, POS, and AI recording. The specification table also lists manual, sensor, motion, exception, and smart-event recording modes.
Yes. It supports Video Content Analytics events including object abandoned or missing, region intrusion, tripwire, and video exception. The datasheet also lists human and vehicle classification and plate recognition support.
Yes. The NVR supports up to 16-channel simultaneous playback. Playback functions include play, pause, fast forward, fast backward, and digital zoom, along with time slice, time, event, tag, and smart search options.
