ED9632H5NB-16P-A2 Tvt 32ch IP PoE Recorder w/ HDD ED9632H5NV-16ports-A2 ||
ED9632H5NB-16P-A2 Tvt 32ch IP PoE Recorder w/ HDD ED9632H5NV-16ports-A2 ||
One Way Audio
Out of stock
Description
Description

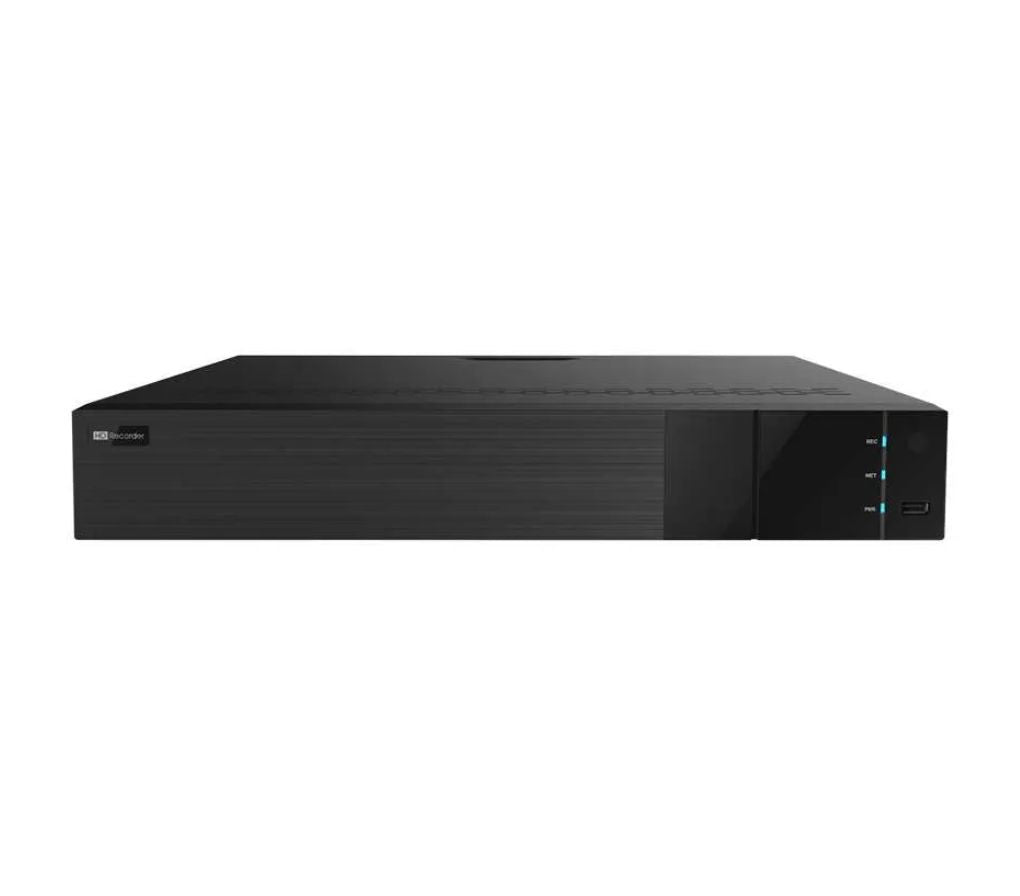

ENS ED9632H5NV-16P-A2 32-Channel PoE NVR
What happens when your security system grows beyond a few cameras and you need one recorder that can keep everything organized, accessible, and easy to review? The ENS ED9632H5NV-16P-A2 gives you support for up to 32 IP camera channels, 16 built-in PoE connections, high-resolution IP camera support up to 12MP, and true 4K video output. Instead of simply storing footage, it adds intelligent tools such as human and vehicle classification, face detection and comparison, license plate recognition, smart search, and VCA analytics to help you find and understand important events faster. With expandable storage, remote viewing, mobile access, and compatibility with ONVIF-supported third-party IP cameras, it is built for surveillance systems that need room to grow.
Why Buyers Choose This Model
When you are protecting a larger home, business, warehouse, retail location, or multi-camera property, the question is not simply whether the recorder can capture video. The bigger question is whether it gives you enough capacity, storage flexibility, intelligent search tools, and remote access to actually manage that video when something happens.
The ED9632H5NV-16P-A2 combines high camera capacity with integrated PoE, intelligent analytics, 4K display capability, and flexible storage so your surveillance system can remain manageable as your needs increase.
Features That Give You More Control
32-Channel IP Camera Support — Protect More Areas From One Recorder
Connect and manage up to 32 IP camera channels from a single NVR. That gives larger properties room to cover entrances, parking areas, offices, warehouses, hallways, registers, and other important areas without immediately needing another recorder.
16 Built-In PoE Ports — Simplify Camera Connections
Sixteen integrated PoE ports allow compatible IP cameras to connect directly to the NVR for network communication and PoE power. This gives you a cleaner foundation for your surveillance system while still allowing the recorder to support as many as 32 IP camera channels overall.
Up to 12MP IP Camera Input — Preserve Important Visual Detail
Support for resolutions ranging up to 12MP gives you flexibility to use higher-resolution cameras in locations where detail matters most. That can make recorded video more useful when reviewing people, vehicles, property, or activity after an incident.
4K HDMI Output — See More Detail on a Compatible Display
HDMI1 supports output up to 3840 × 2160. When connected to a compatible 4K monitor, you can review your surveillance system with a high-resolution local display instead of being limited to standard HD output.
Human & Vehicle Classification — Focus on the Activity That Matters
Human and vehicle classification gives the system additional intelligence for identifying relevant activity. Rather than treating every scene exactly the same, compatible analytics can help you concentrate on events involving people and vehicles.
Face Detection & Comparison — Add Another Layer of Search Intelligence
The recorder supports face detection, face comparison, face-picture databases, picture-based searching, allow lists, block lists, and stranger-match alarms. That gives compatible systems more ways to organize and review events involving people instead of relying only on traditional timeline playback.
License Plate Recognition — Better Visibility Into Vehicle Activity
License plate recognition support makes the recorder a stronger option for surveillance systems covering vehicle entry points, parking areas, gates, and other locations where vehicle information may be important.
VCA Smart Events — Turn Video Into More Useful Information
Supported Video Content Analytics include region intrusion, tripwire, abandoned or missing objects, and video exception events. Instead of depending entirely on someone watching cameras continuously, these tools give compatible cameras and the recorder additional ways to identify specific types of activity.
Smart Search — Spend Less Time Looking Through Footage
Search recordings by time slice, time, event, tag, or smart search. When you need to investigate something, having multiple search methods can make finding the relevant section of recorded video much more practical than manually scrolling through hours of footage.
Up to 16-Channel Simultaneous Playback — Review Multiple Views Together
The NVR supports simultaneous playback of as many as 16 channels. This can help you reconstruct an event across multiple camera angles instead of reviewing each camera individually.
Four SATA HDD Bays — Build Storage Around Your Security Needs
Four SATA interfaces support hard drives up to 10TB each according to the datasheet. That gives you flexibility to configure substantial local surveillance storage based on your number of cameras, recording settings, and retention requirements.
H.265S / H.265+ / H.265 / H.264 — Flexible Video Compression
Multiple supported video compression formats give compatible camera systems flexibility in how surveillance footage is encoded and recorded. This is especially important in larger systems where bandwidth and storage requirements can become significant.
ONVIF Support — More Flexibility When Choosing Cameras
ONVIF compatibility allows the recorder to work with supported third-party IP cameras. That can give you more flexibility when expanding an existing surveillance system instead of automatically being limited to a single camera ecosystem.
Remote & Mobile Surveillance — Stay Connected When You Are Away
Access is supported through Web Client or CMS for functions including preview, playback, backup, PTZ, and configuration. iOS and Android mobile surveillance is also supported, helping you stay connected to your security system even when you are not physically at the property.
PTZ Control — Manage Compatible Cameras From the Recorder
PTZ functionality includes support for up to 255 presets and 8 cruises. With compatible PTZ cameras, this gives you greater control over how important areas are monitored without requiring every camera to remain fixed on one view.
POS Integration — Connect Video With Retail Activity
POS information can be overlaid on live view and playback. For compatible retail environments, this gives you another way to connect transaction-related information with corresponding surveillance footage during review.
16 Alarm Inputs & 4 Alarm Outputs — Integrate More Than Cameras
Built-in alarm connections expand the recorder beyond basic video recording. Supported triggers can initiate actions such as recording, snapshots, presets, and e-mail, giving installers more options when designing a complete security solution.
What This Helps You Avoid
Imagine having dozens of cameras recording every day, only to discover that finding the footage you actually need has become almost as difficult as not having the cameras in the first place. Or perhaps your current recorder is already close to its channel limit, leaving you wondering what happens when another entrance, parking area, register, or section of the property needs coverage.
That is where a recorder with 32-channel capacity, intelligent event tools, multi-channel playback, and expandable storage begins to make a difference. Instead of building a system that quickly runs out of room, you have space for expansion and multiple ways to locate important footage when an event needs to be investigated.
The built-in PoE ports simplify the first group of camera connections, while ONVIF support gives you greater flexibility with compatible third-party IP cameras. Smart search, face analytics, human and vehicle classification, LPR, VCA events, remote access, and mobile viewing then help turn all of that recorded video into a security system that is easier to manage.
So rather than asking only, “How many cameras can this recorder connect?” the better question may be: “Will this recorder give me enough capacity, intelligence, and flexibility to manage the security system I actually want to build?” For larger surveillance installations, the ED9632H5NV-16P-A2 is designed to give you considerably more room to do exactly that.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
ENS ED9632H5NV-16P-A2 32-Channel 12MP PoE Network Video Recorder
The ENS ED9632H5NV-16P-A2 is a 32-channel professional network video recorder designed for high-resolution surveillance systems requiring centralized recording, intelligent analytics, and flexible expansion.
It supports IP cameras up to 12MP resolution, provides 16 integrated PoE ports for direct camera connections, and delivers 4K HDMI output for detailed local viewing. With up to 16-channel simultaneous playback, four SATA hard-drive bays, face detection and comparison, human/vehicle classification, license plate recognition, VCA analytics, POS integration, and remote mobile access, it is built for demanding residential and commercial security installations.
Its support for ONVIF-compatible third-party IP cameras, dual Gigabit network interfaces, remote Web/CMS management, and up to 40TB of internal storage capacity makes it suitable for both new surveillance installations and larger system upgrades.
Key Features
- 32-channel IP camera input
- Supports up to 12MP IP camera resolution
- 16 built-in PoE network ports for direct IPC connection
- IEEE 802.3AF/AT PoE support
- Up to 150W total PoE output power
- H.265S, H.265+, H.265 and H.264 video compression
- 4K UHD HDMI1 video output up to 3840 × 2160
- Dual HDMI outputs plus VGA output
- Up to 16-channel simultaneous playback
- 192Mbps incoming / 192Mbps outgoing network bandwidth
- Four SATA HDD interfaces supporting up to 10TB per HDD
- One E-SATA interface
- Dual Gigabit Ethernet interfaces
- Human/vehicle classification support
- Face detection and face comparison capabilities
- License plate recognition support
- Multiple VCA video analytics events
- POS information overlay on live view and playback
- Manual, timed, motion, sensor, POS and AI recording modes
- Time slice, time, event, tag and smart search
- Pentaplex operation: preview, record, playback, backup and remote access
- ONVIF compatibility for supported third-party IP cameras
- Remote management through Web Client or CMS
- Mobile surveillance for iOS and Android
- NAT function with QR-code scanning for mobile setup
- PTZ preset and auto-cruise support with up to 255 presets and 8 cruises
- 16 local alarm inputs and 4 alarm outputs
- Maximum 20 simultaneous client connections
Model
System
Video
Audio
Recording
Playback
Decoding Capability
Multi-Screen Display Mode
Alarm
Face Analytics
Video Structure Analysis
Other Intelligent Functions
Network
PoE
Mobile Device
Storage
Backup
External Interfaces
PTZ Control
General
Accessories Found
Ideal Applications & Common Uses
Downloads
Frequently Asked Questions
The ED9632H5NV-16P-A2 supports up to 32 channels of IP camera input. Supported camera resolutions include 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 × 1024, 960P, 720P, 960H, D1 and CIF.
The NVR has 16 built-in RJ45 100Mbps PoE ports for direct IP camera connection. The PoE ports support IEEE 802.3AF/AT and provide up to 150W of total PoE output power.
Yes. The NVR supports IP camera resolutions up to 12MP. Its HDMI1 output supports up to 3840 × 2160 resolution for 4K high-definition display.
Yes. The datasheet states that the ED9632H5NV-16P-A2 is compatible with third-party IP cameras through ONVIF support.
The NVR provides four SATA hard drive interfaces and supports a maximum capacity of 10TB for each HDD. It also includes one E-SATA interface.
Yes. The NVR supports mobile surveillance on iOS and Android devices and includes NAT functionality with QR-code scanning for mobile access. Remote control through a Web Client or CMS supports preview, playback, backup, PTZ control and configuration.
The ED9632H5NV-16P-A2 supports up to 16-channel simultaneous playback. Recorded video can be searched by time slice, time, event, tag and smart search.
The NVR supports face detection and comparison, human and vehicle classification, license plate recognition and multiple VCA events. Supported VCA events listed in the datasheet include abandoned or missing objects, region intrusion, tripwire and video exception detection.
Yes. The NVR supports 32-channel IPC audio input, one RCA two-way audio connection and one RCA local audio output. Audio compression is G.711(U/A).
The NVR supports manual, timed, motion, sensor, POS and AI recording modes with dual-stream recording. Supported video compression formats are H.265S, H.265+, H.265 and H.264.
