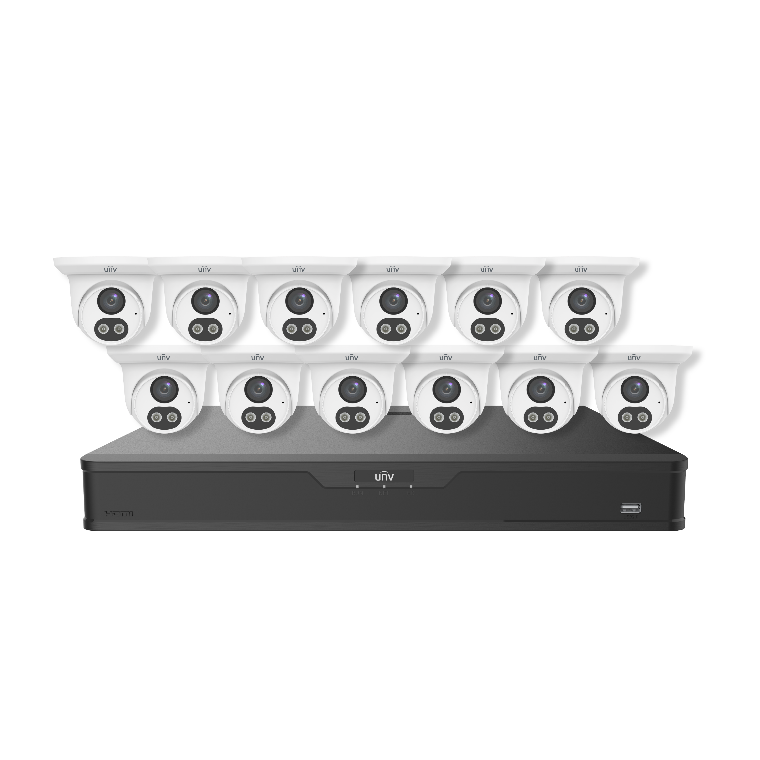

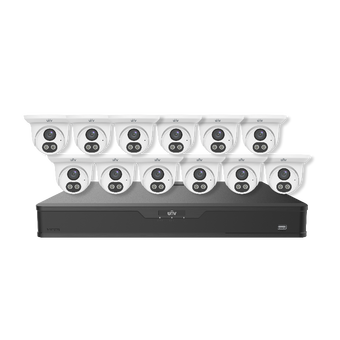

EK-BQ2P16DLT412T4 12 cam 4MP + NVR 16CH UNV Kit Human Smart Detection Smart Dual Light
EK-BQ2P16DLT412T4 12 cam 4MP + NVR 16CH UNV Kit Human Smart Detection Smart Dual Light
Regular price
$3,059.00
Sale price
$3,059.00
Regular price
$3,309.00
Shipping calculated at checkout.
Out of stock
Description
Description

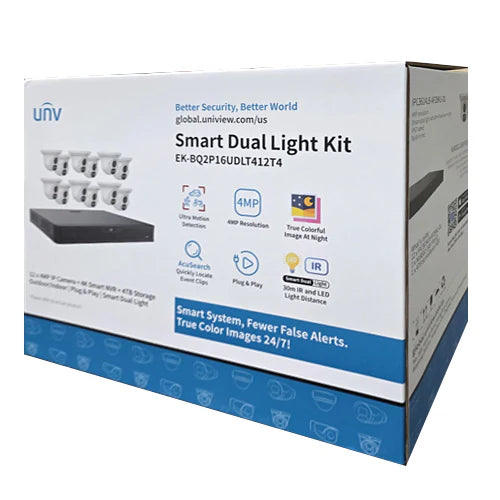

EK-BQ2P16DLT412T4 UNV 16 Channel Surveillance Kit with 12 Dual Light Cameras, PoE NVR, 4
4TB HDD, NDAA
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Product Manuals, data sheets.
Verified Customer Feedback
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
Uniview EK-S31P8DLT46 6x 4MP (NO HDD)
Regular price
$1,484.99
Sale price
$1,484.99
Regular price
In stock
Choose your option
UNV EK-BQ2P16UDLT412T4, IP Kit 16ch NVR, 12pcs Turret 4MP Color Hunter (Smart Search), 4TB HD
Regular price
$3,359.00
Sale price
$3,359.00
Regular price
Out of stock
Choose your option
UNV EK-BQ2P16UDLT412-V2, (NO HDD) IP Kit 16ch NVR, 12pcs Turret 4MP Color Hunter (Smart Search),
Regular price
$3,359.96
Sale price
$3,359.96
Regular price
Out of stock
Choose your option
Uniview EK-S31P8DLT46T2 6x 4MP Dual-Light PoE IR IP Camera 2TB & Built-in Mic
Regular price
$1,579.00
Sale price
$1,579.00
Regular price
Out of stock
Choose your option
Technical Specifications
EK-BQ2P16DLT412T4 12 cam 4MP + NVR 16CH UNV Kit Human Smart Detection Smart Dual Light
The Uniview EK-BQ2P16DLT412T4 is a network video recorder. Highlights include support Ultra 265/H.265/H.264 video formats, 16 channel input and plug & Play with 16 independent PoE network interfaces. Its IP67 rating supports installation where dust and water protection is required.
Ideal applications
- Centralized recording and playback for multi-camera security systems
- Homes, small businesses and retail sites
- Plug & play installations with PoE cameras
Key Features
- Support Ultra 265/H.265/H.264 video formats
- 16 channel input
- Plug & Play with 16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI simultaneous output
- Up to 12 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
Specifications
Model
NVR302-16B-P16-IQ
Decoding
Decoding Format
Ultra 265,H.265,H.264
Decoding Capability
Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
Decoding Capability Description
The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression
G.711A, G.711U
Network
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
128Mbps
Remote Users
128
Protocols
TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser(Plugin)
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input
16-ch
RCA Audio Input
1-ch
Video/Audio Output
HDMI Output
4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz,; 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output
1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output
1-ch
Liveview Display
1/4/6/8/9/16
Corridor Mode Screen
3/4/5/7/9/10/12/16
Two-way Audio
Two-way Audio
1-ch,RCA(Using the audio input and output)
Snapshot
D
ATASHEET
FTP/Schedule/Event Snapshot
4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local
16-ch
Smart
VCA Detection by IPC
Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring
Smart by NVR
Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search
Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search,; Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch
Smart by IPC
All channels (up to 8 images/s in total)Face Detection, Face Comparison, Vehicle Detection, SIP, UMD,; Traffic Monitoring
Vehicle Picture Library
Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR
2-ch
UMD by NVR
4-ch
Alarm
General Alarm
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech,; Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish,; Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA
2 SATA Interfaces
Capacity
Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB
Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0
D
ATASHEET
RS485
1
RS232
N/A
Alarm In
8-ch
Alarm Out
2-ch
Power Supply
AC 100~240V; PoE
PoE Interface
16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power
Max 30 W for single port, Max 240 W in total
Supported Standard
IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature
-10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)
Working Humidity
≤ 90% RH (non-condensing)
Power Consumption (without HDD)
≤ 12W
Dimensions
Weight (without HDD)
≤ 2.7Kg (6.0lb)
Dimensions
380mm × 322mm × 53mm (15.0"×12.7"×2.1")
Certification
Certification
CE; FCC; UL; RoHS; WEEE
CE
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC
Part15 Subpart B
Model
IPC3614LB-AF28K-DL
Resolution
4MP
Sensor
1/3.0" CMOS
Min. Illumination
Colour: 0.01 lux ( F1.6, AGC ON); 0 lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment angle
Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N
>52dB
WDR
DWDR
D
ATASHEET
Lens
Description
Lens type
2.8mm
Iris Type
Fixed
Iris
F1.6
Field of View (H)
97.0°
Field of View (V)
52.2°
Field of View (D)
107.5°
DORI
Description
DORI Distance（Lens）
2.8mm
DORI Distance（Detect）
63.0m(206.7t)
DORI Distance（Observe）
25.2m(82.7ft)
DORI Distance（Recognize）
12.6m(41.3ft)
DORI Distance（Identify）
6.3m(20.7ft)
Illuminator
Description
Illumination Distance(IR)
30m
Illumination Distance(Warm Light)
30m
Wavelength
850nm
IR On/Off Control
Auto/Manual
Video
Description
Video Compression
Ultra 265; H.265; H.264; MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;; CIF(352*288), Max 30fps;
Video Bit Rate
128 Kbps~6144 Kbps
U-code
Support
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Video stream
Dual streams
Description
White Balance
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Support
Flip
Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
Dewarping
N/A
HLC
Support
BLC
Support
Defog
Digital Defog
Events
Description
D
ATASHEET
Basic Detection
Motion detection; Tampering alarm; Audio detection, Human Body Detection
General Function
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication;; User Authentication; HTTP authentication
Audio
Description
Audio Compression
G.711U; G.711A
Audio Bitrate
64 Kbps
Two-way Audio
N/A
Suppression
Support
Sampling Rate
8KHZ
Storage
Description
Edge Storage
Micro SD，up to 128 GB
Network Storage
ANR; NAS(NFS)
Network
Description
Protocols
IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS;; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP
Compatible Integration
ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host
Up to 32 users, 2 user levels: administrator and common user
Security
Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
Client
UNV-Link; UNV-Link Pro; EZStation
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Description
Audio I/O
N/A
Alarm I/O
N/A
Serial Port
N/A
Built-in Mic
Support
Built-in Speaker
N/A
WIFI
N/A
Network
1 * RJ45 10M/100M Base-TX Ethernet
Video Output
N/A
Certification
Description
EMC
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
Safety
CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection
IP67 (IEC 60529)
General
Description
Power
DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 2.8W; D
Power Interface
Ø 5.5mm coaxial power plug
Dimensions
Φ126 x 93.6mm (Φ5.0” x 3.7”)
Weight
0.29kg (0.64lb)
Material
Metal + Plastic
Working Environment
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Storage Environment
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Surge protection
4KV
Reset button
N/A
Web Client Language
4 Languages; English, Russian, Spanish, Vietnamese
