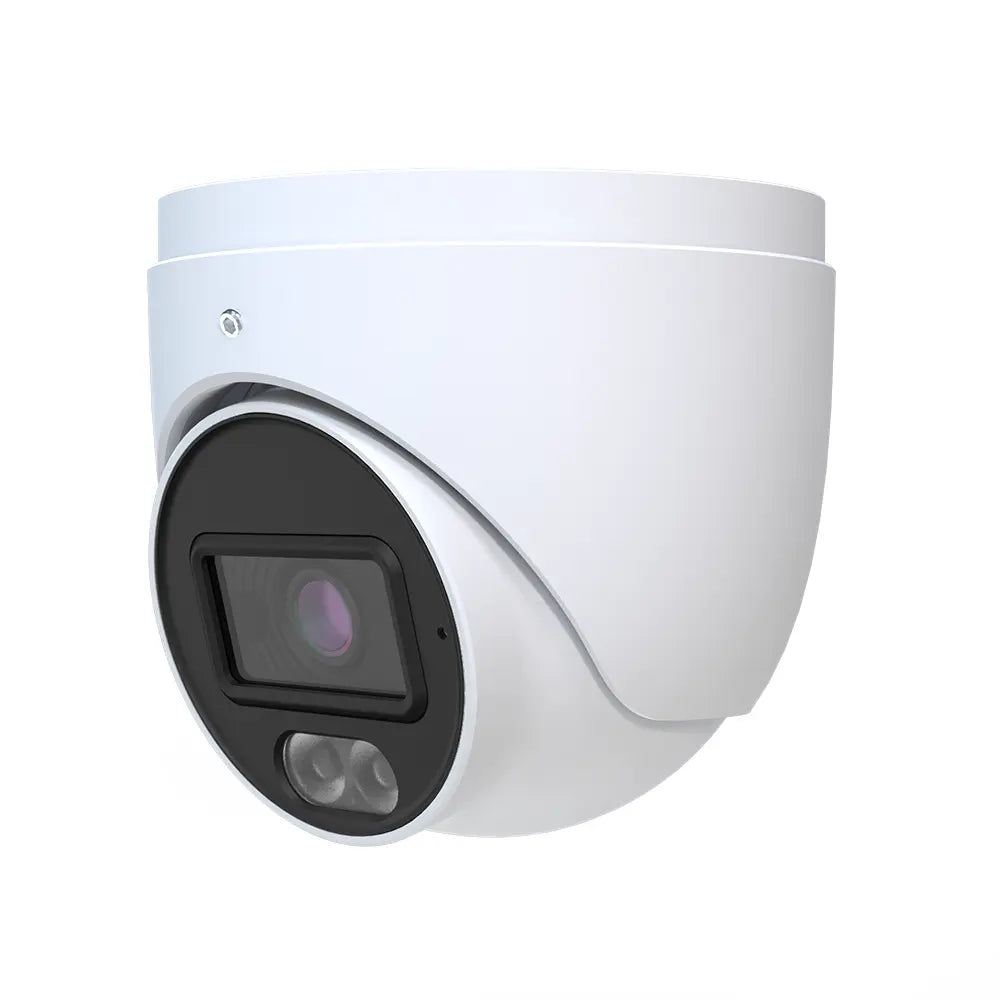

TVT HDC-IRD5AS24/36 5MP Full-Color Coax Turret Camera with Built-In Mic, 3.6mm Lens & IP67
TVT HDC-IRD5AS24/36 5MP Full-Color Coax Turret Camera with Built-In Mic, 3.6mm Lens & IP67
Hybrid Light
Available in stock (20)
products.product.pickup_availabilities
Description
Description
See Important Details Clearly—Even After Dark
What would it mean to have clearer, more useful video when an incident happens at night? The HDC-IRD5AS24/36 combines detailed 5MP imaging, full-color nighttime viewing, and recorded audio in one compact turret camera.
Its automatic white LED helps illuminate dark areas up to 98 feet away, allowing the camera to continue producing color images when ordinary lighting is unavailable. With support for TVI, CVI, and AHD video formats, it offers a practical way to improve compatible coaxial surveillance systems without unnecessarily replacing the existing infrastructure.
For homes and businesses that need dependable visual evidence day or night, this camera helps turn uncertain activity into information you can actually review.
Why Buyers Choose This Model
```5MP Resolution — See More of the Details That Matter
The 2560 × 1936 image provides the clarity needed to review people, movement, clothing, vehicles, and other important scene details with greater confidence. It records 5MP video at up to 20 frames per second or 4MP video at 30 frames per second.
Full-Color Night Viewing — Keep Useful Color Information After Dark
Instead of immediately losing color details in low-light conditions, the camera uses its white LED to produce full-color nighttime images. This can make it easier to distinguish details such as clothing or vehicle color when reviewing recorded activity.
Automatic White LED — Illumination When the Scene Gets Dark
The integrated LED can turn on automatically under low illumination and provides a specified viewing distance of 66 to 98 feet. You receive a more visible scene without depending entirely on surrounding lights.
Built-In Microphone — Add Context Beyond the Image
The integrated microphone adds sound to compatible recordings, helping you understand more of what occurred instead of relying on silent video alone. Coaxial audio transmission is supported in TVI signal mode.
TVI, CVI, and AHD Output — More Flexible System Compatibility
Support for three common analog HD formats makes the camera easier to integrate with compatible DVR systems. This flexibility can help simplify upgrades when an existing property is already wired with coaxial cable.
Progressive-Scan CMOS Sensor — Cleaner Capture of Moving Activity
The 1/2.5-inch CMOS progressive-scan sensor is designed to capture moving objects clearly, giving you more useful footage when people or vehicles pass through the monitored area.
Digital WDR and Backlight Compensation — Better Balance in Difficult Lighting
Digital Wide Dynamic Range and backlight compensation help improve visibility when bright and dark areas appear in the same scene. This helps reduce the chance of losing important details because a doorway, window, or exterior light is brighter than the surrounding area.
2D Digital Noise Reduction — Cleaner Video in Challenging Conditions
Digital noise reduction helps control unwanted image grain, producing cleaner footage that is easier to watch and review.
3.6mm Fixed Lens — Practical Coverage for Everyday Surveillance
The 3.6mm lens provides a useful viewing perspective for monitoring entrances, walkways, offices, storefronts, and other general surveillance areas without requiring ongoing lens adjustments.
Flexible Three-Axis Adjustment — Aim the Camera Where Coverage Is Needed
With 360-degree pan, up to 75-degree tilt, and 360-degree rotation adjustment, installers can position the camera for the intended scene on a wall or ceiling.
IP67 Protection — Built for Demanding Indoor or Outdoor Locations
The IP67-rated housing protects the camera against dust and water exposure, giving you greater flexibility when monitoring exterior entrances, driveways, covered parking areas, or indoor spaces.
Coaxial Control and OSD Menu — Easier On-Screen Configuration
COC control and the on-screen display menu allow supported image settings to be adjusted through the coaxial connection, helping simplify setup and fine-tuning from the recorder.
What This Helps You Avoid
A security camera should provide answers, but low-resolution footage, dark nighttime images, and silent recordings can leave you with even more uncertainty after something happens.
The HDC-IRD5AS24/36 helps reduce that frustration by combining detailed 5MP video, full-color LED illumination, and a built-in microphone. Rather than discovering afterward that the scene was too dark or lacked context, you have a more complete visual and audio record to review.
```- Dark nighttime footage that hides useful color details
- Images that lack the resolution needed for closer review
- Silent recordings that provide little context about an incident
- Poorly balanced scenes caused by bright backgrounds
- Unnecessary rewiring when upgrading a compatible coaxial system
- Outdoor camera failure caused by insufficient environmental protection
Instead of wondering whether your camera captured enough, you gain a surveillance solution designed to provide clearer evidence, better nighttime visibility, and greater peace of mind.
```
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
HDC-IRD5AS24/36 5MP HD Full-Color Turret Camera
Detailed full-color surveillance with audio for compatible coaxial systems
The HDC-IRD5AS24/36 combines detailed 5MP imaging, automatic white-light illumination, and a built-in microphone in a compact turret design. Its LED provides a specified viewing distance of 66 to 98 feet, helping the camera produce color images even when the monitored area becomes dark.
Support for TVI, CVI, and AHD video output makes it a flexible option for compatible analog HD surveillance systems. An IP67-rated housing, digital WDR, digital noise reduction, and flexible three-axis adjustment help provide dependable coverage in a variety of indoor and outdoor locations.
Key Features
- 5MP video at up to 20 fps or real-time 4MP video at 30 fps
- 2560 × 1936 maximum image size
- Full-color nighttime imaging with automatic white LED
- 66-98 ft. (20-30 m) LED viewing distance
- 0 lux minimum illumination with the LED turned on
- 1/2.5-inch progressive-scan CMOS image sensor
- AHD, TVI, and CVI high-definition video output
- Built-in microphone with one audio channel
- Coaxial audio support in TVI signal mode
- Fixed 3.6 mm lens with M12 lens mount
- Digital Wide Dynamic Range and backlight compensation
- 2D digital noise reduction
- OSD menu with COC control
- Automatic white balance and automatic gain control
- IP67-rated protection
- DC 12V power input
Camera Specifications
```Image and Control Functions
```Installation and Adjustment
```Power and Environmental Specifications
```Physical Specifications
```Accessories Shown in the Data Sheet
```Accessory note: The data sheet identifies these products by model number and illustration but does not provide individual accessory names or confirm that they are included with the camera. Verify compatibility and package contents before ordering.
```Ideal Applications and Common Uses
```- Home entrances, side yards, patios, and driveways
- Retail stores and customer-facing areas
- Office entrances, hallways, and reception areas
- Warehouses, stockrooms, and loading areas
- Small-business exterior surveillance
- Parking and vehicle-access areas within the camera's viewing range
- Locations where full-color nighttime video is preferred
- Areas where recorded audio can provide additional incident context
- Compatible coaxial CCTV upgrades using TVI, CVI, or AHD video
- Indoor or outdoor installations requiring IP67-rated protection
Downloads
Frequently Asked Questions
The camera provides 5MP resolution with an image size of 2560 × 1936. It records 5MP video at up to 20 frames per second or 4MP video at 30 frames per second.
Yes. The HDC-IRD5AS24/36 is a full-color camera equipped with a white LED that can turn on automatically under low-light conditions. Its minimum illumination is specified as 0 lux when the LED is on.
The specified LED viewing distance is approximately 66 to 98 feet, or 20 to 30 meters. Actual scene visibility can be affected by the installation angle, surrounding surfaces, and environmental conditions.
Yes. It has a one-channel built-in microphone. The data sheet states that coaxial audio transmission is temporarily supported only when the camera is operating in TVI signal mode.
The camera supports AHD, TVI, and CVI high-definition video output. A compatible recorder and the appropriate signal configuration are required.
It uses a fixed 3.6 mm lens with an M12 lens mount. Because it is a fixed lens, the focal length does not provide optical zoom or motorized focal adjustment.
Yes. The camera carries an IP67 protection rating and is specified to operate at temperatures from -30°C to 50°C, or approximately -22°F to 122°F, with 10% to 90% relative humidity.
The camera requires a DC 12V power supply with a permitted variation of ±10%. Its power consumption is less than 1.5W with the LED off and less than 3W with the LED on.
Yes. It supports Digital Wide Dynamic Range, backlight compensation, automatic white balance, automatic gain control, contrast and sharpness adjustment, and 2D digital noise reduction.
Yes. The turret supports 0° to 360° pan adjustment, 0° to 75° tilt adjustment, and 0° to 360° rotation, allowing the installer to aim it toward the intended surveillance area.
