Technical Specifications

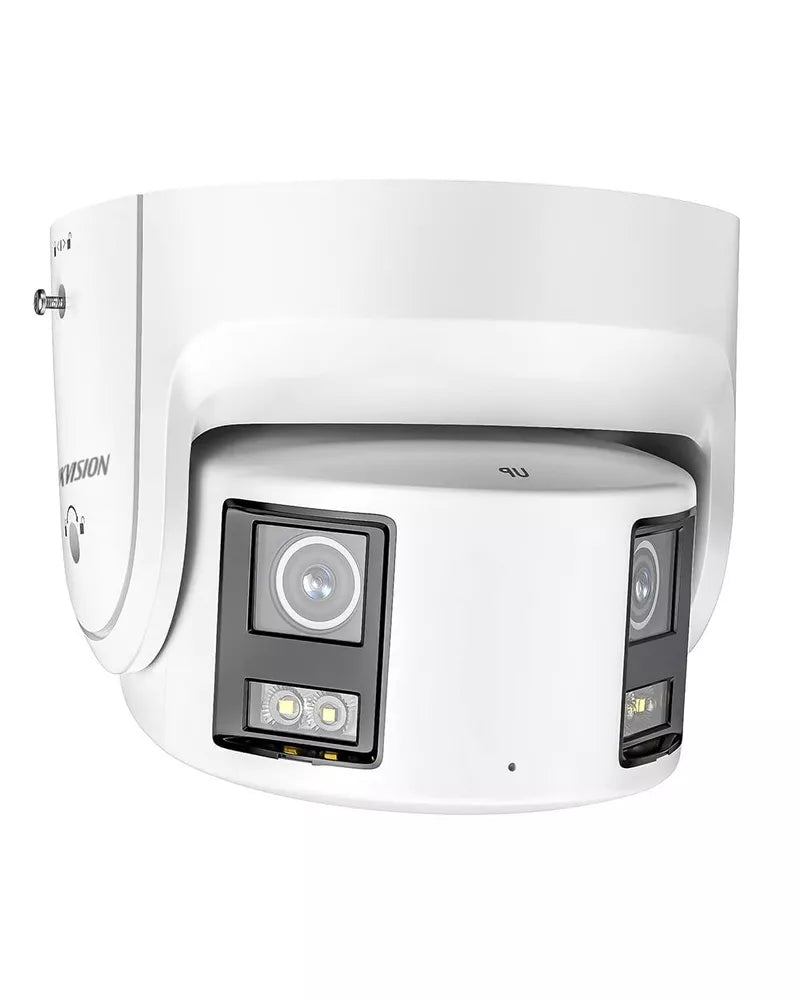

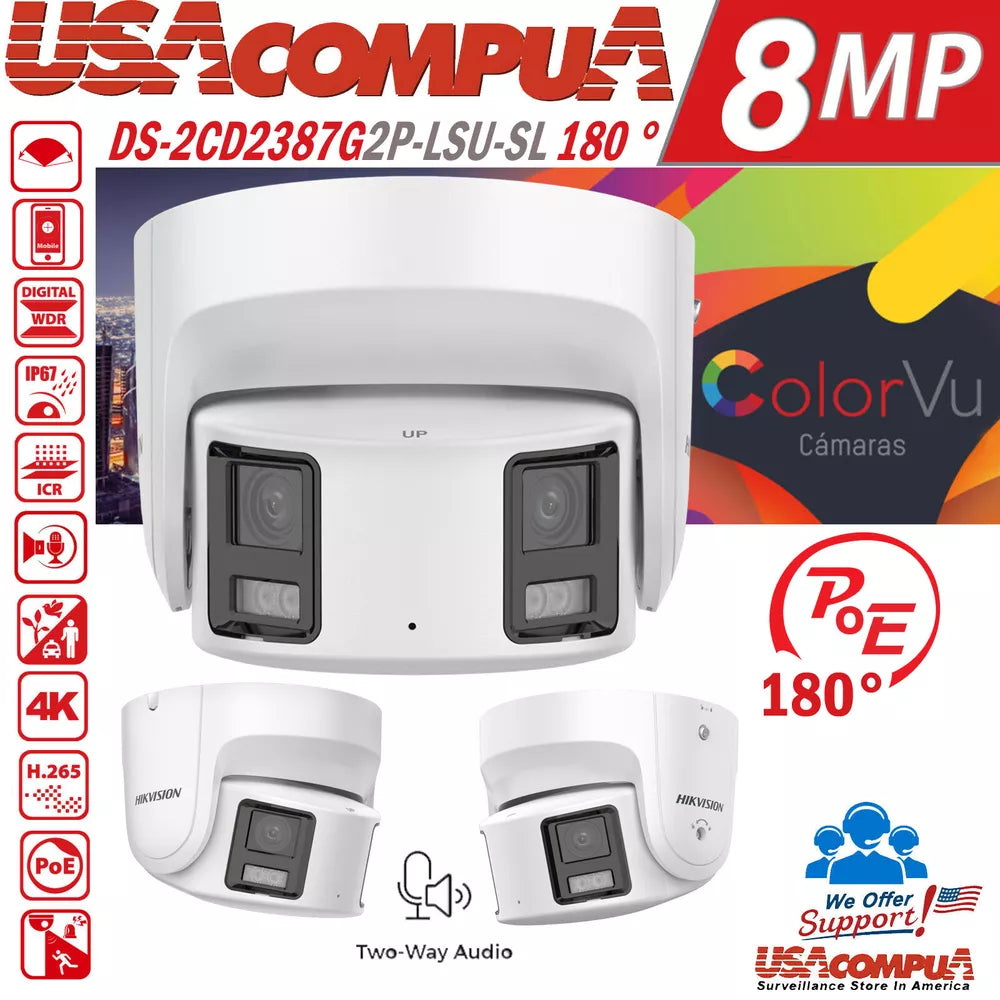

Hikvision DS-2CD2387G2P-LSU/SL 8 MP Panoramic ColorVu Turret Network Camera

180° panoramic coverage, 24/7 color imaging and active intruder deterrence

Monitor a complete scene through one panoramic image instead of piecing together footage from multiple conventional cameras. The dual 4 mm lenses deliver an ultra-wide 180° horizontal field of view at up to 5120 × 1440 resolution, while Hikvision ColorVu technology captures vivid color around the clock. Human and vehicle classification helps reduce irrelevant alerts, and the built-in flashing light and audible warning provide an immediate way to discourage intruders.

Key Features

```

8 MP Panoramic Imaging

Captures a high-resolution 5120 × 1440 panoramic image covering the complete monitored scene.

180° Field of View

Dual 4 mm lenses provide a 180° horizontal and 44° vertical field of view.

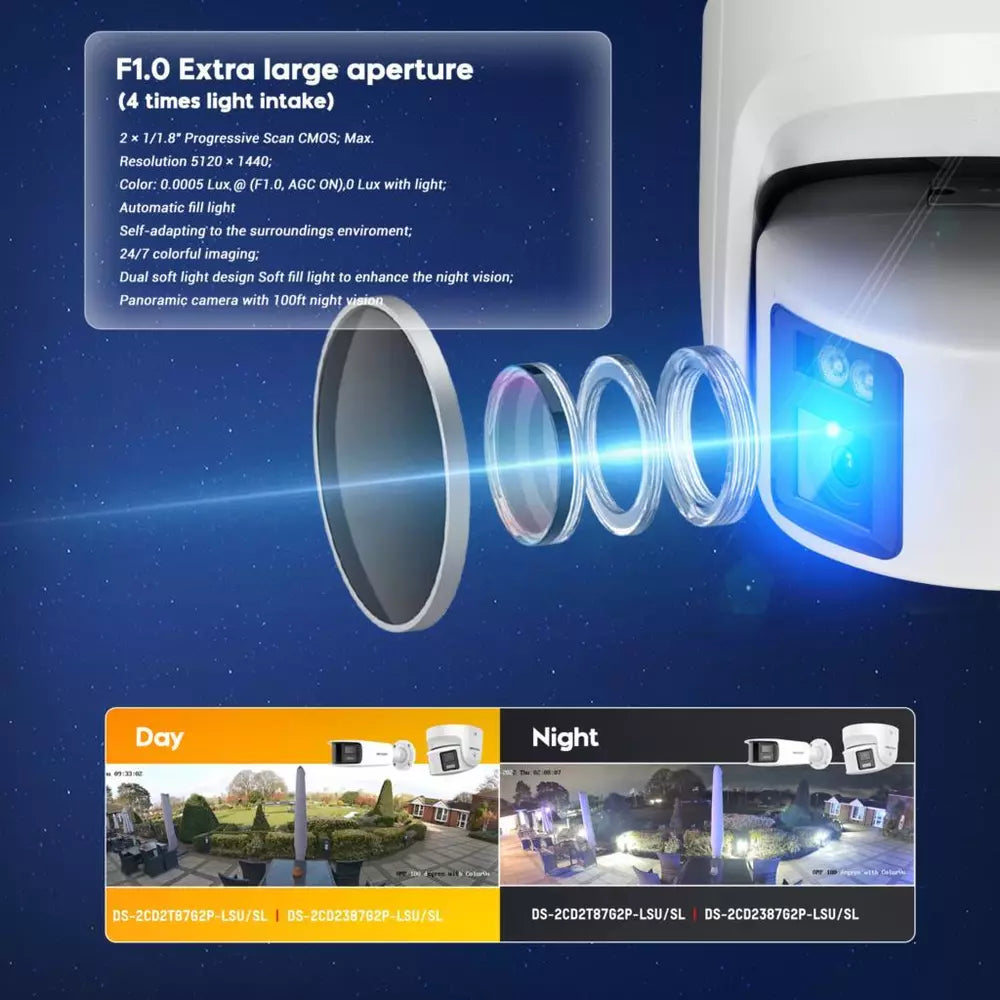

24/7 ColorVu Imaging

F1.0 apertures, high-performance sensors and white supplemental lighting provide vivid color imaging day and night.

Extremely Low-Light Performance

Produces color images at illumination levels as low as 0.0005 lux and operates at 0 lux with supplemental light.

Human and Vehicle Classification

Deep-learning technology focuses perimeter and motion alarms on specified human and vehicle targets.

Active Deterrence

A built-in flashing light, speaker and audible warning help warn intruders away from the protected area.

130 dB True WDR

Maintains clearer image detail when bright and dark areas appear within the same scene.

Smart Perimeter Protection

Supports line crossing, intrusion, region entrance and region exiting detection.

Built-In Audio

Includes a microphone and speaker, plus separate line-level audio input and output connections.

Flexible Local Storage

The built-in memory card slot supports microSD, microSDHC and microSDXC cards with capacities up to 512 GB.

Efficient H.265+ Compression

Supports H.265+ video compression to use recording bandwidth and storage space more efficiently.

Outdoor-Ready Metal Housing

The all-metal housing is IP67 rated for protection against water and dust.

```

Technical Specifications

```

Camera

Image Sensor
2 × 1/1.8" Progressive Scan CMOS
Maximum Resolution
5120 × 1440
Minimum Illumination
Color: 0.0005 lux at F1.0 with AGC on; 0 lux with supplemental light
Shutter Time
1/3 second to 1/100,000 second
Angle Adjustment
Pan: 0° to 30°; tilt: -75° to 75°

Lens

Lens Type
Fixed focal lens; dual 4 mm lenses
Focal Length and Field of View
4 mm; horizontal FOV: 180°; vertical FOV: 44°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth of Field
3.6 m to infinity

DORI Distance

4 mm Lens
Detect: 77 m; Observe: 30 m; Recognize: 15 m; Identify: 7 m

Supplemental Illumination

Supplemental Light Type
White light
Supplemental Light Range
Up to 30 m (98 ft)
Smart Supplemental Light
Yes

Video

Main Stream with WDR On
50 Hz: 12.5 fps at 5120 × 1440; 60 Hz: 15 fps at 5120 × 1440
Main Stream with WDR Off
50 Hz: 20 fps at 5120 × 1440; 60 Hz: 20 fps at 5120 × 1440
Sub-Stream with WDR On
50 Hz: 12.5 fps at 1920 × 536 or 960 × 272; 60 Hz: 15 fps at 1920 × 536 or 960 × 272
Sub-Stream with WDR Off
50 Hz: 20 fps at 1920 × 536 or 960 × 272; 60 Hz: 20 fps at 1920 × 536 or 960 × 272
Main-Stream Compression
H.265+, H.265, H.264+ and H.264
Sub-Stream Compression
H.265, H.264 and MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Profiles
Baseline Profile, Main Profile and High Profile
H.265 Profile
Main Profile
Bit Rate Control
CBR and VBR
Scalable Video Coding
Supported with H.264 and H.265 encoding
Region of Interest
1 fixed region for the main stream

Audio

Audio Type
Mono sound
Audio Compression
G.711, G.722.1, G.726, MP2L2, PCM, MP3 and AAC-LC
Audio Bit Rates
64 Kbps for G.711 μ-law/A-law; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 192 Kbps for MP2L2; 8 to 320 Kbps for MP3; 16 to 64 Kbps for AAC-LC
Audio Sampling Rates
8 kHz, 16 kHz, 32 kHz, 44.1 kHz and 48 kHz
Environmental Noise Filtering
Yes

Network

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket and WebSockets
Simultaneous Live View
Up to 6 channels
API
ONVIF Profile S, Profile G and Profile T; ISAPI; SDK; ISUP
Users
Up to 32 users with administrator, operator and user access levels
Security
Password protection, complicated passwords, HTTPS encryption, 802.1X authentication using EAP-MD5, watermark, IP-address filtering, HTTP/HTTPS basic and digest authentication, ONVIF WSSE and digest authentication, RTP/RTSP over HTTPS, control-timeout settings, security audit log, TLS 1.2 and host authentication by MAC address
Network Storage
NAS using NFS or SMB/CIFS, Auto Network Replenishment and NVR storage; memory-card encryption and health detection supported with a compatible high-end Hikvision memory card
Client Software
iVMS-4200, Hik-Connect and Hik-Central
Web Browsers
Plug-in required: Internet Explorer 10 or 11; plug-in-free live view: Chrome 57.0+, Firefox 52.0+ or Edge 89+; local service: Chrome 57.0+, Firefox 52.0+ or Edge 89+


Image Parameter Switching
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain and white balance adjustable through client software or a web browser
Day/Night Switching
Day, Night, Auto and Schedule
Wide Dynamic Range
130 dB
Signal-to-Noise Ratio
At least 52 dB
Image Enhancement
BLC, HLC and 3D DNR
Privacy Masks
8 rectangular privacy masks

Interfaces

Ethernet Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet port
Onboard Storage
Built-in microSD, microSDHC and microSDXC card slot supporting up to 512 GB
Built-In Microphone
Yes
Built-In Speaker
Maximum power consumption: 1.2 W; maximum sound pressure at 10 cm: 95 dB
Audio Input
1 line input through terminal block; maximum input amplitude: 3.3 Vpp; input impedance: 4.7 kΩ; non-equilibrium interface
Audio Output
1 line output through terminal block; maximum output amplitude: 3.3 Vpp; output impedance: 100 Ω; non-equilibrium interface
Alarm Interface
1 input and 1 output; maximum 24 VDC, 1 A
Reset Key
Yes

Events and Alarm Linkage

Basic Events
Motion detection with alarm triggering by specified human and vehicle targets, alarm input and output, flashing alarm-light output, audible alarm output and exception alarms
Smart Event
Scene-change detection
Linkage Actions
Upload to FTP, NAS or memory card; notify surveillance center; send email; trigger alarm output; trigger recording; trigger capture; activate audible warning; flash white light

Deep-Learning Functions

Perimeter Protection
Line crossing, intrusion, region entrance and region exiting detection
Target Classification
Supports alarm triggering by specified human and vehicle target types

Power and Construction

12 VDC Power
12 VDC ±25%, 0.88 A, maximum 10.5 W; Ø 5.5 mm coaxial power plug
PoE Power
IEEE 802.3af, Class 3; 36 V to 57 V; 0.35 A to 0.22 A; maximum 12.5 W
Material
Metal base and metal cover
Camera Dimensions
Ø 155 mm × 155.3 mm (Ø 6.1" × 6.1")
Package Dimensions
230 × 230 × 230 mm (9" × 9" × 9")
Camera Weight
Approximately 1110 g (2.4 lb)
Packaged Weight
Approximately 1900 g (4.2 lb)

Environmental Conditions and General Functions

Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Startup and Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) and Ukrainian
General Functions
Anti-banding, heartbeat, password reset through email, password protection and one-key reset
Flashing Light
Yes
Ingress Protection
IP67 according to IEC 60529-2013
Anti-Corrosion Classification
No specific anti-corrosion protection

Approvals

EMC
FCC 47 CFR Part 15 Subpart B; CE-EMC EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019 and EN 50130-4:2011+A1:2014; RCM AS/NZS CISPR 32:2015; IC ICES-003 Issue 7
Safety
UL 62368-1; CB IEC 62368-1:2014+A11; CE-LVD EN 62368-1:2014/A11:2017
Environmental Compliance
CE-RoHS 2011/65/EU; WEEE 2012/19/EU; REACH Regulation (EC) No. 1907/2006

Available Models

Standard Model
DS-2CD2387G2P-LSU/SL(4mm)(C)
Black Model
DS-2CD2387G2P-LSU/SL(4mm)(C) - Black version
```

Optional Accessories

```

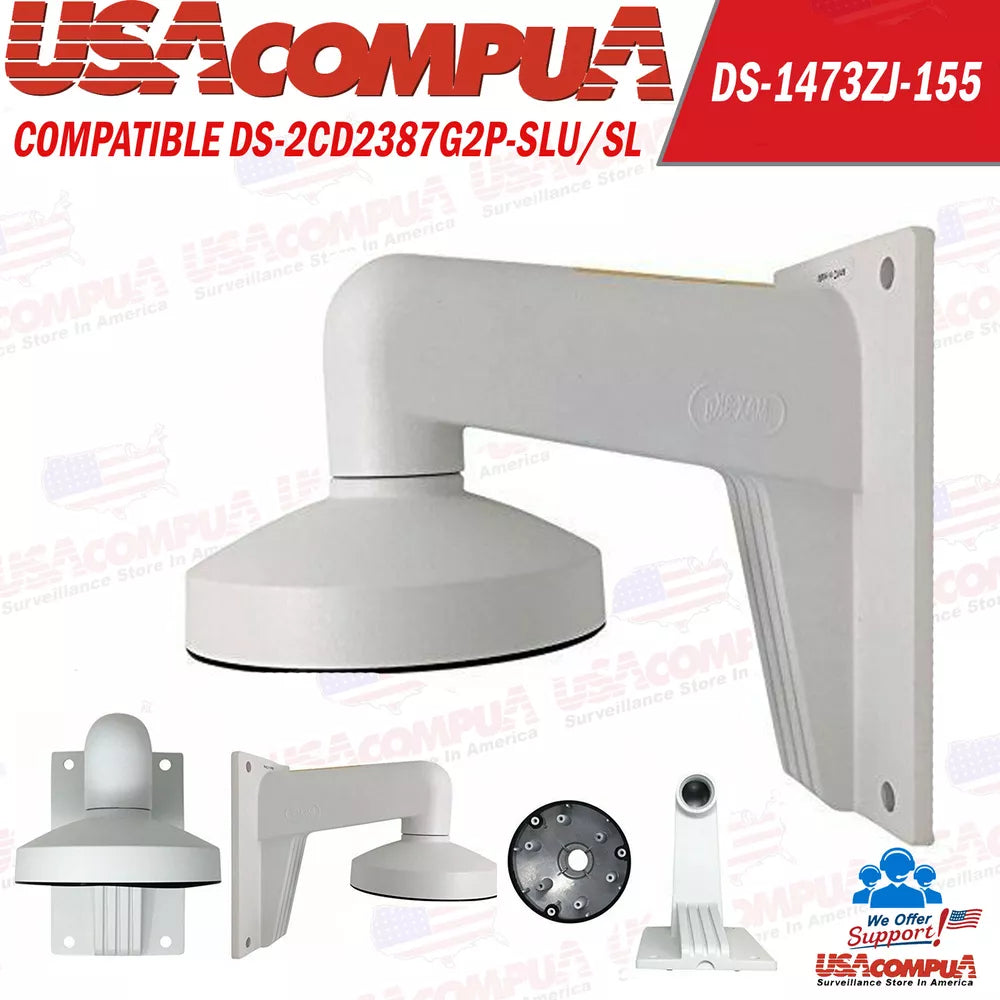

DS-1473ZJ-155

Wall-mount bracket

DS-1471ZJ-155

Pendant-mount bracket

DS-1473ZJ-155B

Wall-mount bracket

DS-1471ZJ-155 (Black)

Black pendant-mount bracket

DS-1473ZJ-155 (Black)

Black wall-mount bracket

DS-1473ZJ-155B (Black)

Black wall-mount bracket

Accessory note: Choose mounting accessories in the same color as the camera.

```

Ideal Applications and Common Uses

```

Building Entrances

Monitor wide entry areas while using human and vehicle classification to focus attention on relevant activity.

Parking Areas

Cover a broad parking scene through one 180° panoramic image with full-color nighttime visibility.

Residential Perimeters

Protect driveways, yards and exterior walls with perimeter detection, active warnings and remote alerts.

Retail Storefronts

Capture wide storefront activity while reducing blind spots and preserving color details after dark.

Warehouses and Loading Areas

Observe large access points and loading zones with panoramic imaging, alarm connections and smart events.

Schools and Campuses

Monitor broad walkways, courtyards and entrances using intelligent perimeter-protection functions.

Office and Commercial Properties

Provide wide-area coverage, audio capture, active deterrence and flexible integration with NVR or network storage.

Indoor Open Spaces

Use the panoramic view to monitor lobbies, showrooms and other wide areas where conventional cameras may leave coverage gaps.

```

Installation Environment Notice

This model has no specific anti-corrosion protection. It is intended for environments where specialized protection against coastal salt, chemical exposure or other corrosive conditions is not required.
