Technical Specifications

Hikvision 16-Channel 2MP ColorVu Security Camera System

Monitor your property day and night with a professional surveillance solution built around the Hikvision iDS-7216HUHI-M2/S 16-channel AcuSense DVR and DS-2CE70DF0T-MF 2MP ColorVu turret cameras.

The cameras deliver full-color imaging around the clock, while the recorder uses deep-learning technology to distinguish people and vehicles from irrelevant movement. This helps you review important activity faster and reduces false alarms caused by objects such as moving leaves and changing lights.

Support for multiple analog camera formats, additional IP channels, remote Hik-Connect access, and two internal hard drives makes this a flexible option for homes and commercial properties.

Audio clarification: The DVR supports audio over coaxial cable and configurable RCA audio inputs. However, the supplied camera datasheet does not list a built-in microphone, so built-in camera audio should not be advertised unless the exact camera variant has been independently verified.

Key Features

  • 16 analog camera channels: Connect up to 16 compatible HDTVI, AHD, HDCVI, or CVBS cameras.
  • Expandable IP capacity: Supports up to 24 total IP channels, or as many as 32 channels when Enhanced IP Mode is enabled.
  • 2MP ColorVu imaging: Captures detailed 1920 × 1080 video in full color during the day and at night.
  • F1.0 aperture: Collects more available light to produce brighter images in dark environments.
  • Up to 20 m white-light range: Provides illuminated, full-color nighttime video at distances of up to approximately 66 feet.
  • Human and vehicle classification: Motion Detection 2.0 helps reduce false alarms and makes relevant footage easier to locate.
  • Perimeter protection: Supports deep-learning-based line-crossing and intrusion detection on up to four channels.
  • High-resolution recording: The DVR supports recording resolutions up to 8MP.
  • H.265 Pro+ compression: Improves encoding efficiency and helps reduce video-storage requirements.
  • 16-channel synchronized playback: Review recorded activity from multiple cameras at the same time.
  • Dual-drive storage: Two SATA interfaces support hard drives with capacities of up to 10TB each.
  • Remote connectivity: Hik-Connect and DDNS support simplify remote viewing and network management.
  • Outdoor-ready cameras: IP67-rated metal camera housings resist water and dust.
  • Flexible installation: Each turret camera offers 360° pan, 75° tilt, and 360° rotation adjustment.

Important System Notes

  • The number of cameras, selected lens, hard-drive capacity, cables, power supplies, and other kit contents are not identified in the supplied datasheets.
  • Motion Detection 2.0 and perimeter protection cannot operate simultaneously. Enabling one makes the other unavailable.
  • Enhanced IP Mode may conflict with smart-event functions, including Motion Detection 2.0, perimeter protection, and face-picture comparison.
  • The DVR's physical audio and alarm connections can vary by version. The label on the product package should be checked for the exact configuration.

System Components

```
Digital Video Recorder

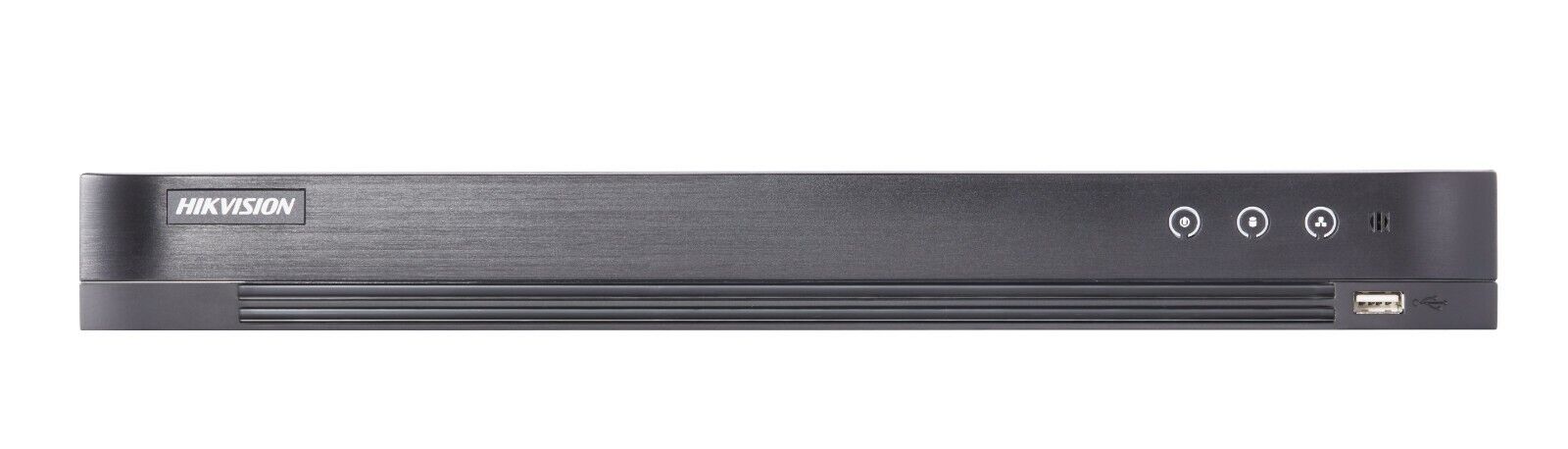

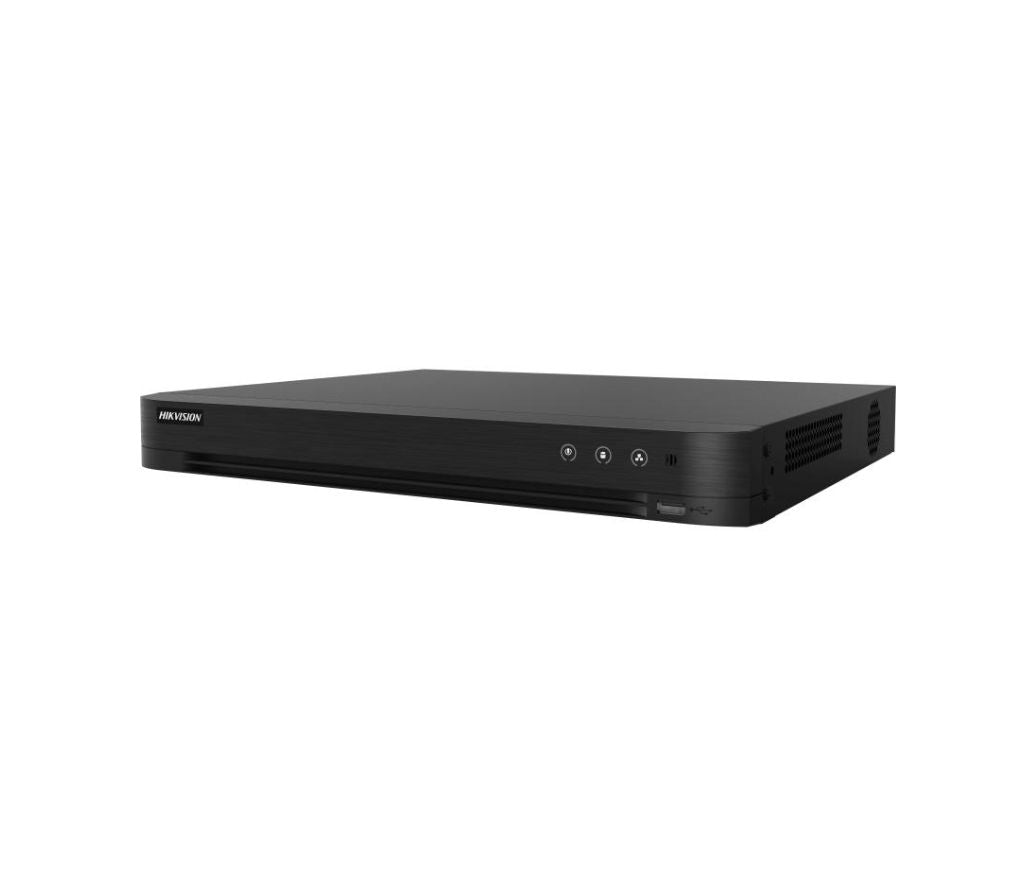

Hikvision iDS-7216HUHI-M2/S
Camera

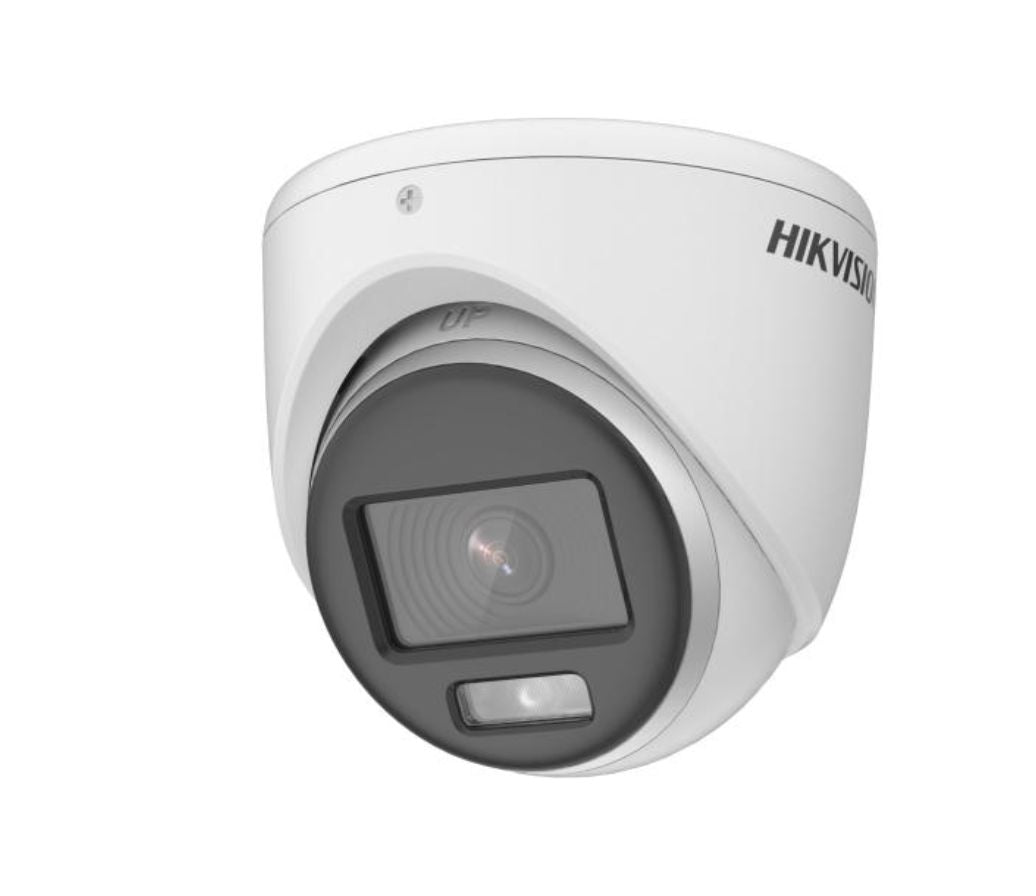

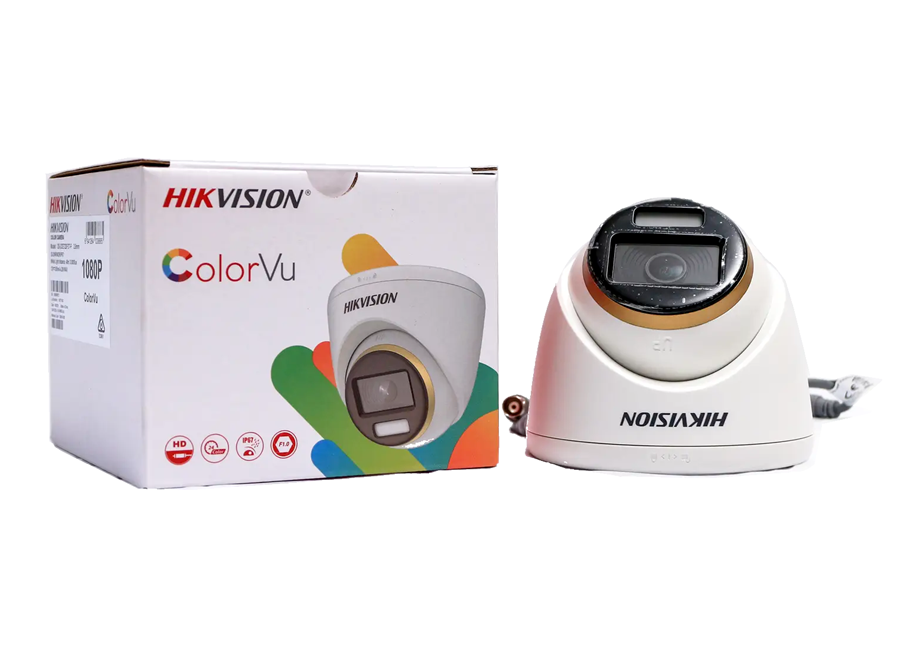

Hikvision DS-2CE70DF0T-MF 2MP ColorVu Fixed Turret Camera
Camera Quantity
Not specified in the supplied datasheets
Hard Drive
Capacity and inclusion not specified in the supplied datasheets

DVR Smart Analytics

Motion Detection 2.0
Enabled by default on all analog channels
Object Classification
Human and vehicle classification
Smart Search
Quick search by object or event type
Perimeter Protection
Up to 4 channels with human and vehicle analysis
Perimeter Events
Line-crossing and intrusion detection
Facial Functions
Face-picture detection, capture, and search

DVR Recording and Compression

Video Compression
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
Encoding Resolution
8MP, 5MP, 3K, 4MP, 3MP, 1080p, 720p, WD1, 4CIF, VGA, CIF
Main-Stream Frame Rate
8MP at 8 fps; 3K at 12 fps; 5MP at 12 fps; 4MP at 15 fps; 8MP Lite at 15 fps; 3MP at 18 fps; 1080p, 720p, WD1, 4CIF, VGA, and CIF at 25 fps PAL or 30 fps NTSC
Sub-Stream Frame Rate
WD1, 4CIF, and CIF at 25 fps PAL or 30 fps NTSC
Video Bitrate
32 Kbps to 10 Mbps
Dual-Stream
Supported
Stream Types
Video; video and audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps

DVR Video Inputs and Playback

Analog Video Inputs
16 BNC channels, 1.0 Vp-p, 75 Ω, with coaxitron support
Supported Analog Formats
HDTVI, AHD, HDCVI, and CVBS
Standard IP Video Input
8 channels, expandable to 24 total channels
Enhanced IP Mode
16 IP channels, expandable to 32 total channels; up to 4 Mbps per channel
Maximum IP Resolution
Up to 8MP
Supported IP Compression
H.265+, H.265, H.264+, and H.264
Synchronous Playback
16 channels
CVBS Input
PAL and NTSC

Supported Analog Input Resolutions

HDTVI Input
8MP at 15/12 fps; 3K at 20 fps; 5MP at 20/12 fps; 4MP at 30/25 fps; 3MP at 18 fps; 1080p at 30/25 fps; 720p at 30/25 fps
AHD Input
5MP at 20/12 fps; 4MP at 30/25 fps; 1080p at 30/25 fps; 720p at 30/25 fps
HDCVI Input
8MP at 15/12 fps; 5MP at 20 fps; 4MP at 30/25 fps; 1080p at 30/25 fps; 720p at 30/25 fps

DVR Video and Audio Outputs

HDMI Output
1 channel; up to 4K (3840 × 2160) at 30 Hz
Additional HDMI Resolutions
2560 × 1440 at 60 Hz; 1920 × 1080 at 60 Hz; 1280 × 1024 at 60 Hz; 1280 × 720 at 60 Hz
VGA Output
1 channel; 1920 × 1080, 1280 × 1024, or 1280 × 720 at 60 Hz
Simultaneous Display
Simultaneous HDMI and VGA output
CVBS Output
1 BNC channel; PAL 704 × 576 or NTSC 704 × 480
Audio Output
1 RCA channel, linear, 1 KΩ
Audio Input
1 RCA channel; up to 16 RCA channels optional
Audio over Coax
Up to 16 channels via coaxial cable
Two-Way Audio
1 RCA channel using the audio input

DVR Network

Total Bandwidth
128 Mbps
Network Interface
1 RJ45 10/100/1000 Mbps self-adaptive Ethernet port
Remote Connections
128
Network Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF
Wi-Fi Connectivity
Compatible Wi-Fi dongle supported through a USB interface
Output Bandwidth Limit
Configurable

DVR Storage and Interfaces

SATA Interfaces
2
Maximum Drive Capacity
Up to 10TB per disk
Serial Interface
RS-485, half-duplex
Front USB
1 × USB 2.0
Rear USB
1 × USB 3.0
Alarm Inputs and Outputs
Not standard; optional support varies by unit configuration

DVR General Specifications

Power Supply
12 VDC, 5 A
Power Consumption
19 W or less
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10% to 90%
Dimensions
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 in.)
Weight
2.1 kg (4.6 lb) or less

Camera Imaging

Image Sensor
2MP CMOS
Resolution
1920 × 1080
Signal System
PAL and NTSC
TVI Frame Rate
1080p at 25/30 fps
CVI Frame Rate
1080p at 25/30 fps
AHD Frame Rate
1080p at 25/30 fps
CVBS Frame Rate
PAL or NTSC
Minimum Illumination
0.001 lux at F1.0 with AGC on; 0 lux with white light
Day/Night Mode
Color
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Wide Dynamic Range
Digital WDR
Noise Reduction
3D DNR and 2D DNR

Camera Lens and Viewing Angles

Available Fixed Lenses
2.8 mm, 3.6 mm, or 6 mm
2.8 mm Field of View
98° horizontal, 51° vertical, 115° diagonal
3.6 mm Field of View
76° horizontal, 41° vertical, 90° diagonal
6 mm Field of View
50° horizontal, 27° vertical, 58° diagonal
Lens Mount
M12
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 75°; rotation: 0° to 360°

Camera Lighting and Image Controls

Aperture
F1.0
White-Light Range
Up to 20 m (approximately 66 ft.)
White-Light Control
Auto or off
Light Alarm
Solid white-light alarm
Image Modes
Standard, high saturation, and highlight
Automatic Gain Control
Supported
White Balance
Automatic or manual
Auto-Exposure Modes
DWDR, BLC, HLC, and global
Additional Image Functions
Brightness, mirror, sharpness, anti-banding, and Smart Light
Menu Language
English

Camera Interface and Construction

Video Output
Switchable TVI, AHD, CVI, or CVBS
Communication
HIKVISION-C
Built-In Microphone
Not listed in the supplied camera datasheet
Protection Rating
IP67
Housing Material
Metal
Operating Conditions
-40°C to 60°C (-40°F to 140°F); humidity of 90% or less, non-condensing
Power Supply
12 VDC ±25%
Power Consumption
Maximum 2.4 W
Dimensions
Ø85.1 × 77.62 mm (Ø3.35 × 3.05 in.)
Weight
Approximately 320 g (0.71 lb)

Compatible Accessories Found in the Datasheet

DS-1275ZJ-SUS
Compatible Hikvision camera mounting accessory
DS-1272ZJ-110-TRS
Compatible Hikvision camera mounting accessory
DS-1276ZJ-SUS
Compatible Hikvision camera mounting accessory
DS-1280ZJ-XS
Compatible Hikvision camera mounting accessory
Accessory Inclusion
The datasheet identifies these as compatible accessories but does not state that they are included with the system
```

Ideal Applications

  • Homes and residential properties: Monitor entrances, driveways, yards, garages, and other important areas in full-color 1080p video.
  • Retail stores: Maintain visibility around sales floors, entrances, checkout areas, and exterior approaches.
  • Offices: Cover reception areas, hallways, workspaces, storage rooms, and building entrances.
  • Warehouses: Monitor loading areas, inventory zones, aisles, and perimeter access points.
  • Restaurants: Observe entrances, dining areas, service areas, and exterior spaces.
  • Multi-camera upgrades: Replace or expand compatible analog systems using the DVR's HDTVI, AHD, HDCVI, CVBS, and IP-camera support.
  • Properties affected by false motion alerts: Human and vehicle classification helps prioritize meaningful activity.
  • Locations requiring nighttime identification: ColorVu imaging and integrated white light provide full-color video in low-light conditions.
  • Growing surveillance installations: The recorder's 16 analog inputs, expandable IP capacity, and two SATA interfaces leave room for broader coverage and storage.
