Hikvision 4 Channel 4K 8MP PoE NVR (4)x 4MP IP Dome W audio CCTV Security System
Hikvision 4 Channel 4K 8MP PoE NVR (4)x 4MP IP Dome W audio CCTV Security System
Hurry up, only 2 items left in stock.
products.product.pickup_availabilities
Description
Description

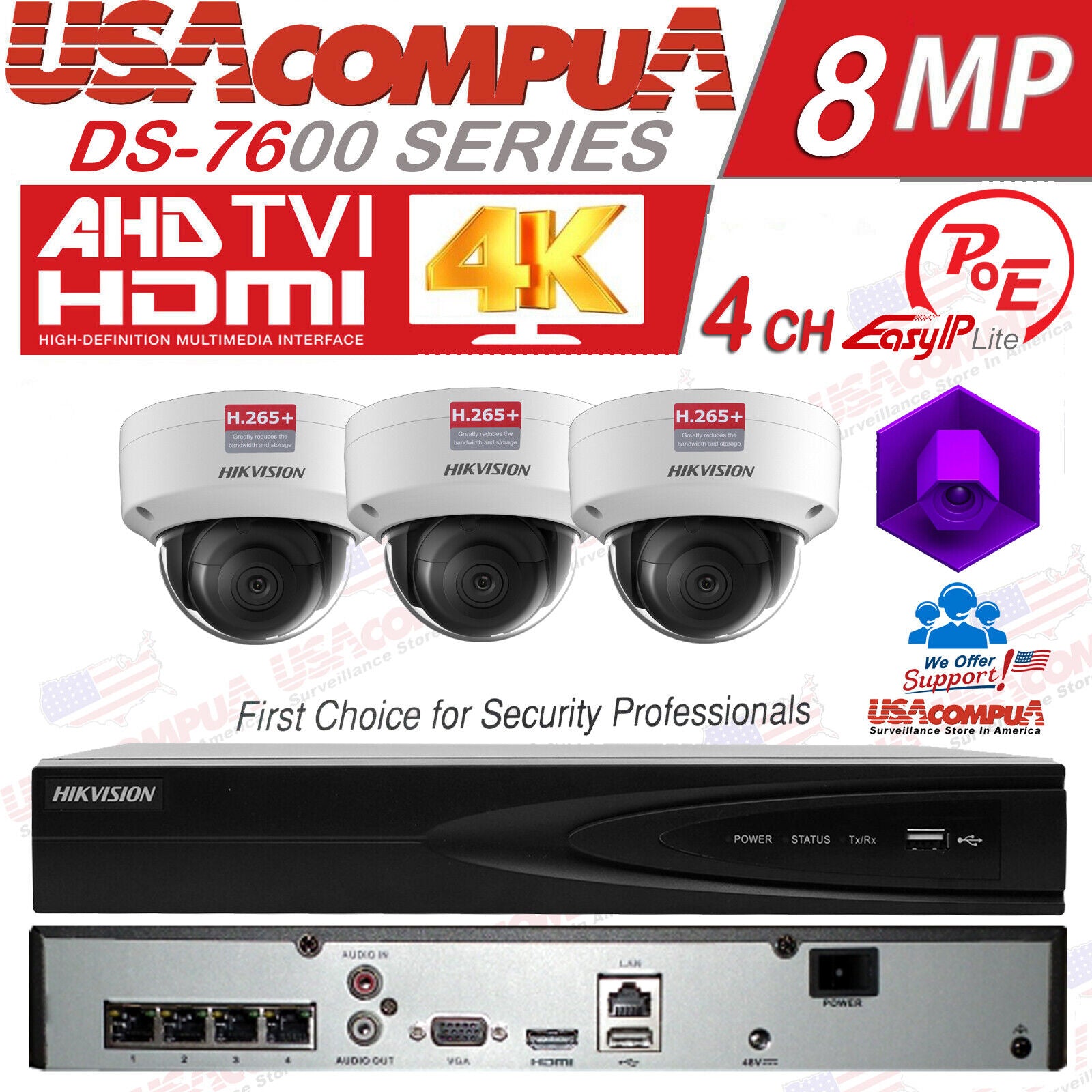

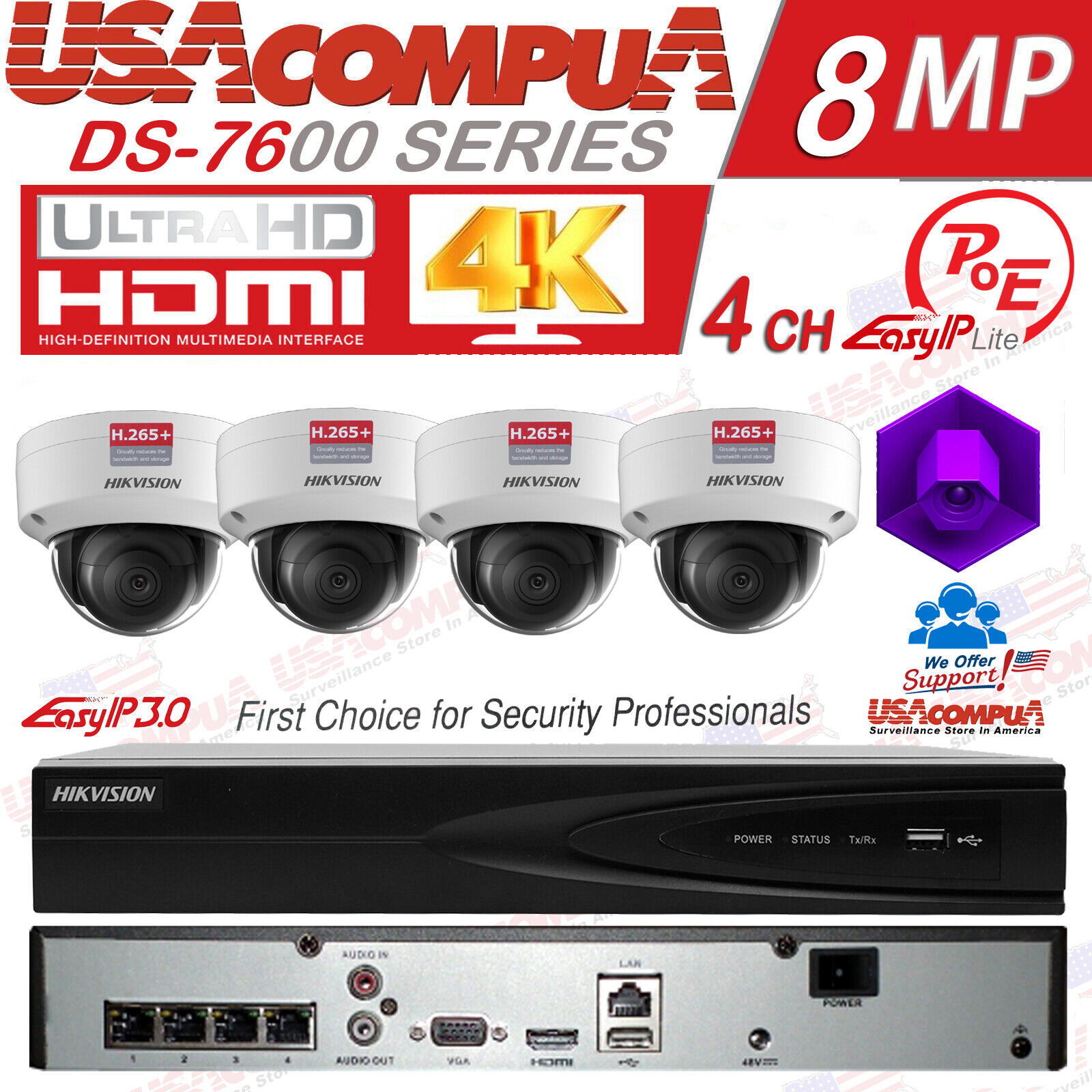

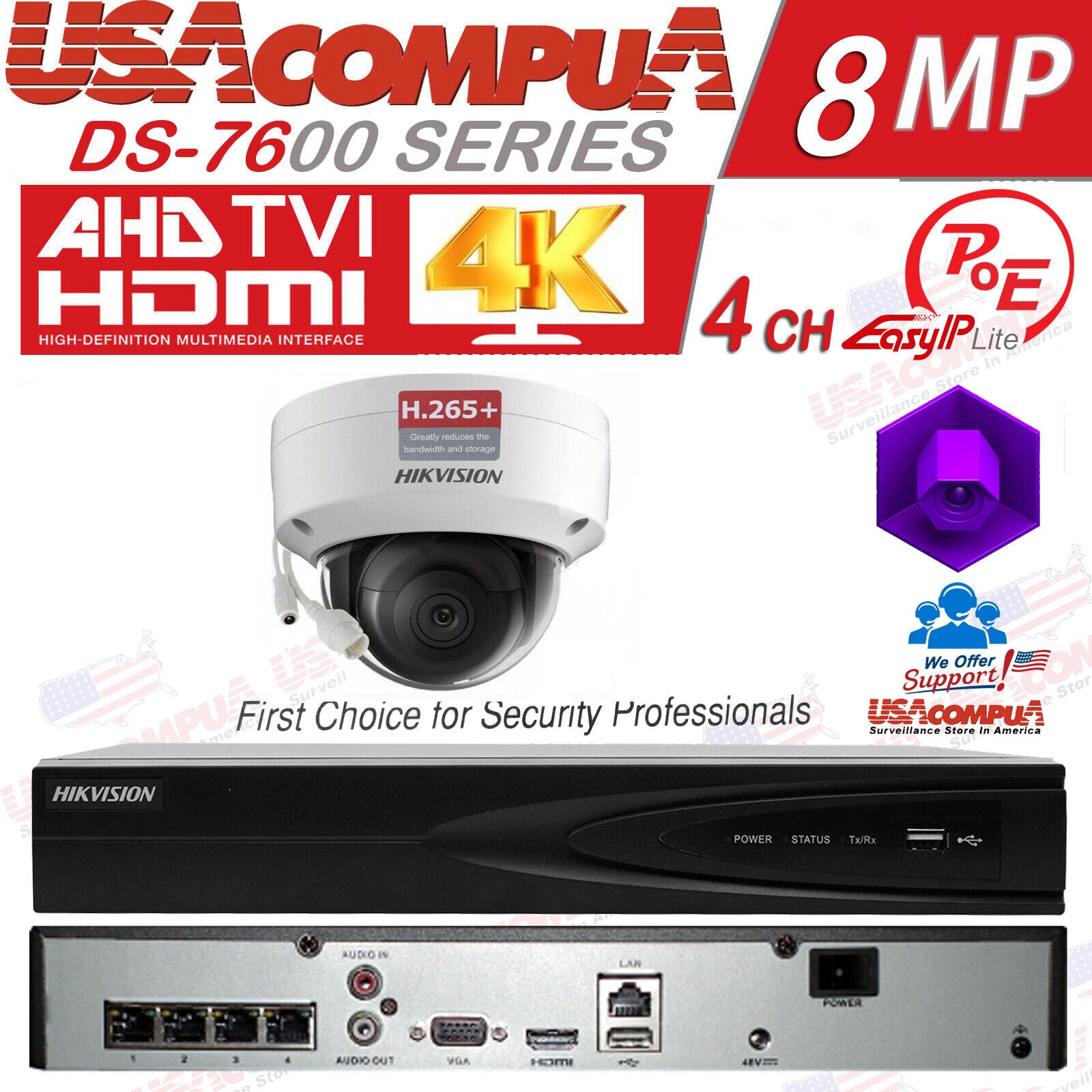

Hikvision 4 Channel 4K 8MP PoE NVR (4)x 4MP IP Dome W audio CCTV Security System
This listing includes:
- CAMERA QUANTITY (DS-2CD2143G0-I): 1;2;3;4
- HARD DRIVE OPTION FOR RECORDER DS-7604NI-K1/4P: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB

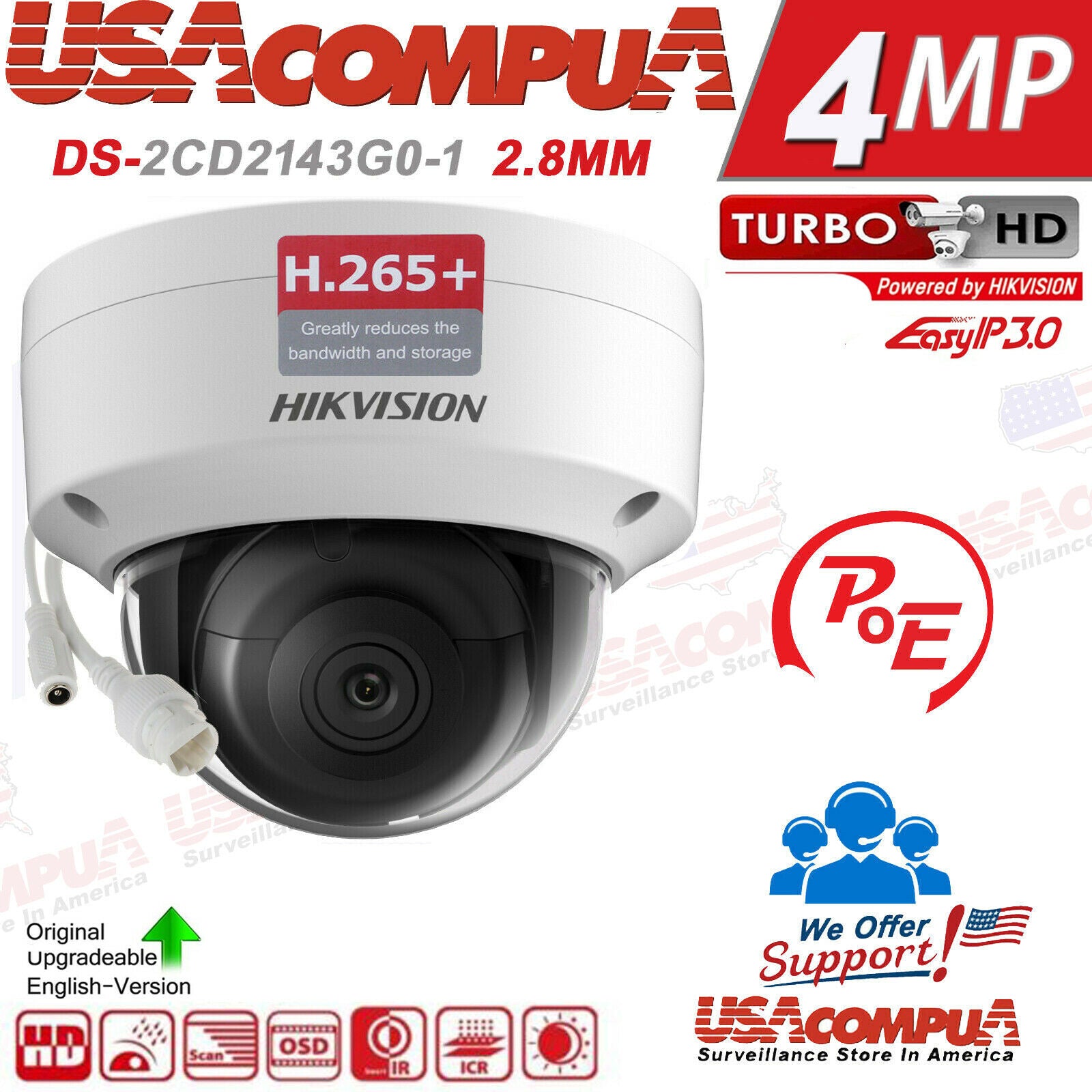

DS-2CD2143G0-I view data sheet

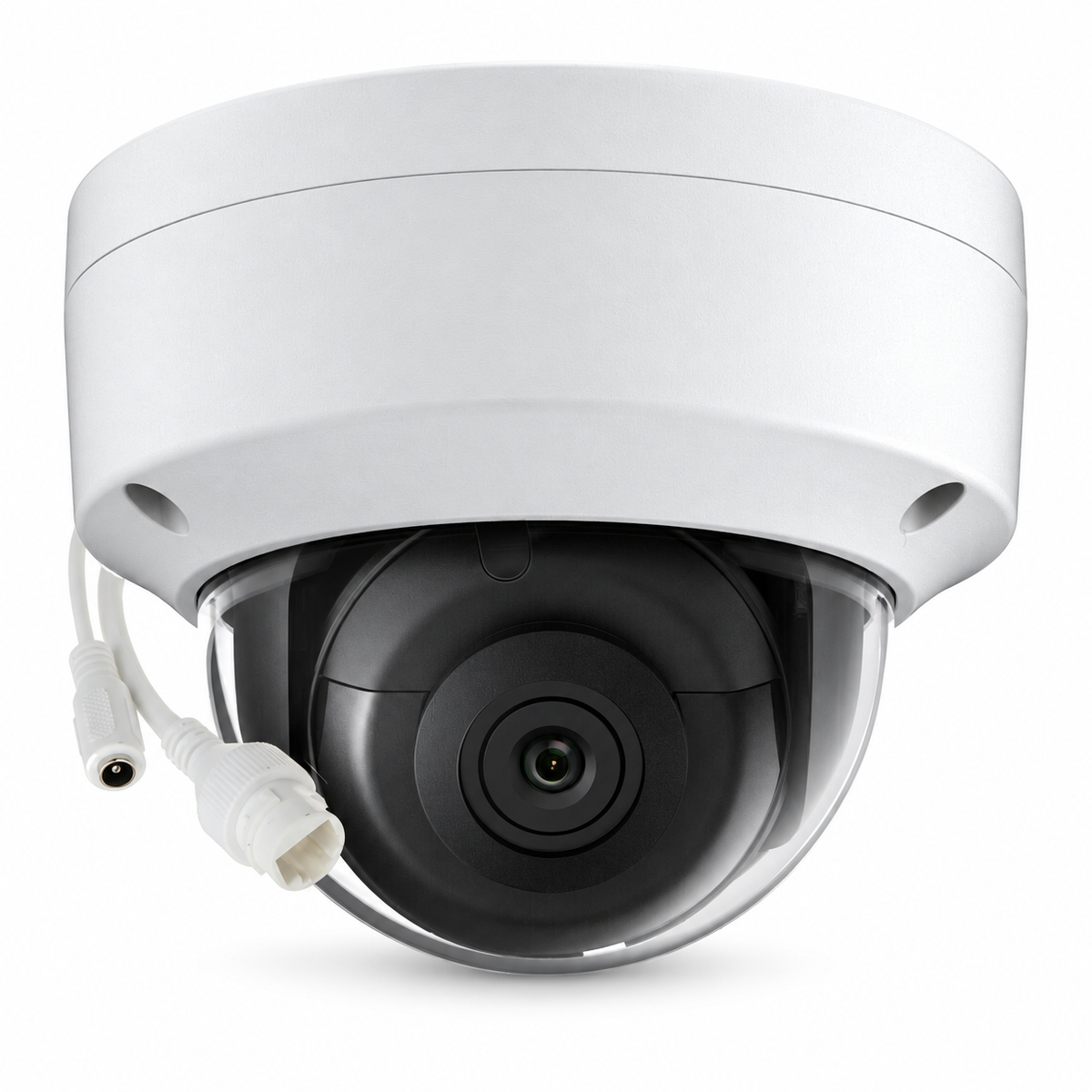

4 MP Outdoor WDR Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal proof (IK10)
- Robust structure design with full metal materials

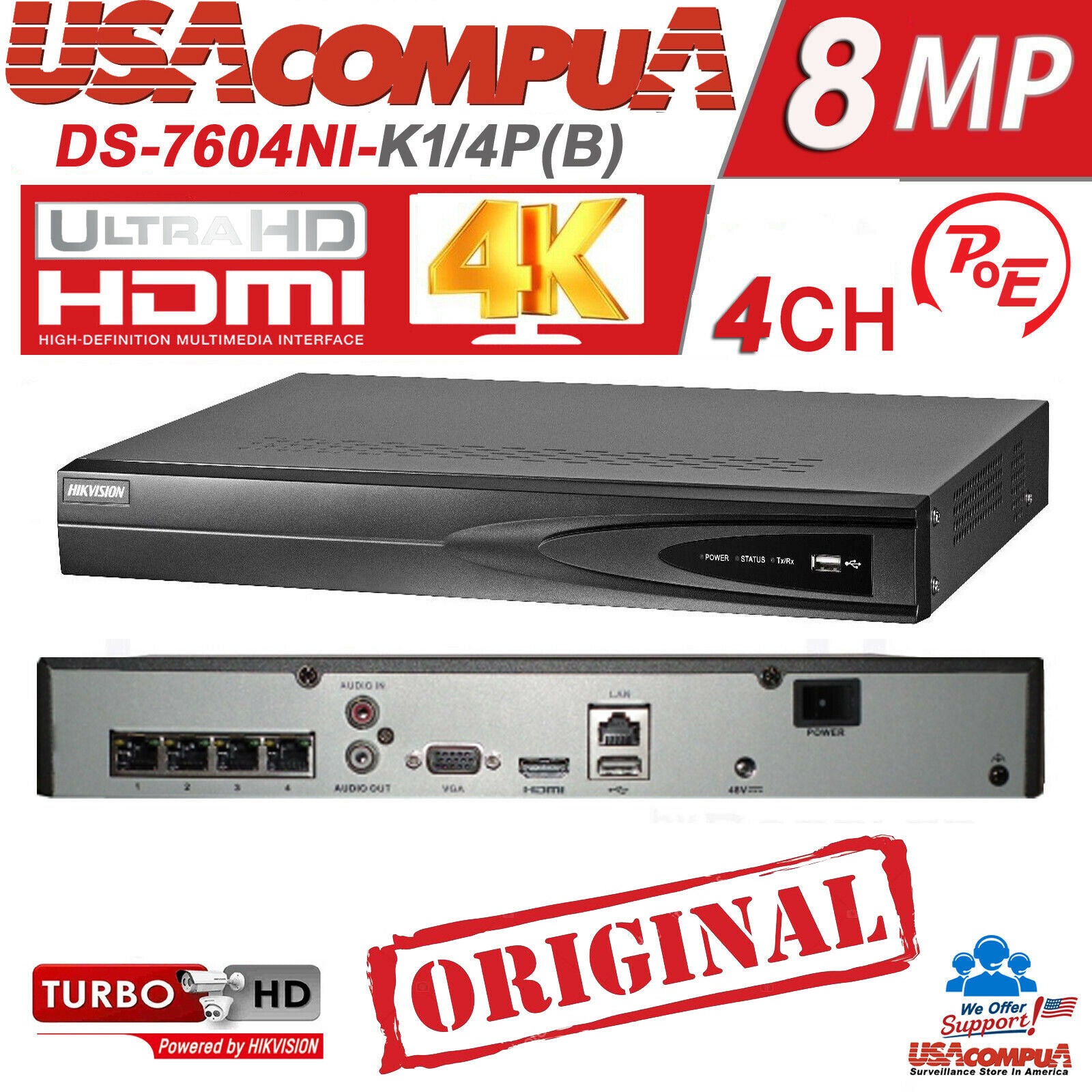

DS-7604NI-K1/4P view data sheet
4ch 1U 4 PoE 4K NVR
- Up to 4ch IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 4ch @ 1080p decoding capacity
- Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
- Simultaneous HDMI and VGA output of the same video stream
- 1 HDD for continuous video recording
- Plug & Play with 4p (PoE) interfaces
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description

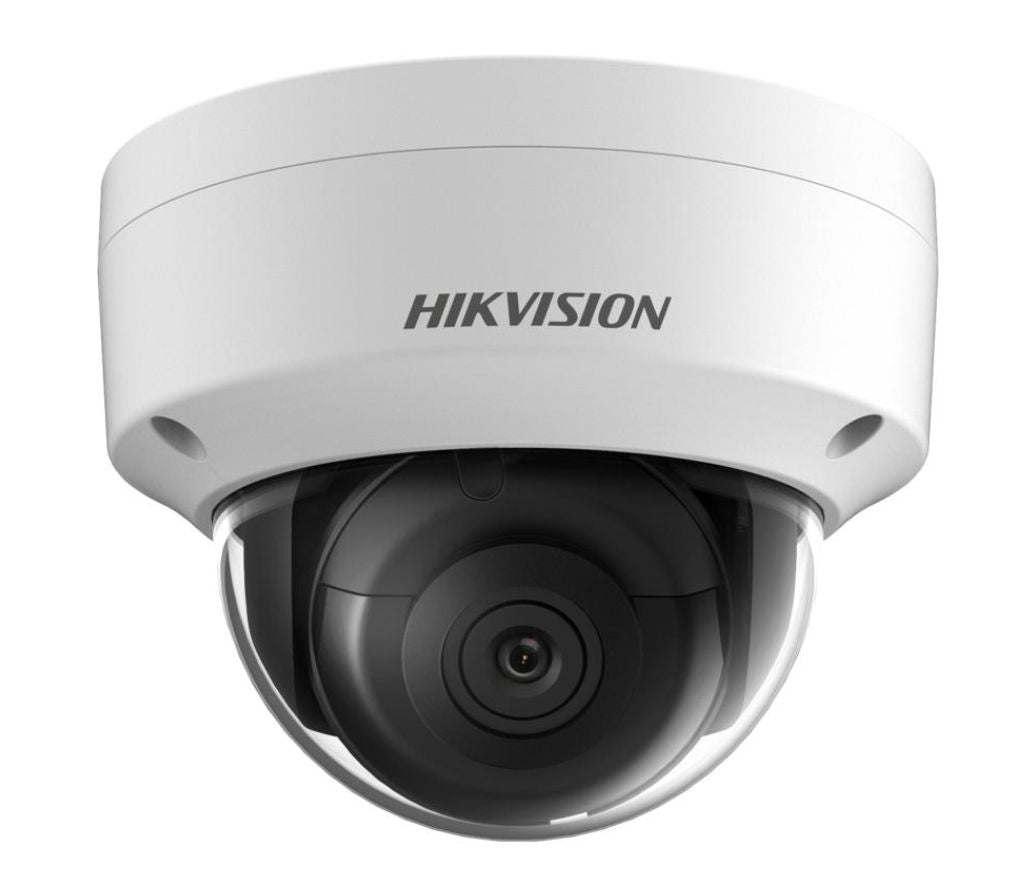

4 MP Outdoor WDR Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal proof (IK10)
- Robust structure design with full metal materials
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?, rotate: 0? to 355?
- Lens
- FocusFixed
- Lens Type2.8/4/6/8 mm
- FOV2.8 mm, horizontal FOV: 103?, vertical FOV: 58?, diagonal FOV: 123?,4 mm, horizontal FOV: 83?, vertical FOV: 45?, diagonal FOV: 99?,6 mm, horizontal FOV: 51?, vertical FOV: 29?, diagonal FOV: 58?,8 mm, horizontal FOV: 39?, vertical FOV: 22?, diagonal FOV: 45?
- ApertureF1.6
- Lens MountM12
- Aperture TypeFixed
- Illuminator
- IR RangeUp to 30 m
- Wavelength850nm
- Video
- Max. Resolution2688 ? 1520
- Main Stream
50Hz:25fps (2688 ? 1520, 2560 ? 1440, 2304 ? 1296, 1920 ? 1080, 1280 ? 720)
60Hz: 30fps (2688 ? 1520, 2560 ? 1440, 2304 ? 1296, 1920 ? 1080, 1280 ? 720)
- Sub Stream50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
- Third Stream50Hz: 25fps (1280 ? 720, 640 ? 360, 352 ? 288),60Hz: 30fps (1280 ? 720, 640 ? 360, 352 ? 240)
- Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
- Target CroppingNo
- DNR3D DNR
- Image EnhancementBLC/3D DNR/HLC
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- Audio1 input (line in/mic in), 1 output (line out), terminal block, mono sound
- Alarm1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video OutputNo
- On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, face detection
- General
- Firmware Version5.6.3
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), Humidity 95% or less (non-condensing)
- Power Supply12 VDC ? 25%, ? 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption And Current12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
- Camera DimensionCamera: ? 111 ? 82.4 mm (? 4.4" ? 3.2"),Package: 134 ? 134 ? 108 mm (5.3" ? 5.3" ? 4.3")
- Camera WeightCamera: Approx. 610 g (1.3 lb.),With Package: Approx. 820 g (1.8 lb.)
- Approval
- ProtectionIK10, IP67
Data sheet PDF
Product Description

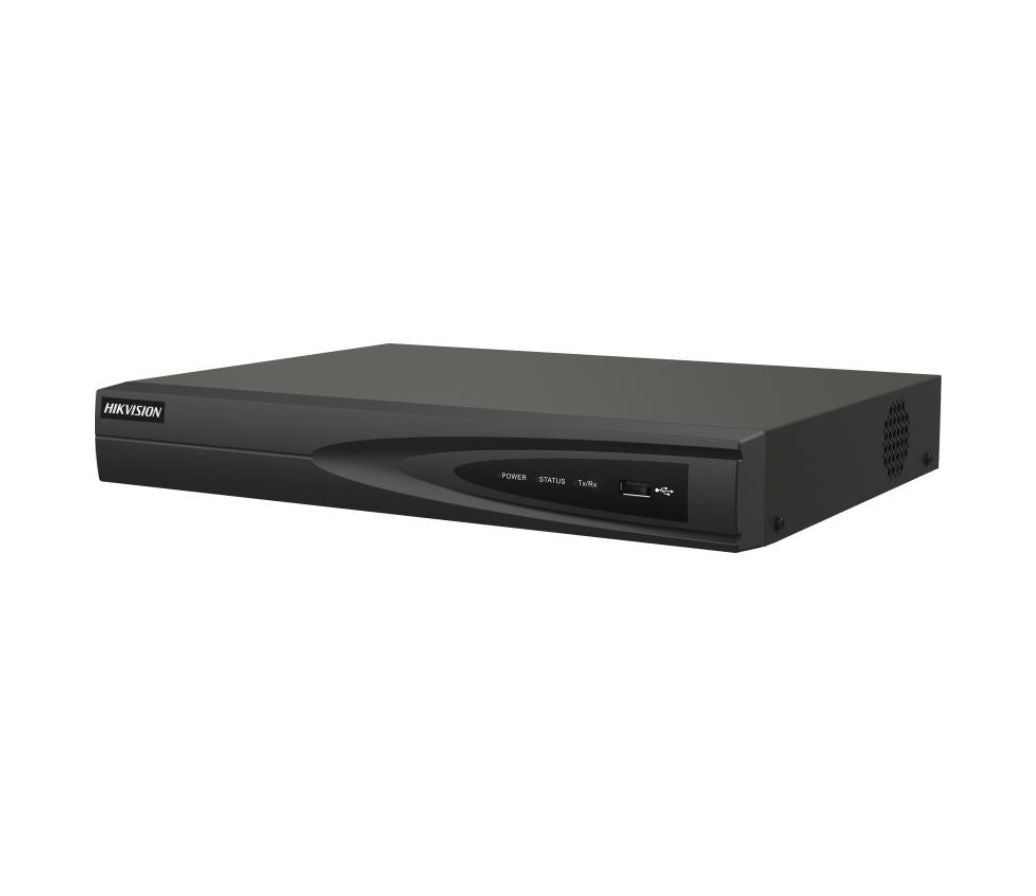

4ch 1U 4 PoE 4K NVR
- Up to 4ch IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 4ch @ 1080p decoding capacity
- Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
- Simultaneous HDMI and VGA output of the same video stream
- 1 HDD for continuous video recording
- Plug & Play with 4p (PoE) interfaces
Specification
- Video And Audio
- IP Video Input4ch; 4ch
- HDMI OutputHDMI:,4K (3840 ? 2160)/30Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,VGA: ,1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,
- VGA OutputHDMI,VGA
- Incoming Bandwidth40 Mbps ,80 Mbps
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1k?)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264,MPEG4
- Decoding Capability1-ch @ 8 MP / 4ch @ 1080p
- Synchronous Playback4ch
- Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Network
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface;4ch
- Power? 50 W
- StandardIEEE 802.3 af/at
- RAID
- RAID TypeNo
- Auxiliary Interface
- SATA1;1 SATA interface for 1HDD
- CapacityUp to 6TB capacity for each disk
- USB Interface2 ? USB 2.0
- General
- Power Supply48 VDC,? 65 W
- Consumption? 10 W (without enabling PoE)
- Working Temperature-10 to +55? C (14 to 131? F)
- Working Humidity10 to 90 %
- Chassis1U
- Dimension (W ? D ? H)315 ? 240 ? 48 mm (12.4" ? 9.4" ? 1.9")
- Weight? 1 kg (2.2 lb)
