Technical Specifications

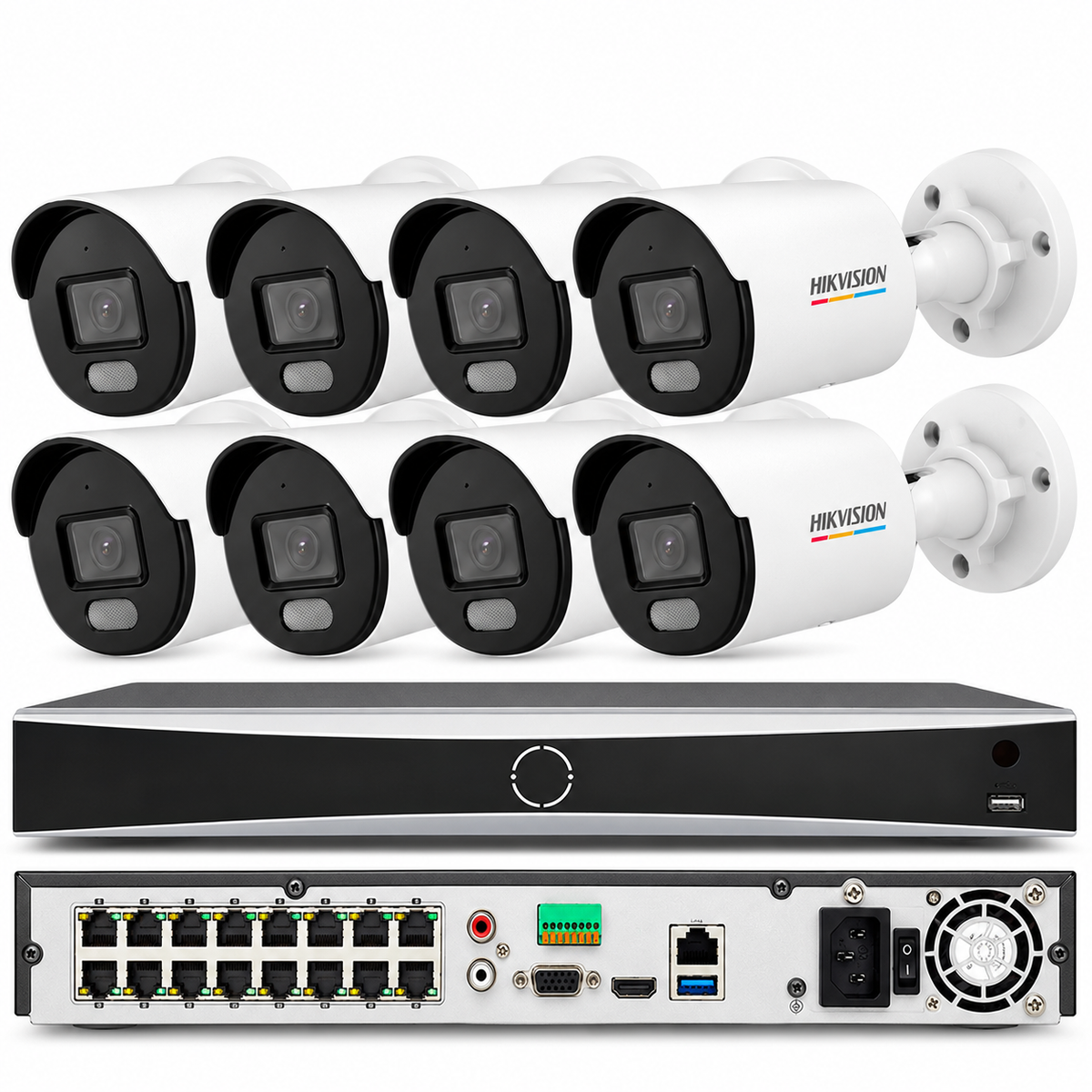

Hikvision 4K 8-Camera AcuSense Security System with 4MP ColorVu Audio Bullet Cameras

Monitor your property day and night with an eight-camera security system built around Hikvision's DS-7616NXI-I2/16P/S(C) 4K AcuSense NVR and DS-2CD3047G0E-LUF 4MP ColorVu bullet cameras. The cameras deliver full-color imaging in extremely low light, record sound through built-in microphones, and withstand outdoor conditions with IP67-rated aluminum housings.

Although configured as an eight-camera system, the included recorder supports up to 16 IP cameras and provides 16 independent PoE ports, leaving room to expand coverage without replacing the NVR. Deep-learning analytics, Motion Detection 2.0, perimeter protection, facial-recognition functions, 4K monitor output, and efficient H.265+ compression make the system suitable for homes and commercial properties.

Product clarification: The attached camera datasheet identifies the DS-2CD3047G0E-LUF as a ColorVu camera, not a DarkFighter model. “4K” describes the NVR's maximum HDMI output; each supplied camera records at up to 4MP, or 2560 × 1440.

Key Features

  • Eight-camera system configuration with capacity for up to 16 IP cameras
  • DS-7616NXI-I2/16P/S(C) 16-channel AcuSense 4K network video recorder
  • DS-2CD3047G0E-LUF 4MP ColorVu fixed bullet network cameras
  • 2560 × 1440 maximum camera resolution
  • Full-color imaging around the clock with an F1.0 super-aperture lens
  • Color performance down to 0.001 lux and 0 lux with white supplement light
  • Smart white supplement light with a range of up to 30 meters
  • Built-in microphone in each camera for video-and-audio recording
  • Environment noise filtering for clearer captured audio
  • 16 independent PoE ports for simplified power and network connections
  • Deep-learning analytics with facial recognition, perimeter protection, and Motion Detection 2.0
  • Up to four channels of perimeter protection
  • Up to one channel of facial recognition from a video stream
  • Up to four channels of facial recognition using face pictures
  • Line-crossing and intrusion detection supported by the cameras
  • HDMI output at up to 4K resolution
  • Independent HDMI and VGA monitor outputs
  • H.265+ compression can reduce required storage space by up to 75%
  • Two SATA interfaces supporting hard drives of up to 10TB each
  • 16-channel synchronous playback and 16-channel 1080p decoding
  • Hik-Connect support for convenient network management and remote viewing
  • IP67 water- and dust-resistant aluminum camera housings
  • Camera microSD card support up to 256GB

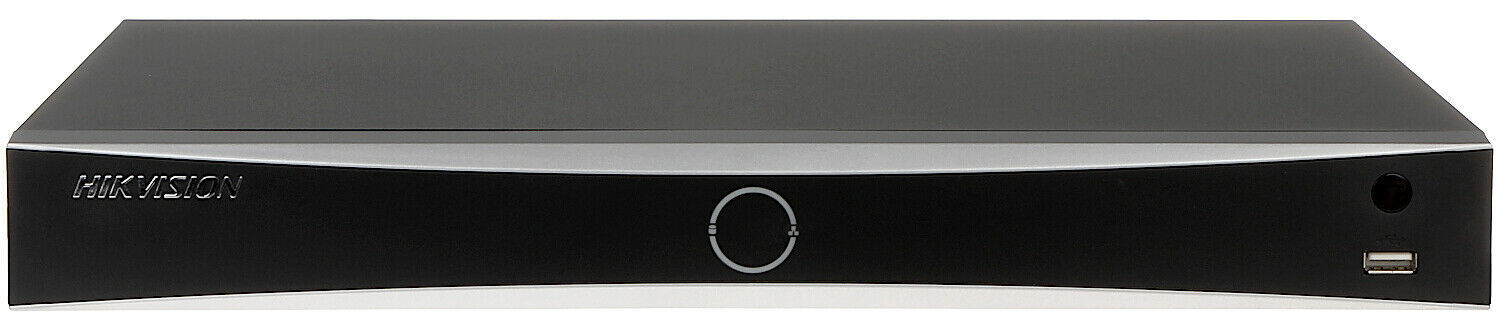

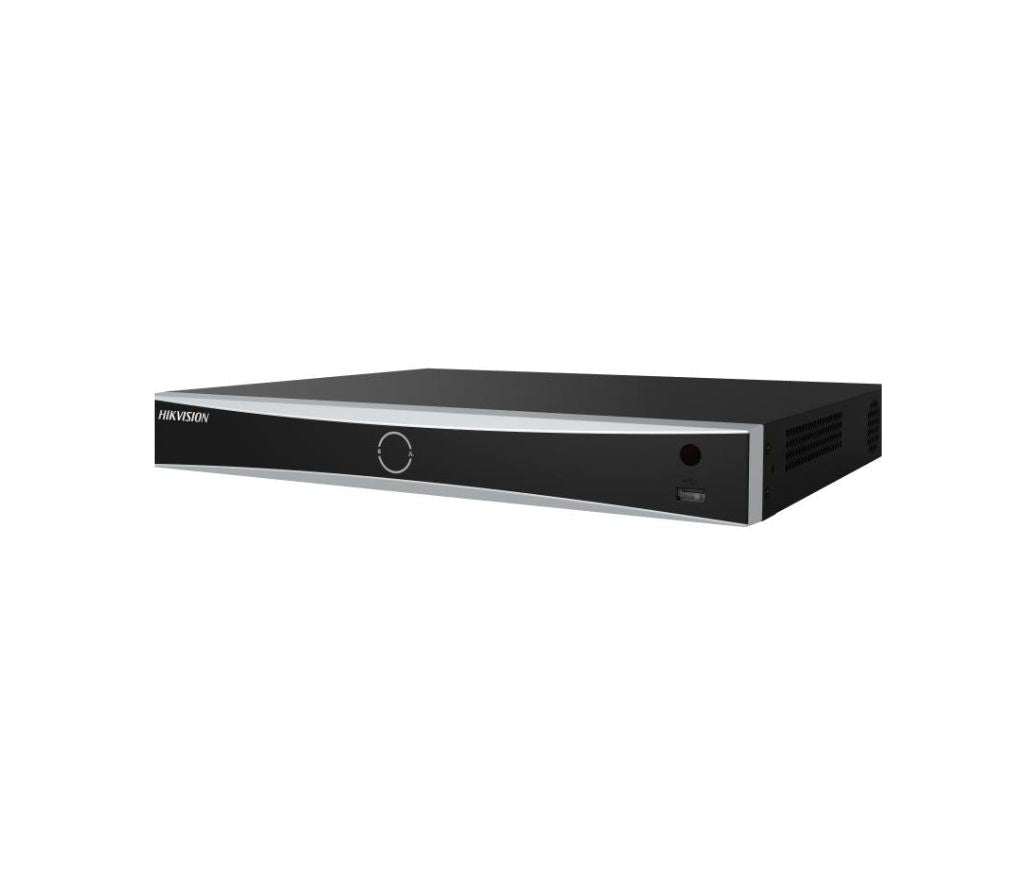

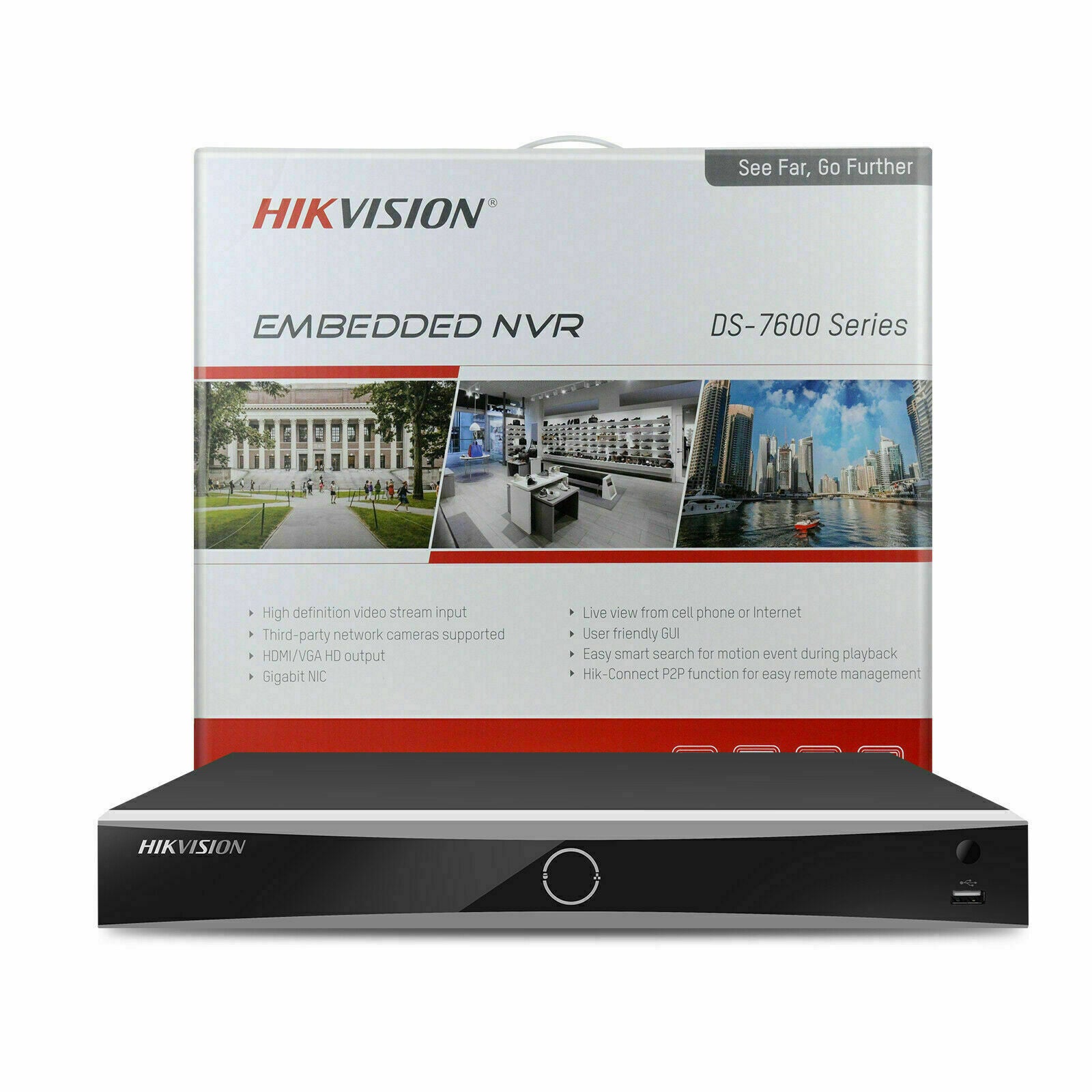

Recorder Identification

Recorder Model
DS-7616NXI-I2/16P/S(C)
Recorder Type
16-channel 1U, 16-PoE AcuSense 4K NVR
IP Camera Inputs
Up to 16 channels

NVR Intelligent Analytics

AI by NVR
Facial recognition, perimeter protection, and Motion Detection 2.0
Perimeter Protection
Up to 4 channels
Facial Recognition - Video Stream
Up to 1 channel
Facial Recognition - Face Pictures
Up to 4 channels
Face Picture Libraries
Up to 16 libraries containing up to 10,000 face pictures in total; each picture up to 512KB and total capacity up to 150MB
Face Picture Comparison
4-channel face-picture comparison alarm
Facial Detection and Analytics
Face-picture comparison, human-face capture, and face-picture search
Human Face Capture
1 channel using an HD network camera up to 8MP with H.264 or H.265
ANPR by Compatible Camera
All channels; supported countries and regions depend on the connected ANPR camera
AcuSearch Performance
Not available
Heat Map Cameras
Not available

NVR Video and Audio

IP Video Input
16 channels
Incoming Bandwidth
160Mbps
Outgoing Bandwidth
256Mbps
HDMI Output
4K 3840 × 2160 at 60Hz; 4K 3840 × 2160 at 30Hz; 2K 2560 × 1440 at 60Hz; 1920 × 1080 at 60Hz
VGA Output
1 channel, 1920 × 1080 at 60Hz
Video Output Mode
Independent HDMI and VGA output
CVBS Output
1-channel BNC, 1.0 Vp-p, 75Ω; PAL 704 × 576 or NTSC 704 × 480
Audio Output
1-channel RCA, linear, 1kΩ
Two-Way Audio
1-channel RCA, 2.0 Vp-p, 1kΩ

NVR Recording and Decoding

Decoding Formats
H.265, H.265+, H.264, H.264+, and MPEG4
Recording Resolutions
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
Decoding Capability
16 channels at 1080p and 30 fps
Synchronous Playback
16 channels
Live-View Window Divisions
1, 4, 6, 8, 9, or 16
Auxiliary-Port Window Divisions
1, 4, 6, 8, 9, or 16
Dual-Stream Recording
Supported
Stream Types
Video or video and audio
Audio Compression
G.711ulaw, G.711alaw, G.722, G.726, and MP2L2

NVR Storage and Smart Functions

SATA Interfaces
2
Maximum HDD Capacity
Up to 10TB per disk
Smart Search
Smart search within a selected video area and smart playback for improved review efficiency
POS Functions
POS information overlay on live view and playback, POS-triggered recording, and alarms
Video Content Analytics
Supports multiple VCA events

NVR Network and PoE

LAN Network Interface
1 × RJ45 10/100/1000Mbps self-adaptive Ethernet interface
Camera Access Protocols
ONVIF Version 2.5 and RTSP
Remote Management
Hik-Connect
PoE Interfaces
16 × RJ45 10/100Mbps self-adaptive Ethernet interfaces
PoE Power Budget
Up to 200W
PoE Standard
IEEE 802.3af/at

NVR Auxiliary Interfaces

Serial Interfaces
RS-485 half-duplex, RS-232, and keyboard interface
Alarm Inputs and Outputs
4 inputs and 1 output
Front USB Interface
1 × USB 2.0
Rear USB Interface
1 × USB 3.0
HTTPS Encryption
Supported

NVR General Specifications

Power Supply
Up to 280W
Recorder Consumption
Up to 15W
Working Temperature
-10°C to 55°C
Working Humidity
10% to 90%
Chassis
1U
Dimensions
385 × 315 × 52mm
Weight
Up to 3kg (6.6 lb.)
Certification
CE

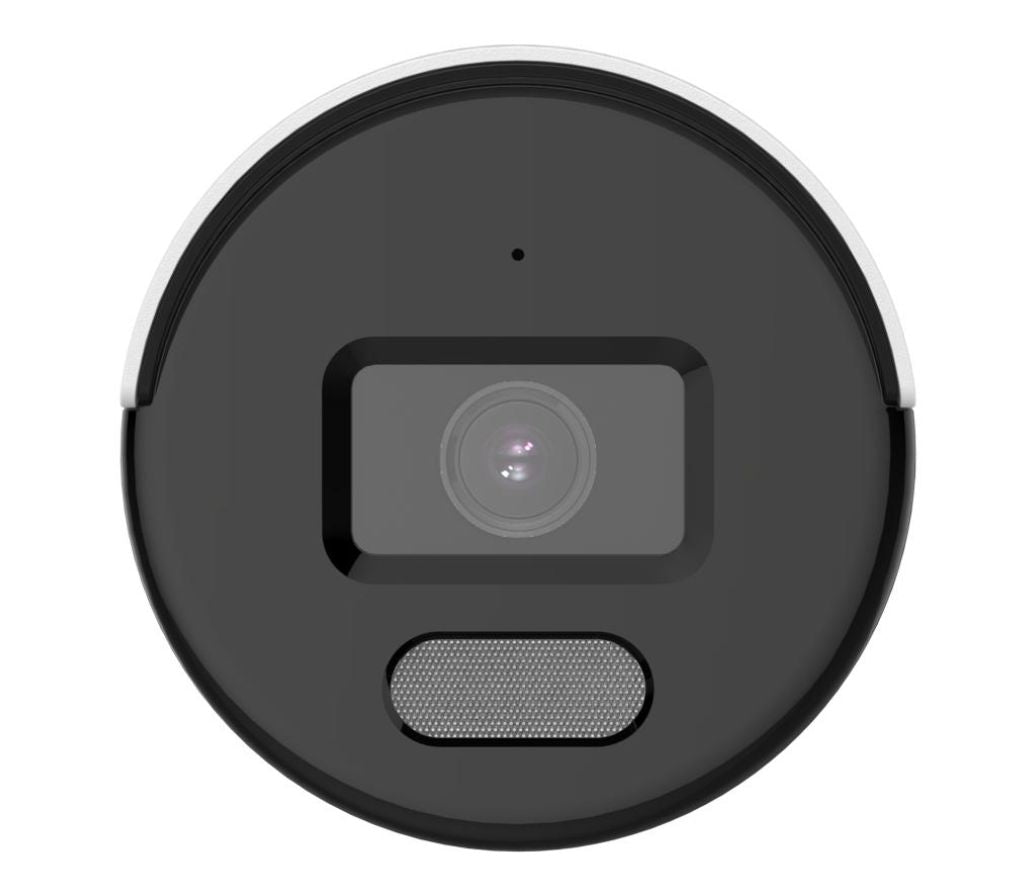

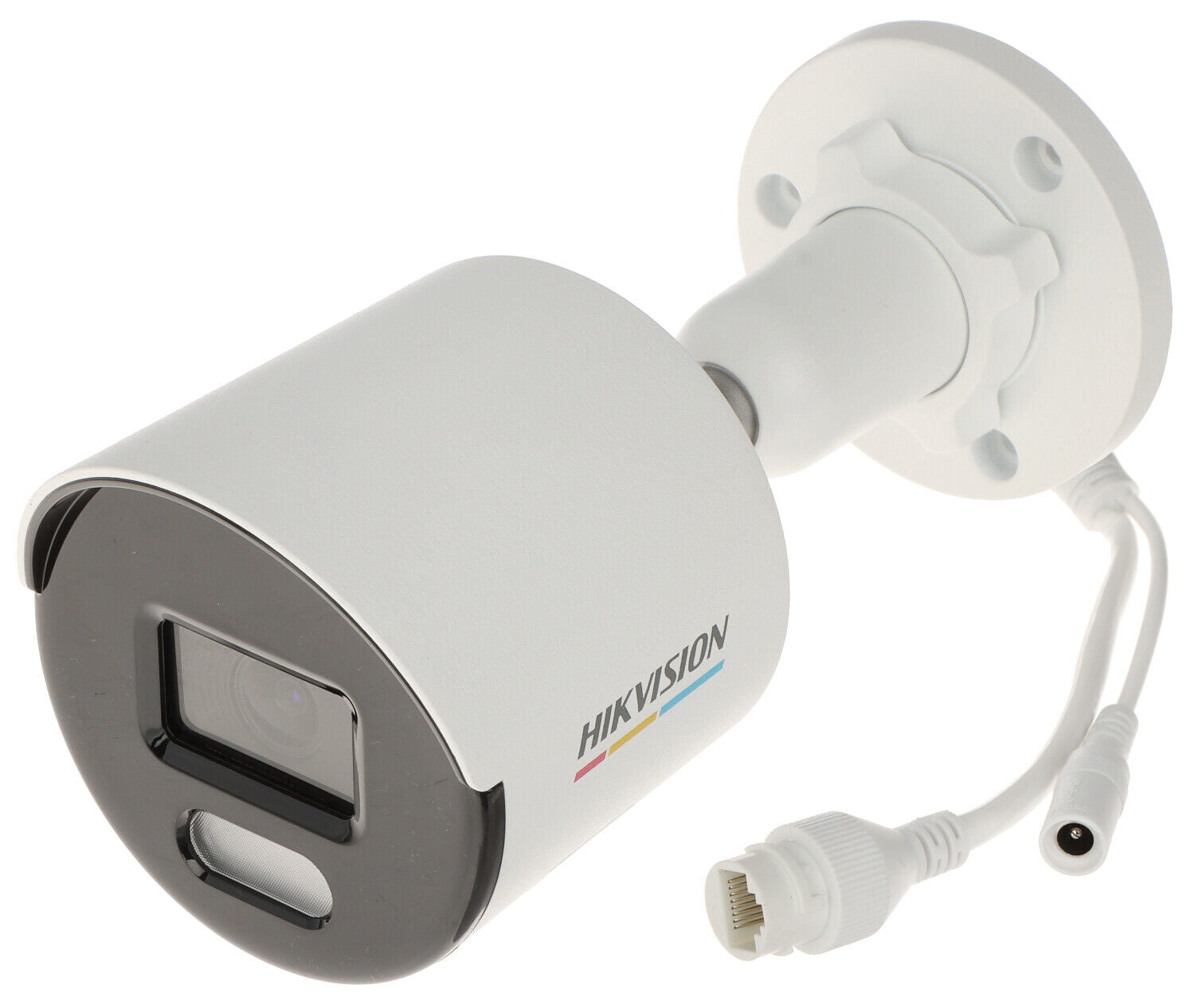

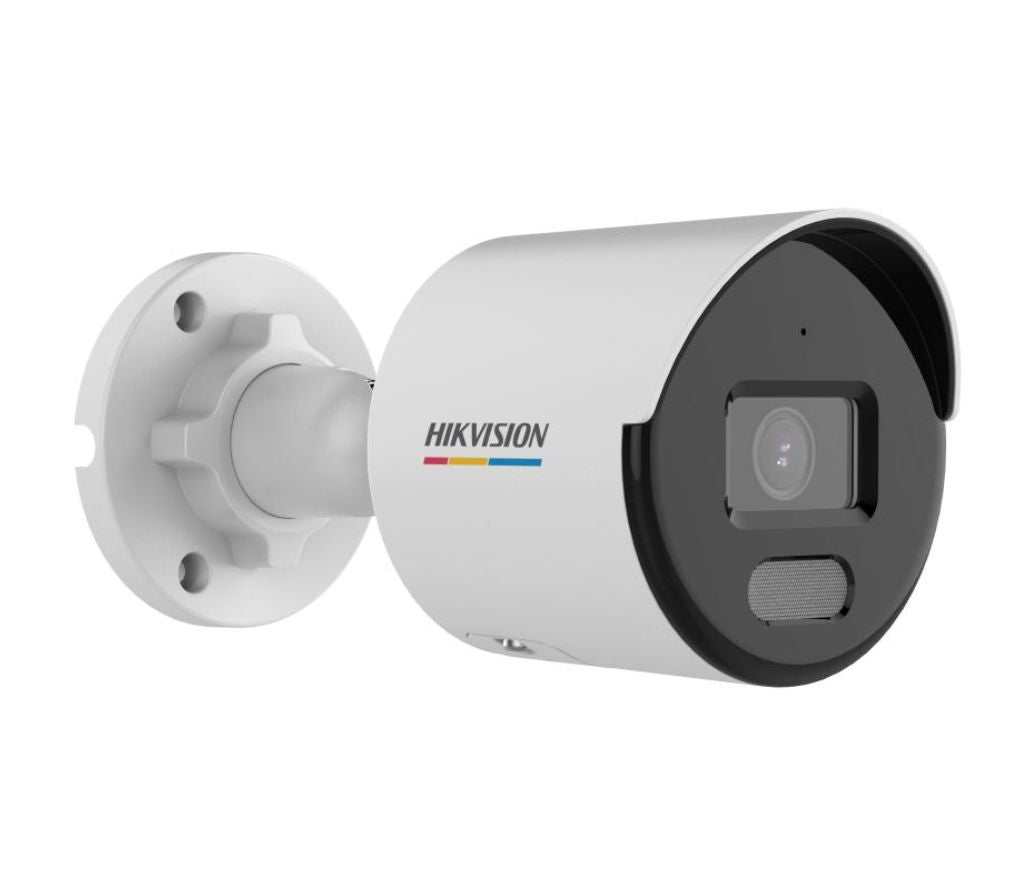

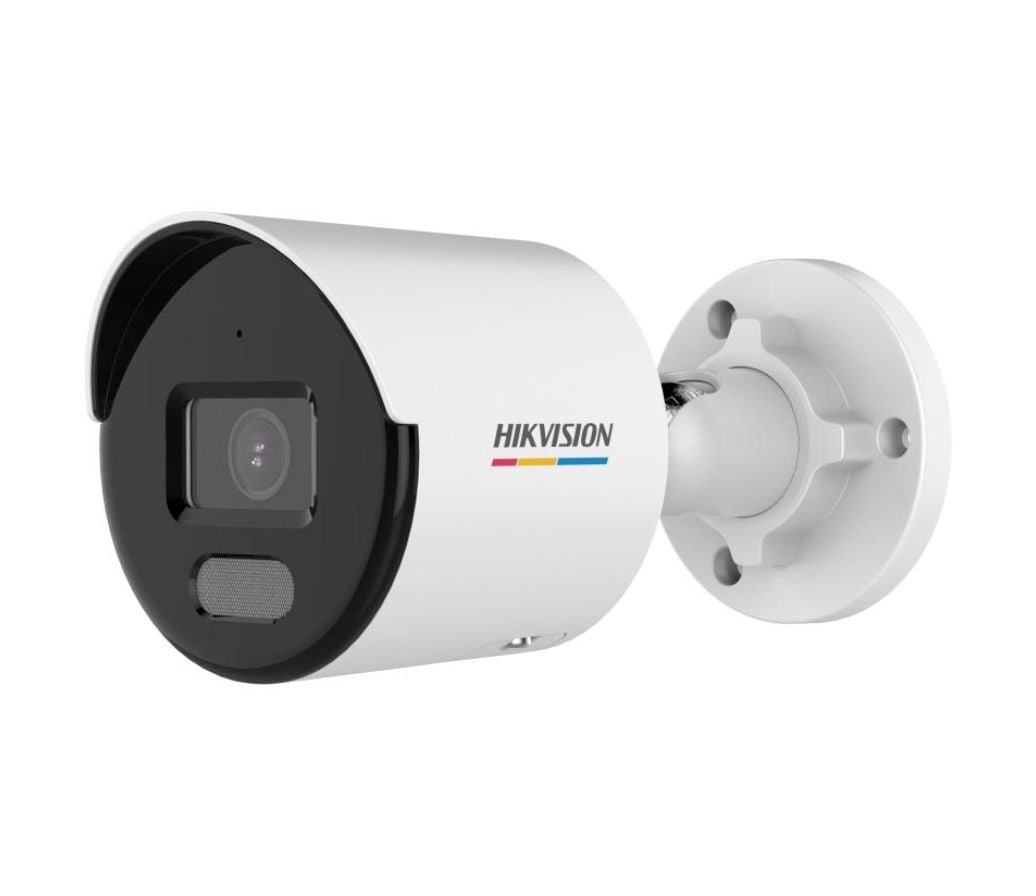

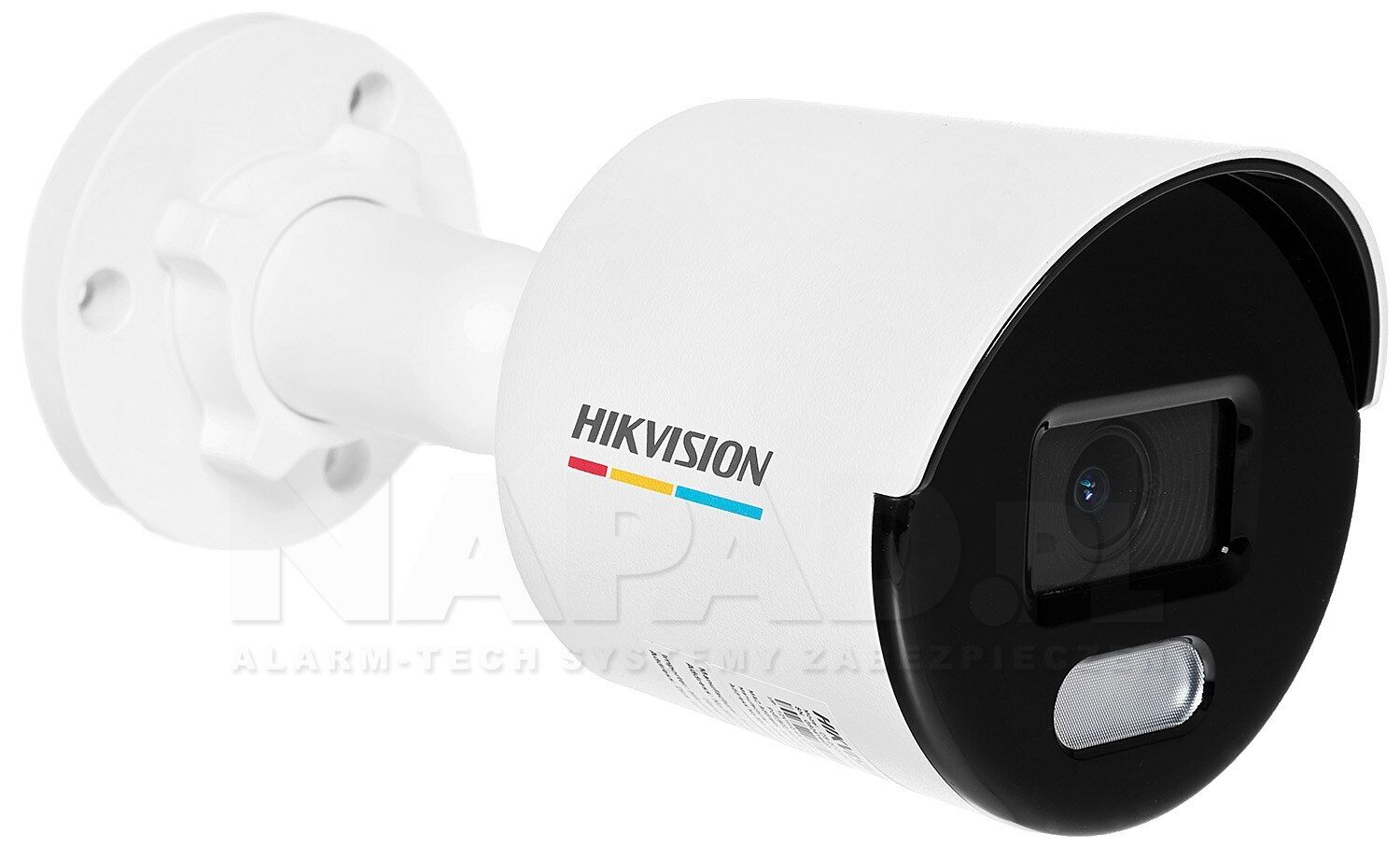

Camera Identification

Camera Model
DS-2CD3047G0E-LUF
Camera Type
4MP ColorVu fixed bullet network camera with built-in microphone
Available Lens Options
2.8mm or 4mm fixed lens

Camera Imaging

Image Sensor
1/3-inch progressive-scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.001 lux at F1.0 with AGC on; 0 lux with white light
Shutter Speed
1/3 second to 1/100,000 second
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 90°; rotation: 0° to 360°
Day/Night Modes
Day, night, automatic, or scheduled
Wide Dynamic Range
130dB WDR
Image Enhancement
BLC and 3D DNR
Adjustable Image Settings
Saturation, brightness, contrast, sharpness, AGC, and white balance

Camera Lens and Field of View

2.8mm Field of View
96.5° horizontal, 50.8° vertical, and 113.9° diagonal
4mm Field of View
75.8° horizontal, 40.8° vertical, and 89.1° diagonal
Lens Mount
M12
Focus
Fixed
Aperture
F1.0
2.8mm DORI Distance
Detect: 64m; observe: 25.4m; recognize: 12.8m; identify: 6.4m
4mm DORI Distance
Detect: 77.4m; observe: 30.7m; recognize: 15.5m; identify: 7.7m

Camera Supplement Light

Smart Supplement Light
Supported
Supplement Light Range
Up to 30m (approximately 98 ft.)
Night Imaging
24/7 full-color imaging with white-light assistance

Camera Video

4MP Main Stream
20 fps at 2560 × 1440 in 50Hz or 60Hz mode
50Hz Main Stream
20 fps at 2560 × 1440; 25 fps at 1920 × 1080 or 1280 × 720
60Hz Main Stream
20 fps at 2560 × 1440; 30 fps at 1920 × 1080 or 1280 × 720
50Hz Sub-Stream
25 fps at 1280 × 720, 640 × 480, or 640 × 360
60Hz Sub-Stream
30 fps at 1280 × 720, 640 × 480, or 640 × 360
Third Stream
1 fps at 640 × 360
Main-Stream Compression
H.265+, H.265, H.264+, and H.264
Sub-Stream Compression
H.265, H.264, and MJPEG
Third-Stream Compression
H.265 and H.264
Video Bit Rate
32Kbps to 8Mbps
H.264 Profiles
Baseline, Main, and High Profile
H.265 Profile
Main Profile
Region of Interest
One fixed ROI for the main stream

Camera Audio

Built-In Microphone
Yes
Audio Compression
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, and AAC
Audio Sampling Rate
8kHz or 16kHz
Environment Noise Filtering
Supported

Camera Network and Compatibility

Ethernet Interface
1 × RJ45 10/100Mbps self-adaptive Ethernet port
Network Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, and SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface and ISAPI
Users
Up to 32 users with administrator, operator, and user access levels
Supported Clients
iVMS-4200 and Hik-Connect
Web Browser Support
IE 10+ with plug-in; plug-in-free live view with Chrome 57+ or Firefox 52+

Camera Storage, Events, and Security

On-Board Storage
Built-in microSD card slot supporting up to 256GB
Hardware Reset
Supported
Basic Events
Motion detection, video-tampering alarm, and exception
Smart Events
Line-crossing detection and intrusion detection
Event Linkage
Upload to FTP or memory card, notify surveillance center, send email, trigger recording, and trigger image capture
General Security Functions
Password protection, privacy mask, watermark, IP address filtering, anti-flicker, heartbeat, and image mirror

Camera Power and Construction

Camera Material
Aluminum-alloy body
Weather Protection
IP67 water- and dust-resistant
12VDC Power
12VDC ±25%, 0.4A, maximum 5W, with Ø5.5mm coaxial power plug
PoE Power
IEEE 802.3af Class 3, 36V to 57V, 0.2A to 0.15A, maximum 6.5W
Camera Dimensions
Ø76.6 × 164.4mm (Ø3 × 6.5 inches)
Camera Weight
Approximately 430g (0.95 lb.)
Package Dimensions
234 × 120 × 117mm (9.2 × 4.7 × 4.6 inches)
Packaged Weight
Approximately 648g (1.43 lb.)
Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity 95% or less, non-condensing
Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity 95% or less, non-condensing
Anti-Corrosion Classification
No specific anti-corrosion protection; intended for environments where specialized protection is not required

Camera Approvals

EMC
FCC SDoC, CE-EMC, RCM, and KC
Safety
UL, CB, CE-LVD, and BIS
Environmental
CE-RoHS, WEEE, and REACH
Protection Approval
IP67 under IEC 60529-2013

Accessories Found in the Datasheets

  • DS-1280ZJ-XS junction box: Optional mounting accessory listed for the DS-2CD3047G0E-LUF camera.
  • Rack-mounting ears: Shown as an optional NVR mounting accessory; no individual model number is specified.

The recorder datasheet does not identify an included hard drive. Storage capacity and any other kit accessories should therefore be confirmed from the seller's package contents.

Ideal Applications and Common Uses

  • Single-family homes requiring coverage of entrances, driveways, yards, and side passages
  • Retail stores needing full-color video, recorded audio, and transaction-area monitoring
  • Offices and professional buildings requiring multiple indoor and outdoor viewpoints
  • Warehouses, stockrooms, loading areas, and distribution facilities
  • Restaurants, cafés, convenience stores, and customer-service counters
  • Parking areas, gated entrances, and perimeter-monitoring applications
  • Schools, community facilities, and houses of worship
  • Properties that currently need eight cameras but may later expand to as many as 16
  • Locations that benefit from line-crossing, intrusion, or human-focused motion alerts
  • Installations requiring outdoor cameras with IP67 water and dust protection
  • Areas where full-color low-light evidence is preferred over conventional monochrome night video
  • Sites needing local recording without depending entirely on cloud storage
