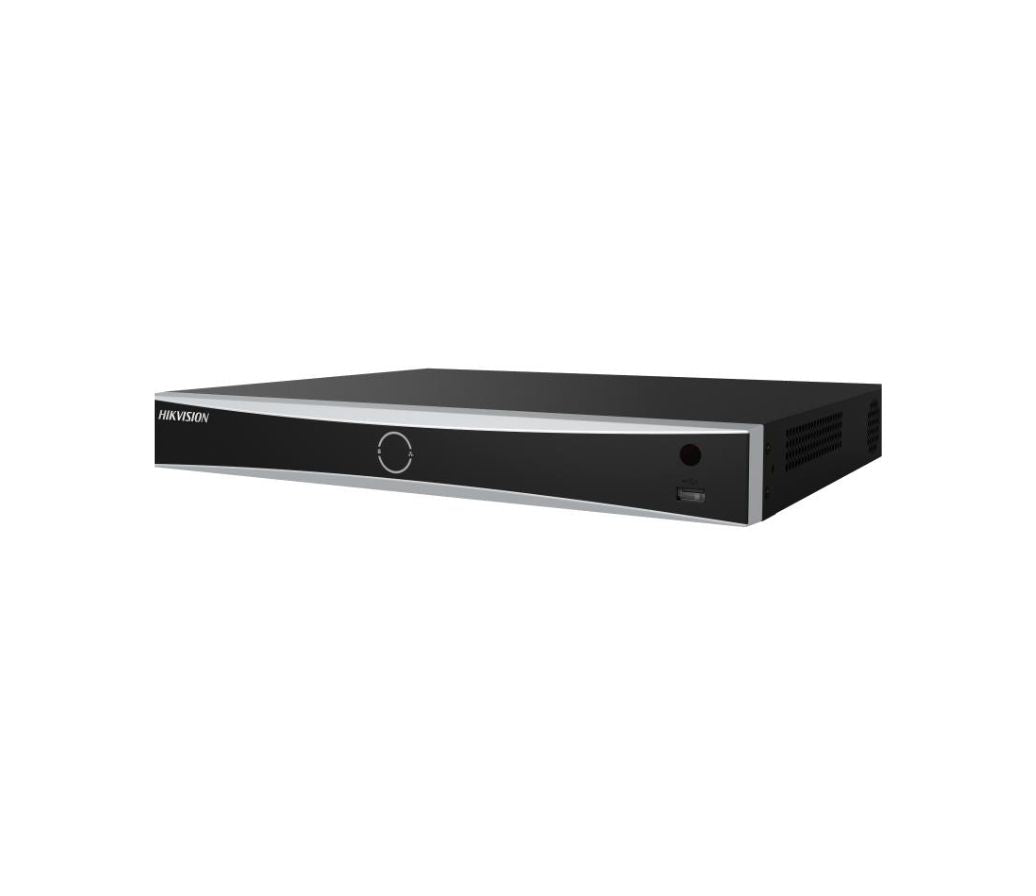

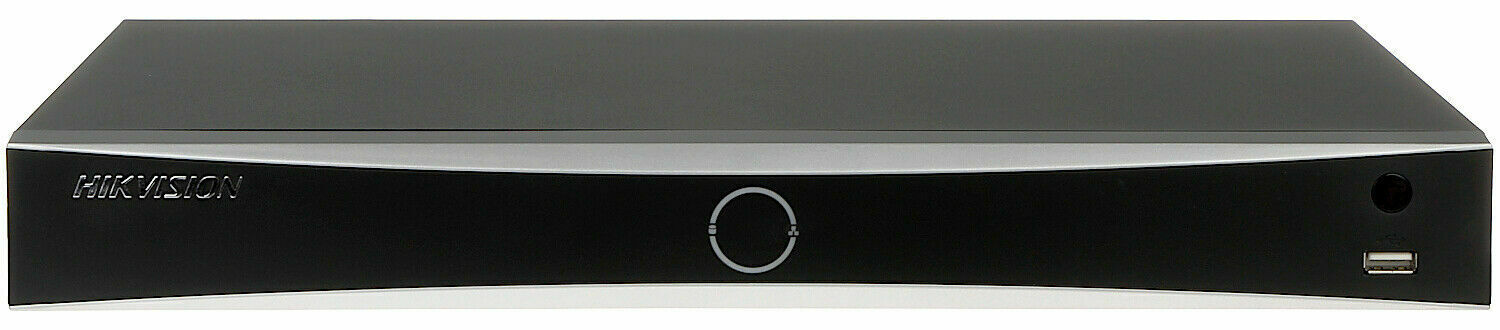

Hikvision DS-7616NXI-I2/16P/S(C) 16-Channel 4K PoE AcuSense NVR
What would change if your security system helped you locate important activity instead of forcing you to search through hours of ordinary footage?
The Hikvision DS-7616NXI-I2/16P/S(C) brings 16 IP-camera channels, 16 built-in PoE ports and deep-learning analytics together in one compact 1U recorder. It gives you high-resolution recording, intelligent event analysis and centralized playback without requiring a separate PoE switch for compatible cameras.
For homes and businesses that need broader coverage without making daily monitoring more complicated, this NVR provides a practical path from simply recording events to finding and reviewing them more efficiently.
Why Buyers Choose This Model
- Centralizes as many as 16 IP cameras in one security recorder.
- Powers compatible cameras through 16 integrated PoE interfaces.
- Uses AcuSense intelligence to support more efficient event detection and review.
- Records resolutions up to 12 MP for detailed video evidence.
- Displays video at up to 4K resolution through HDMI.
- Supports two hard drives for greater video-storage flexibility.
- Allows synchronous playback of recordings from all 16 channels.
Features That Deliver Everyday Benefits
16 IP-Camera Channels — Protect More Areas from One System
Connect up to 16 network cameras so entrances, parking areas, sales floors, offices and other important locations can be managed from one recorder. You gain broader visibility without juggling several independent recording devices.
16 Built-In PoE Ports — Create a Cleaner, More Direct Installation
Each integrated PoE interface can carry network data and supply power to a compatible camera. With IEEE 802.3af/at support and a PoE budget of up to 200 W, the recorder can reduce the need for separate camera power adapters or an additional PoE switch.
AcuSense Analytics — Spend Less Time Reviewing Irrelevant Activity
The NVR supports facial recognition, perimeter protection and Motion Detection 2.0 through deep-learning-based analytics. Instead of treating every recorded moment as equally important, these tools help make meaningful security events easier to identify.
Facial Recognition — Search and Compare Faces More Efficiently
The recorder supports one channel of human-face capture and four channels of face-picture comparison alarms. It can store up to 16 face libraries containing as many as 10,000 face pictures, helping authorized users organize and search captured face information more effectively.
Camera-Based ANPR — Add License-Plate Intelligence Where Needed
Support for compatible ANPR cameras across all channels makes this model suitable for monitored entrances, parking areas and vehicle-access points. This gives qualifying installations a way to incorporate plate-focused video analysis into the same recording platform.
Recording up to 12 MP — Preserve the Details That May Matter Later
High-resolution recording gives compatible cameras room to capture clearer visual evidence. When an incident needs to be reviewed, additional image detail can make it easier to understand what occurred.
4K HDMI Output — Monitor Video with Greater On-Screen Clarity
The HDMI connection supports output up to 3840 × 2160 at 60 Hz on a compatible display. Independent HDMI and VGA outputs also provide flexibility when building a dedicated viewing or security-monitoring station.
16-Channel Synchronous Playback — Review the Complete Event
Play recordings from up to 16 channels simultaneously rather than checking each camera separately. This helps you follow movement between locations and understand an incident from several viewpoints.
Smart Search and Playback — Reach Relevant Footage Faster
Smart search can focus on a selected area within recorded video, while smart playback improves review efficiency. That means less time scanning uneventful footage when you need answers quickly.
H.265+ Compression — Use Available Storage More Efficiently
H.265+ can reduce required storage space by up to 75%, according to the datasheet. This helps you make better use of installed hard-drive capacity while maintaining an organized recording system.
Two SATA Interfaces — Build Storage Around Your Retention Needs
The recorder supports two hard drives with capacities up to 10 TB per disk. Whether your priority is more cameras, higher resolutions or longer retention, the dual-drive design gives you additional storage flexibility.
160 Mbps Incoming Bandwidth — Handle a Multi-Camera Installation
The available incoming bandwidth supports video from a substantial 16-camera network system. You can expand coverage while keeping recording and management centralized.
Two-Way Audio Support — Add Audio Interaction Where Appropriate
A dedicated RCA two-way audio connection and RCA audio output provide options for compatible audio-equipped installations. This can make the system more useful in locations where listening or verbal interaction is required.
POS Integration — Connect Transactions with Recorded Activity
POS information can be overlaid on live video and playback, while POS events can trigger recording and alarms. Retail operators gain a more connected way to review transaction-related incidents.
Hik-Connect — Manage Network Access More Conveniently
Hik-Connect support provides an easier approach to network management, helping authorized users stay connected to the security system when properly configured.
ONVIF and RTSP Support — Gain More Camera-Integration Flexibility
Support for ONVIF Version 2.5 and RTSP provides recognized camera-access options. This gives installers more flexibility when planning a compatible network-camera system.
What This Helps You Avoid
- Blind spots caused by limited channel capacity: Manage up to 16 camera locations from one recorder.
- Separate power supplies at every camera: Use the integrated PoE interfaces with compatible devices.
- Hours of manual video review: Use smart search, smart playback and supported analytics to reach relevant events faster.
- Disconnected views of the same incident: Review up to 16 channels synchronously to follow activity across the property.
- Running out of storage flexibility too quickly: Install as many as two supported hard drives with capacities up to 10 TB each.
- Evidence that lacks useful detail: Record compatible cameras at resolutions up to 12 MP and view video through a 4K HDMI output.
- An unnecessarily complicated equipment layout: Combine recording, PoE camera connections, analytics, storage and display outputs in one 1U chassis.
Move from Recording Everything to Finding What Matters
A More Manageable Security Experience
When a security system covers many areas but makes footage difficult to find, every incident can turn into a long and frustrating search. The DS-7616NXI-I2/16P/S(C) brings your cameras, recordings, intelligent analytics and playback tools into one platform, helping you move from uncertainty to a clearer understanding of what happened. Instead of wondering whether your recorder can keep up as coverage expands, you gain a 16-channel foundation designed to make monitoring and investigation more organized.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7616NXI-I2/16P/S(C) 16-Channel 4K PoE AcuSense NVR
The Hikvision DS-7616NXI-I2/16P/S(C) combines 16 IP-camera channels, 16 built-in PoE interfaces and intelligent AcuSense analytics in a compact 1U recorder. It supports facial recognition, Motion Detection 2.0, camera-based ANPR and high-resolution recording up to 12 MP. With 4K HDMI output, 16-channel synchronous playback and space for two hard drives, it provides a centralized recording platform for homes and commercial properties that need easier searching, clearer evidence and dependable storage.
Key Features
- 16 IP-camera channels: Connect and manage up to 16 network cameras from one recorder.
- 16 integrated PoE ports: Supplies network connectivity and compatible-camera power through the recorder, with a total PoE power budget of up to 200 W.
- AcuSense intelligent analytics: Supports facial recognition, perimeter protection and Motion Detection 2.0 through the NVR.
- Facial-recognition capabilities: Supports up to one channel of human-face capture and four channels of face-picture comparison alarms.
- Large face database: Stores up to 16 face-picture libraries containing as many as 10,000 pictures in total.
- Camera-based ANPR: Supports compatible ANPR cameras across all channels and includes coverage for the countries and regions identified in the datasheet.
- Up to 12 MP recording: Accommodates high-resolution network cameras for detailed recorded evidence.
- 4K HDMI output: Displays video at up to 3840 × 2160 resolution and 60 Hz on a compatible monitor.
- Independent HDMI and VGA outputs: Provides flexible display options for monitoring installations.
- 16-channel 1080p decoding: Decodes up to 16 channels of 1080p video at 30 fps.
- 16-channel synchronous playback: Reviews multiple camera recordings simultaneously.
- Efficient video compression: Supports H.265+, H.265, H.264+ and H.264, with H.265+ capable of reducing storage requirements by up to 75%.
- Dual hard-drive support: Includes two SATA interfaces supporting drives with capacities up to 10 TB each.
- Smart search and playback: Searches selected areas of recorded video to improve playback efficiency.
- POS integration: Supports POS information overlays, POS-triggered recording and alarm functions.
- Hik-Connect support: Enables convenient network management and remote connectivity.
Intelligent Analytics
Target Recognition and Facial Analytics
ANPR Support by Camera
- Myanmar, Philippines, Indonesia, Vietnam, Pakistan, New Zealand, Australia, Sri Lanka, Singapore and Malaysia.
- Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, United Kingdom, Ireland, Germany, Italy, Austria, Palestine, Latvia, Lithuania, Estonia, Belgium, Luxembourg, Ukraine, Uzbekistan, Kazakhstan, Mongolia, Moldova, Kyrgyzstan, Azerbaijan, Georgia, Armenia, Albania, Kosovo, Belarus, Cyprus, Denmark, Finland, Malta, Portugal, Romania, Slovenia, Sweden, Israel, Bosnia and Herzegovina, Turkmenistan, Montenegro, Serbia, Tajikistan, Iceland and Liechtenstein.
- Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Salvador, Bolivia, Canada, Algeria, Mexico, Panama, Costa Rica, Nigeria, Kenya, Mauritius, Tanzania, Côte d'Ivoire, South Africa, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Republic of Trinidad and Tobago, Dominica, Guatemala, Senegal and Cameroon.
- Qatar, Kuwait, Oman, Jordan, Lebanon, Iraq, United Arab Emirates, Saudi Arabia, Bahrain, Egypt and Libya.
Video and Audio
Decoding and Recording
Network
PoE
Storage and Auxiliary Interfaces
General
Cybersecurity Features

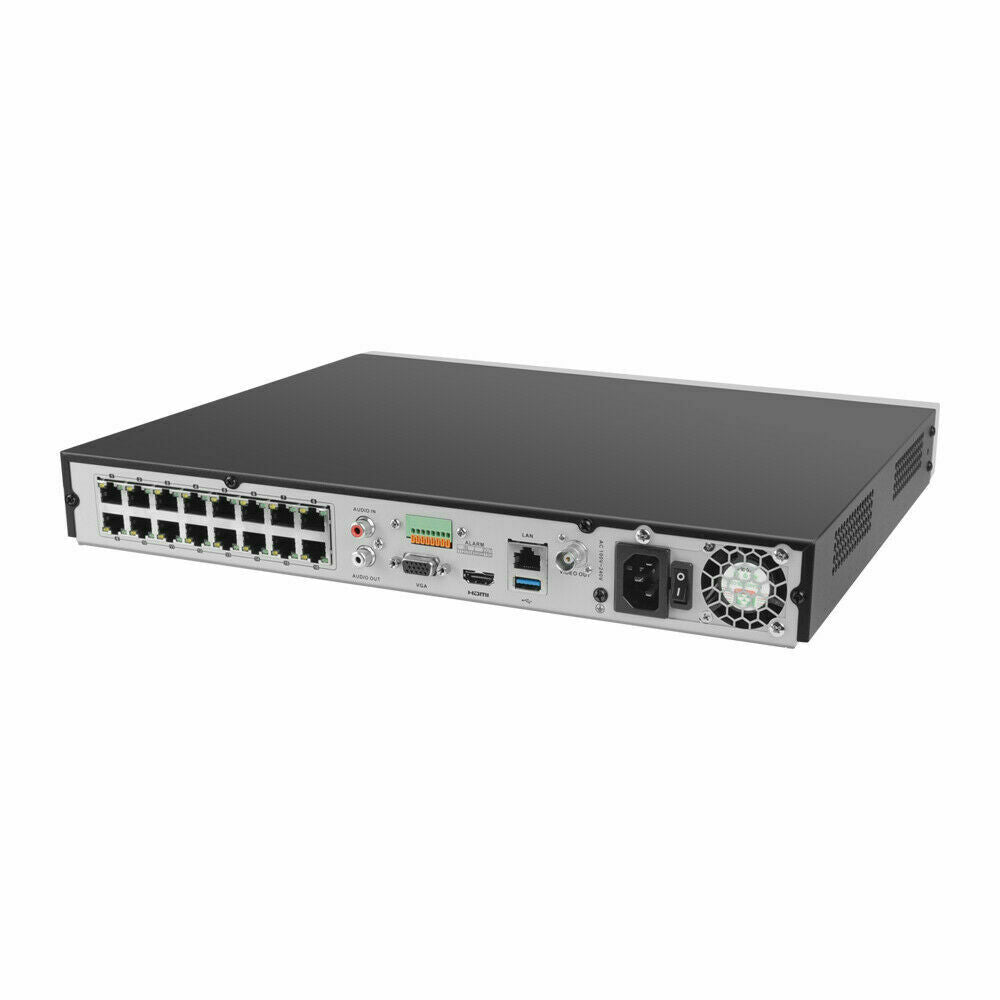

Physical Interfaces
Fields shown without values in the source datasheet, including AI by Camera, perimeter protection by NVR/camera, Motion Detection 2.0 by NVR/camera, vehicle attributes, plate attributes, remote connection, network protocols, API, compatible browser, GUI language and certification details, have not been assigned unsupported values here.
Accessories Listed in the Datasheet
The datasheet contains an accessory heading but does not identify any included or optional accessories. No accessories can therefore be confirmed from the supplied document.
Ideal Applications and Common Uses
- Homes requiring a centralized system for multiple PoE security cameras.
- Retail stores using POS-triggered recording and transaction information overlays.
- Offices and professional facilities needing intelligent human-event searches.
- Warehouses and distribution facilities requiring perimeter monitoring.
- Parking areas using compatible ANPR cameras for license-plate capture.
- Schools, clinics and multi-room facilities with up to 16 camera locations.
- Small and medium-sized commercial properties requiring 4K monitor output.
- Installations that need simultaneous playback of recordings from multiple cameras.
- Systems requiring up to two internal hard drives for extended video retention.
- Security desks using separate HDMI and VGA displays for live monitoring.
Downloads
Frequently Asked Questions
It supports up to 16 IP-camera inputs. The recorder also includes 16 independent RJ-45 PoE interfaces for connecting compatible network cameras.
Yes. Its 16 integrated PoE interfaces support IEEE 802.3af/at, with a combined PoE power budget of up to 200 W.
The NVR supports recording resolutions up to 12 MP. Other supported resolutions include 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF and QCIF.
Yes. The HDMI output supports up to 4K resolution at 3840 × 2160 and 60 Hz. The recorder also provides a VGA output at up to 1920 × 1080 and 60 Hz, with independent HDMI and VGA output operation.
It has two SATA interfaces and supports a hard-drive capacity of up to 10 TB per disk, allowing up to 20 TB of total installed capacity when two supported 10 TB drives are used.
The NVR provides facial recognition, perimeter protection and Motion Detection 2.0. Its intelligent analytics are based on deep-learning algorithms.
It supports one channel of human-face capture using an HD network camera up to 8 MP and four channels of face-picture comparison alarms. It can maintain up to 16 face-picture libraries containing as many as 10,000 face pictures in total, with each picture limited to 512 KB and the total database limited to 150 MB.
The recorder supports 16-channel synchronous playback. Its decoding capability is up to 16 channels of 1080p video at 30 frames per second.
It supports H.265+, H.265, H.264+, H.264 and MPEG4 decoding formats. According to the datasheet, H.265+ compression can reduce required storage space by up to 75%.
The recorder supports ONVIF Version 2.5 and RTSP camera-access protocols. It also provides one RCA two-way audio connection, one RCA audio output and video-plus-audio stream support.
