Technical Specifications

## DS-7616NI-M2/16P ```html

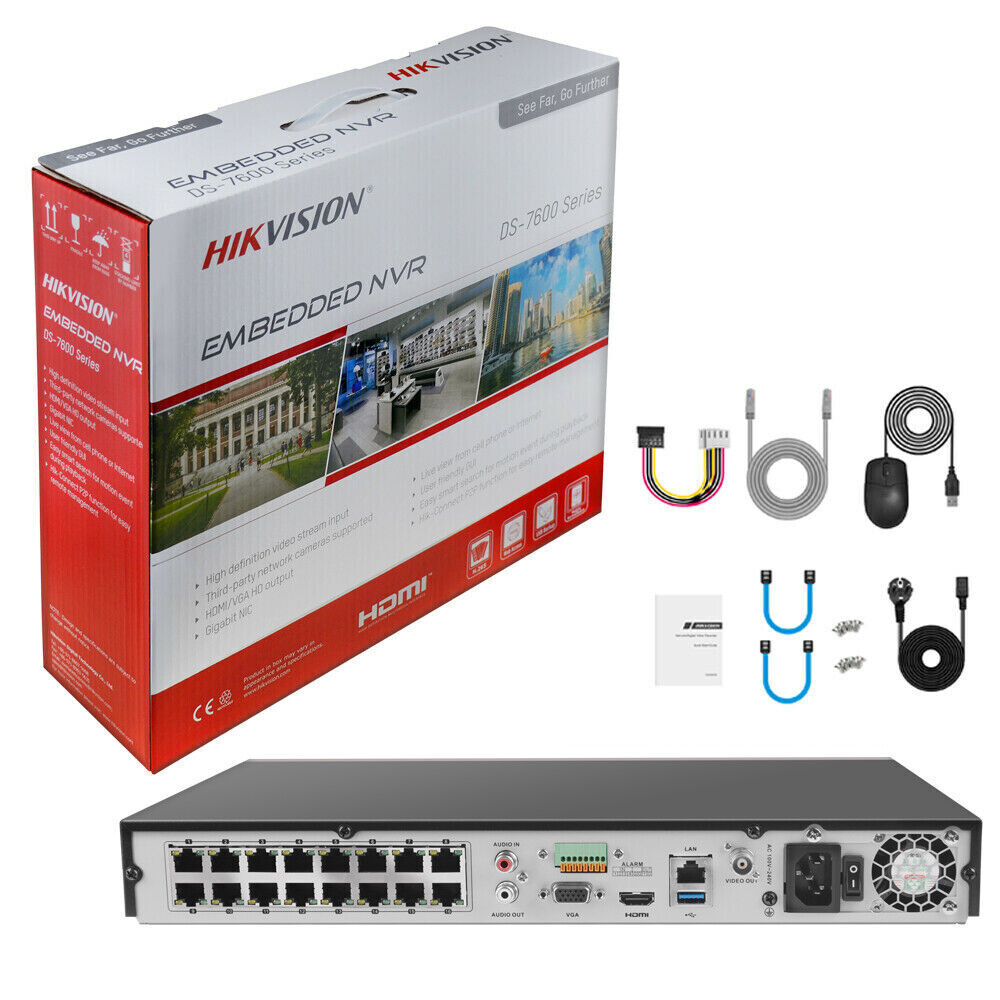

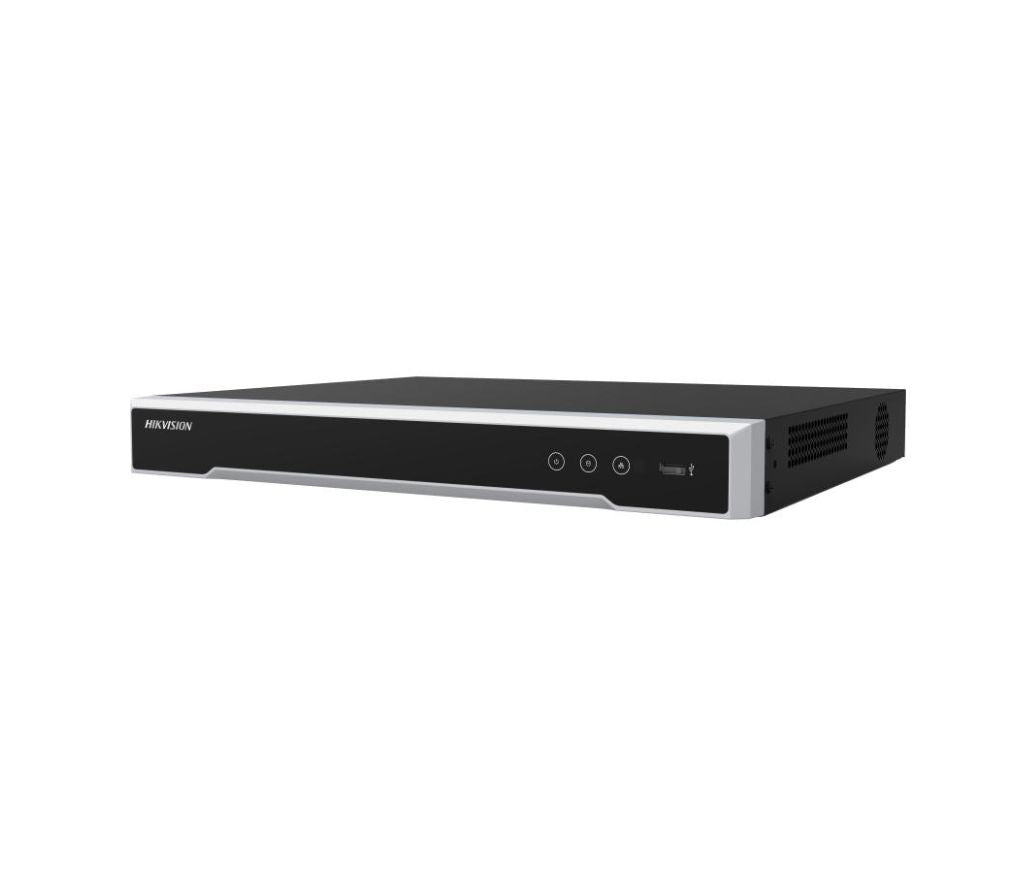

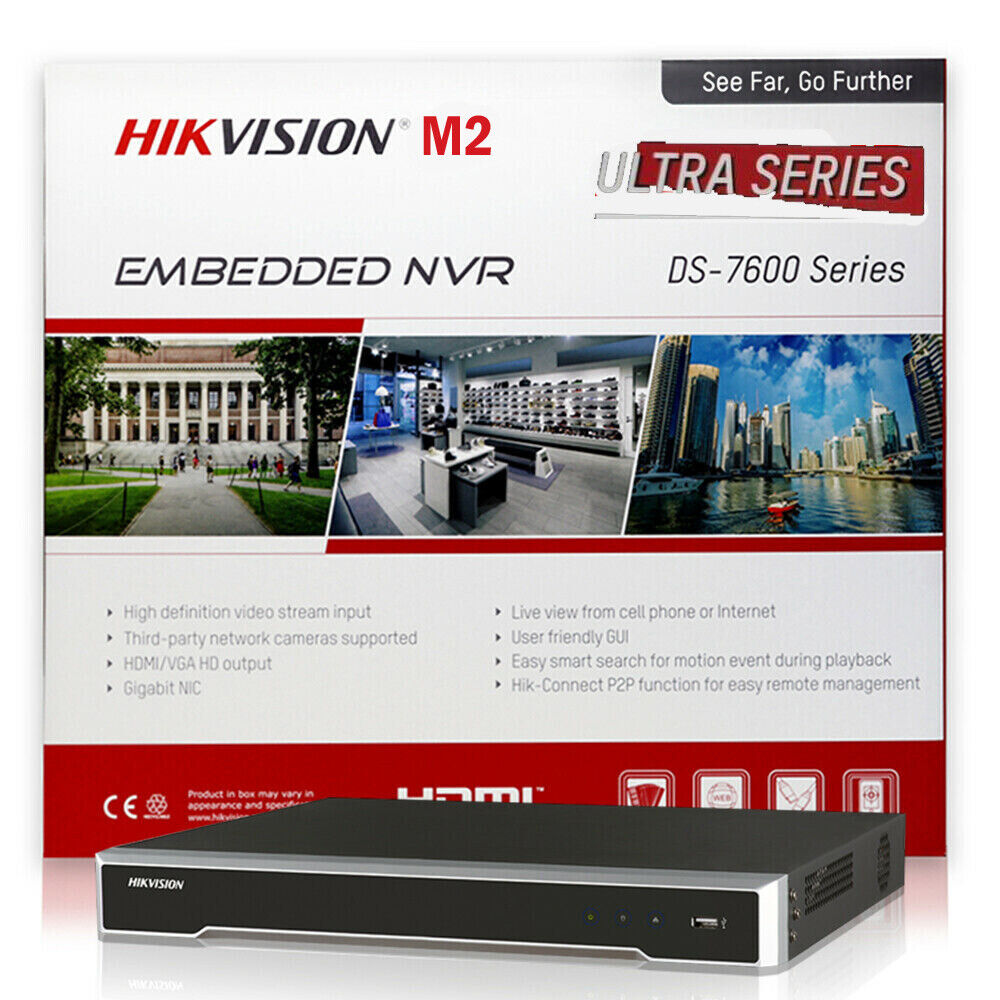

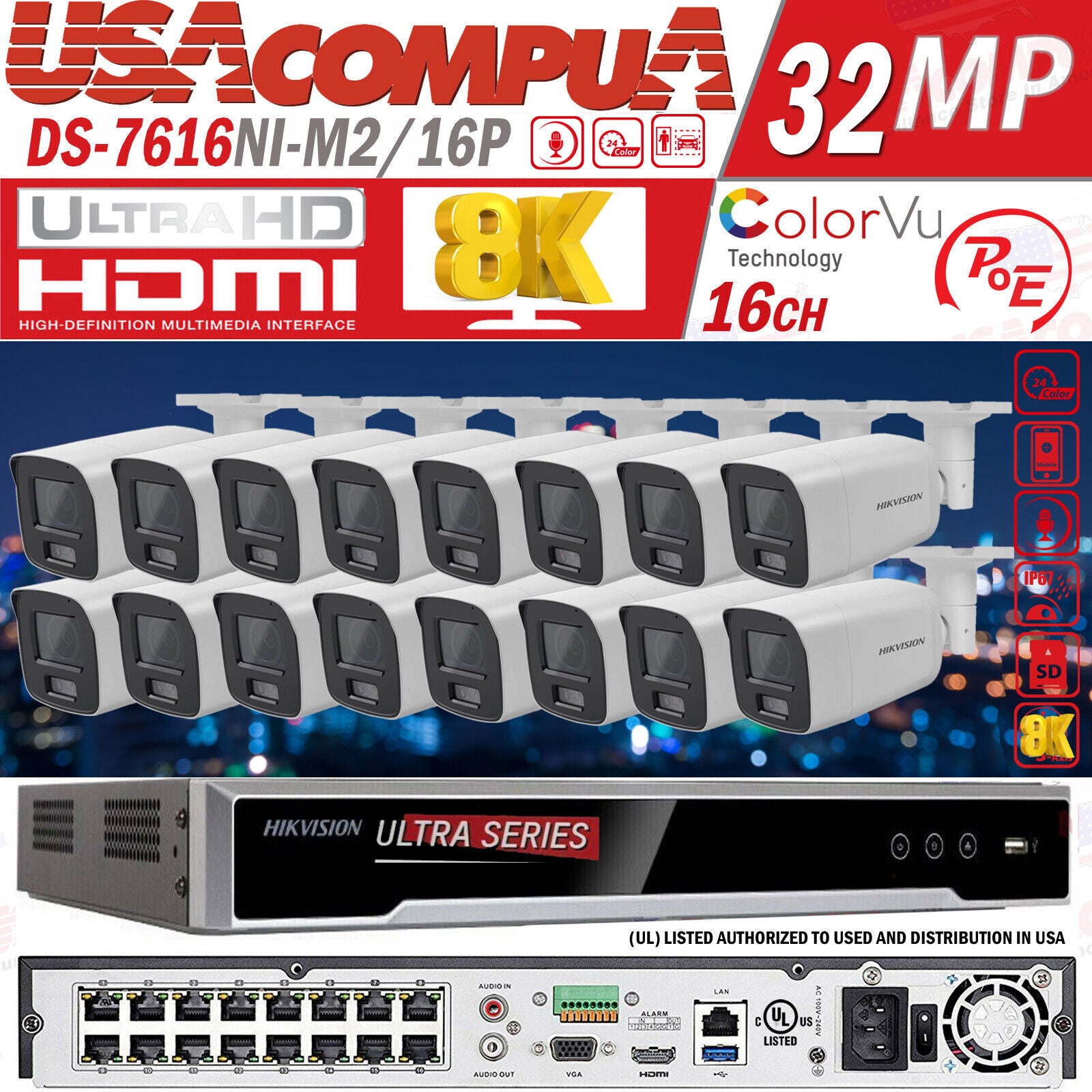

Hikvision DS-7616NI-M2/16P 16-Channel PoE 8K NVR

Build a centralized surveillance system with support for up to 16 IP cameras, 16 integrated PoE ports and incoming bandwidth of up to 256 Mbps. The DS-7616NI-M2/16P supports high-resolution cameras, independent HDMI and VGA displays, 16-channel synchronized playback and two hard drives with capacities of up to 16 TB each. Its 8K HDMI output, extensive decoding capacity and H.265+ compression make it suitable for systems requiring detailed recording without unnecessary storage consumption.

Key Features

  • Supports up to 16 IP camera inputs with resolutions up to 32 MP.
  • Sixteen independent PoE interfaces simplify camera power and connectivity.
  • Up to 256 Mbps incoming and 256 Mbps outgoing bandwidth.
  • HDMI output supports resolutions up to 8K at 30 Hz.
  • Supports up to 40 channels of 1080p video decoding at 30 fps.
  • H.265+ compression can reduce storage requirements by up to 75%.
  • Two SATA interfaces support drives with capacities of up to 16 TB each.
  • Supports 16-channel synchronized playback and dual-stream recording.
  • Supports connection of up to eight IP speakers.
  • Supports VCA events, compatible-camera analytics, POS integration and encrypted stream transmission.
  • Includes Hik-Connect, DDNS, smooth streaming and plug-in-free web access.
  • Security features include secure boot, signed firmware, HTTPS encryption and IP/MAC address filtering.

Video and Audio

IP Video Input
16 channels; up to 32 MP resolution. Supports up to 8 channels of 32 MP, 24 MP or 16 MP IP video inputs.
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI Output
8K (7680 × 4320) at 30 Hz; 4K (3840 × 2160) at 60/30 Hz; 2K (2560 × 1440) at 60 Hz; 1920 × 1080 at 60 Hz
VGA Output
1920 × 1080 at 60 Hz
Video Output Mode
Independent HDMI and VGA output
CVBS Output
1 channel, BNC, 1.0 Vp-p, 75 Ω; PAL: 704 × 576; NTSC: 704 × 480
Audio Output
1 channel, RCA, linear, 1 kΩ
Two-Way Audio
1 channel, RCA, 2.0 Vp-p, 1 kΩ, using the audio input

Decoding and Recording

Decoding Formats
H.265+, H.265, H.264+ and H.264
Recording Resolutions
32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 7 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF and QCIF. Supports up to 8 channels at 32 MP, 24 MP or 16 MP; all channels are supported below 16 MP.
Synchronous Playback
16 channels
Decoding Capability
2 channels at 32 MP/30 fps; 3 at 24 MP/30 fps; 4 at 16 MP/30 fps; 6 at 12 MP/30 fps; 10 at 8 MP/30 fps; 13 at 6 MP/30 fps; or 16 at 5 MP/30 fps
1080p Decoding Capacity
Up to 40 channels at 1080p/30 fps
Dual-Stream Recording
Supported
Stream Type
Video or video and audio
Audio Compression
G.711ulaw, G.711alaw, G.722, G.726, AAC and MP2L2

Network

Remote Connections
128
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF Version 2.2 and OTAP
Network Interface
1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol
ONVIF Version 2.5 and RTSP
Network Management
Hik-Connect and DDNS
Web Access
Plug-in-free web access supported

PoE

PoE Interfaces
16 × RJ45 10/100 Mbps self-adaptive Ethernet interfaces
PoE Power
Up to 200 W
PoE Standard
IEEE 802.3af/at

Storage and Auxiliary Interfaces

SATA Interfaces
2
Drive Capacity
Up to 16 TB per disk
Alarm Inputs/Outputs
4 inputs / 1 output
USB Interfaces
Front: 1 × USB 2.0; rear: 1 × USB 3.0
Physical Connections
16 PoE interfaces, LAN, audio output, audio input, HDMI, alarm input/output, VGA, USB 3.0, CVBS, ground connection, AC power input and power switch

Smart, VCA and POS Functions

VCA Support
Supports multiple Video Content Analytics events
Compatible-Camera Smart Functions
Configurable functions include motion detection, line crossing, intrusion detection, heat map, ANPR and people counting, subject to the connected camera's capabilities
POS Functions
POS information overlay in live view and playback; POS-triggered recording and alarm
IP Speakers
Supports up to 8 IP speakers

Cybersecurity

EN 303645
Supported
Secure Boot
Supported
Secure Component Verification (SVC)
Supported
Password Protection
Supported
IP and MAC Address Filtering
Supported
HTTPS Encryption
Supported
Stream Encryption
AES-128 encryption for live-view and playback streams; stream-over-TLS technology supported
IEEE 802.1X Access Control
EAP-TLS supported
Signed Firmware
Supported
Additional Security
Digest authentication, user-access logs, centralized certificate management and brute-force delay protection
Playback/Download Verification
Double verification supported

General

Power Supply
100 to 240 VAC, 50 to 60 Hz
Power Consumption
Up to 15 W without HDD and with PoE off
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10% to 90%
Dimensions
385 × 315 × 52 mm (15.2 × 12.4 × 2.0 in.)
Weight
Up to 3 kg without HDD. The datasheet also prints 2.2 lb.; these two figures are not equivalent, so verification with the manufacturer is recommended.

Certifications

FCC
Part 15 Subpart B; ANSI C63.4-2014
CE
EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019; EN 50130-4:2011+A1:2014; EN 55035:2017+A11:2020

Accessories Found

The datasheet does not identify any included or optional accessories by model number. Compatible hard drives, displays and other peripherals must be selected separately according to the specifications above.

Ideal Applications and Common Uses

  • Medium-sized retail stores and POS-integrated surveillance systems
  • Offices, warehouses and commercial properties with up to 16 cameras
  • High-resolution systems requiring 4K or 8K local display output
  • Systems using line-crossing, intrusion, ANPR, heat-map or people-counting cameras
  • Installations requiring centralized PoE power for as many as 16 cameras
  • Properties requiring extended recording through two high-capacity hard drives
  • Security environments requiring encrypted streams and controlled network access
``` ## DS-2CD2047G2-L / DS-2CD2047G2-LU ```html

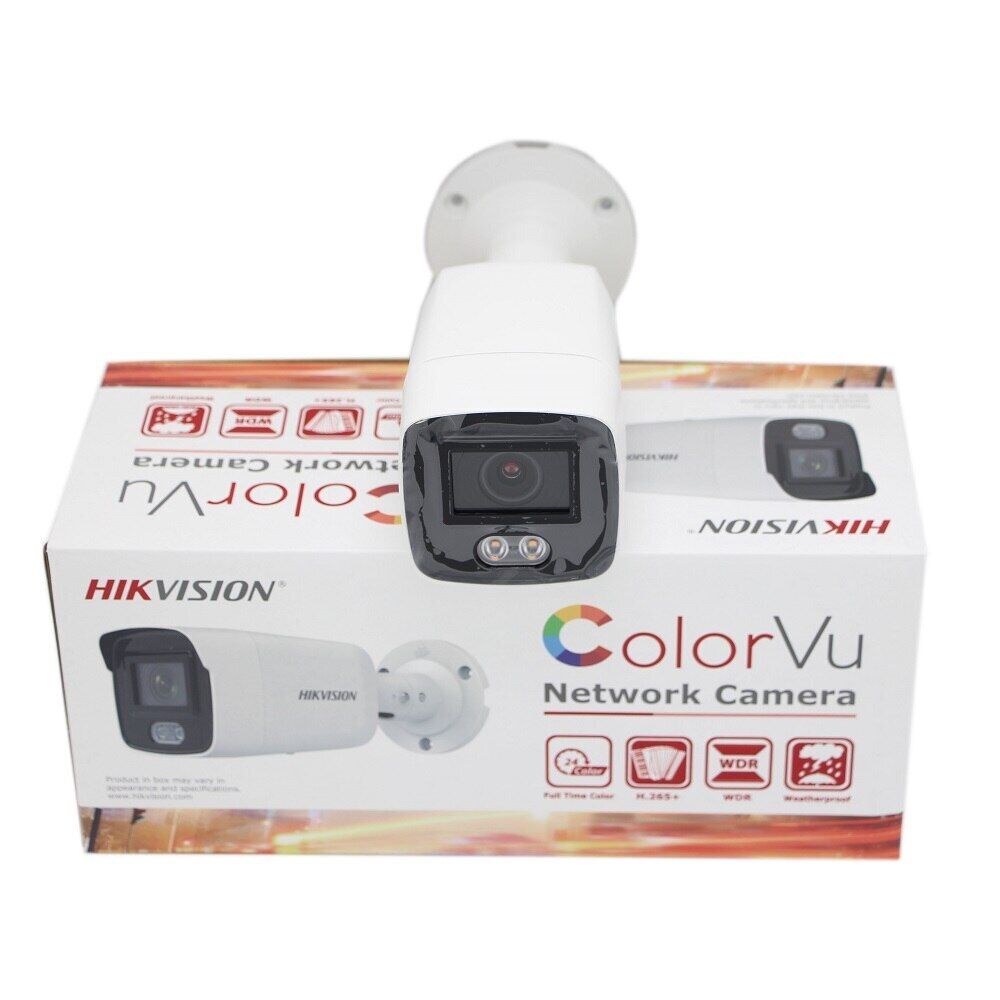

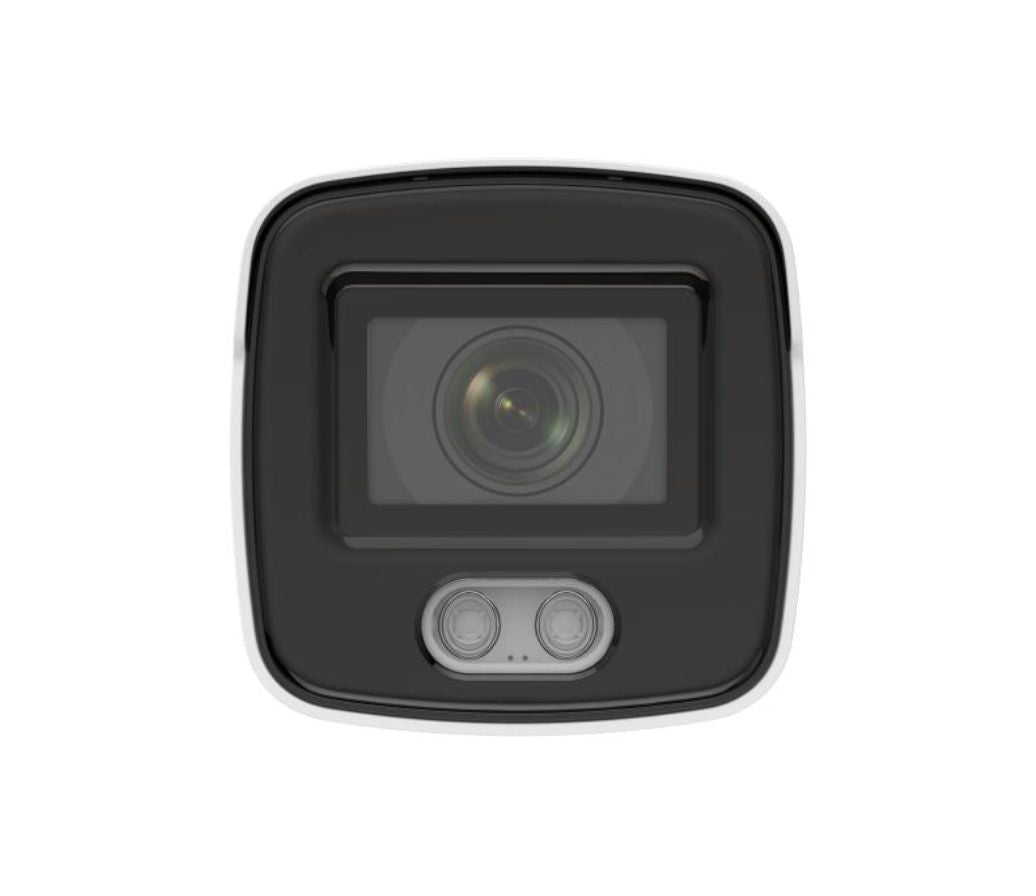

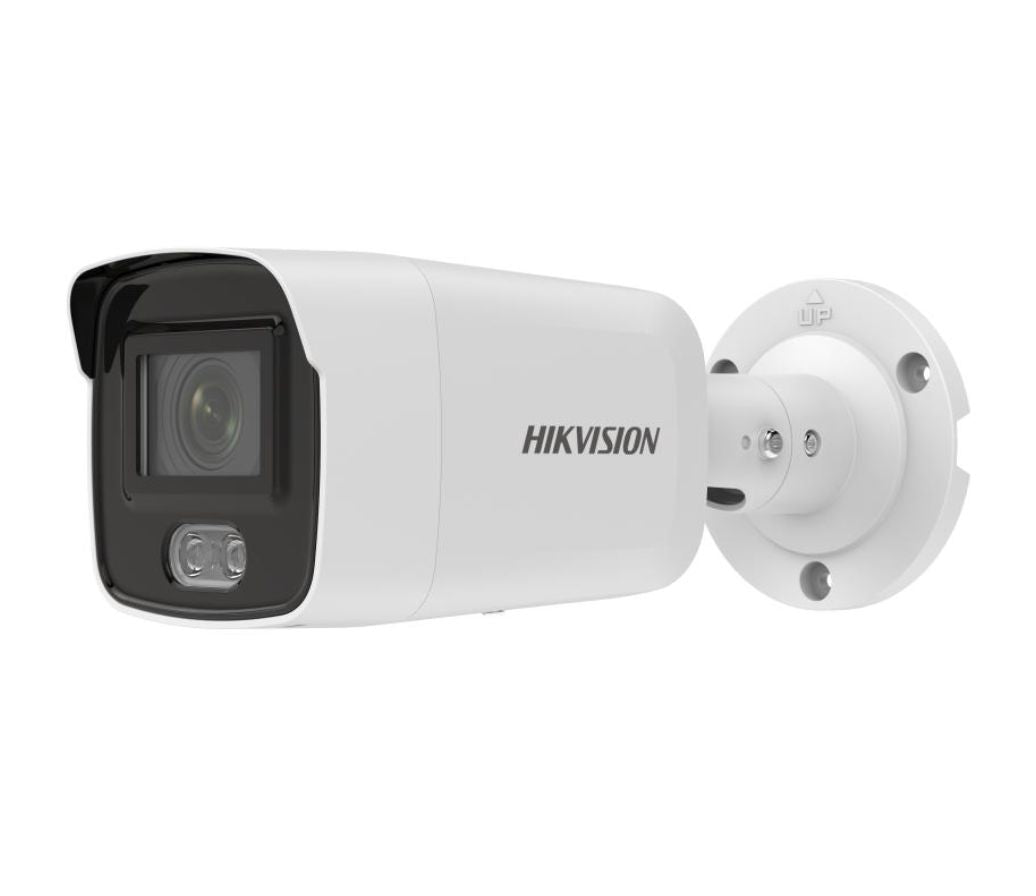

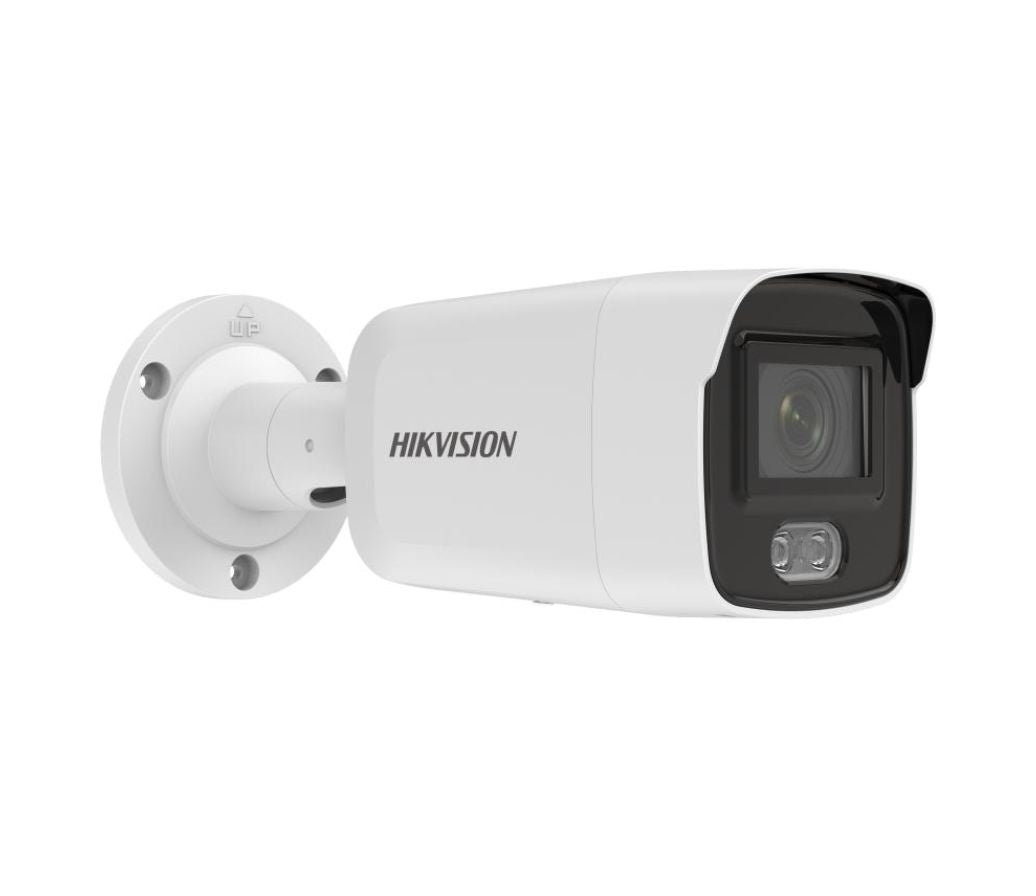

Hikvision DS-2CD2047G2-L(U) 4 MP ColorVu Fixed Bullet Network Camera

Capture vivid, full-color video around the clock with a 4 MP sensor, an F1.0 super-aperture lens and white-light illumination reaching up to 40 meters. Deep-learning classification helps distinguish human and vehicle targets, while 130 dB WDR preserves important detail in difficult backlighting. Its IP67 housing, PoE support and onboard microSD storage make it a flexible choice for dependable indoor or outdoor monitoring.

Key Features

  • High-quality 4 MP imaging with a maximum resolution of 2688 × 1520.
  • ColorVu technology provides vivid, colorful imaging 24 hours a day.
  • F1.0 aperture and high-performance sensor improve available-light utilization.
  • White-light illumination reaches up to 40 meters.
  • 130 dB WDR improves visibility against strong backlighting.
  • Deep-learning classification focuses motion detection on human and vehicle targets.
  • Supports line crossing, intrusion, region entrance and region exit detection.
  • H.265+ compression helps reduce bandwidth and storage consumption.
  • Built-in microSD/SDHC/SDXC slot supports cards up to 256 GB.
  • PoE or 12 VDC power options simplify installation.
  • IP67-rated protection supports exposed outdoor installations.
  • The DS-2CD2047G2-LU version includes a built-in microphone and audio recording support.

Camera

Image Sensor
1/1.8-inch Progressive Scan CMOS
Minimum Illumination
Color: 0.0005 lux at F1.0 with AGC on; black and white: 0 lux with white light
Shutter Speed
1/3 second to 1/100,000 second
Slow Shutter
Yes
Wide Dynamic Range
130 dB
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 90°; rotation: 0° to 360°

Lens

Lens Type
Fixed focal lens; 2.8 mm, 4 mm or 6 mm options
Iris Type
Fixed
2.8 mm Field of View
Horizontal: 112°; vertical: 61°; diagonal: 134°
4 mm Field of View
Horizontal: 95°; vertical: 51°; diagonal: 115°
6 mm Field of View
Horizontal: 58°; vertical: 31°; diagonal: 69°
Depth of Focus
2.8 mm: 2.5 m to infinity; 4 mm: 3.5 m to infinity; 6 mm: 7.5 m to infinity
Aperture
F1.0
Lens Mount
M16

DORI Distances

2.8 mm Lens
Detect: 58 m; observe: 23 m; recognize: 11 m; identify: 2 m
4 mm Lens
Detect: 77 m; observe: 30 m; recognize: 15 m; identify: 7 m
6 mm Lens
Detect: 115 m; observe: 45 m; recognize: 23 m; identify: 11 m

Supplemental Lighting

Light Type
White light
White-Light Range
Up to 40 m
Smart Supplement Light
Yes

Video

Maximum Resolution
2688 × 1520
Main Stream
50 Hz: 25 fps at 2688 × 1520, 1920 × 1080 or 1280 × 720; 60 Hz: 30 fps at the same resolutions
Sub-Stream
50 Hz: 25 fps at 640 × 480 or 640 × 360; 60 Hz: 30 fps at the same resolutions
Third Stream
50/60 Hz: 10 fps at 1920 × 1080, 1280 × 720, 640 × 480 or 640 × 360. Supported under certain settings.
Video Compression
Main stream: H.265, H.264, H.265+ and H.264+; sub-stream: H.265, H.264 and MJPEG; third stream: H.265 and H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Profiles
Baseline, Main and High Profile
H.265 Profile
Main Profile
H.264+ / H.265+
Supported on the main stream
Bit-Rate Control
CBR or VBR
Scalable Video Coding
Supported with H.264 and H.265 encoding
Region of Interest
One fixed region for the main stream and sub-stream

Audio - DS-2CD2047G2-LU Only

Built-In Microphone
Yes, on the -LU version only
Environmental Noise Filtering
Yes, on the -LU version only
Audio Sampling Rates
8, 16, 32, 44.1 and 48 kHz
Audio Compression
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3 and AAC
Audio Bit Rates
64 Kbps for G.711; 16 Kbps for G.722.1 and G.726; 32-192 Kbps for MP2L2; 8-320 Kbps for MP3; 16-64 Kbps for AAC

Network

Simultaneous Live View
Up to 6 channels
API
ONVIF Profiles S, G and T; ISAPI; SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP and ARP
Users
Up to 32 users with administrator, operator and user access levels
Security
Password protection, complex passwords, HTTPS encryption, IP filtering, security audit log, basic and digest authentication, TLS 1.1/1.2, WSSE and ONVIF digest authentication
Network Storage
MicroSD/SDHC/SDXC, NAS using NFS or SMB/CIFS and Automatic Network Replenishment. Compatible high-end Hikvision memory cards support encryption and health detection.
Client Software
iVMS-4200, Hik-Connect and Hik-Central
Web Browser
Plug-in live view: Internet Explorer 10 or later; plug-in-free live view and local service: Chrome 57 or later and Firefox 52 or later


Signal-to-Noise Ratio
At least 52 dB
Day/Night Switch
Automatic or scheduled
Image Enhancement
BLC, HLC and 3D DNR
Image Parameter Switching
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain and white balance, adjustable through client software or a web browser

Interfaces and Storage

Onboard Storage
Built-in microSD/SDHC/SDXC slot supporting up to 256 GB
Network Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet port
Hardware Reset
Yes

Events and Deep Learning

Basic Events
Motion detection with human and vehicle target classification, video-tampering alarm and exception
Smart Event
Scene-change detection
Face Capture
Yes
Perimeter Protection
Line crossing, intrusion, region entrance and region exit detection
Linkage Methods
Upload to NAS, memory card or FTP; notify surveillance center; trigger recording; trigger capture; send email

General

Firmware Version
V5.5.112
Web Client Languages
33 languages, including English, Spanish, Portuguese, French, German, Italian, Russian, Korean, Japanese and Traditional Chinese
General Functions
Anti-flicker, heartbeat, mirror, privacy mask, flash log, email password reset and pixel counter
Software Reset
Yes
Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Power Supply
12 VDC ±25% or PoE IEEE 802.3af Class 3
Power Consumption
12 VDC: 0.5 A, maximum 6 W; PoE at 36-57 V: 0.25-0.15 A, maximum 7.5 W
Power Interface
5.5 mm coaxial power plug
Camera Dimensions
215.2 × 78.8 × 78.6 mm (8.5 × 3.1 × 3.1 in.)
Package Dimensions
315 × 137 × 141 mm (12.4 × 5.4 × 5.6 in.)
Camera Weight
Approximately 695 g (1.5 lb.)
Packaged Weight
Approximately 1,090 g (2.4 lb.)
Protection Rating
IP67 according to IEC 60529-2013

Approvals

EMC
FCC SDoC, CE-EMC, RCM, IC VoC and KC
Safety
UL, CB, CE-LVD and LOA
Environmental
CE-RoHS, WEEE and REACH

Available Models

DS-2CD2047G2-LU
Available with 2.8 mm, 4 mm or 6 mm lens; includes built-in microphone
DS-2CD2047G2-L
Available with 2.8 mm, 4 mm or 6 mm lens; built-in microphone specifications do not apply

Optional Accessories Found

  • DS-1275ZJ-SUS: Vertical pole mount
  • DS-1280ZJ-S: Junction box
  • DS-1276ZJ-SUS: Corner mount

Ideal Applications and Common Uses

  • Residential entrances, driveways, yards and property perimeters
  • Storefronts, parking areas and building exteriors
  • Locations requiring full-color evidence throughout the night
  • Entrances with strong backlighting or rapidly changing lighting conditions
  • Areas where human and vehicle classification can reduce irrelevant motion alerts
  • Outdoor installations exposed to rain and dust
  • Standalone edge-recording applications using a microSD card
  • PoE surveillance systems requiring one-cable power and network connectivity
  • Applications requiring recorded ambient audio when using the -LU model
Model-selection note: Audio features and the built-in microphone are exclusive to the DS-2CD2047G2-LU. The DS-2CD2047G2-L does not include those “-U” functions.
```
Buyer Before & After Protection

Buyer Before & After Protection

All orders are protected, in case your item gets lost, delayed or arrives damaged. We'll make it right, zero out of pocket cost.

Get advanced protection, and even faster delivery in case of an emergency if you use Shop Pay or Paypal at checkout.

Trusted and Tested Products

Trusted and Tested Products

Every product we've added to our catalog has been thoroughly tested for reliability, durability, and real-world performance, so you’re not gambling with your safety.

In order for a product to be added it has to pass: Environmental Testing (Heat and Cold), Tamper Resistance, and for advanced systems 99% Alert Accuracy.

secure payment

Secure Payment

Shop with confidence knowing your payments are secure and your information
