HIKVISION 4K SECURITY SYSTEM 8MP 16CH 4TB 16 CAMERAS 4 MEGAPIXEL COLORVU
HIKVISION 4K SECURITY SYSTEM 8MP 16CH 4TB 16 CAMERAS 4 MEGAPIXEL COLORVU
24/7 Color
Human and Vehicle Detection
One Way Audio
Hurry up, only 2 items left in stock.
products.product.pickup_availabilities
Description
Description
Hikvision 4K 16-Channel Security System with 4TB Storage and 16 ColorVu 4MP Cameras
What would change if you could see more of your property clearly—even after the sun goes down? This complete Hikvision system combines sixteen 4MP ColorVu cameras, intelligent human and vehicle classification, built-in audio, and centralized 4TB recording to help you stay connected to the areas that matter most.
Instead of relying on dark, unclear footage when an incident occurs, you receive vivid 24/7 color imaging supported by an F1.0 aperture and integrated white illumination. With sixteen built-in PoE ports, 4K monitor output, remote-access support, and expandable recorder storage, the system is designed to make comprehensive surveillance easier to manage.
Why Buyers Choose This Model
Have you considered how many important areas could remain unseen when a security system provides too few cameras or limited nighttime detail? Buyers choose this package because it combines wide 16-camera coverage with full-color low-light imaging, intelligent event detection, audio capture, and one centralized recorder.
- Monitor up to sixteen different areas from one system.
- See useful color information during both daytime and nighttime conditions.
- Focus supported alerts on human and vehicle activity.
- Capture surrounding audio through each camera's built-in microphone.
- Power compatible cameras directly from the recorder's PoE ports.
- View the system locally in up to 4K or access it through Hik-Connect.
- Expand recording capacity as storage requirements grow.
Features That Deliver Practical Benefits
```Understanding the 4MP and 8MP Designations
The included DS-2CD2347G2-LU(B) cameras are 4MP models with a maximum resolution of 2688 × 1520. The recorder supports multiple recording resolutions, including 8MP and resolutions up to 12MP, but this does not change the included cameras' native 4MP resolution.
What This Helps You Avoid
Imagine discovering activity around your property only after the damage has been done. You open the recording, but the nighttime image lacks color, the event happened outside the camera's view, or there is no audio to help explain what occurred.
A limited system can leave you moving between blind spots, reacting to general motion, and wondering whether the footage will contain enough useful detail. That uncertainty can make a security investment feel less reassuring precisely when you need it most.
This Hikvision system addresses those problems with sixteen viewing points, 24/7 ColorVu imaging, wide-angle lenses, audio capture, human and vehicle classification, and centralized recording. Instead of piecing together an incomplete picture, you gain a more comprehensive way to observe, review, and understand activity across your property.
A Better Fit for Complete Property Coverage
If your current setup leaves important areas unmonitored, produces unclear nighttime footage, or makes expansion difficult, what could those limitations cost when a serious event occurs? This system gives homeowners and businesses the coverage, visual context, intelligent detection, and storage flexibility needed to approach surveillance with greater confidence.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision 4K 16-Channel Security System with 4TB Storage and 16 ColorVu 4MP Cameras

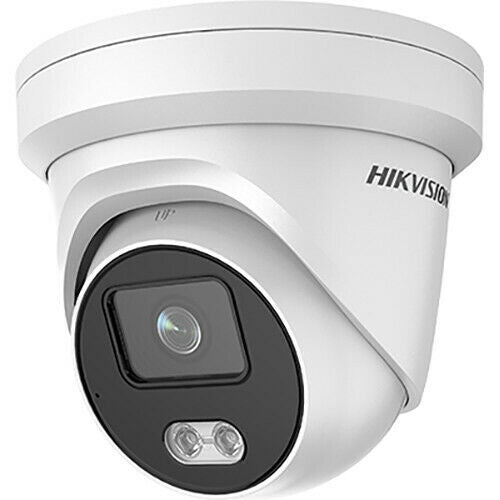

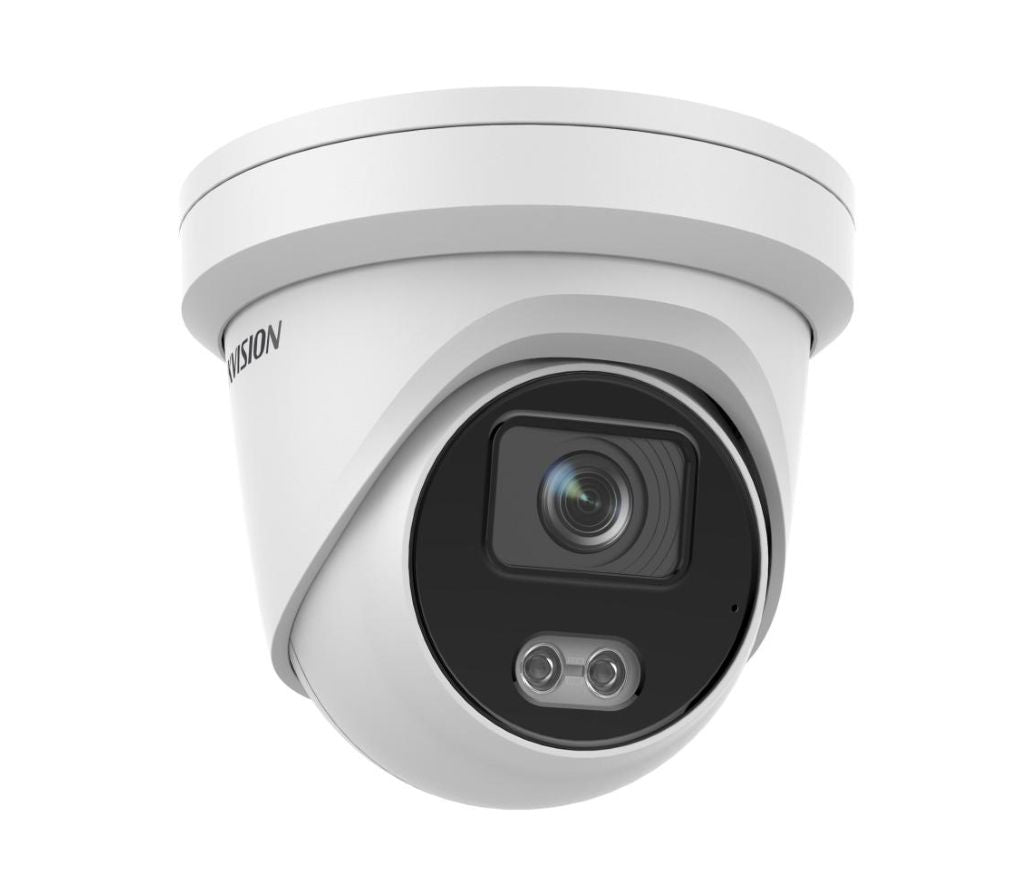

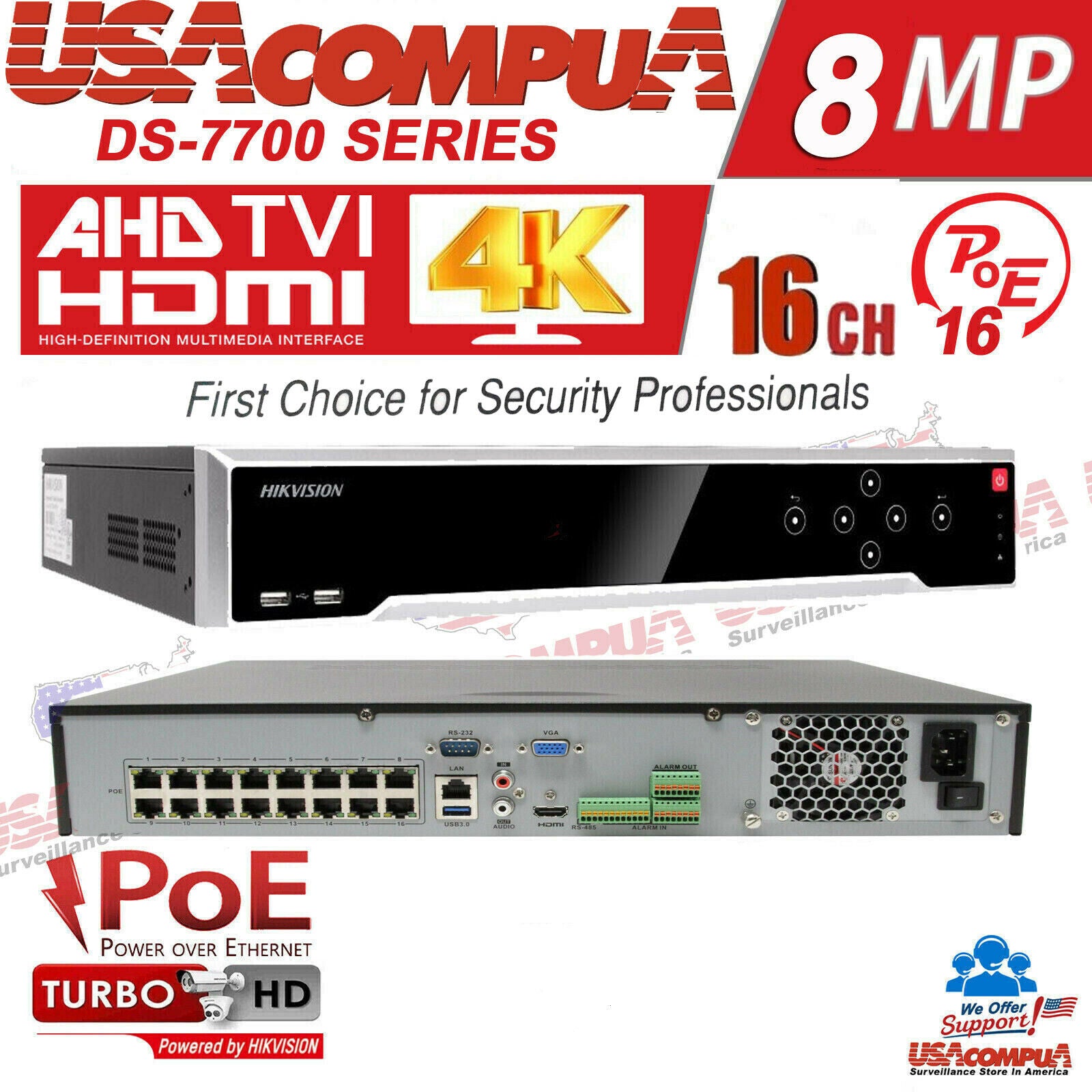

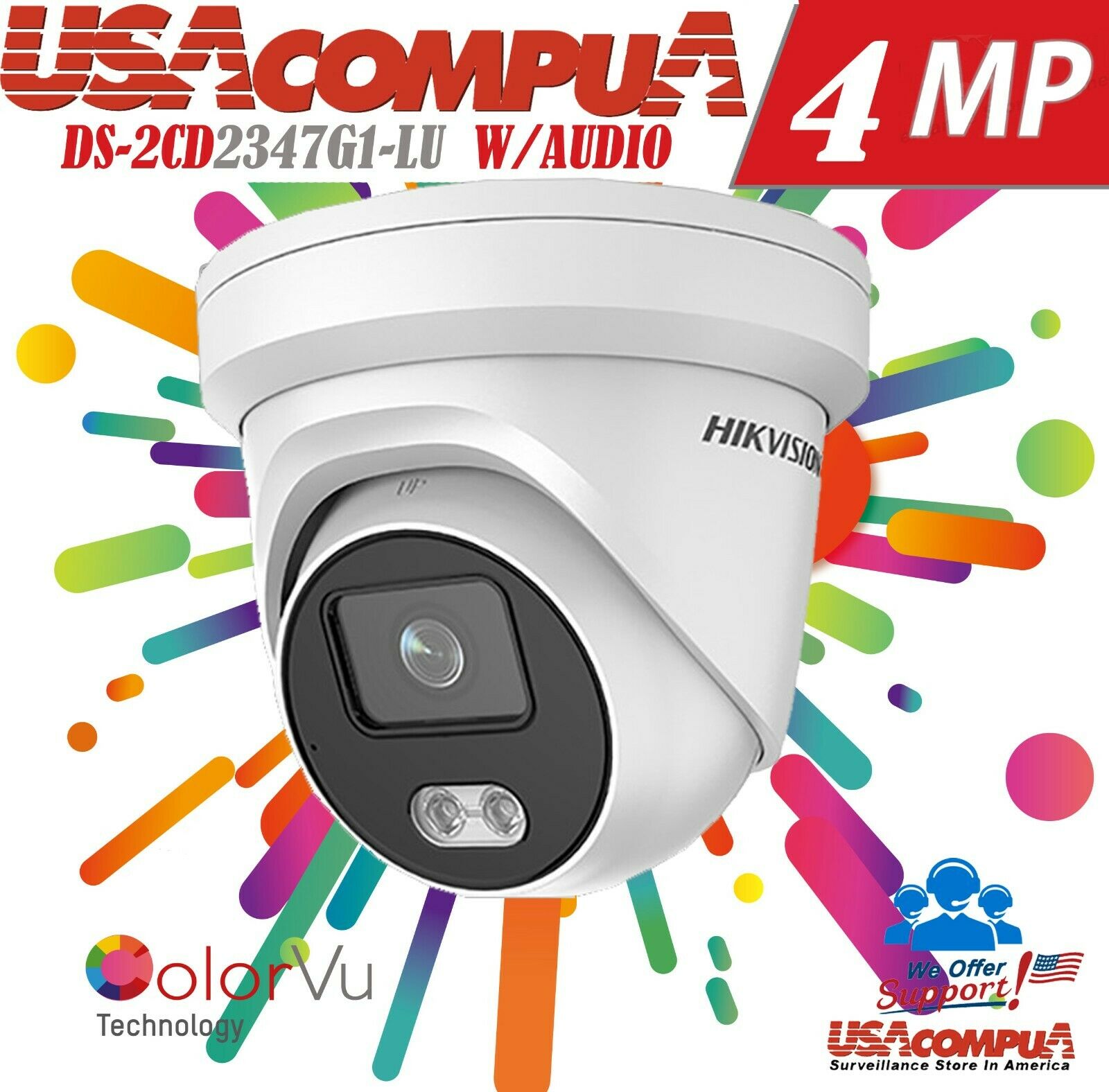

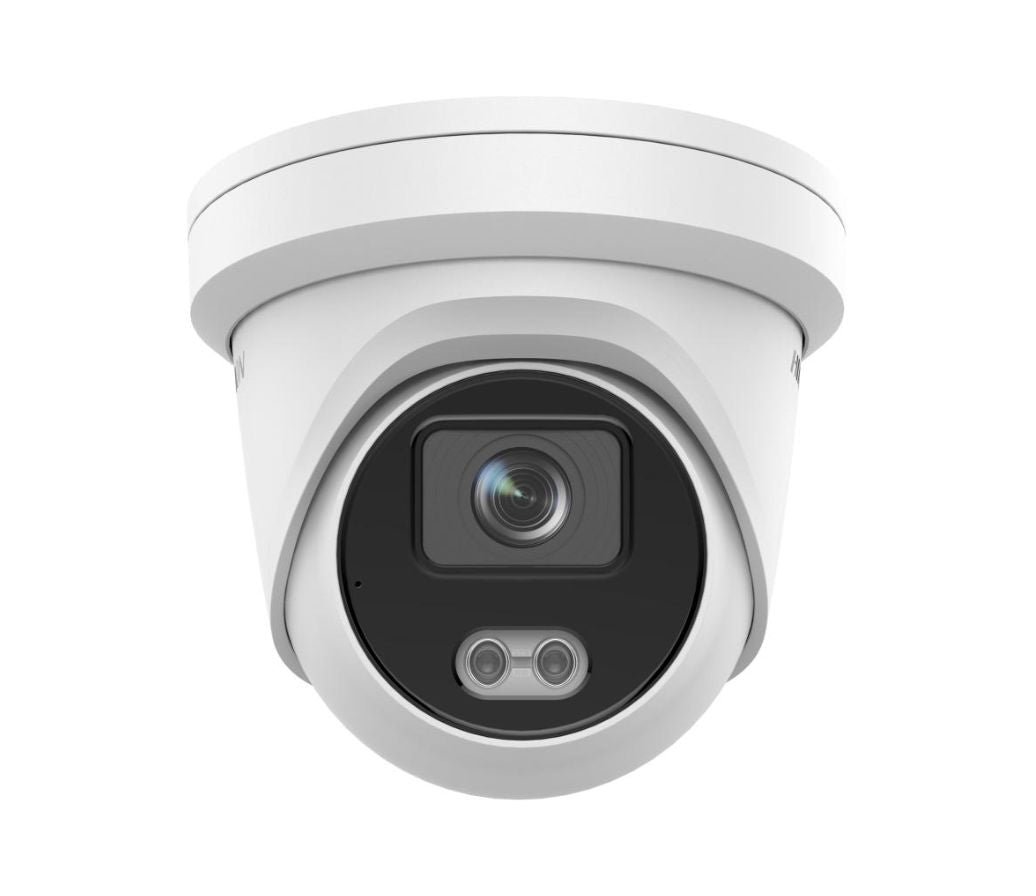

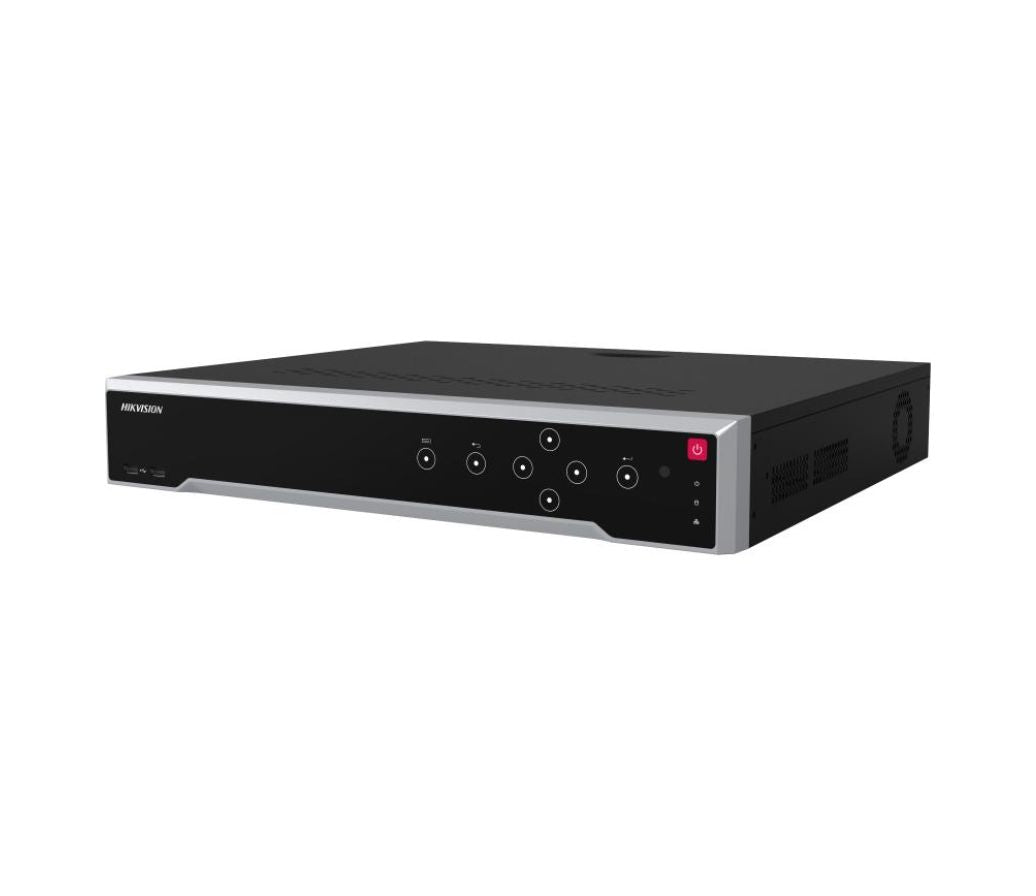

Monitor your entire property with a complete 16-camera IP security system built around the Hikvision DS-7716NI-K4/16P network video recorder and DS-2CD2347G2-LU(B) ColorVu turret cameras. Each camera records detailed 4MP video with 24/7 color imaging, built-in audio, 130 dB WDR, and intelligent human and vehicle classification. The recorder provides 16 integrated PoE connections, 4K HDMI output, support for recording resolutions up to 12MP, and multiple storage bays for dependable continuous surveillance.
With the included 4TB hard drive, this package gives homes and businesses a centralized recording solution without requiring a separate power adapter at every camera location.
Key Features
- Complete 16-camera coverage: Includes sixteen 4MP Hikvision ColorVu fixed turret network cameras.
- 24/7 color imaging: ColorVu technology uses an F1.0 aperture and high-performance sensor to capture vivid color images in extremely low light.
- 4MP camera resolution: Each camera produces images at up to 2688 × 1520 resolution.
- 4K display output: The NVR supports HDMI output at up to 3840 × 2160 at 30 Hz.
- Up to 12MP recording support: The recorder can accept compatible IP camera resolutions up to 12MP.
- 16 built-in PoE ports: Transmit network data and power to compatible cameras through Ethernet cabling.
- Human and vehicle classification: Deep-learning technology helps distinguish people and vehicles in supported motion and perimeter events.
- Built-in microphones: Each listed camera supports real-time audio security.
- Strong backlight performance: 130 dB WDR helps maintain image clarity when bright and dark areas appear in the same scene.
- 98-foot white-light range: Integrated white illumination supports full-color monitoring at night at distances up to 98 feet (30 meters).
- H.265+ compression: Efficient compression can reduce the recorder's required storage space by up to 75% compared with standard H.264, according to the NVR datasheet.
- Weather-resistant camera construction: IP67-rated cameras are protected against water and dust.
- Independent HDMI and VGA outputs: The NVR can display different video output through its HDMI and VGA interfaces.
- Expandable recorder storage: Four SATA interfaces support hard drives with capacities of up to 10TB per disk.
- Remote system access: Hik-Connect support provides convenient network management and remote viewing.
System Configuration
```DS-7716NI-K4/16P Recorder - Video and Audio
Recorder - Decoding and Playback
Recorder - Network and PoE
Recorder - Storage and Auxiliary Interfaces
Recorder - General
DS-2CD2347G2-LU(B) Camera - Imaging
Camera - Lens and Illumination
Camera - Video
Camera - Audio
Camera - Network and Storage
Camera - Analytics and Events
Camera - Construction and Operating Conditions
Compatible Camera Accessories Found in the Datasheet
The following mounting accessories are shown as compatible but are marked not included.
- PC140: White pendant cap
- PC140B: Black pendant cap
- WML: White wall mount
- WMLB: Black wall mount
- CM: Corner mount
- CPM: Pendant mount
- PM: Vertical pole mount
- CB140PT: Junction box
Ideal Applications and Common Uses
- Whole-home exterior and interior video surveillance
- Retail stores requiring broad multi-camera coverage
- Warehouses, stockrooms, loading areas, and distribution facilities
- Offices and multi-room commercial properties
- Parking lots, entrances, exits, driveways, and perimeter areas
- Restaurants, convenience stores, and customer-service areas
- Monitoring locations with difficult backlighting or changing light conditions
- Properties that need full-color video during the day and at night
- Applications requiring human and vehicle event classification
- Locations where recorded ambient audio can provide additional incident context, subject to local laws
- PoE installations where camera power and network data need to share one Ethernet cable
- Systems requiring centralized recording with future hard-drive expansion options
Important Resolution Information
The included cameras are 4MP models with a maximum resolution of 2688 × 1520. The “8MP” designation refers to one of the higher recording and decoding resolutions supported by the DS-7716NI-K4/16P NVR; it does not mean that the included ColorVu cameras produce 8MP video.
Downloads
Frequently Asked Questions
The system includes sixteen 4MP DS-2CD2347G2-LU(B) cameras with a maximum resolution of 2688 × 1520. The DS-7716NI-K4/16P recorder supports recording resolutions up to 12MP, including 8MP, but the included cameras record at 4MP.
Yes. The cameras use Hikvision ColorVu technology, an F1.0 aperture, a high-performance sensor, and integrated white light to provide 24/7 color imaging. The white-light illumination range is up to 98 feet (30 meters).
Yes. Each DS-2CD2347G2-LU(B) camera has a built-in microphone for real-time audio security and supports environmental noise filtering.

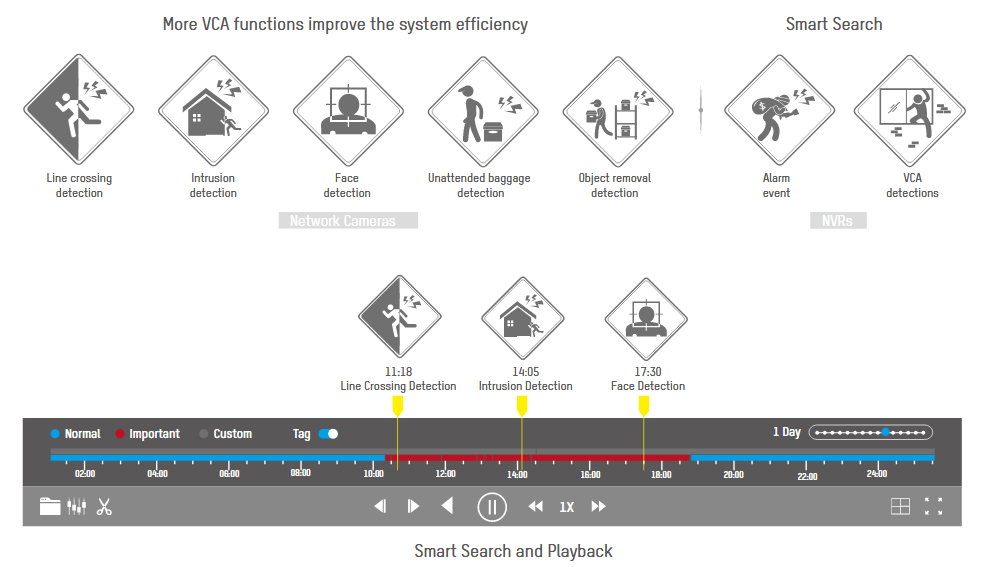

Yes. The cameras support human and vehicle target classification for motion detection. They also support line-crossing detection, intrusion detection, region entrance detection, and region exiting detection.
Yes. The cameras have an IP67 water- and dust-resistant rating and can operate in temperatures from -30°C to 60°C (-22°F to 140°F), with humidity of 95% or less when non-condensing.
Yes. The DS-7716NI-K4/16P has sixteen integrated 10/100 Mbps PoE network ports. These ports support IEEE 802.3af and 802.3at, allowing compatible cameras to receive power and network data through Ethernet cabling.
Yes. The recorder provides an HDMI output with resolutions up to 3840 × 2160 at 30 Hz. It also includes a VGA output, and the HDMI and VGA interfaces support independent video output.
The recorder has four SATA interfaces and supports a hard drive capacity of up to 10TB per disk. This package is configured with a 4TB hard drive.
Yes. The recorder supports Hik-Connect for network management. The cameras are also compatible with Hik-Connect, iVMS-4200, and HikCentral clients.
The camera datasheet lists the PC140 and PC140B pendant caps, WML and WMLB wall mounts, CM corner mount, CPM pendant mount, PM vertical pole mount, and CB140PT junction box. These accessories are marked as not included.
