The datasheet states that this camera supports a maximum image resolution of 1920 × 1080. It also lists frame rates of 25 fps at 50 Hz and 30 fps at 60 Hz at that full resolution. That means the camera is designed to deliver Full HD video rather than a lower analog-era image size. For buyers, that matters because it gives you clearer video for monitoring movement, reviewing incidents, and zooming in on recorded details more effectively.

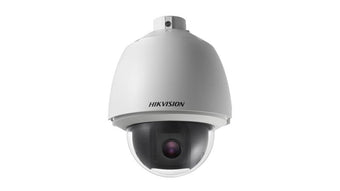

According to the datasheet, the DS-2AE5232T-A(E) has 32× optical zoom and 16× digital zoom. The lens specification is 4.8 mm to 153 mm, which is what allows the camera to move from a wider overview to a much tighter close-up view. The datasheet and Hikvision product page both emphasize that the 32× optical zoom is intended to capture more detail across expansive areas. In practical terms, this is one of the main reasons someone would choose this model for parking lots, perimeters, and other larger outdoor scenes.

Yes, the datasheet lists the protection level as IP66, which means the unit is water and dust resistant for outdoor installation. It also lists IK10 impact protection and TVS 4,000 V lightning protection, plus surge and voltage transient protection. The operating temperature range is -30°C to 65°C (-22°F to 149°F), which supports use in demanding weather conditions. The only limitation noted in the datasheet is that this model has no specific anti-corrosion protection, so it is intended for areas where special anti-corrosion measures are not needed.

Yes. The datasheet specifically says the camera has switchable TVI, AHD, CVI, and CVBS video output. It also notes that the output is NTSC or PAL composite through BNC, which is important for compatibility with different existing systems. This matters for installers because it gives more flexibility when integrating the camera into older or mixed-format surveillance setups. Instead of being locked into one signal type, the camera is designed to support several common analog HD formats.

The datasheet says the camera uses a 1/2.8" progressive scan CMOS sensor and supports true WDR of at least 120 dB. It also lists minimum illumination at 0.005 Lux in color and 0.001 Lux in black-and-white with AGC on, along with an IR cut filter for day and night operation. Those specifications are important because they show the camera is built to maintain usable image quality in poor light and in scenes with strong backlighting. Hikvision’s product page also highlights low-light performance and 120 dB WDR as key features of this model.

The datasheet lists a 360° endless pan range and a tilt range of -5° to 90° with auto flip. Manual pan speed is 0.1° to 250° per second, and manual tilt speed is 0.1° to 150° per second, with preset speeds up to 250° per second for pan and 150° per second for tilt. It also supports 256 presets, 10 patrols with up to 32 presets per patrol, and 5 patterns with a total recording time of no less than 10 minutes. For anyone comparing PTZ models, those are the core control specs that define how quickly and precisely the camera can move through saved viewpoints.

Yes, the datasheet lists 2 alarm inputs and 1 alarm output. It also includes an RS-485 interface in half-duplex mode and supports self-adaptive Hikvision, Pelco-P, and Pelco-D protocols. In addition, the datasheet mentions UTC function support using UTC protocol or Hikvision-C protocol in previous DVRs. For installers, those details matter because they show the camera can be tied into PTZ control systems and alarm-triggered workflows rather than acting as a basic standalone video device only.

The datasheet specifies that this model uses 24 VAC power. It also lists maximum power consumption at 24 W. That is important because buyers and installers need to size the power supply correctly and confirm compatibility with existing infrastructure before installation. The datasheet does not list PoE for this model, so the stated power method in the provided document is 24 VAC.

The datasheet gives the dimensions as Φ 220 mm × 326 mm, which is approximately Φ 8.66" × 12.83". It lists the weight at about 3 kg, or 6.61 lb. Those numbers are important when planning mounting hardware, shipping, and enclosure spacing. They also help confirm that this is a substantial outdoor speed dome rather than a small compact turret or mini dome camera.

The datasheet shows that the included accessory is the DS-1602ZJ Wall Mount. It also lists several optional mounting accessories: DS-1602ZJ-Conner Conner Mount, DS-1602ZJ-Pole Pole Mount, DS-1602ZJ-Box Box Mount, DS-1663ZJ Celling mount, DS-1619ZJ Swan-neck Mount, DS-1661ZJ Pendant mount, and DS-1662ZJ Pendant mount. That matters because mounting flexibility often determines whether a PTZ camera can be installed cleanly on walls, poles, corners, or pendant locations. The answer here is limited to what is explicitly named in the provided datasheet.
