Technical Specifications

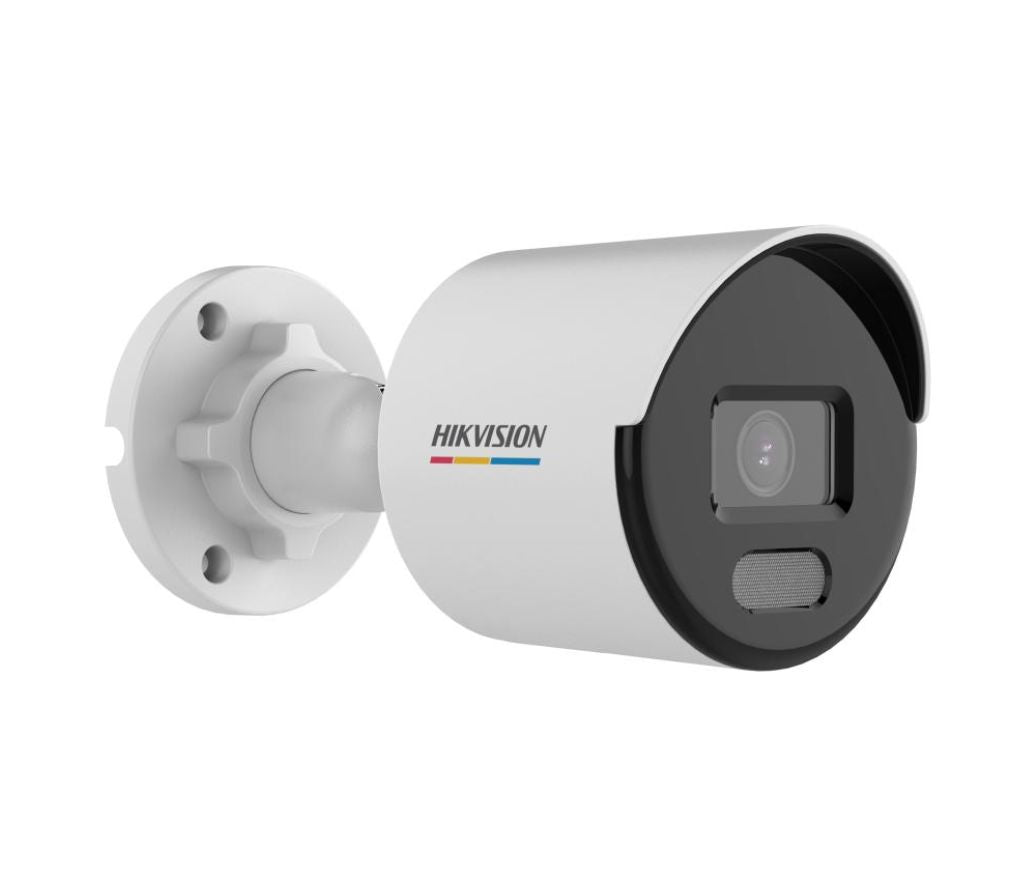

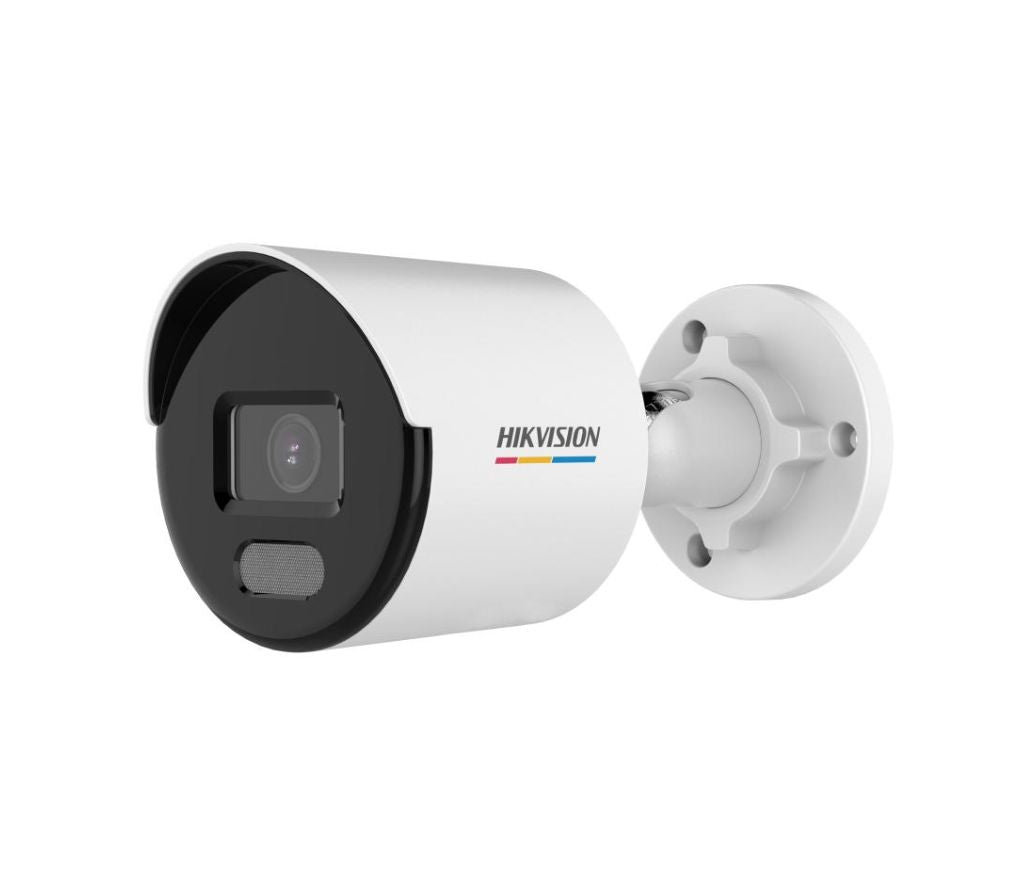

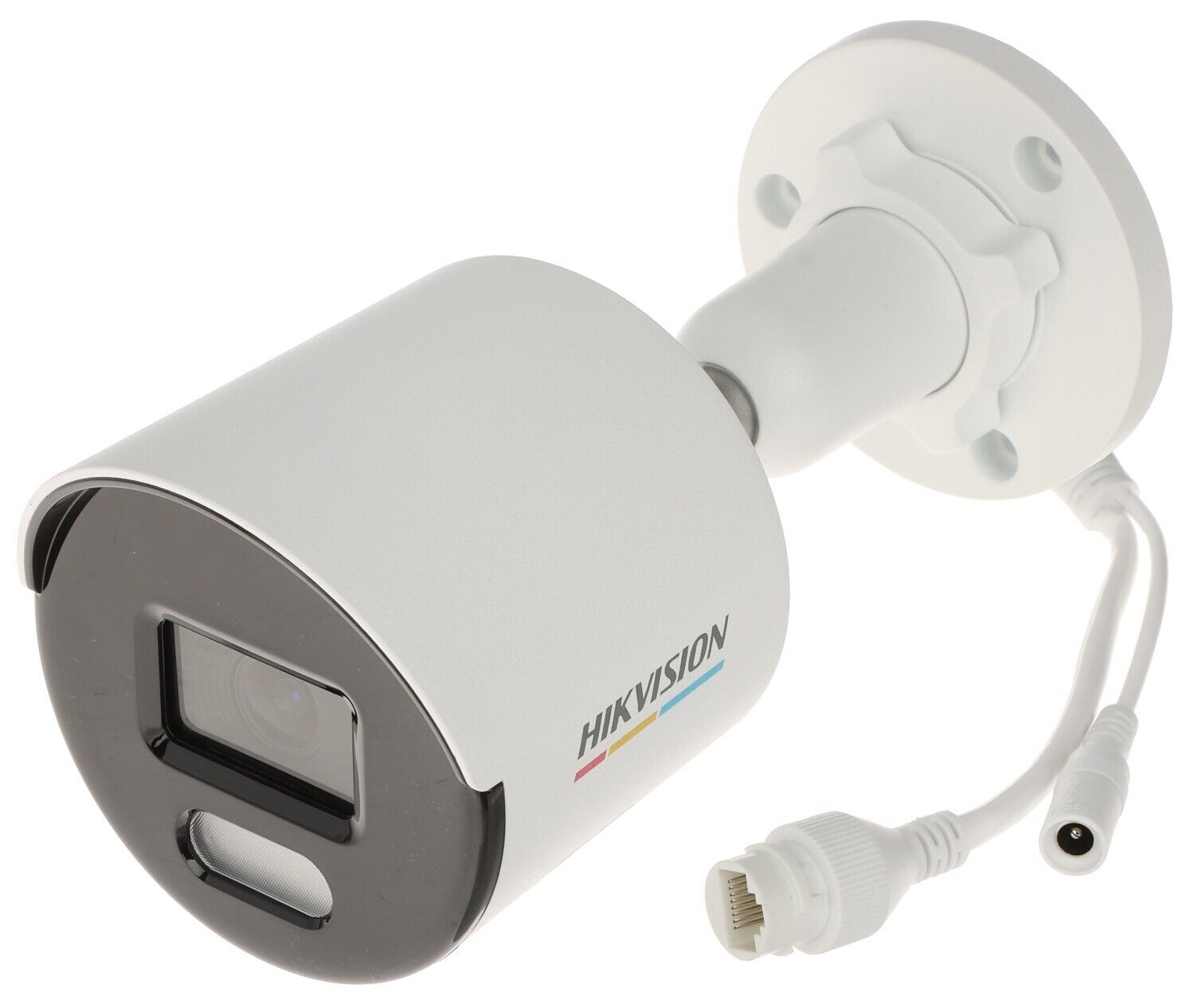

Hikvision DS-2CD1047G0-L(UF) 4 MP ColorVu Fixed Bullet Network Camera

Capture clear, full-color security footage around the clock with a 4 MP bullet camera built for dependable indoor or outdoor surveillance. Hikvision ColorVu technology combines an F1.0 super-aperture lens with a high-performance sensor to produce brighter, more detailed images in extremely low-light environments.

With 120 dB WDR, smart white-light illumination up to 30 meters, efficient H.265+ compression and an IP67-rated aluminum-alloy body, this camera helps maintain useful video evidence through changing light and weather conditions. The LUF version adds a built-in microphone, a microSD card slot and hardware reset support.

Key Features

  • High-quality 4 MP imaging with resolution up to 2560 × 1440
  • ColorVu technology for vivid, full-color imaging 24 hours a day
  • F1.0 super-aperture lens for excellent low-light performance
  • Minimum illumination of 0.001 lux and 0 lux with white light
  • Smart white-light illumination with a range of up to 30 meters
  • 120 dB Wide Dynamic Range for clearer images in high-contrast scenes
  • H.265+ and H.264+ compression to reduce bandwidth and storage requirements
  • Fixed 2.8 mm or 4 mm lens options
  • IP67-rated protection against water and dust
  • Power over Ethernet support for simplified installation
  • Motion detection, video-tampering alarm and exception events
  • Up to six simultaneous live-view channels
  • Aluminum-alloy camera body
  • LUF version includes a built-in microphone and microSD card support up to 256 GB

Available Models

  • DS-2CD1047G0-LUF(2.8mm)(C)
  • DS-2CD1047G0-LUF(4mm)(C)
  • DS-2CD1047G0-L(2.8mm)(C)
  • DS-2CD1047G0-L(4mm)(C)

Important: Specifications marked “-UF” apply only to the DS-2CD1047G0-LUF versions.

```

Camera

Image Sensor
1/3" Progressive Scan CMOS
Minimum Illumination
Color: 0.001 lux at F1.0 with AGC on; 0 lux with white light
Shutter Speed
1/3 second to 1/100,000 second
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 90°; rotate: 0° to 360°

Lens

2.8 mm Field of View
Horizontal: 96.5°; vertical: 50.8°; diagonal: 113.9°
4 mm Field of View
Horizontal: 75.8°; vertical: 40.8°; diagonal: 89.1°
Lens Mount
M12
Focus
Fixed
Aperture
F1.0

DORI Distance

2.8 mm Lens
Detect: 64.0 m; observe: 25.4 m; recognize: 12.8 m; identify: 6.4 m
4 mm Lens
Detect: 77.4 m; observe: 30.7 m; recognize: 15.5 m; identify: 7.7 m

Illuminator

Smart Supplement Light
Yes
White-Light Range
Up to 30 m (98 ft)

Video

Maximum Resolution
2560 × 1440
Main Stream - 50 Hz
20 fps at 2560 × 1440; 25 fps at 1920 × 1080 or 1280 × 720
Main Stream - 60 Hz
20 fps at 2560 × 1440; 30 fps at 1920 × 1080 or 1280 × 720
Sub-Stream - 50 Hz
25 fps at 1280 × 720, 640 × 480 or 640 × 360
Sub-Stream - 60 Hz
30 fps at 1280 × 720, 640 × 480 or 640 × 360
Main-Stream Compression
H.265 and H.264
Sub-Stream Compression
H.265, H.264 and MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Profiles
Baseline Profile, Main Profile and High Profile
H.265 Profile
Main Profile
H.264+
Supported by the main stream
H.265+
Supported by the main stream
Region of Interest
One fixed region for the main stream

Audio - LUF Version

Audio Compression
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM and AAC
Audio Bit Rate
64 Kbps for G.711ulaw/G.711alaw; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 160 Kbps for MP2L2; 16 to 64 Kbps for AAC
Audio Sampling Rate
8 kHz or 16 kHz
Environmental Noise Filtering
Yes
Built-in Microphone
Yes

Network

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP and SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface and ISAPI
Users
Up to 32 users
User Levels
Administrator, operator and user
Client Software
iVMS-4200 and Hik-Connect
Plug-in Required Live View
Internet Explorer 10 or later
Plug-in-Free Live View
Chrome 57.0 or later; Firefox 52.0 or later
Local Service
Chrome 57.0 or later; Firefox 52.0 or later


Image Settings
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable through client software or a web browser
Day/Night Switch
Day, night, auto or schedule
Image Enhancement
BLC and 3D DNR

Interface and Storage

Ethernet Interface
One RJ45 10/100 Mbps self-adaptive Ethernet port
Onboard Storage - LUF Version
Built-in microSD card slot supporting cards up to 256 GB
Hardware Reset - LUF Version
Yes

Events and Linkage

Basic Events
Motion detection, video-tampering alarm and exception
Linkage Methods
Upload to FTP or memory card on the LUF version, notify surveillance center, send email, trigger recording on the LUF version and trigger capture

Construction and Physical Details

Camera Material
Aluminum-alloy body
Camera Dimensions
Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")
Package Dimensions
234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Camera Weight
Approximately 430 g (0.95 lb.)
Packaged Weight
Approximately 648 g (1.42 lb.)

Environmental Conditions

Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Startup and Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Ingress Protection
IP67 under IEC 60529-2013
Anti-Corrosion Classification
No specific protection

General Functions

Web Client Languages
English and Ukrainian
General Functions
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark and IP address filtering
Firmware Version
V5.5.122

Power

12 VDC Power Consumption
0.4 A; maximum 5 W
PoE Power Consumption
802.3af, 36 V to 57 V; 0.2 A to 0.15 A; maximum 6.5 W
Power Supply
12 VDC ±25% or PoE 802.3af Class 3
Power Interface
Ø 5.5 mm coaxial power plug

Approvals and Compliance

EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011 +A1:2014); RCM (AS/NZS CISPR 32:2015); KC (KN 32:2015, KN 35:2015)
Safety
UL 60950-1; CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252 Part 1:2010 +A1:2013 +A2:2015)
Environmental Compliance
CE-RoHS 2011/65/EU; WEEE 2012/19/EU; REACH Regulation (EC) No. 1907/2006
```

Optional Accessories

```
DS-1275ZJ-SUS
Vertical pole mount
DS-1276ZJ-SUS
Corner mount
DS-1280ZJ-XS
Junction box
```

Ideal Applications and Common Uses

  • Monitoring residential entrances, driveways, garages and side yards
  • Capturing full-color video around homes and small businesses at night
  • Watching retail storefronts, stockrooms and customer-access areas
  • Monitoring office entrances, corridors and parking areas
  • Protecting warehouses, workshops and other commercial properties
  • Outdoor surveillance in areas exposed to rain and dust
  • Locations with difficult or changing backlighting where 120 dB WDR is beneficial
  • PoE installations requiring video and power through one Ethernet cable
  • LUF installations requiring locally recorded audio and onboard microSD storage

Installation note: This camera has no specific anti-corrosion protection. Hikvision classifies it for locations where specialized anti-corrosion treatment is not required, rather than demanding coastal, dockside or chemical-plant environments.
