Technical Specifications

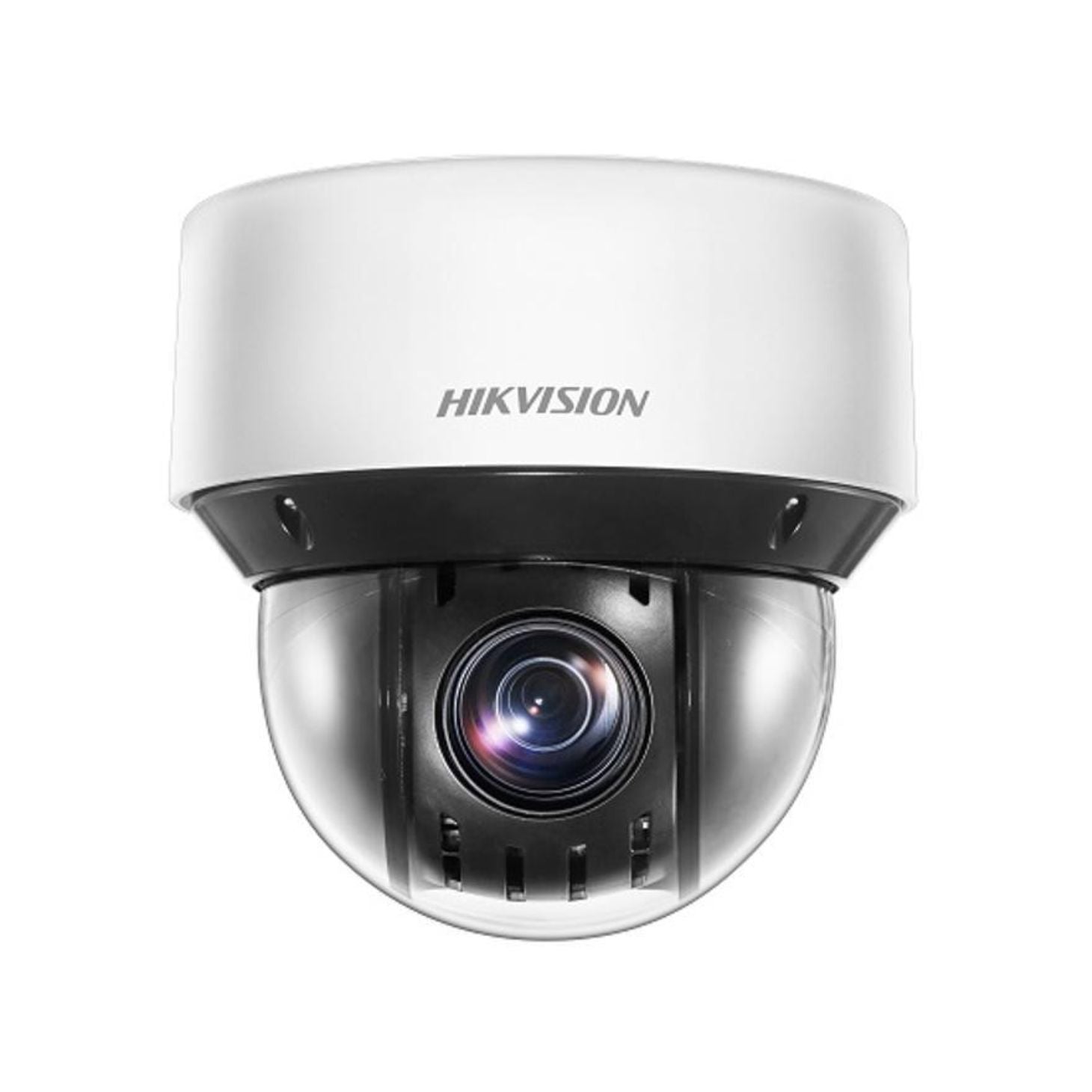

Hikvision DS-2DE4A425IWG-E 4 MP 25× Network IR PTZ Camera

Need to cover a wide area but still zoom in and actually see what’s happening? The DS-2DE4A425IWG-E gives you crisp 4 MP detail plus a serious 25× optical zoom, so you can monitor large spaces and still pull in faces, vehicles, and activity when it matters. With low-light performance, 120 dB WDR, and up to 50 m IR, it’s built for reliable coverage day or night—without babysitting the camera.

Key Features

  • 4 MP (2560 × 1440) imaging — clearer detail for identifying people/vehicles instead of guessing.
  • 25× optical zoom (4.8 to 120 mm) — zoom in on distant subjects without losing clarity.
  • Powered-by-DarkFighter — stronger low-light performance for night scenes and dim areas.
  • 120 dB WDR — better visibility when headlights, glare, or harsh backlight would normally wash out the image.
  • Up to 50 m IR range — dependable nighttime visibility to help keep coverage consistent after dark.
  • IP66 rated — built to handle outdoor dust and water exposure.
  • Deep learning target classification — focuses on human and vehicle targets to reduce “noise” and improve actionability.
  • PoE (802.3at) — power + data over one cable for cleaner installs and fewer points of failure.

Ideal Applications / Common Uses

  • Perimeter and wide-area monitoring: roads, railways, airports, ports
  • Public spaces: squares, parks, scenic spots, stations
  • Large venues and campuses needing PTZ coverage with zoom-in detail
  • Outdoor sites where weather resistance and night visibility matter

DORI

Definition
25 px/m (Detect), 63 px/m (Observe), 125 px/m (Recognize), 250 px/m (Identify)
Distance (Tele)
2200 m (7217.8 ft) (Detect), 873 m (2864.2 ft) (Observe), 440 m (1443.6 ft) (Recognize), 220 m (721.8 ft) (Identify)

Camera

Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1/1 s to 1/30,000 s
Day & Night
IR cut filter
Zoom
25 × optical, 16 × digital
Slow Shutter
Yes

Lens

Focal Length
4.8 to 120 mm
FOV
Horizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3°
Focus
Auto, semi-auto, manual
Aperture
Max. F1.6
Zoom Speed
Approx. 3.4 s

Illuminator

Supplement Light Type
IR
Supplement Light Range
IR Distance: up to 50 m
Smart Supplement Light
Yes
IR Wavelength
850 nm

PTZ

Movement Range (Pan)
0° to 360°
Movement Range (Tilt)
-5° to 90°
Pan Speed
Pan speed: configurable from 0.1° to 300°/s; preset speed: 350°/s
Tilt Speed
Tilt speed: configurable from 0.1° to 160°/s, preset speed 200°/s
Proportional Zoom
Yes
Presets
300
Preset Freezing
Yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Park Action
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Scheduled Task
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust
Power-off Memory
Yes

Video

Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream

Audio

Audio Compression
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
AAC-LC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
Environment Noise Filtering
Yes

Network

Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface (Version 18.12), Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
Up to 32 users; 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser
IE 10 to 11, Chrome 57+, Firefox 52+, Safari 11+


Image Parameters Switch
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
>52 dB
Defog
Digital Defog
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus
Yes
Regional Exposure
Yes

Interface

Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm
2 inputs, 2 outputs
Reset
Yes

Event

Basic Event
Motion detection, video tampering alarm, exception, alarm input and output
Smart Event
line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking
Manual tracking, auto-tracking

Deep Learning Function

Face Capture
Detects up to 5 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

General

Power
12 VDC, Max. 24 W; PoE (802.3at)
Dimension
Ø 169 mm × 161 mm (Ø 6.65" × 6.34")
Weight
Approx. 2.45 kg (5.40 lb.)
Operating Condition
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function
Mirror, password protection

Approval

Protection
IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

Available Model

Model
DS-2DE4A425IWG-E

Accessories Found

CPM-M
Pendant Mount
CPM
Pendant Mount Wall Mount
CPM-L
Pendant Mount
CB-DE4A
Junction Box
RCM-DE4A
In-Ceiling Mount
WML+PC-DE4A

```
