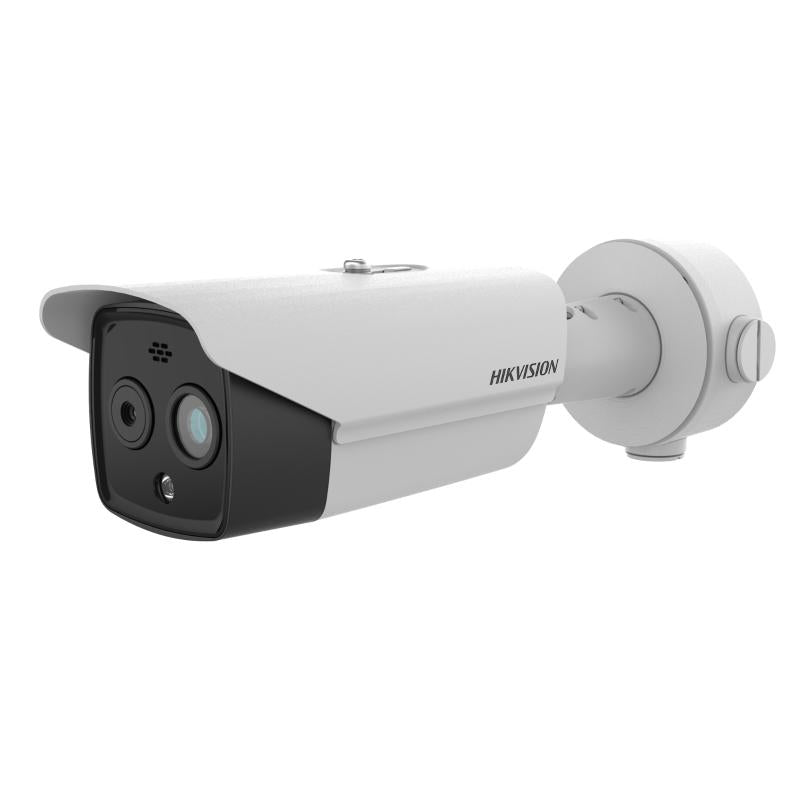

The DS-2TD2628-10/QA is a bi-spectrum thermal and optical network bullet camera designed for perimeter protection and early fire prevention. It combines a thermal sensor for heat detection with a visible-light camera for visual verification, allowing users to detect intrusions and abnormal temperature changes at the same time. The camera supports temperature exception alarms and smart video analytics to reduce false alerts in outdoor environments. This makes it suitable for security scenarios where traditional cameras struggle in darkness, fog, or smoke.

The thermal module uses a 256 × 192 resolution vanadium oxide (VOx) uncooled detector with a pixel pitch of 12 μm. It delivers a NETD of less than 40 mK at 25°C with an F1.0 aperture, allowing it to detect very small temperature differences. This level of sensitivity helps identify heat anomalies early, even in challenging environmental conditions. The thermal spectral range is 8 μm to 14 μm, which is standard for reliable thermal imaging.

Yes, the camera supports temperature measurement with a range from -20°C to 150°C (-4°F to 302°F). It allows up to 21 temperature measurement rules, including point, area, and line measurement. The system can trigger temperature exception alarms for early fire prevention and abnormal heat detection. Temperature accuracy is specified as ±8°C under the defined conditions in the datasheet.

The camera supports perimeter protection analytics such as line crossing, intrusion, region entrance, and region exiting. It can classify targets as human or vehicle to help reduce false alarms caused by animals or environmental factors. Up to eight VCA rules can be configured at the same time. Additional smart functions include fire detection, smoking detection, and a sun-reflection filter.

The optical module features a 1/2.7-inch progressive scan CMOS sensor with a maximum resolution of 2688 × 1520. It supports 120 dB wide dynamic range (WDR) to handle scenes with strong backlighting. The camera has an 8 mm lens and delivers clear images in low-light conditions down to 0.0089 lux, with 0 lux supported when IR is enabled. This allows visual confirmation alongside thermal detection.

Yes, the DS-2TD2628-10/QA supports both audio and visual alarms. It includes a white light alarm with an effective range of up to 30 meters and adjustable flashing frequencies. The camera also supports audio alarms with two preset voice alerts and up to six user-importable voice files. These alarms can be triggered by VCA events or temperature exceptions.

The camera supports H.265 and H.264 compression for the main stream, with H.265, H.264, and MJPEG available for sub-streams. It provides multiple resolution and frame rate options for both thermal and optical channels, supporting up to 25 fps at 50 Hz or 30 fps at 60 Hz depending on the configuration. This flexibility helps balance image quality, bandwidth usage, and storage requirements.

The DS-2TD2628-10/QA is designed for harsh outdoor environments and is rated IP67 for water and dust resistance. It also features an IK10-rated housing for vandal resistance. The camera includes TVS 6000V lightning, surge, and voltage transient protection. Its operating temperature range is -40°C to 65°C, making it suitable for extreme climates.

The camera includes the DS-1260ZJ junction box as a standard accessory. Optional mounting accessories include the DS-1276ZJ-SUS corner mount and the DS-1275ZJ-S-SUS vertical pole mount. These accessories allow flexible installation on walls, poles, and corners depending on the site requirements. All listed accessories are specified directly in the datasheet.
