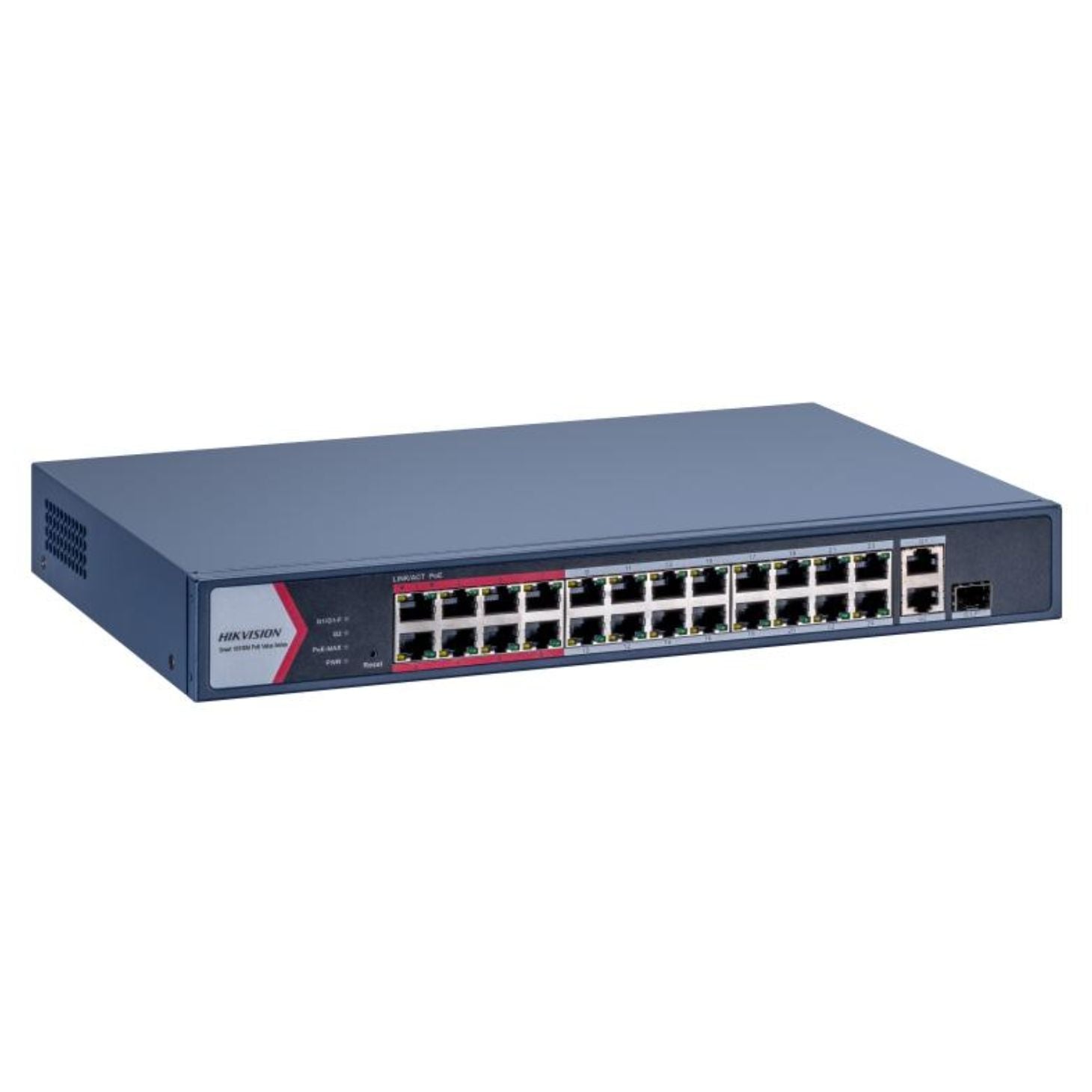

Hikvision DS-3E1326P-EI/M 24-Port Smart PoE Switch with 230W Budget & Gigabit Uplinks
Hikvision DS-3E1326P-EI/M 24-Port Smart PoE Switch with 230W Budget & Gigabit Uplinks
Out of stock
Description
Description
Quick Clarification Before I Write the Description
Right now, the only official datasheet you provided is for the Hikvision DS-3E1326P-EI/M — which is a PoE switch, not a camera. Your request says “research this camera,” and I don’t want to invent details or describe the wrong product.
Which one do you want the NEPQ description for?
- Option A: Write the description for the DS-3E1326P-EI/M PoE switch using only the datasheet details already provided.
- Option B: Write the description for a camera — you’ll need to send the camera’s Brand + Model and its datasheet PDF.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-3E1326P-EI/M — 24-Port Fast Ethernet Smart PoE Switch
If you’re powering a lot of IP cameras and you want the network side to feel “set it and forget it,” the DS-3E1326P-EI/M keeps things simple. You get PoE across 24 ports (with a healthy power budget), smart management features for visibility and maintenance, and built-in protections that help prevent outages and expensive troubleshooting time.
Key Features
- 24 PoE ports + Gigabit uplinks — power cameras and still keep uplink traffic moving smoothly.
- 230 W total PoE budget — supports more devices without constantly “doing the math” on power.
- PoE watchdog — automatically detects and restarts non-responding cameras so you’re not rolling a truck for a reboot.
- Long-range PoE up to 300 m — helps when your camera runs are farther than typical installs (performance depends on camera/cable).
- VLAN + port isolation — cleaner segmentation for better security and fewer network headaches.
- 6 kV surge protection — extra peace of mind in harsher electrical environments.
Ideal Applications (Common Uses)
- Small-to-mid IP surveillance deployments needing centralized PoE power and stable switching.
- Retail, offices, warehouses, schools, and light industrial sites where uptime matters and on-site IT is limited.
- Camera runs that may require extended distance PoE (layout-dependent).
- Networks that benefit from VLAN segmentation and basic smart management features.
General
Network Parameters
Port Performance: 8.8 Gbps
Port Performance: 6.55 Mpps
PoE Power Supply
Software Function
Long range performance may vary depend on camera model or cable condition.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Support static link aggregation.
Support 1 aggregation group(s).
Support 802.1D STP.
Suppport 802.1w RSTP.
VLAN
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
HPP (Hik-Partner Pro)
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
Approval
Physical Interface (Indicators / Ports)
Flashing: The port is transmitting data.
Unlit: The port is disconnected or connection is abnormal.
Flashing: The port is transmitting data.
Unlit: The port is disconnected or connection is abnormal.
Flashing: The port is transmitting data.
Unlit: The port is disconnected or connection is abnormal.
Unlit: The switch is disconnected to a PD, or provides power supply to a PD abnormally.
When plugged into with an optical module and connected to an optical fiber, the combo functions as a fiber optical port.
When connected to both the network cable and optical fiber at the same time, the combo works as a fiber optical port.
Unlit: The switch does not supply power to a powered device (PD), or supplies power to a PD normally and its output power does not reach the upper limit.
Note: The PoE-MAX indicator will be unlit in 5 seconds after the output power of the switch returns to normal.
Unlit: No power supply connected or power supply is abnormal.
Accessories Found
Downloads
Frequently Asked Questions
The DS-3E1326P-EI/M provides PoE on ports 1 through 24, with a maximum of 30 W per port and a total PoE power budget of 230 W. This means you can power multiple IP cameras, access points, or other PoE devices as long as their combined power draw does not exceed the total budget. The switch automatically manages power distribution to connected devices. This helps prevent overload while keeping connected equipment running reliably.
Yes, the switch supports a long-range mode on ports 1 to 24, allowing PoE transmission up to 300 meters. This feature is designed for surveillance scenarios where cameras are installed far from the network cabinet. Actual performance can vary depending on the camera model and the quality of the network cable used. This makes it suitable for larger sites where standard Ethernet distance is not sufficient.
The switch includes a PoE watchdog function on ports 1 through 24. This feature automatically detects cameras or other powered devices that stop responding. When an issue is detected, the switch can restart power to the affected port to recover the device. This reduces downtime and minimizes the need for manual reboots or on-site maintenance.
Yes, the DS-3E1326P-EI/M supports management through a web interface as well as remote management platforms. It can be managed using Hik-Partner Pro for remote monitoring, configuration, and maintenance. The switch also supports management via Hik-Central Pro. These tools allow you to view port status, PoE usage, alarms, and even perform remote upgrades.
The switch supports VLAN functionality based on IEEE 802.1Q standards. VLAN IDs from 1 to 4094 can be configured, with support for Access and Trunk port modes. It also supports port isolation on ports 1 through 24, preventing devices within the same isolation group from communicating with each other. These features help improve network security and reduce unwanted traffic between devices.
The switch includes one Gigabit combo port and one dedicated Gigabit RJ45 port for uplink connections. The combo port can function as either an RJ45 Ethernet port or a fiber optical port, depending on how it is connected. When both copper and fiber are connected to the combo port, the fiber connection takes priority. These uplink options help ensure sufficient bandwidth for aggregated camera traffic.
Yes, the switch is designed for rack mounting and comes equipped with mounting ears. Its metal housing provides durability for professional installations. The physical dimensions are 440 mm × 44 mm × 220.8 mm, which fits standard rack environments. This makes it well suited for server rooms, network closets, and centralized surveillance racks.
The DS-3E1326P-EI/M features 6 kV surge protection to help protect against lightning and electrical surges. It also includes status indicators such as PoE-MAX and PWR LEDs to alert users to power conditions. These protections help safeguard both the switch and connected devices. This is especially important in environments with less stable electrical infrastructure.
