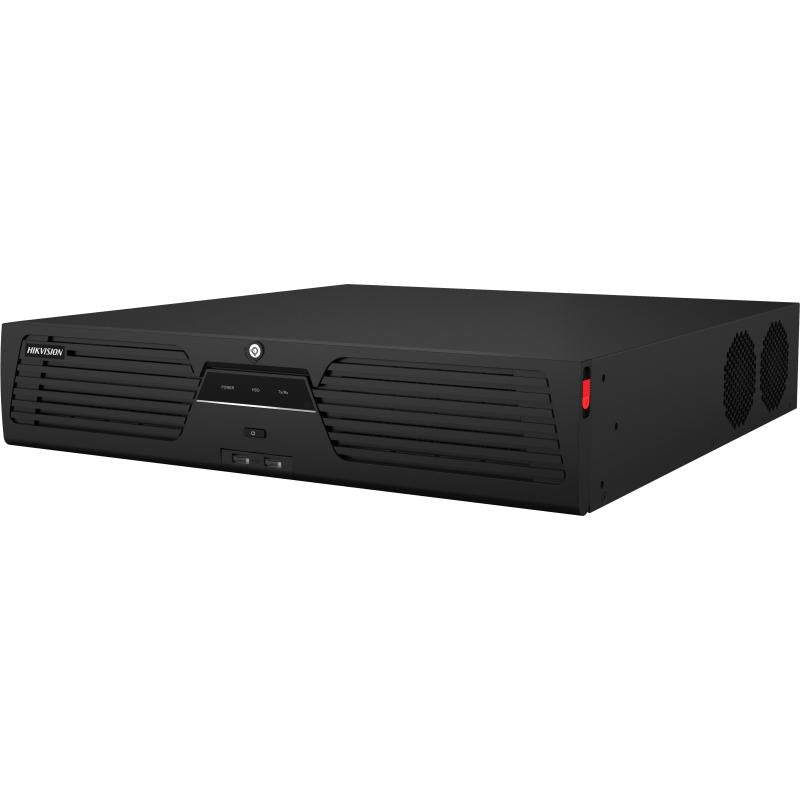

The DS-9616NI-M8 supports up to 16 IP camera inputs, which is one of the first things buyers usually want to confirm when comparing 16-channel enterprise NVRs. The datasheet also shows up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, which helps explain why it is positioned for higher-performance multi-camera systems instead of lighter small-site use. This matters because channel count alone does not tell the whole story unless the recorder also has the throughput to manage those cameras smoothly. For buyers planning a larger surveillance layout, the PDF clearly places this model in that more advanced category.

Yes. According to the datasheet, HDMI 1 supports up to 8K at 7680 × 4320/30Hz, while HDMI 2 supports up to 4K, and the unit also includes two VGA outputs. The PDF also notes that if HDMI 1 is set to 8K, the maximum HDMI 2 output resolution becomes 1080p, which is an important detail buyers often miss when planning dual-monitor setups. This question comes up often because users want to know whether the recorder can truly support premium local display output or just high-resolution recording on paper. In this case, the datasheet gives a clear yes, along with the display limitation to keep in mind.

The datasheet lists recording resolutions all the way up to 32 MP, including 24 MP, 12 MP, 8 MP, 7 MP, 6 MP, 5 MP, 4 MP, 3 MP, and 1080p. For decoding, Hikvision specifies up to 2 channels at 32 MP and 30 fps plus 2 channels at 8 MP and 30 fps, or 10 channels at 8 MP and 30 fps, or 20 channels at 4 MP and 30 fps, or 40 channels at 1080p and 30 fps. Buyers ask this a lot because they want to know not just what the NVR can accept from cameras, but how much it can realistically display and play back at high resolution. The PDF makes it clear this model is built for much heavier decoding workloads than a typical entry-level recorder.

The recorder has 8 SATA interfaces supporting hot-plug, plus 1 eSATA interface, and the datasheet lists support for up to 16 TB capacity for each disk. That makes storage one of the most common buyer questions, because retention time becomes a major planning point in a 16-camera high-resolution system. The PDF also highlights RAID support, which matters because buyers looking at this class of NVR are often thinking about both capacity and storage protection, not just raw drive count. For anyone planning longer retention or more resilient recording, the storage section is one of the strongest parts of this model’s spec sheet.

The datasheet lists RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10. On the features page, Hikvision also states support for N+M hot spare, describing it as a way to improve storage reliability and help avoid data loss risks. This is a very common question because buyers at this level are usually comparing not just camera support, but also how well the recorder protects recorded data if a drive fails. Based on the PDF, RAID capability is one of the big reasons this unit stands apart from simpler 16-channel NVRs.

Yes. The datasheet specifically says it supports special cameras including people counting cameras, ANPR cameras, and fisheye cameras. It also lists configurable smart functions such as heat map, ANPR, people counting, and VCA detection including motion, line crossing, and intrusion. Buyers commonly ask this because they want to know whether the NVR is only for standard recording or whether it can support more advanced business and traffic-related camera workflows. The PDF clearly shows that this model is designed to work with those more specialized deployments.

Yes. The Smart & POS section of the datasheet states that the recorder supports POS information overlay on live view and playback, and also supports POS-triggered recording and alarm. This is one of the more important questions for retail and commercial users because it speaks directly to whether transaction data can be tied to video review. That can make investigations and exception checks much easier when footage needs to be matched to specific register activity. The PDF makes it clear that POS support is built into the feature set rather than being described as an external add-on.

The DS-9616NI-M8 has 2 HDMI outputs and 2 VGA outputs. The datasheet says HDMI 1 and VGA 1 provide simultaneous video and work as the main output, while HDMI 2 and VGA 2 provide simultaneous video and work as the auxiliary output, so the two groups function as different sources. Buyers ask this often because multiple-monitor operation is a big advantage in control rooms, desks, and larger security workstations. The PDF confirms this is more than a single-display recorder with mirrored outputs, which is an important distinction for professional installations.

The datasheet lists 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces, along with Hik-Connect and DDNS for easier network management. It also supports web access without a plug-in and includes smooth streaming technology, which Hikvision says helps live view stay smoother in poor network conditions. Buyers commonly ask this because remote usability matters just as much as camera count in larger systems, especially when multiple users need access. Based on the PDF, this NVR is built with stronger network flexibility than smaller single-LAN models.

The provided datasheet does not say that hard drives are included. It confirms 8 SATA bays, 1 eSATA interface, and up to 16 TB capacity per disk, but it does not list preinstalled storage as part of the package contents. This question comes up frequently because some online listings sell the recorder with no HDD, while some bundle versions may include a drive depending on the seller. The safest answer based on the PDF is that storage support is clearly specified, but included drives should be confirmed from the exact listing before purchase.
