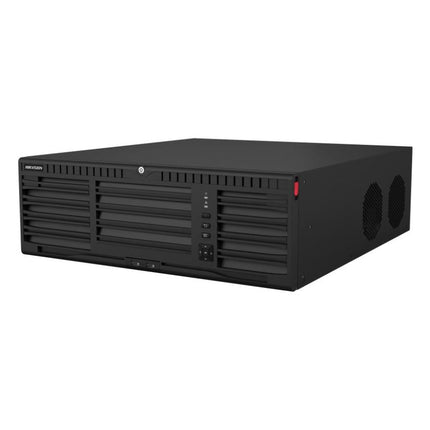

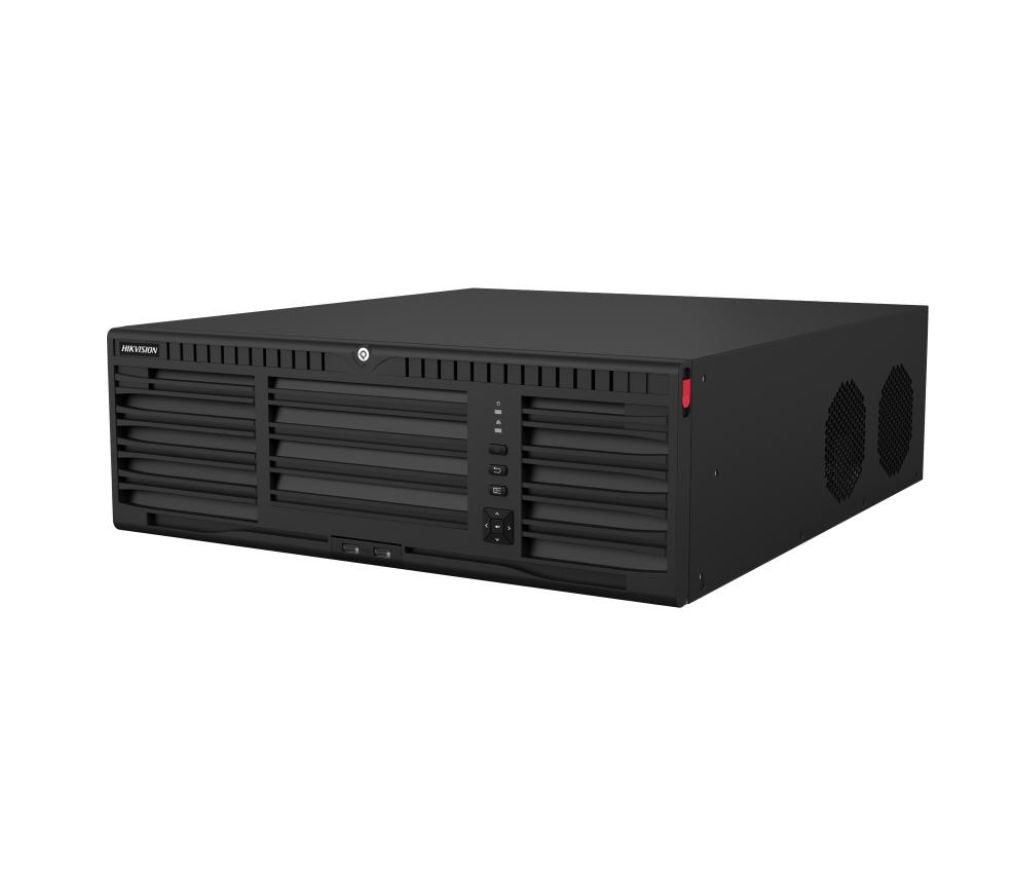

Hikvision DS-9664NI-M16 64CH 8K NVR 2 HDMI & VGA up to 32MP NO HDD
Hikvision DS-9664NI-M16 64CH 8K NVR 2 HDMI & VGA up to 32MP NO HDD
Human and Vehicle Detection
Out of stock
Description
Description
Hikvision DS-7608NXI-K2/8P 8-Channel PoE AcuSense 4K NVR
What if your surveillance system could help you focus on the events that actually matter instead of making you sort through every movement it records? The Hikvision DS-7608NXI-K2/8P combines an 8-channel PoE recorder with AcuSense human and vehicle recognition, high-resolution recording, and intelligent search features designed to make everyday security management easier.
With eight built-in PoE ports, support for recording resolutions up to 12 MP, 4K HDMI output, and space for two hard drives, it gives homes and businesses a powerful foundation without unnecessarily complicating the installation. H.265+ compression can also reduce storage requirements by up to 75%, helping you make better use of the storage you install.
If you're looking for more than a basic recorder, features such as Motion Detection 2.0, perimeter protection, facial recognition, smart playback, and remote management through Hik-Connect give you more ways to find and review important events without constantly monitoring the system.
Why Buyers Choose the DS-7608NXI-K2/8P
8 Built-In PoE Ports — Simplifies Your Camera Installation
Instead of adding a separate PoE switch just to connect a standard 8-camera system, the recorder provides eight built-in PoE interfaces. Compatible PoE cameras can connect directly to the NVR for both network communication and power, helping create a cleaner and more straightforward installation.
AcuSense Human & Vehicle Recognition — Spend Less Time Checking Irrelevant Alerts
Motion by itself does not always tell you whether something important happened. AcuSense technology allows the recorder to analyze people and vehicles, helping reduce false alarms and making it easier to concentrate on activity that may actually require your attention.
Motion Detection 2.0 — Makes Everyday Event Review More Useful
All channels support Motion Detection 2.0, with device-side human and vehicle recognition available across the channels within the supported resolution limits. That means you can spend less time searching through routine movement and more time reviewing events involving the subjects you care about.
Up to 12 MP Recording — Gives You Room for High-Resolution Cameras
Why limit your recorder when your cameras are capable of capturing more detail? The DS-7608NXI-K2/8P supports recording resolutions up to 12 MP, allowing you to build a system using a wide range of high-resolution IP cameras without being restricted to basic 1080p recording.
4K HDMI Output — See More Detail on a Compatible Monitor
The HDMI output supports resolutions up to 3840 × 2160 at 30 Hz. When connected to a compatible 4K display, that gives you a high-resolution local viewing experience for monitoring cameras and reviewing recorded footage.
Independent HDMI & VGA Outputs — More Flexible Local Monitoring
HDMI and VGA support independent output, giving you additional flexibility when setting up local displays. This can be especially useful when the recorder needs to support different monitoring arrangements within a home, office, store, or security area.
2 SATA Bays with Up to 10 TB Per HDD — Build Storage Around Your Needs
The recorder includes two SATA interfaces and supports up to 10 TB per hard drive. That gives you the flexibility to start with the storage your system needs today and configure as much as 20 TB of internal capacity using two supported 10 TB drives.
H.265+ Compression — Get More From Your Hard Drive Space
Recording high-resolution cameras can consume storage quickly. Hikvision states that H.265+ compression can reduce storage space requirements by up to 75%, helping you use available hard drive capacity more efficiently without needing to rely solely on adding more storage.
Facial Recognition — Adds Another Layer of Intelligent Search
For applications that need more advanced analytics, the recorder supports face capture, face picture comparison, and face picture search. It can maintain up to 16 face picture libraries containing as many as 20,000 face pictures in total, giving compatible systems additional tools for locating and comparing recorded facial events.
Perimeter Protection — Focus on People and Vehicles Crossing Important Areas
Device-side perimeter protection supports video analysis for human and vehicle recognition on up to two 4 MP channels. For areas such as entrances, driveways, restricted zones, or property boundaries, this helps make event detection more meaningful than relying on ordinary motion alone.
Smart Search & Smart Playback — Find Important Footage Faster
When something happens, the challenge is often not recording it — it is finding it afterward. Smart search for selected areas and smart playback are designed to improve playback efficiency, helping you reach relevant footage without manually reviewing hours of uneventful video.
8-Channel Synchronous Playback — Review Multiple Camera Angles Together
The recorder supports synchronous playback of all eight channels. If an event moves through several areas, you can review multiple camera views together instead of piecing the timeline together one channel at a time.
80 Mbps Incoming Bandwidth — Built for Multi-Camera IP Systems
With up to 80 Mbps of incoming bandwidth, the recorder is designed to handle video streams from its supported IP camera channels while accommodating the high-resolution recording capabilities of the system.
Hik-Connect Support — Manage Your System More Conveniently
Hik-Connect support provides an easier path to network management for compatible deployments. Instead of treating the recorder as something you can only access while standing in front of it, the system is designed to support connected surveillance management.
Two-Way Audio & Alarm I/O — More Than Video Recording
The NVR includes RCA two-way audio capability along with four alarm inputs and one alarm output. For installations that use compatible external devices, those connections give you additional options for integrating video surveillance with a broader security setup.
ONVIF Support — More Flexibility for Compatible IP Camera Systems
Support for ONVIF Profile S/G, SDK, and ISAPI provides additional integration options. That can be valuable when building or expanding an IP surveillance system where compatibility and integration flexibility matter.
TLS Stream Encryption — Added Protection for Video Transmission
The recorder supports stream-over-TLS encryption technology for more secure video stream transmission, adding another layer of protection to the way surveillance video is transported across the network.
What This Helps You Avoid
Think about what usually makes a surveillance system frustrating. Cameras may be recording constantly, but when something happens you still have to determine which camera captured it, when it happened, and whether dozens of motion alerts were people, vehicles, or simply irrelevant movement.
A basic recorder can leave you with plenty of footage but very little help finding the footage that matters. That can mean unnecessary alerts, long playback sessions, limited storage efficiency, and additional equipment just to connect and power your cameras.
The DS-7608NXI-K2/8P addresses those problems by combining eight PoE camera connections, AcuSense human and vehicle filtering, intelligent search and playback, high-resolution recording, and H.265+ compression in one recorder. When an event needs your attention, the goal is not simply to have video stored somewhere — it is to make that video easier to locate, review, and use.
And as your storage requirements grow, two SATA interfaces supporting up to 10 TB per drive give you room to configure the recorder around the retention needs of your system rather than being locked into a single-drive design.
Who Is This NVR Best For?
- Homes using up to eight PoE IP security cameras
- Retail stores that want smarter human and vehicle event detection
- Offices and small businesses needing centralized camera recording
- Warehouses and commercial properties that benefit from perimeter monitoring
- Users who want high-resolution recording up to 12 MP
- Systems requiring dual-HDD storage capability
- Installations that benefit from 4K local video output
- Users who want smarter search and playback instead of manually reviewing long recordings
Important AcuSense Function Note
AI Feature Usage
Facial recognition, Motion Detection 2.0, and perimeter protection cannot be enabled at the same time on this model. The appropriate intelligent function should be selected based on the surveillance application's requirements.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7608NXI-K2/8P 8-Channel PoE AcuSense 4K NVR
The Hikvision DS-7608NXI-K2/8P is an 8-channel, 1U network video recorder designed for IP surveillance systems that need intelligent event filtering, high-resolution recording, integrated PoE, and flexible storage. Eight built-in PoE interfaces make compatible IP camera installation simpler by carrying network data and power through the NVR, while Hikvision AcuSense technology provides human and vehicle recognition to help reduce false alarms.
With recording support up to 12 MP, HDMI output up to 4K, two SATA interfaces, H.265+ compression, Motion Detection 2.0, perimeter protection, facial recognition, and Hik-Connect network management, the DS-7608NXI-K2/8P provides a capable foundation for residential and commercial surveillance systems with up to eight IP camera channels.
Key Features
- Up to 8-channel IP camera inputs
- 8 built-in Power-over-Ethernet (PoE) interfaces for plug-and-play camera connection
- Hikvision AcuSense technology
- Human and vehicle recognition to help reduce false alarms
- Motion Detection 2.0 supported on all channels
- 2-channel device-side perimeter protection analysis
- 1-channel facial recognition for video streams
- Up to 4-channel facial recognition for face-picture comparison
- Up to 16 face-picture libraries with up to 20,000 face pictures total
- Recording resolutions up to 12 MP
- HDMI output up to 4K resolution
- Independent HDMI and VGA video outputs
- Up to 80 Mbps incoming bandwidth
- Up to 160 Mbps outgoing bandwidth
- H.265+, H.265, H.264+, and H.264 video compression
- H.265+ can reduce storage requirements by up to 75%
- Up to 8-channel synchronous playback
- 2 SATA interfaces supporting up to 10 TB per HDD
- Up to 20 TB total HDD capacity when two supported 10 TB drives are installed
- IEEE 802.3af/at PoE support with up to 80 W PoE power
- Gigabit RJ-45 LAN interface
- Stream-over-TLS encryption support
- Hik-Connect support for network management
- ONVIF Profile S/G, SDK, and ISAPI support
- 4 alarm inputs and 1 alarm output
- Two-way audio support
- 128 remote connections
Intelligent Analytics
Facial Recognition
Motion Detection 2.0
Perimeter Protection
Video and Audio
Decoding and Recording
Network
PoE
Storage & Auxiliary Interfaces
General
Certification
Physical Interfaces
Accessories Found in Datasheet
Important Manufacturer Note
Available Model
Ideal Applications & Common Uses
Based on its 8-channel capacity, integrated PoE ports, AcuSense analytics, high-resolution recording, and dual-HDD support, this NVR is well suited for:
- Residential home surveillance systems with up to eight IP cameras
- Small and medium-sized business security systems
- Retail stores and storefront surveillance
- Office security and employee-access monitoring
- Warehouse and stockroom surveillance
- Restaurants and hospitality locations
- Professional PoE camera installations
- Systems requiring human and vehicle event filtering
- Installations requiring 4K local monitor output
- Surveillance systems requiring up to two internal HDDs
- Applications requiring alarm input/output integration
- Remote-viewing installations using Hik-Connect
- Systems using compatible ONVIF network cameras
Downloads
Frequently Asked Questions
The DS-7608NXI-K2/8P supports up to 8 IP camera inputs. It also includes 8 built-in PoE network interfaces for connecting and powering compatible PoE cameras.
Yes. The NVR has 8 RJ-45 10/100 Mbps self-adaptive PoE interfaces. The PoE system supports IEEE 802.3af/at and provides a total PoE power budget of up to 80 W.
The NVR supports recording resolutions up to 12 MP. Supported resolutions include 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.
The NVR has 2 SATA interfaces and supports up to 10 TB of capacity per HDD. This allows up to 20 TB of total internal HDD capacity when two supported 10 TB drives are installed.
Yes. The HDMI output supports up to 4K resolution at 3840 × 2160/30 Hz. The NVR also provides a VGA output supporting up to 1920 × 1080/60 Hz, and HDMI and VGA can operate as independent outputs.
The DS-7608NXI-K2/8P supports Motion Detection 2.0, perimeter protection, and human and vehicle recognition. Device-side Motion Detection 2.0 can analyze all channels at 4 MP, or up to 8 MP when enhanced SVC mode is enabled, to help reduce false alarms caused by irrelevant motion.
Yes. Facial recognition functions include face picture comparison, human face capture, and face picture search. The NVR supports 1-channel facial detection and analytics at 8 MP and up to 4-channel face picture comparison. It can maintain up to 16 face picture libraries with up to 20,000 face pictures in total.
No. According to the manufacturer datasheet, facial recognition, Motion Detection 2.0, and perimeter protection cannot be enabled at the same time.
The NVR supports H.265, H.265+, H.264+, and H.264 video formats. Hikvision states that H.265+ compression can reduce storage space requirements by up to 75%.
The NVR includes one RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface, supports up to 80 Mbps incoming bandwidth and 160 Mbps outgoing bandwidth, and allows up to 128 remote connections. It supports ONVIF Profile S/G, SDK, ISAPI, multiple network protocols, and Hik-Connect for easy network management.
