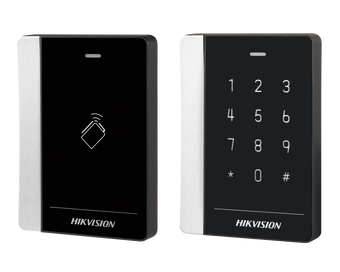

Hikvision DS-K1102AMK Pro Card Reader (M1 + Keypad)
The Hikvision DS-K1102AMK is built for organizations that want tighter access control without adding complexity. It combines reliable M1 card reading with a built-in keypad, giving you flexible card-only or card + PIN entry at the door. With support for RS-485, OSDP, and Wiegand, it fits cleanly into many existing systems. The result is controlled access that feels simple for users, but intentional and secure for you.
Why Buyers Choose This Model
- M1 Card Support (13.56 MHz) — dependable, fast reads so authorized users don’t get slowed down at the door.
- Integrated 12-Key Keypad — lets you add PIN verification, reducing the risk of lost or shared cards.
- RS-485 with OSDP Support — easier system integration and cleaner communication with compatible controllers.
- Wiegand W26/W34 Compatibility — works with many common access control infrastructures.
- Built-In Audible Beeper — instant feedback so users know their access attempt was recognized.
- Tamper-Proof Alarm — adds a layer of protection against physical interference with the reader.
- Wide Operating Range — designed to perform reliably across varying indoor environments.
What This Helps You Avoid
If you’ve dealt with access points where cards get passed around, doors feel unsecured, or users aren’t sure if their badge even worked, you already know how small issues turn into daily friction.
The DS-K1102AMK helps eliminate those pain points by giving clear user feedback, adding PIN-based verification, and alerting your system if someone tries to tamper with the device. Instead of uncertainty and workarounds, you get controlled, intentional access that runs quietly in the background.
What’s in the Box
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
DS-K3G200X, DS-K3B411SX, DS-K3G200LX
Technical Specifications
Hikvision DS-K1102AMK Pro Card Reader (M1 + Keypad)
The Hikvision DS-K1102AMK is a Pro 1102A Series card reader built for clean, reliable access control at doors and secure entry points. It supports M1 cards (13.56 MHz) and adds a 12-key keypad for card + PIN workflows—so you can tighten security without making daily entry a hassle. With RS-485 connectivity and a built-in audible beeper, it’s designed to be easy to deploy, easy to use, and straightforward to troubleshoot.
Key Features
- M1 card support (13.56 MHz) — dependable credentials for everyday access control without slowing down entry.
- Keypad with 12 keys (0–9, *, #) — enables card + PIN for stronger, more controlled access.
- RS-485 interface (OSDP supported) — flexible integration with supported controllers and wiring runs.
- Wiegand (W26/W34) — helps fit into many common access control deployments.
- Tamper-proof alarm — adds another layer of protection if someone tries to mess with the reader.
- Built-in audible beeper — instant feedback so users know their credential was read.
Interface
Authentication
General
Keypad
Buzzer
Function
Accessories
Ideal Applications (Common Uses)
- Office doors & interior secure areas — card + PIN entry helps prevent credential sharing.
- Warehouses & stock rooms — reliable reader feedback (beeper) makes fast entry smoother for staff.
- Schools, clinics, and admin buildings — supports controlled access to staff-only spaces.
- Multi-tenant buildings — a practical fit for entry points where you want simple credentials with stronger access options.
Downloads
Frequently Asked Questions
The DS-K1102AMK supports M1 cards operating at 13.56 MHz. This makes it suitable for common contactless access credentials used in many commercial and institutional environments. According to the datasheet, this frequency is specific to the AM and AMK variants within the Pro 1102A Series. Using M1 cards allows for reliable, fast reads that are familiar to most access control users.
Yes, the DS-K1102AMK includes a 12-key keypad with numeric keys 0–9 plus * and #. This keypad enables PIN-based authentication or card + PIN access modes when supported by the access control system. The datasheet clearly distinguishes this model from non-keypad versions in the same series. This added keypad helps increase security by reducing the risk of lost or shared cards.
The DS-K1102AMK supports RS-485 communication and is compatible with the OSDP protocol. It also supports Wiegand formats W26 and W34, as listed in the datasheet. Multiple baud rates are supported on RS-485, including 9600, 19200, and 38400. This flexibility allows the reader to integrate with a wide range of access controllers and existing systems.
The DS-K1102AMK requires a 12 VDC power supply with a current rating of up to 500 mA. Its maximum power consumption is ≤ 2 W, as specified in the datasheet. This low power requirement makes it easy to include in standard access control power designs. It also helps reduce heat and long-term operating costs.
Yes, the DS-K1102AMK includes a built-in audible beeper. This beeper provides immediate feedback when a card or PIN is successfully read. According to the datasheet, this feature helps users quickly confirm access attempts without needing to look at a screen. It is especially useful in busy or noisy entry areas where visual confirmation may be missed.
The datasheet confirms that the DS-K1102AMK includes a tamper-proof alarm. This feature helps detect unauthorized removal or interference with the device. When integrated with a compatible access control system, it can trigger alerts or events. This adds an extra layer of physical security at door entry points.
The DS-K1102AMK is rated to operate in temperatures from -20 °C to 65 °C (-4 °F to 149 °F). It also supports working humidity levels from 10% to 90% with no condensing, as stated in the datasheet. These specifications make it suitable for a wide range of indoor environments. Proper installation within these limits helps ensure long-term reliability.
The reader measures 121 mm × 86.5 mm × 14 mm (4.76" × 3.41" × 0.55"). According to the datasheet, it is designed for installation on 86 mm and 120 mm gang boxes. This makes it easy to retrofit into common electrical box standards. Its slim profile helps it blend neatly into professional door installations.
The DS-K1102AMK uses DIP switches for ID settings, as outlined in the datasheet. This allows installers to set or adjust the reader’s address during installation. DIP switch configuration is straightforward and does not require software tools. It helps simplify multi-reader deployments on shared communication lines.
