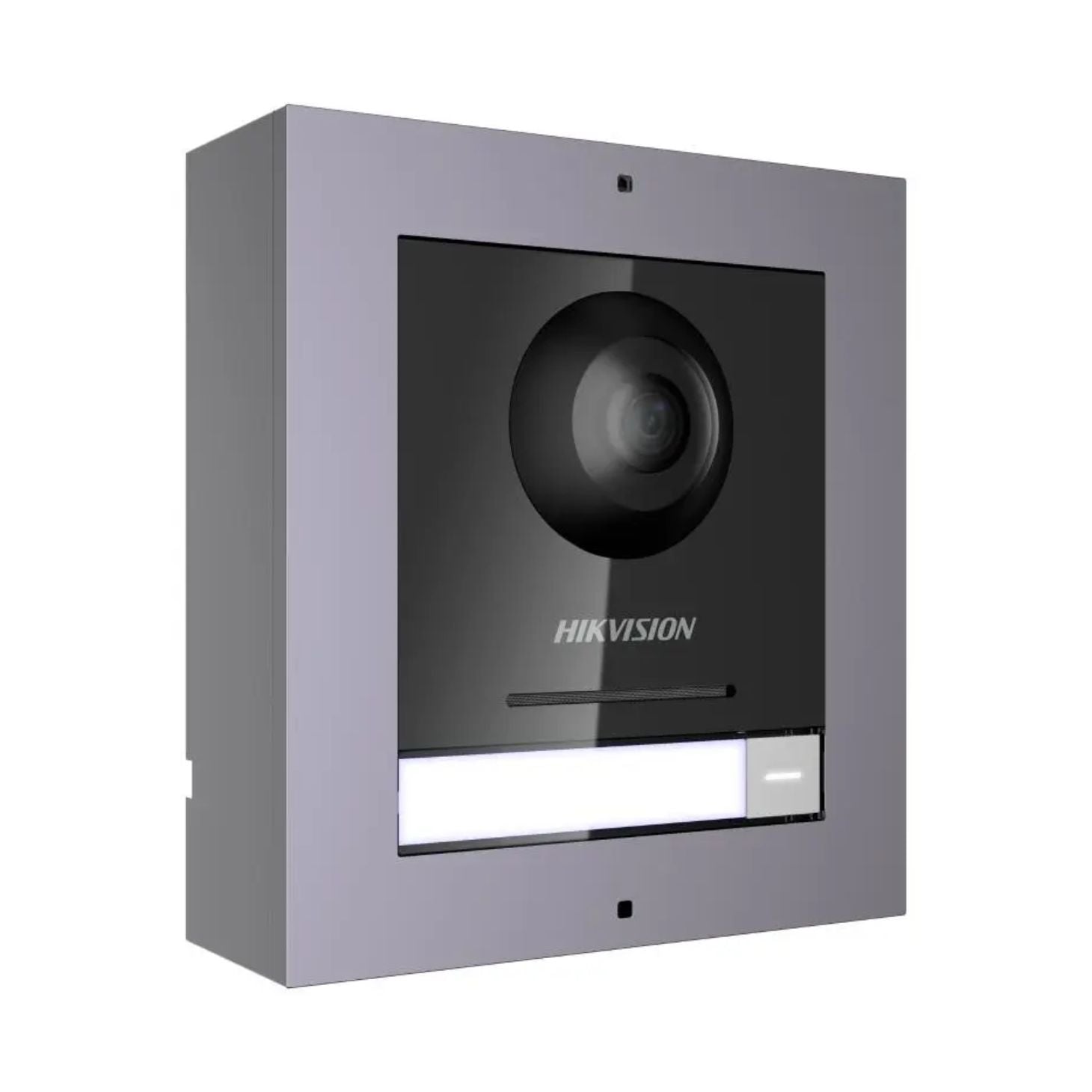

Hikvision DS-KD8003-IME1/Surface 2MP HD Modular Video Intercom Door Station

Hikvision DS-KD8003-IME1/Surface – Video Intercom Module Door Station Want a clean, modern front-door intercom that visitors can’t “miss,” even at night or in bad weather? The DS-KD8003-IME1/Surface is built for villa-style modular entry systems, giving you 2 MP HD video, a super-wide 180° view, and PoE/12V power so installs stay simple. It’s the kind of door station that helps you answer faster, see more, and reduce the “wait… who was that?” moments. Built for outdoor use and designed to expand with sub-modules, it’s a practical choice when you want a system that’s easy to grow—without starting over later. Ideal Applications (Common Uses) Villa / single-family home entrances — clear visitor verification before you open the door. Gated entry points — wide-angle coverage helps you see people standing off-center. Outdoor door station upgrades — IP-rated build (with the right surface accessory) helps it hold up to weather. Expandable modular intercom builds — supports sub-modules so you can extend functionality over time. Key Features (Why It Matters) 2 MP HD video intercom — sharper detail so you can recognize visitors with more confidence. 180° horizontal field of view — see the whole doorway area (not just a narrow “tunnel” view). IR supplement light + low illumination support — better visibility at night so you’re not guessing. WDR support — helps balance bright backgrounds and shadows, which is huge for sunny entryways. PoE (IEEE 802.3af) / 12 VDC power — single-cable PoE installs reduce wiring headaches. Outdoor-ready build — IP65 protection level helps it stay reliable outdoors (see spec notes below). Expandable modular design — supports sub-modules access, making it easier to extend later. Accessories Found (From Datasheet) Surface mounting accessories (for DS-KD8003) — enables surface mounting installation. DS-KD-ACW1 (referenced for IP65 rating when combined) — helps achieve IP65 when used with DS-KD8003. Note: The datasheet references these accessories, but it does not explicitly state what is included “in the box.” System Parameters ``` Operation system Embedded Linux operation system Flash 16 MB RAM 256 MB CPU Embedded MCU Processor ``` Display Parameters ``` Size / Operation method Not supported. Type / Resolution / ``` Video Parameters ``` Supplement light IR supplement Video compression standard H.264 Lens 1 FOV Horizontal: 180° Vertical: 96° WDR Support Pixel Main stream : 1920 × 1080 Sub stream : 720 × 480 ``` Audio Parameters ``` Audio compression standard G.711 U Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker (More than 85 dB within 20 cm) Audio compression bitrate 64 Kbps Audio quality Noise suppression and echo cancellation Volume adjustment Adjustable ``` Capacity ``` Fingerprint capacity 0 User capacity 2000 Face capacity 0 Linked indoor station 500 Event capacity / ``` Network Parameters ``` Communication protocol TCP/IP, RSTP Wired network 10/100 Mbps self-adaptive Ethernet Wi-Fi / Bluetooth / 3G/4G / ``` Device Interfaces ``` Alarm input 4 Network interface 1 TAMPER 1 Exit button 2 RS-485 1 USB 0 Wiegand 0 TF card 0 Alarm output 0 Lock control 2 Door contact input 2 Power interface 1 ``` General / Environmental / Physical ``` Button 1 Installation Surface mounting Indicator 0 Weight With package: 554 g Without package: 375 g Protective level IP65 Power supply method 12 VDC/PoE (IEEE 802.3af) Working temperature -40°C to +55° C(-40°F to 131°F) Working humidity 10% to 95% Dimensions 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73") Battery / Application environment Outdoor Power consumption 4 W Available Model DS-KD8003-IME1/Surface ```
