Technical Specifications

Hikvision DS-2CD1027G0-L 2 MP ColorVu Security System with 8-Channel PoE NVR

Monitor your property day and night with a professional IP security system built around the Hikvision DS-2CD1027G0-L ColorVu bullet camera and DS-7608NI-Q2/8P(E) 8-channel PoE NVR. The camera delivers full-color 2 MP video around the clock, using an F1.0 aperture, a high-performance image sensor, and warm supplemental lighting for dark environments.

Eight integrated PoE interfaces help simplify installation by carrying power and data over compatible Ethernet cabling. Efficient H.265+ compression, 4K HDMI output, two HDD bays, remote access through Hik-Connect, and intelligent playback tools make the system suitable for dependable residential and commercial surveillance.

The attached datasheets do not specify the number of cameras supplied or the installed HDD capacity. Confirm the exact camera quantity, lens option, HDD size, and included accessories before publishing the final package configuration.

Key Features

  • 2 MP ColorVu cameras capture vivid, full-color images 24 hours a day.
  • 1920 × 1080 maximum camera resolution at up to 30 fps in 60 Hz mode.
  • F1.0 super-aperture lens gathers more light for brighter images.
  • Minimum illumination of 0.001 lux with AGC enabled.
  • Warm white supplemental lighting with a range of up to 30 m (98 ft).
  • IP67-rated metal bullet camera housing for outdoor installation.
  • Choice of 2.8 mm wide-angle or 4 mm fixed camera lens.
  • H.265+ compression helps reduce video storage requirements.
  • Up to eight IP camera inputs and eight independent PoE interfaces.
  • Up to 80 Mbps incoming and 80 Mbps outgoing bandwidth.
  • HDMI output supports resolutions up to 4K.
  • Two SATA interfaces support up to 8 TB per HDD.
  • Up to eight-channel synchronous playback.
  • Four-channel Motion Detection 2.0 human and vehicle analysis.
  • Hik-Connect support for convenient remote network management.
  • Compatible with ONVIF Profile S and Profile G.

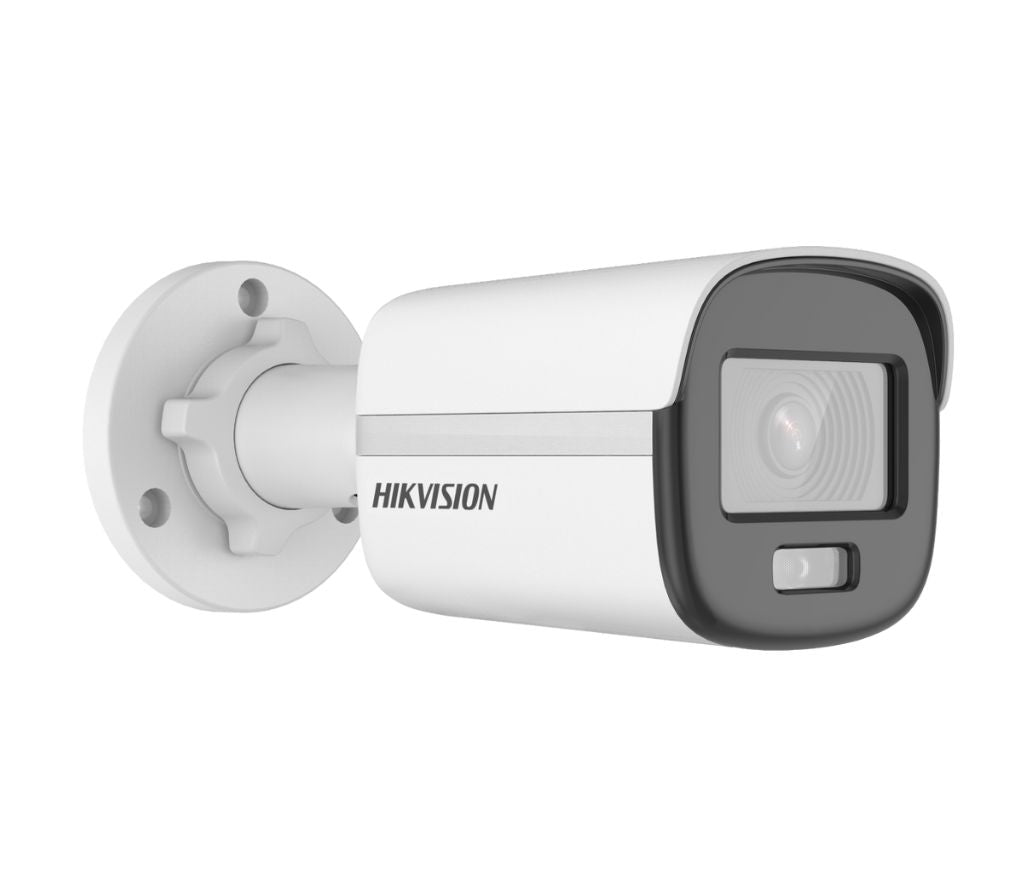

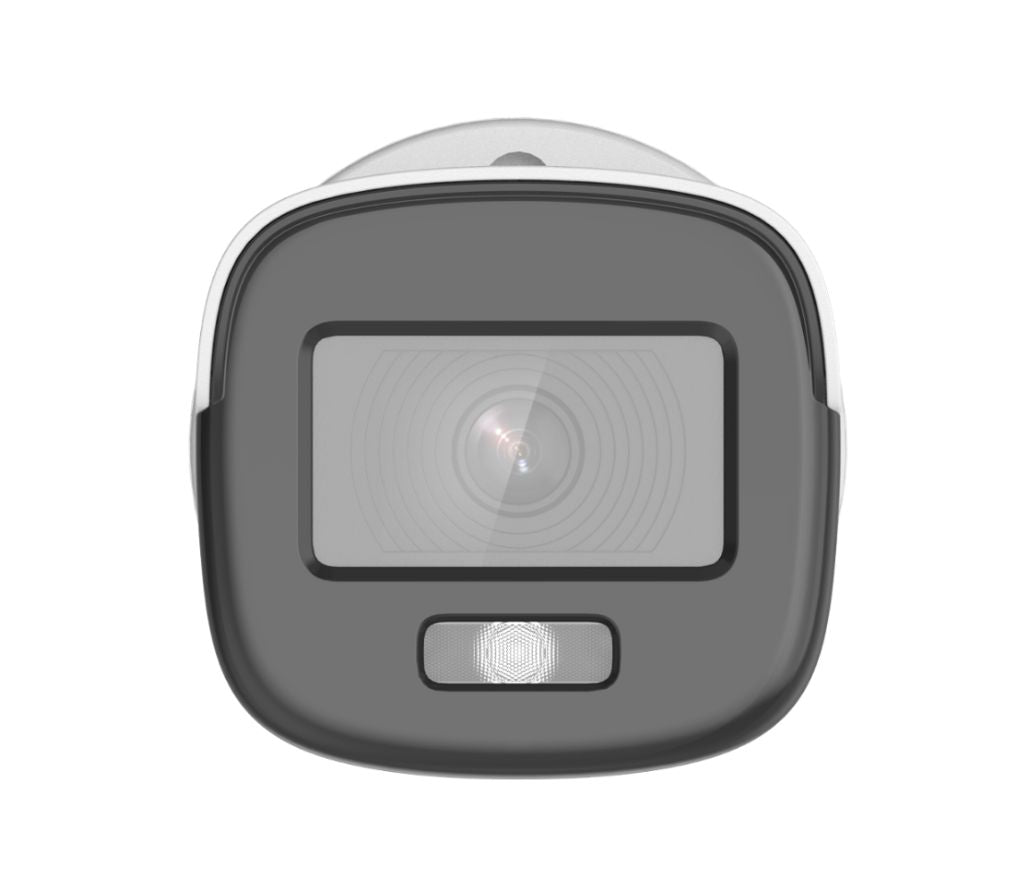

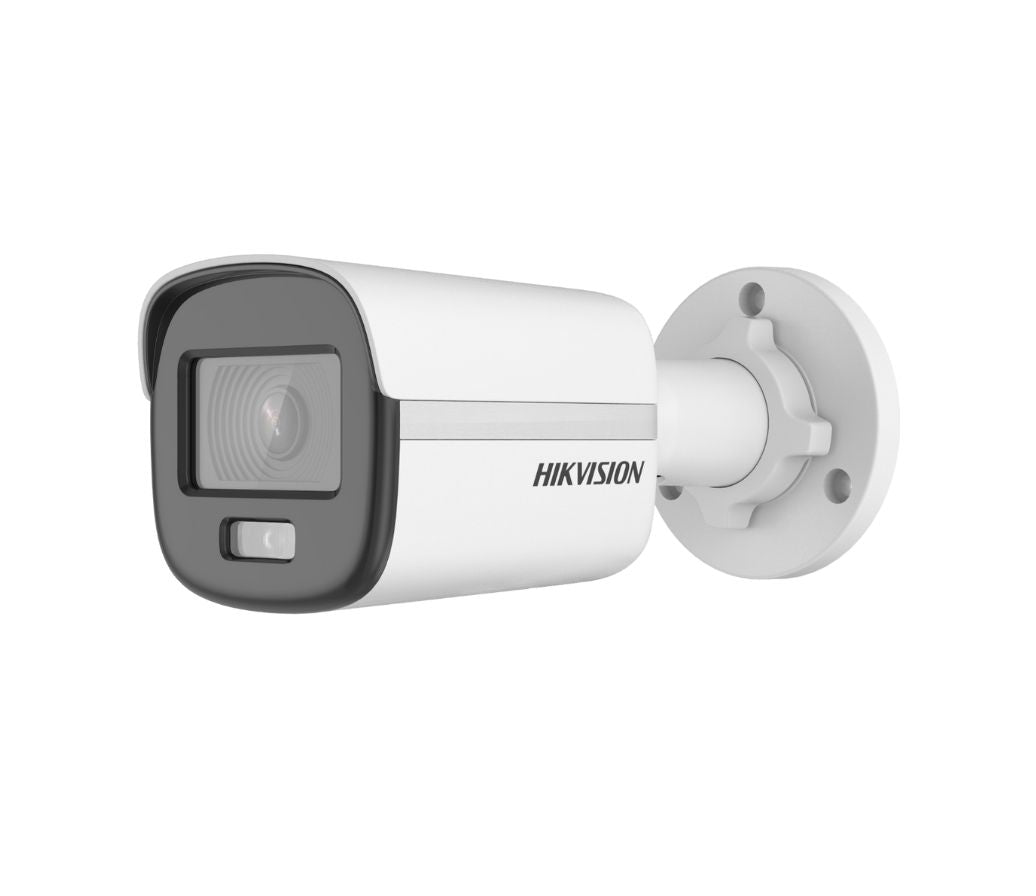

Camera – Imaging

```
Camera Model
Hikvision DS-2CD1027G0-L
Camera Type
2 MP ColorVu Lite fixed bullet network camera
Image Sensor
1/2.8-inch Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.001 lux at F1.0, AGC on
Shutter Speed
1/3 second to 1/100,000 second
Slow Shutter
Supported
Wide Dynamic Range
Digital WDR
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 90°; rotation: 0° to 360°
P/N
P/N
```

Camera – Lens

```
Available Lens Options
2.8 mm or 4 mm fixed lens
2.8 mm Field of View
Horizontal: 107°; vertical: 56°; diagonal: 127°
4 mm Field of View
Horizontal: 84°; vertical: 45°; diagonal: 99°
Aperture
F1.0
Aperture Type
Fixed
Lens Mount
M12
Depth of Focus – 2.8 mm
1.7 m to infinity
Depth of Focus – 4 mm
2.1 m to infinity
```

Camera – ColorVu Illumination

```
24/7 Color Imaging
Supported
Smart Supplement Light
Supported
Supplemental Light Type
White light
White-Light Range
Up to 30 m (98 ft)
ColorVu Technology
F1.0 lens, high-performance sensor, and built-in warm supplemental lighting
```

Camera – Video

```
Main Stream – 50 Hz
25 fps at 1920 × 1080, 1280 × 960, or 1280 × 720
Main Stream – 60 Hz
30 fps at 1920 × 1080, 1280 × 960, or 1280 × 720
Sub-Stream – 50 Hz
25 fps at 640 × 480, 640 × 360, or 320 × 240
Sub-Stream – 60 Hz
30 fps at 640 × 480, 640 × 360, or 320 × 240
Main-Stream Compression
H.265+, H.265, H.264+, and H.264
Sub-Stream Compression
H.265, H.264, and MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Profiles
Baseline Profile, Main Profile, and High Profile
H.265 Profile
Main Profile
Region of Interest
One fixed region for the main stream
```

Camera – Image Controls

```
Day/Night Modes
Day, night, auto, and schedule
Image Enhancement
BLC, HLC, and 3D DNR
Adjustable Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance
Additional Image Functions
Anti-flicker, mirror, privacy masks, and pixel counter
```

Camera – Events and Linkage

```
Basic Events
Motion detection and exception event for illegal login
Linkage Methods
Upload to FTP/NAS, notify surveillance center, send email, trigger recording, and trigger capture
External Device Requirement
Some linkage functions require an external device
```

Camera – Network

```
Network Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet port
Simultaneous Live View
Up to 6 channels
APIs and Integration
ONVIF Profile S, ONVIF Profile G, ISAPI, and SDK
Supported Protocols
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, and SSL/TLS
Users
Up to 32 users
User Levels
Administrator, operator, and user
Security
Password protection, complicated-password support, HTTPS encryption, IP address filtering, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE, and ONVIF digest authentication
Supported Clients
iVMS-4200, Hik-Connect, and Hik-Central
Web Browsers
Plug-in live view: Internet Explorer 8, 9, 10, and 11; local service: Chrome 57.0 or later and Firefox 52.0 or later
Web Client Language
English
Software Reset
Reset through web browser or client software
Additional Functions
Heartbeat, flash log, and password reset by email
```

Camera – Power and Environmental

```
Power Supply
12 VDC ±25% or PoE IEEE 802.3af, Type 1 Class 3
Power Protection
Reverse-polarity protection
12 VDC Consumption
0.30 A; maximum 3.6 W
PoE Consumption
36 V to 57 V, 0.20 A to 0.10 A; maximum 4.5 W
Power Interface
5.5 mm coaxial power plug
Startup and Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity 95% or less, non-condensing
Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity 95% or less, non-condensing
Weather Protection
IP67 ingress protection
```

Camera – Construction and Dimensions

```
Material
Metal
Camera Dimensions
68.4 × 65.2 × 161.1 mm (2.7 × 2.6 × 6.3 inches)
Package Dimensions
172 × 104 × 80 mm (6.8 × 4.1 × 3.1 inches)
Camera Weight
Approximately 420 g (0.9 lb)
Packaged Weight
Approximately 510 g (1.1 lb)
Available Models
DS-2CD1027G0-L with 2.8 mm or 4 mm lens
```

Camera – Certifications

```
EMC
FCC Part 15 Subpart B, CE-EMC, RCM, IC, and KC
Safety
UL, CB, CE-LVD, and BIS
Environmental Compliance
CE-RoHS, WEEE, and REACH
Ingress Protection Standard
IP67 under IEC 60529-2013
```

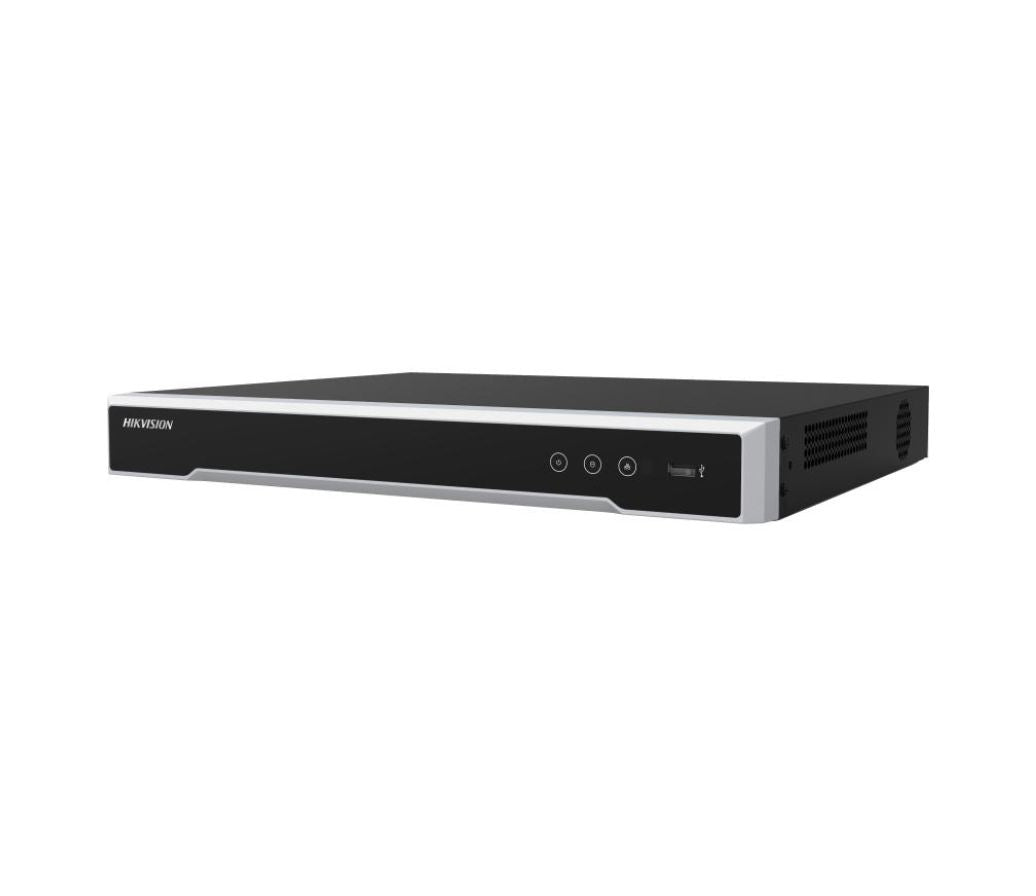

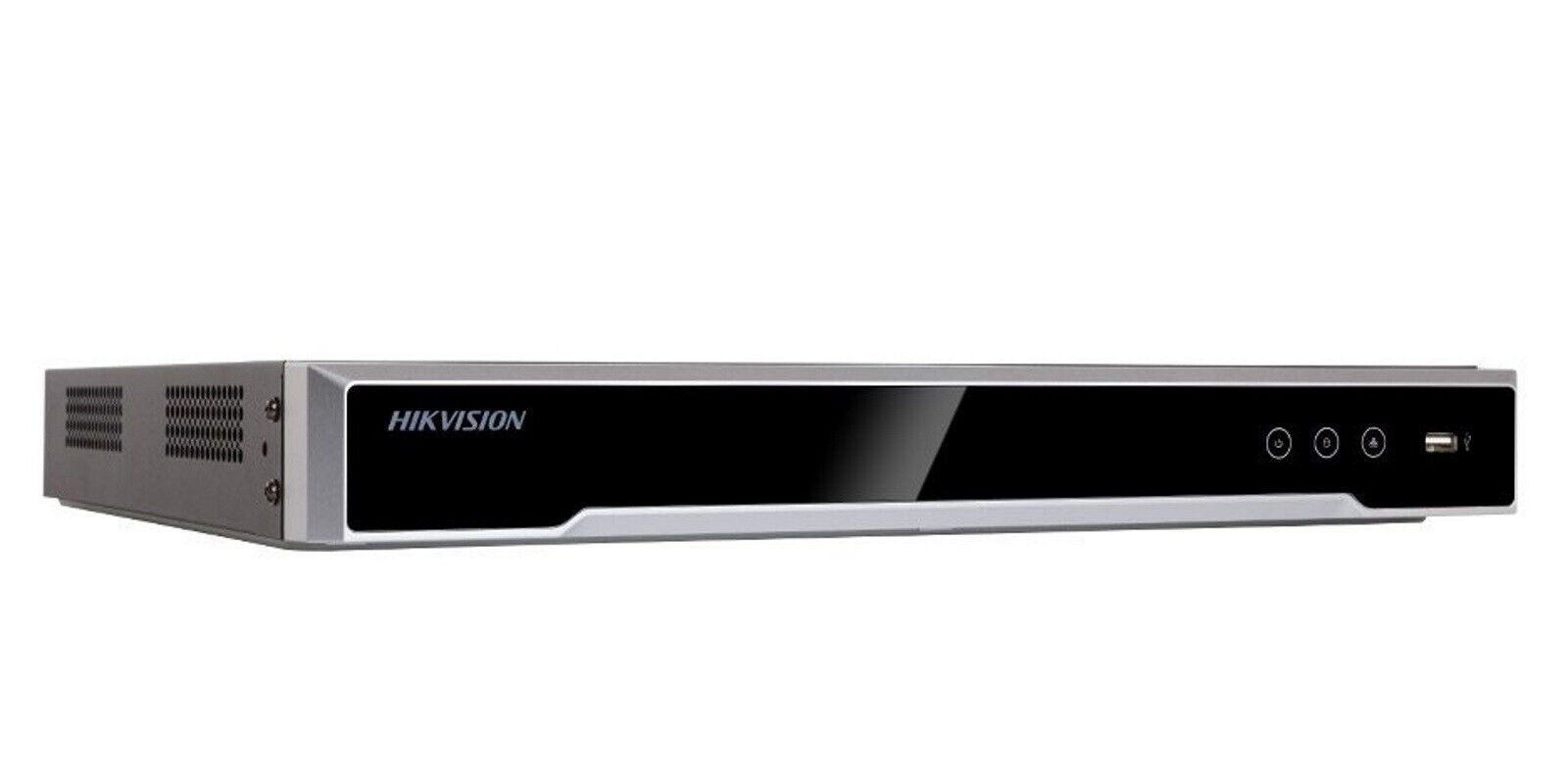

NVR – System Overview

```
Recorder Model
Hikvision DS-7608NI-Q2/8P(E)
Recorder Type
1U 4K Q Series PoE network video recorder
IP Video Inputs
8 channels
Integrated PoE Interfaces
8 independent RJ45 interfaces
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
Video Compression
H.265+, H.265, H.264+, and H.264
Storage-Saving Compression
H.265+ can reduce storage space by up to 75%, according to the NVR datasheet
```

NVR – Intelligent Functions

```
Motion Detection 2.0
4 channels
Human and Vehicle Analysis
4 channels
VCA Event Support
Supports multiple Video Content Analytics events
Compatible Camera Analytics
Configurable camera-dependent functions such as motion, line-crossing, and intrusion detection
Playback Search
Smart search and smart playback
```

NVR – Video and Audio

```
HDMI Output
1 channel
HDMI Resolutions
4096 × 2160 at 30 Hz, 3840 × 2160 at 30 Hz, 2560 × 1440 at 30 Hz, 1920 × 1080p at 60 Hz, 1600 × 1200 at 60 Hz, 1280 × 1024 at 60 Hz, and 1280 × 720 at 60 Hz
VGA Output
1 channel
VGA Resolutions
1920 × 1080p at 60 Hz, 1600 × 1200 at 60 Hz, 1280 × 1024 at 60 Hz, and 1280 × 720 at 60 Hz
Video Output Mode
Simultaneous HDMI and VGA output
Audio Output
1-channel RCA, linear, 1 kΩ
Two-Way Audio
1-channel RCA, 2.0 Vp-p, 1 kΩ
```

NVR – Recording and Decoding

```
Recording Stream Types
Video or video and audio
Audio Compression
G.711 μ-law, G.711 A-law, G.722, and G.726
Decoding Formats
H.265+, H.265, H.264+, and H.264
Recording Resolutions
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
Synchronous Playback
8 channels
Headline Decoding Capacity
Up to 2 channels at 8 MP, 4 channels at 4 MP, or 8 channels at 1080p
Decoding Capacity – AI and 4K Off
8 channels at 1080p and 30 fps
Decoding Capacity – AI or 4K On
6 channels at 1080p and 30 fps
Resolution Limitation
The length or width of each camera track cannot exceed 4096 pixels
```

NVR – Network and PoE

```
Remote Connections
Up to 32
Network Protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, and HTTPS
LAN Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet interface
PoE Interfaces
8 × RJ45 10/100 Mbps self-adaptive Ethernet interfaces
PoE Standards
IEEE 802.3af and IEEE 802.3at
PoE Power Budget
Up to 80 W
Remote Management
Hik-Connect
```

NVR – Storage and Auxiliary Interfaces

```
SATA Interfaces
2
Maximum HDD Capacity
Up to 8 TB per HDD; up to 16 TB total supported capacity across two drives
Installed HDD Capacity
Not specified in the attached datasheets
USB Interfaces
2 × USB 2.0
Alarm Inputs/Outputs
Not available on the standard model; 4 alarm inputs and 1 alarm output are optional on the Alarm4+1 version
```

NVR – Physical Interfaces

```
Standard Rear Interfaces
PoE ports, LAN port, audio output, audio input, HDMI, VGA, USB, 48 VDC power input, ground connection, and power switch
Alarm4+1 Rear Interfaces
PoE ports, LAN port, audio output, audio input, HDMI, alarm inputs, alarm output, VGA, USB, 48 VDC power input, ground connection, and power switch
```

NVR – General

```
Power Supply
48 VDC, up to 120 W
Recorder Consumption
Up to 10 W without PoE enabled
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10% to 90%
Dimensions
384 × 223 × 48 mm (15.12 × 8.76 × 1.89 inches)
Weight
Up to 2.6 kg (5.7 lb)
Certification
CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, and EN 50130-4
```

NVR – Available Models

```
Standard Model
DS-7608NI-Q2/8P(E)(STD)
Alarm Model
DS-7608NI-Q2/8P(E)(STD)/Alarm4+1
NEU Model
DS-7608NI-Q2/8P(E)(NEU)
```

Accessories Found in the Datasheets

```
Compatible Camera Accessory
Hikvision DS-1280ZJ-XS junction box
Accessory Status
The junction box is identified as an accessory; the datasheet does not state that it is included with the camera
HDD
The NVR supports two HDDs with up to 8 TB per drive, but the attached datasheet does not identify a supplied HDD model or capacity
Other Included Accessories
No additional included accessories are specified in the attached datasheets
```

Ideal Applications and Common Uses

  • Home entrances, driveways, yards, garages, and exterior walkways
  • Retail stores, offices, showrooms, and reception areas
  • Small businesses requiring up to eight IP camera channels
  • Warehouses, stockrooms, loading areas, and service entrances
  • Restaurants, workshops, and other properties needing full-color nighttime video
  • Locations that benefit from wide-area coverage using the 2.8 mm lens
  • Areas requiring a narrower view with greater subject detail using the 4 mm lens
  • Outdoor installations exposed to rain or dust
  • PoE installations where simplified power and network cabling is preferred
  • Surveillance systems requiring local recording, multi-camera playback, and remote Hik-Connect access
