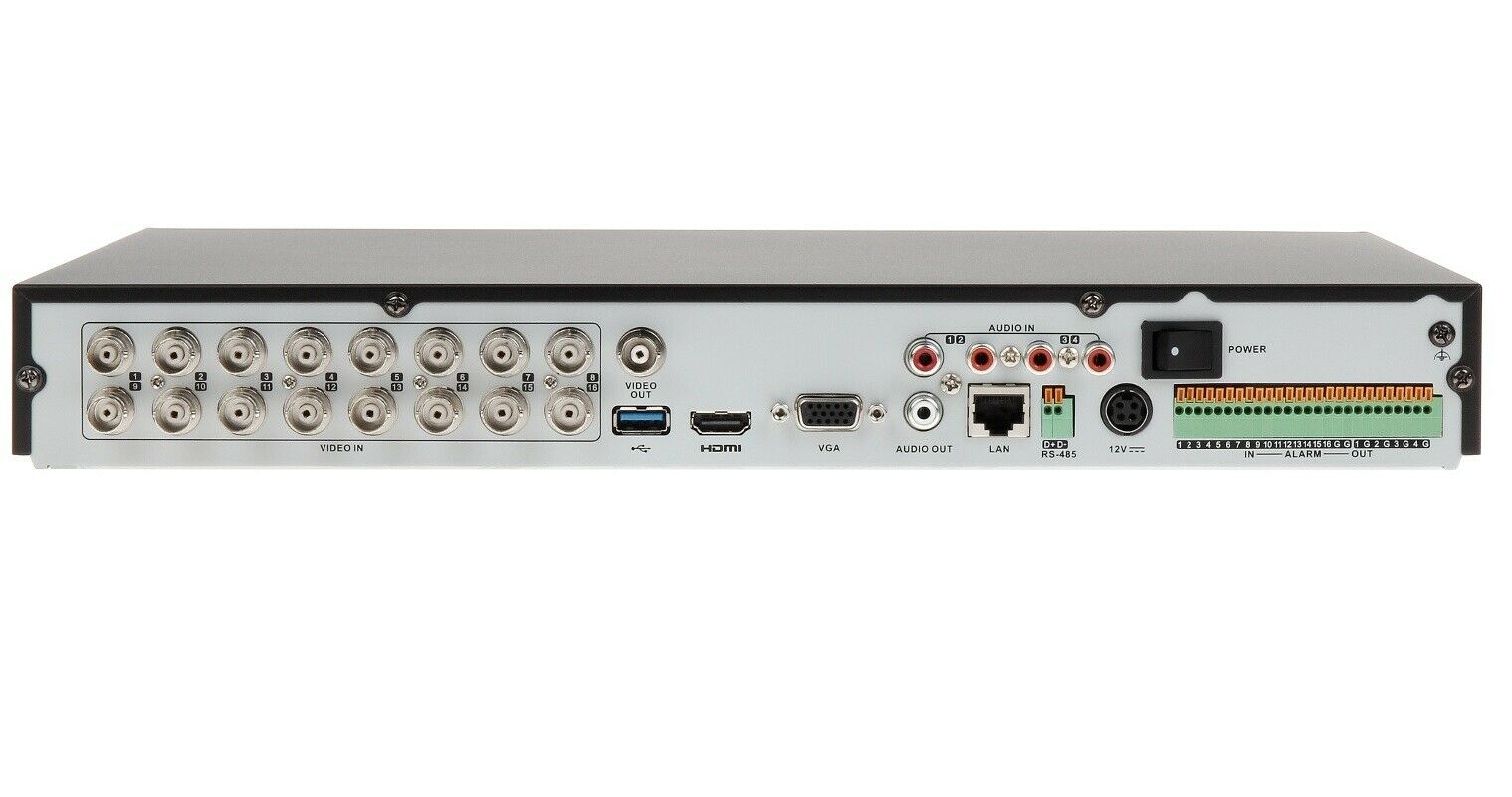

The iDS-7216HUHI-M2/S has 16 analog video input channels through BNC connections. It also supports IP video input, with 8 channels by default and up to 24 channels, while Enhanced IP mode allows 16 IP channels up to 32 total channels, with each channel up to 4 Mbps. The DVR supports IP cameras up to 8 MP resolution. That gives you flexibility if you want to keep existing analog cameras now and add more IP cameras as your system grows.

Yes, this model supports HDTVI, AHD, CVI, CVBS, and IP video inputs. The analog side includes 16 BNC inputs, and the IP side supports H.265+/H.265/H.264+/H.264 IP cameras up to 8 MP. That matters if you are upgrading in stages, because you can work with multiple camera technologies instead of replacing everything at once. It is a practical fit for mixed systems where compatibility matters just as much as recording quality.

The DVR supports encoding resolutions up to 8 MP, along with 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, and CIF. On the main stream, it supports up to 8 MP at 8 fps, 3K at 12 fps, 5 MP at 12 fps, and 4 MP at 15 fps, with 1080p and lower resolutions at 25 fps or 30 fps depending on region. The datasheet also lists synchronous playback for up to 16 channels. In real-world terms, that gives you enough detail for high-resolution recording while still keeping broad compatibility with different camera types and viewing needs.

Yes, one of the main advantages of this model is deep learning-based motion detection 2.0 for all analog channels. It can classify humans and vehicles and is designed to reduce false alarms caused by objects such as leaves and lights. It also supports quick search by object or event type, which makes it easier to find the footage you actually need. That is especially useful if you are tired of wasting time reviewing recordings triggered by motion that does not matter.

Yes, the datasheet lists deep learning-based perimeter protection and specifies line crossing and intrusion detection. Human and vehicle analysis for perimeter protection is supported on up to 4 channels. The DVR also supports multiple VCA events for both analog and smart IP cameras. This makes it a stronger choice when you need more than basic recording and want smarter event-based monitoring around entry points or boundaries.

The iDS-7216HUHI-M2/S includes 2 SATA interfaces. According to the datasheet, each disk can support up to 10 TB capacity, giving you up to 20 TB total across both drive bays. It also uses H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 compression options, which helps improve encoding efficiency and reduce storage costs. That combination is valuable if you want longer retention times without filling drives as quickly.

Yes, the HDMI output supports 4K at 3840 × 2160 at 30 Hz. It also supports 2K at 2560 × 1440 at 60 Hz, plus 1920 × 1080, 1280 × 1024, and 1280 × 720 output options. The VGA output is supported as well, and the datasheet states HDMI and VGA simultaneous output. That gives you flexibility whether you are setting this up on a newer 4K display or an older monitor already in place.

Yes, the datasheet lists 1 RCA audio output and 1 RCA audio input by default, with up to 16 audio inputs optional. It also supports 16 audio channels via coaxial cable and includes 1-channel two-way audio using the audio input. Audio compression is G.711u with an audio bitrate of 64 Kbps. That is helpful when you want not only video evidence, but also the option to capture or relay sound as part of your security setup.

Yes, the DVR includes one RJ45 10/100/1000 Mbps self-adaptive Ethernet interface and supports a wide range of network protocols including TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF. The datasheet also notes remote connections up to 128. In addition, it is connectable to a Wi-Fi network by using a Wi-Fi dongle through the USB interface. That makes it easier to fit into different site setups, whether you are hardwiring the recorder or need more flexible network options.

The DVR measures 380 × 320 × 48 mm, which is 15.0 × 12.6 × 1.9 inches, and weighs up to 2.1 kg or 4.6 lb. It uses a 12 VDC, 5 A power supply and has power consumption of 19 W or less. The specified working temperature range is -10 °C to +55 °C, with working humidity from 10% to 90%. Those details are important if you are planning rack placement, cabinet space, or installation in environments with varying temperatures.
