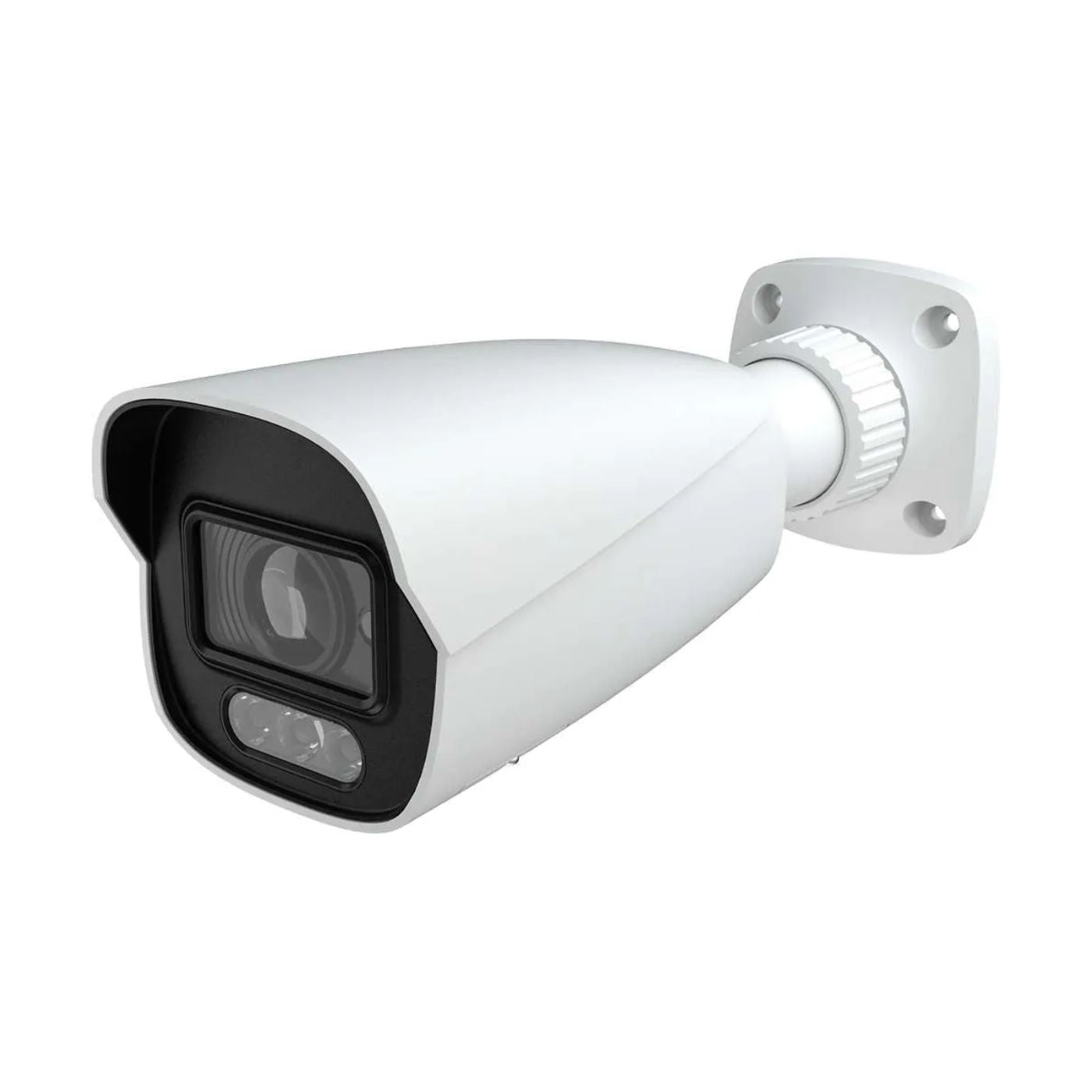

IP-5IR8C2H2-28-PA 8MP Dual-Illumination AI Bullet Network Camera
What happens when your camera records an incident but the image is too dark, the subject is too small, or constant motion alerts make it difficult to find what matters?
The IP-5IR8C2H2-28-PA combines detailed 8MP video, infrared and white-light illumination, and AI-powered human and vehicle classification to help you monitor important areas more effectively.
With built-in audio, active sound-and-light warnings, flexible recording options, and an outdoor-rated enclosure, this camera gives you more ways to detect, verify, and respond to activity around your property.
Why Buyers Choose This Model
Buyers choose this camera when basic motion recording is no longer enough. Instead of simply capturing movement, it can classify humans and vehicles, monitor defined areas, and activate visible or audible warnings when configured events occur.
8MP 4K Resolution
Capture video at up to 3840 × 2160 resolution, giving you more visual detail when reviewing people, vehicles, and activity within the camera’s field of view.
Human and Vehicle Classification
Focus on activity involving people and vehicles during line-crossing, region-intrusion, entrance, and exiting events instead of treating every detected movement the same way.
Dual Infrared and White-Light Illumination
Monitor dark areas using infrared or visible white-light illumination, with both lighting systems reaching approximately 30 to 40 meters.
Active Sound-and-Light Warning
Go beyond passive recording with alternating blue-and-red warning lights, a built-in speaker, and support for an imported custom warning message.
Built-In Microphone and Speaker
Capture audio alongside video and use the integrated speaker for audible warnings or communication when the camera is properly configured with a compatible system.
120 dB True WDR
Maintain more useful image detail in challenging scenes where bright entrances, headlights, windows, or shadows appear in the same view.
Advanced Video Analytics
Use tools such as face detection and capture, abandoned or missing-object detection, target counting, heat maps, scene-change detection, video-blur detection, and abnormal-color detection.
Local and Network Recording
Record through a compatible NVR or network-storage solution, or add a microSD card with a capacity of up to 256GB for recording directly at the camera.
H.265+ Video Compression
Use modern H.265+ or H.265 compression to manage bandwidth and storage more efficiently while preserving the detailed video needed for surveillance.
Three Independent Video Streams
Configure separate streams for high-quality recording, local monitoring, and remote viewing so each use can have an appropriate resolution and bit rate.
PoE for Cleaner Installation
Transmit power and network data through one Ethernet cable using IEEE 802.3af PoE, helping simplify wiring and reduce the need for a separate power connection near the camera.
ONVIF Compatibility
Integrate the camera with compatible ONVIF recorders and video-management platforms, giving you greater flexibility when planning or expanding a surveillance system.
IP66 Outdoor Protection
Install the camera on exterior walls or ceilings with an enclosure designed for outdoor surveillance conditions and operating temperatures from -30°C to 60°C.
Remote Monitoring
View the camera through a supported web client, compatible NVR, NVMS 2.0 software, or mobile application, with simultaneous monitoring for up to 10 users.
What This Camera Helps You Avoid
A security incident can be frustrating enough. Discovering afterward that the recording lacks detail, the important moment happened outside the camera’s illumination range, or the system generated too many irrelevant motion events can make the situation even worse.
- Blurry or low-resolution video that makes important details harder to review
- Depending only on standard motion detection for every type of activity
- Dark surveillance areas with no infrared or visible-light assistance
- Recording an intruder without having an active warning option
- Losing important image detail in scenes with strong backlighting
- Relying on only one recording location
- Installing separate network and power cables when PoE is available
- Choosing an indoor-only camera for an exposed exterior location
Would having clearer video, more relevant event detection, and an immediate sound-and-light response make it easier to protect the areas that matter most? The IP-5IR8C2H2-28-PA is designed to give you that additional visibility and control before, during, and after an event.
```
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
CMIP9C82W-28SD-B4G Lts w/ audio IP PoE Camera
Out of stock
Choose your option
DS-2CD2087G2-LU Hikvision 8MP 4K Camera ColorVU 24/7 Color Acusense PoE Audio
In stock
Choose your option
LXIP9C82W-28MDA Lts w/ audio IP PoE Camera
Out of stock
Choose your option
B8-W
Technical Specifications
IP-5IR8C2H2-28-PA
The TVT IP-5IR8C2H2-28-PA is a professional security product. Highlights include H.265+/H265/H.264+/H264/ MJPEG coding, max. resolution: 3840 × 2160 and ICR auto switch, true day / night. Its IP66 rating supports installation where dust and water protection is required.
Ideal applications
- Residential and commercial security installations
- Professional installer projects
Key Features
- H.265+/H265/H.264+/H264/ MJPEG coding
- Max. resolution: 3840 × 2160
- ICR auto switch, true day / night
- 30 ~ 40m IR or white light range
- 3D DNR, true WDR, HLC, BLC, Defog and ROI coding
- 1CH audio input; 1CH audio output
- 1CH built-in speaker; 1CH built-in microphone
- Built-in micro SD card slot, up to 256GB
Specifications
Intelligent Analytics
DORI Distance
Others
Camera
Interfaces
Functions
Downloads
Frequently Asked Questions
The camera supports a maximum resolution of 3840 × 2160, providing 8MP 4K video at up to 30 fps under 60 Hz operation or 25 fps under 50 Hz operation.
Yes. The camera is rated for 0 lux operation when using its built-in infrared or LED illumination. Both the infrared and white-light illumination ranges are approximately 30 to 40 meters (98 to 131 feet).
Yes. Its perimeter analytics support human and vehicle classification for line-crossing, region-intrusion, region-entrance, and region-exiting detection.
Yes. It includes a built-in microphone and speaker, as well as one external audio input and one external audio output. The supported audio compression formats are G.711A and G.711U.
The camera supports sound-and-light warnings, alternating blue-and-red warning lights, and the import of a user-defined warning voice.
Yes. It has a built-in microSD card slot supporting cards up to 256GB. The camera also supports network remote storage and recording through a compatible NVR.
Yes. It supports IEEE 802.3af Power over Ethernet, allowing power and network data to use the same Ethernet cable. It can also be powered using a 12 VDC power supply.
Yes. The camera has an IP66 ingress-protection rating and operates in temperatures from -30°C to 60°C (-22°F to 140°F), with humidity below 95% in non-condensing conditions.
Yes. The camera supports the ONVIF interface protocol. Compatibility with a specific third-party recorder or feature set should still be confirmed before installation.
The camera supports face detection and capture, abandoned or missing-object detection, scene-change detection, video-blur detection, abnormal-color detection, heat maps, and target counting by line or area.
