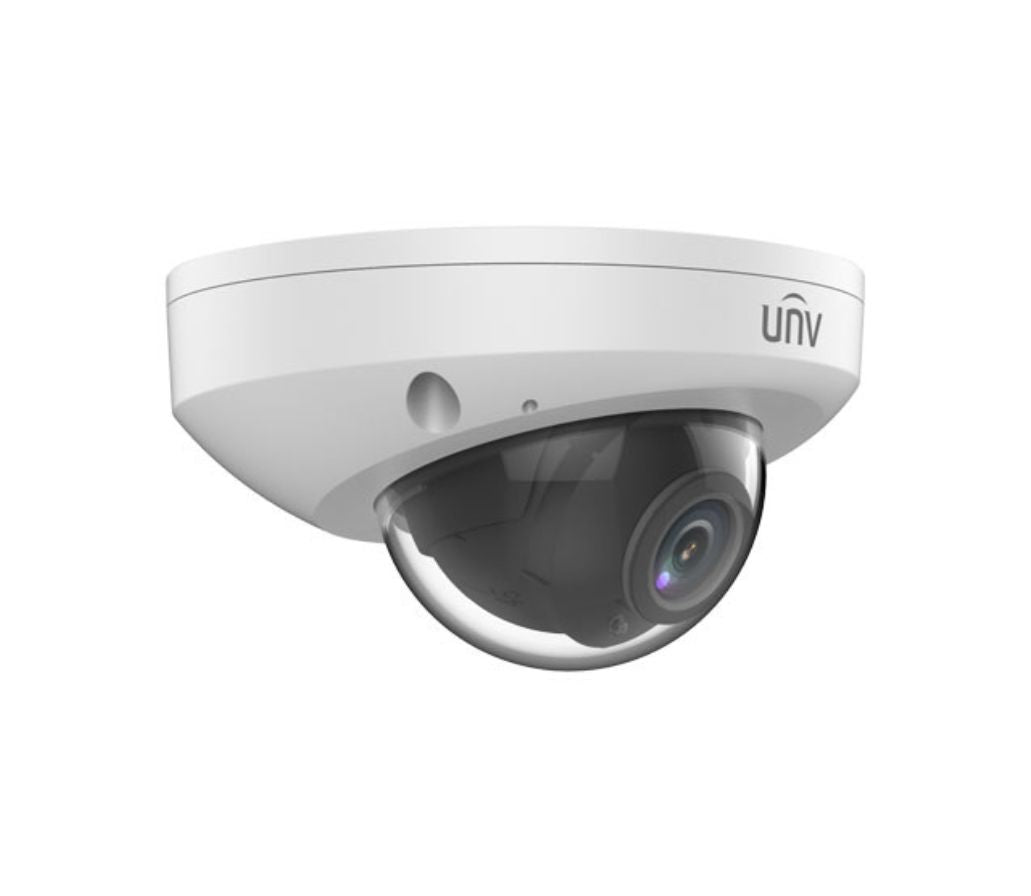

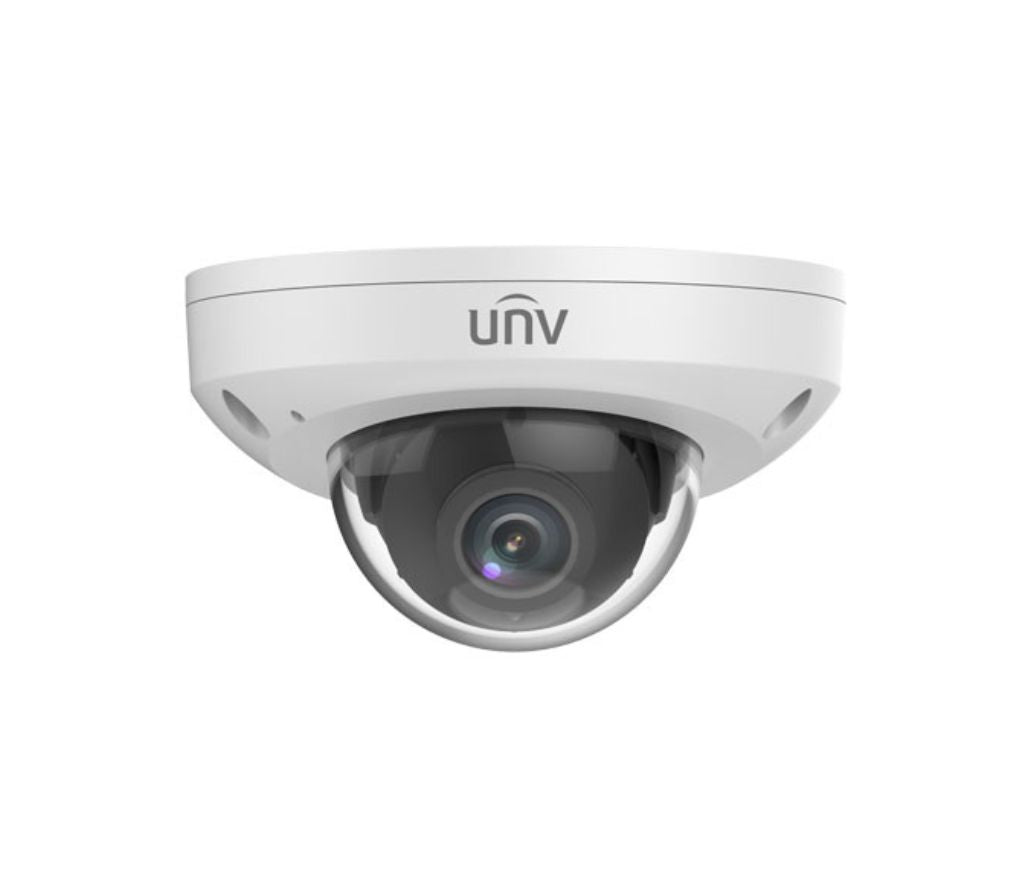

IPC314SB-ADF28K-I0 Mini Dome Camera Uniview 4mp LightHunter
IPC314SB-ADF28K-I0 Mini Dome Camera Uniview 4mp LightHunter
Available in stock (11)
products.product.pickup_availabilities
Description
Description
4MP HD Intelligent LightHunter IR Fixed Mini Dome Camera
? High quality imaging with 4MP, 1/3"CMOS sensor
? 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
? Ultra 265, H.265, H.264, MJPEG
? Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
? Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
? LightHunter technology ensures ultra-high image quality in low illumination environment
? 120dB true WDR technology enables clear imaging in strong light scene
? Support 9:16 Corridor Mode
? Built-in Mic
? Smart IR, up to 30m (98ft) IR distance
? Supports 256 G Micro SD card
? IK10 vandal resistant
? IP67 protection
? Support PoE power supply
? 3-Axis
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4MP HD Intelligent LightHunter IR Fixed Mini Dome Camera
? High quality imaging with 4MP, 1/3"CMOS sensor
? 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
? Ultra 265, H.265, H.264, MJPEG
? Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
? Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
? LightHunter technology ensures ultra-high image quality in low illumination environment
? 120dB true WDR technology enables clear imaging in strong light scene
? Support 9:16 Corridor Mode
? Built-in Mic
? Smart IR, up to 30m (98ft) IR distance
? Supports 256 G Micro SD card
? IK10 vandal resistant
? IP67 protection
? Support PoE power supply
? 3-Axis
Specifications
IPC3618SE-ADF28KM-WL-I0 IPC3618SE-ADF40KM-WL-I0
Camera
Sensor 1/2.8", 8.0 megapixel, progressive scan, CMOS
Minimum Illumination
Colour: 0.0005 lux (F1.0, AGC ON)
0 lux with Light on
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 3? ~ 360? Tilt: 0? ~ 80? Rotate: 3? ~ 360?
WDR 120dB
S/N >56dB
Lens
Lens 2.8mm@F1.0 4.0mm@F1.0
Iris Fixed
Field of View (H) 106.7? 87.5?
Field of View (V) 57.1? 46.3?
Field of View (D) 115.7? 92.4?
DORI
DORI Distance
Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 86.9 34.8 17.4 8.7
4.0 124.1 49.7 24.8 12.4
Illuminator
Illuminator Range Up to 30m (98 ft) white light range
LED On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P
(1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180?/90?Clockwise/90?Anti-clockwise
Dewarping Support
3
DATASHEET
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,
802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP,
Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client
EZStation
EZView
EZLive
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035:
2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
4
DATASHEET
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power
DC 12V?25%, PoE (IEEE 802.3af)
Power consumption: Max 8.0W
Power Interface ? 5.5mm coaxial power plug
Dimensions (L ? W ? H) ?111 x 95mm (?4.4? x 3.7?)
Weight 0.44kg (0.97lb)
Material Metal + Plastic
Working Environment -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing)
Strorage Environment -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
