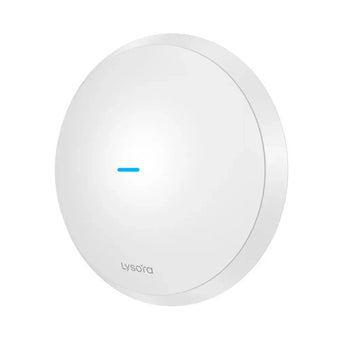

Lysora L7Lite Wi-Fi 7 BE3600 Dual-Band Ceiling Mount Access Point
The Lysora L7Lite is built for buyers who need stronger wireless performance without turning installation into a project of its own. With Wi-Fi 7, a 2.5GbE uplink, support for 100+ clients, and up to 140 m² (1,500 ft²) of coverage, it gives you the speed and stability that busy spaces demand. It also gives you the flexibility to deploy it where it makes the most sense, thanks to ceiling or wall mounting and PoE power. So if you are trying to avoid weak coverage, crowded network slowdowns, and complicated rollouts, this model is designed to make that decision easier.
And when your network has to support more users, more devices, and more expectations, the real question becomes this: do you want an access point that just checks a box, or one that helps you stay ahead before coverage issues start costing you time and trust? The L7Lite is designed to help you solve that problem with modern Wi-Fi features, cloud management, roaming support, and mesh capability built in.
Why Buyers Choose This Model
- Wi-Fi 7 BE3600 dual-band performance — gives you faster, more responsive wireless connections for modern devices, which means smoother everyday use and more confidence as network demand grows.
- Up to 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz — helps support bandwidth-heavy activity like streaming, cloud apps, video meetings, and large file transfers with fewer slowdowns.
- (1) 2.5GbE RJ45 port — gives the access point a stronger wired backbone, so the wireless side is less likely to be held back by an outdated uplink.
- 100+ client capacity — makes this a smart fit for busier spaces where multiple users and connected devices need stable performance at the same time.
- 140 m² (1,500 ft²) coverage area — helps you cover more space efficiently, which can reduce dead zones and cut down on placement frustration.
- 2 x 2 MU-MIMO on both 2.4 GHz and 5 GHz — improves how the access point handles multiple devices, so users are less likely to feel the network bog down during peak use.
- Up to 160 MHz channel bandwidth on 5 GHz — gives you more room for higher throughput, which matters when speed and responsiveness are a priority.
- Multi-Link Operation (MLO) — adds modern Wi-Fi 7 efficiency that helps improve how traffic is handled across connections, supporting a smoother user experience.
- 4K-QAM and RF beamforming — help strengthen wireless performance and signal efficiency, so you get more out of the hardware you are installing.
- Band steering — helps move compatible devices to the more suitable band automatically, reducing congestion and improving overall network balance.
- Wireless meshing — makes it easier to expand coverage across a larger space without relying on a fully wired layout for every access point.
- 802.11v / 802.11k / 802.11r roaming support — helps devices move more smoothly between access points, which matters in offices, schools, and commercial spaces where users are mobile.
- Ceiling and wall mounting with mounts included — gives you more installation flexibility right out of the box, helping you place the AP where coverage works best.
- PoE support — simplifies deployment by letting power and data run through one cable, which can save time and reduce installation hassle.
- Router mode and AP mode — gives you more deployment options depending on how your network is built today and how you may want to scale it later.
- 8 SSIDs per radio — gives you more control for separating users, departments, or guest traffic in a cleaner, more organized way.
- 802.1Q VLAN and client device isolation — help strengthen network segmentation and security, giving you better control over who accesses what.
- WPA, WPA2, WPA3-SAE, and 802.1X support — give you stronger security options, which matters when protecting users, credentials, and business traffic is non-negotiable.
- Captive portal support — helps create a more controlled guest access experience for public-facing or shared environments.
- Local web management, Lysora App, and Lysora Cloud support — make configuration and remote oversight easier, so you spend less time chasing settings and more time keeping the network performing well.
- Self-organizing network support for up to 300 APs — helps make larger deployments easier to manage as your coverage needs grow.
- Optimization of channel, transmit power, and management frame power settings — gives you smarter tools to fine-tune performance and improve wireless stability.
- IP41 rating and ±2 kV lightning/surge protection — add a layer of durability for indoor deployments where reliability still matters.
- Low power consumption of ≤ 14 W — helps keep operating costs reasonable while still delivering modern wireless capability.
- NDAA compliant with FCC and IC certifications — gives buyers added peace of mind when compliance and procurement standards matter.
What This Helps You Avoid
Weak wireless coverage usually does not start as a major problem. It starts with dropped calls, slower uploads, dead spots in key rooms, frustrated users, and the feeling that your network should be performing better than it is. Then over time, those small issues become support tickets, lost productivity, unhappy staff or guests, and the nagging question of whether the system you installed can really keep up.
The L7Lite is built to help you get ahead of that. Its Wi-Fi 7 platform, strong throughput, 2.5GbE uplink, roaming support, mesh capability, and centralized management tools are all designed to reduce the friction that comes from overloaded, hard-to-manage wireless environments. So instead of constantly reacting to coverage complaints or patching around performance gaps, you get a cleaner path to stable, scalable connectivity that feels easier to live with day to day.
It also helps you avoid the installation headaches that come from inflexible hardware. With PoE, included mounts, and both ceiling and wall placement options, it is easier to deploy where it will perform best instead of where power happens to be available. And when growth happens, cloud and app-based management plus self-organizing network support help you expand with more control and less guesswork.
Key Product Details
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Lysora L7Lite Wi-Fi 7 BE3600 Dual-Band Ceiling Mount Access Point
The Lysora L7Lite is a Wi-Fi 7 BE3600 dual-band ceiling mount access point built for fast, stable wireless coverage in demanding indoor environments. With up to 140 m² (1,500 ft²) of coverage, support for 100+ clients, a 2.5GbE RJ45 port, and both PoE and 12V DC power options, it is designed to make deployment easier while giving users stronger performance where it matters most. It also supports advanced features like Multi-Link Operation (MLO), wireless meshing, band steering, and Lysora Cloud/App management for simpler network control.
Ideal applications / common uses: office ceilings, retail spaces, hospitality environments, classrooms, multi-room business interiors, and other indoor areas that need modern dual-band Wi-Fi with centralized management. Note: these uses are inferred from the product type and mounting style; the PDF does not list a dedicated “ideal applications” section.
Key Features
- Wi-Fi 7 BE3600 dual-band performance — helps deliver faster wireless speeds and better responsiveness for modern devices.
- 2.5GbE RJ45 uplink — gives your network more headroom, so the access point is less likely to be bottlenecked by the wired connection.
- 100+ client support — better suited for busier environments where many users connect at once.
- 140 m² (1,500 ft²) coverage area — useful for covering larger indoor spaces with fewer placement headaches.
- Ceiling or wall mounting with mounts included — makes installation more flexible right out of the box.
- PoE support — simplifies installation by reducing extra power cabling needs.
- Wireless meshing, VLAN, roaming, and cloud/app management — helps build and manage a more scalable wireless network with less manual effort.
Overview
Hardware / Networking
5 GHz: IEEE 802.11 a/n/ac/ax/be
5 GHz: 2 x 2 MU-MIMO
5 GHz: 20/40/80/160 MHz
5 GHz: 2882 Mbps
5 GHz: 4.44 dBi
5 GHz: 25 dBm
DC (12 V, 1.5A), DC Power Adapter Is Not Included
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO–OFDM: BPSK, QPSK, 16–QAM, 64–QAM, 256– QAM, 1024–QAM, and 4096–QAM OFDMA
11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps)
11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15)
11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9)
11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9)
11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9)
11ac: 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9)
11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11)
11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11)
11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11)
11ax: 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11)
11be: 20 MHz: –85 dBm (MCS0), –52 dBm (MCS13)
11be: 40 MHz: –82 dBm (MCS0), –49 dBm (MCS13)
11be: 80 MHz: –82 dBm (MCS0), –46 dBm (MCS13)
11be: 160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)
Environment
Software / Working Mode
Software / WLAN
Software / Roaming
Software / Security & Network Tools
Software / Routing & Portal
Management and Maintenance
Compliance and Standard
EN 301 893
EN 300 440
EN 55035
EN 61000-3-3
EN 61000-3-2
EN 301489-1
EN 301489-3
EN 301489-17
Operating Frequency
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz
5150 - 5725 MHz
5925 - 7125 MHz
Accessories Found in PDF
- Mounts Included
- Mounting bracket is referenced in the dimensions note
- DC Power Adapter is not included
Downloads
Frequently Asked Questions
The L7Lite supports the latest Wi-Fi 7 (802.11be) standard, along with backward compatibility for IEEE 802.11 a/b/g/n/ac/ax. This means it can work seamlessly with both older and newer devices without forcing upgrades across your network. Wi-Fi 7 also introduces higher efficiency and advanced modulation like 4096-QAM, which helps improve overall speed and performance. For you, that translates into faster connections, lower latency, and a smoother experience even in busy environments.
According to the datasheet, the L7Lite is designed to cover up to 140 m² (1,500 ft²). This makes it suitable for medium-sized indoor spaces such as offices, retail stores, or classrooms. The coverage is optimized through its antenna design and beamforming capabilities, helping signal strength reach more evenly across the space. In practical terms, this reduces dead zones and ensures users stay connected without interruptions.
The L7Lite supports 100+ simultaneous client connections, making it ideal for environments with multiple users and devices. This includes smartphones, laptops, tablets, and IoT devices all connecting at the same time. Combined with MU-MIMO and OFDMA technologies, the device distributes bandwidth efficiently across connected clients. For you, this means fewer slowdowns during peak usage times and more consistent performance for everyone on the network.
Yes, the L7Lite supports PoE as a primary power method, allowing both power and data to be delivered through a single Ethernet cable. This simplifies installation, especially for ceiling or wall-mounted deployments where running separate power lines can be difficult. It also supports a 12V DC input, though the DC power adapter is not included. For installers, this flexibility reduces setup complexity and overall installation time.
The device includes one 2.5GbE RJ45 port, which provides higher bandwidth compared to standard Gigabit Ethernet. This ensures the wired uplink does not bottleneck the high wireless speeds offered by Wi-Fi 7. It’s particularly useful in high-traffic environments where multiple users are consuming large amounts of data. For you, this means the access point can actually deliver the performance it’s designed for without being limited by the wired connection.
Yes, the L7Lite supports both ceiling and wall mounting, and mounting hardware is included. This gives you flexibility in placement depending on your environment and coverage needs. Ceiling mounting is often preferred for optimal signal distribution, but wall mounting can be useful in certain layouts. Having both options helps ensure you can position the access point where it performs best.
The L7Lite delivers up to 688 Mbps on the 2.4 GHz band and up to 2882 Mbps on the 5 GHz band. These speeds are supported by advanced channel bandwidths, including up to 160 MHz on 5 GHz. With Wi-Fi 7 enhancements like 4K-QAM and Multi-Link Operation (MLO), the device is built to maximize throughput efficiency. For users, this means faster downloads, smoother streaming, and better performance for bandwidth-heavy applications.
Yes, the L7Lite includes wireless meshing capabilities, allowing multiple access points to work together as a unified network. This helps extend coverage across larger areas without requiring additional wired connections between each unit. Mesh networking also improves reliability, as devices can dynamically route traffic through the strongest available connection. For you, this means easier network expansion and more consistent connectivity throughout your space.
The L7Lite supports multiple security protocols including WPA, WPA2, WPA3-SAE, and 802.1X authentication. It also includes features like client device isolation and VLAN support to help segment and protect network traffic. These tools are essential for maintaining a secure wireless environment, especially in business or public-facing deployments. For you, this means better protection against unauthorized access and improved control over your network.
The device can be managed locally via a web interface or remotely using the Lysora app and cloud platform. It also supports SNMP and centralized management for multiple access points, including up to 300 APs in a self-organizing network. This makes it easier to monitor performance, adjust settings, and optimize your network from anywhere. For you, that means less time troubleshooting and more control over your entire wireless system.
