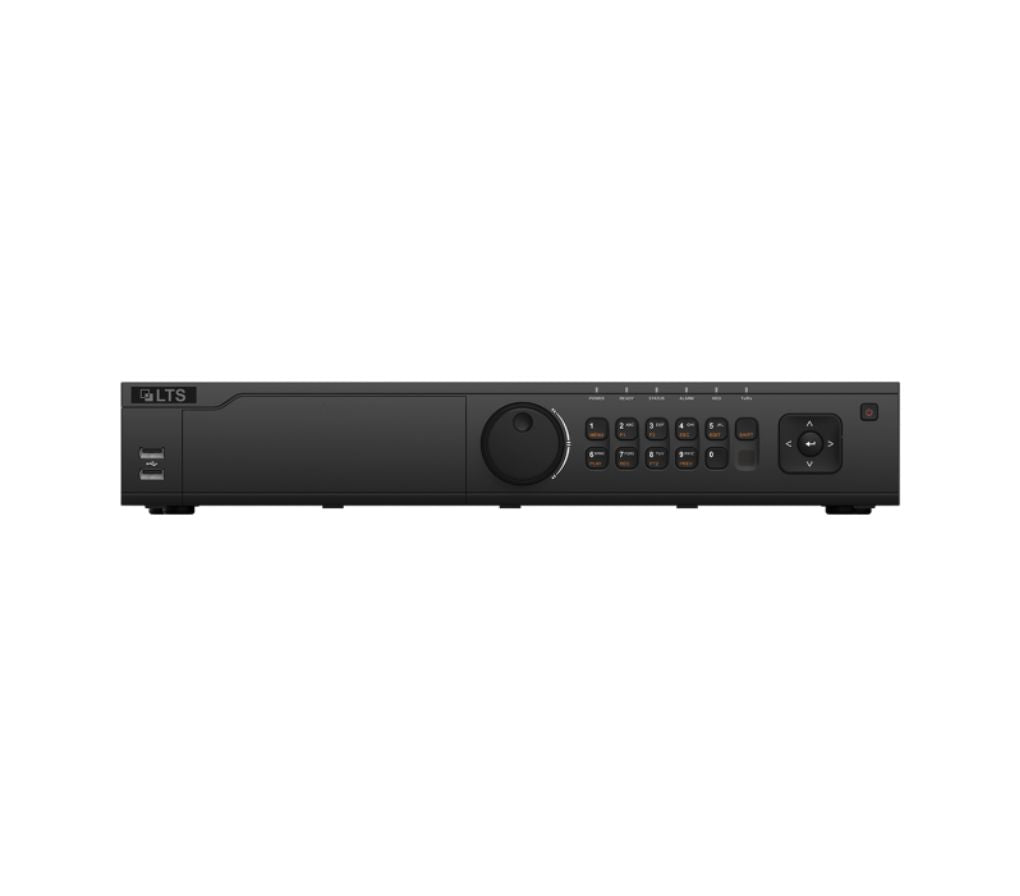

The LTD8432M-EA supports 32 analog video inputs, which is why buyers usually consider it for larger surveillance systems instead of smaller 8- or 16-channel setups. The datasheet also says it supports 16 IP channels by default and can be adjusted up to 48 IP channels, with IP cameras up to 6 MP resolution. That matters because many buyers are trying to protect a larger property now while still keeping room for future IP expansion later. For warehouses, offices, schools, retail sites, and multi-zone businesses, that flexibility is one of the strongest reasons this recorder stands out.

The recorder supports multiple video inputs, including HDTVI, AHD, HDCVI, CVBS, and IP cameras. The datasheet lists HDTVI input at 4 MP, 1080p, and 720p modes, AHD input at 4 MP, 1080p, and 720p, HDCVI input at 1080p and 720p, and PAL/NTSC CVBS input. Buyers ask this often because compatibility is one of the first concerns when upgrading an existing analog system and trying to avoid replacing every camera at once. In real-world use, this broad support makes the LTD8432M-EA much easier to fit into mixed-camera environments and phased upgrade projects.

According to the datasheet, the LTD8432M-EA supports all-channel recording at up to 4 MP Lite resolution and up to 1080p at 15 fps encoding capability. The frame-rate table shows 4 MP Lite at 15 fps, 1080p or 720p at 15 fps in certain stream modes, and WD1, 4CIF, or CIF up to 25 fps or 30 fps depending on PAL or NTSC. This is a common buyer question because people want to understand the real recording performance, not just the highest signal type the DVR accepts. That matters most when image smoothness and playback quality are important parts of the buying decision.

Yes. The LTD8432M-EA supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 compression formats. The spec sheet also says H.265 Pro+ improves encoding efficiency and reduces data storage costs, which is one of the main reasons buyers compare this recorder against older DVRs. That matters because compression has a direct effect on how long footage can be kept before storage fills up. For a 32-channel system, better compression can make a meaningful difference in retention planning and operating cost.

The recorder includes 4 SATA interfaces and supports eSATA, which is one of the major reasons it is positioned as a four-drive DVR. The datasheet states it supports up to 12 TB capacity for each disk, giving it much more storage headroom than basic single-drive or dual-drive recorders. This is one of the most common buyer questions because storage size directly affects retention time, especially in a 32-channel system. For users who need longer recording history, the storage side of this model is one of its biggest advantages.

Yes. The datasheet lists HDMI 2 output up to 4K at 3840 × 2160 at 30 Hz, while HDMI 1 and VGA support up to 1920 × 1080 at 60 Hz. It also states that HDMI1 and VGA can work in simultaneous output mode, while HDMI2 and VGA can work in independent output mode. Buyers ask this because local display flexibility matters a lot in larger systems where operators may want multiple screens or a higher-resolution main monitor. That makes this recorder more practical for control desks, back offices, and surveillance stations.

Yes. The product materials specifically list POS triggered recording and POS information overlay as supported features. This is one of the most relevant buyer questions for retail users because it tells them whether transaction activity can be tied to video during live view or playback. That can make investigations much easier when a manager needs to review a specific register event or exception. For stores and checkout environments, this feature is one of the clearest reasons to choose this DVR over a simpler recorder.

The datasheet lists synchronous playback for 16 channels. The feature summary also notes 16 channels of 1080p at 30 fps decoding capability, which helps explain why this DVR is designed for larger multi-camera review tasks. Buyers ask this often because recording footage is only part of the job; they also want to know how quickly they can investigate an incident across several camera angles. In practical terms, 16-channel playback makes this recorder much more useful when reviewing events across a wide site.

Yes. The LTD8432M-EA supports LTS Connect and DDNS for easier network management, and the datasheet lists two Gigabit LAN ports plus support for TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, and SNMP. It also supports up to 128 remote connections, which is an important detail for larger systems with multiple users. Buyers ask this constantly because remote access is now an expected part of professional surveillance workflows. For day-to-day use, this makes the DVR much easier to monitor and manage without staying tied to the recorder location.

The provided spec sheet confirms the recorder’s storage capacity and drive interfaces, but it does not say that hard drives are included. It clearly lists support for four drives at up to 12 TB each and eSATA expansion, but package contents are not included in the PDF. This is a very common buyer question because many users assume a DVR is ready to record immediately, when storage often depends on the exact bundle being sold. The safest answer is that the recorder’s storage support is clearly defined, but included hard drives should be confirmed from the seller before purchase.
