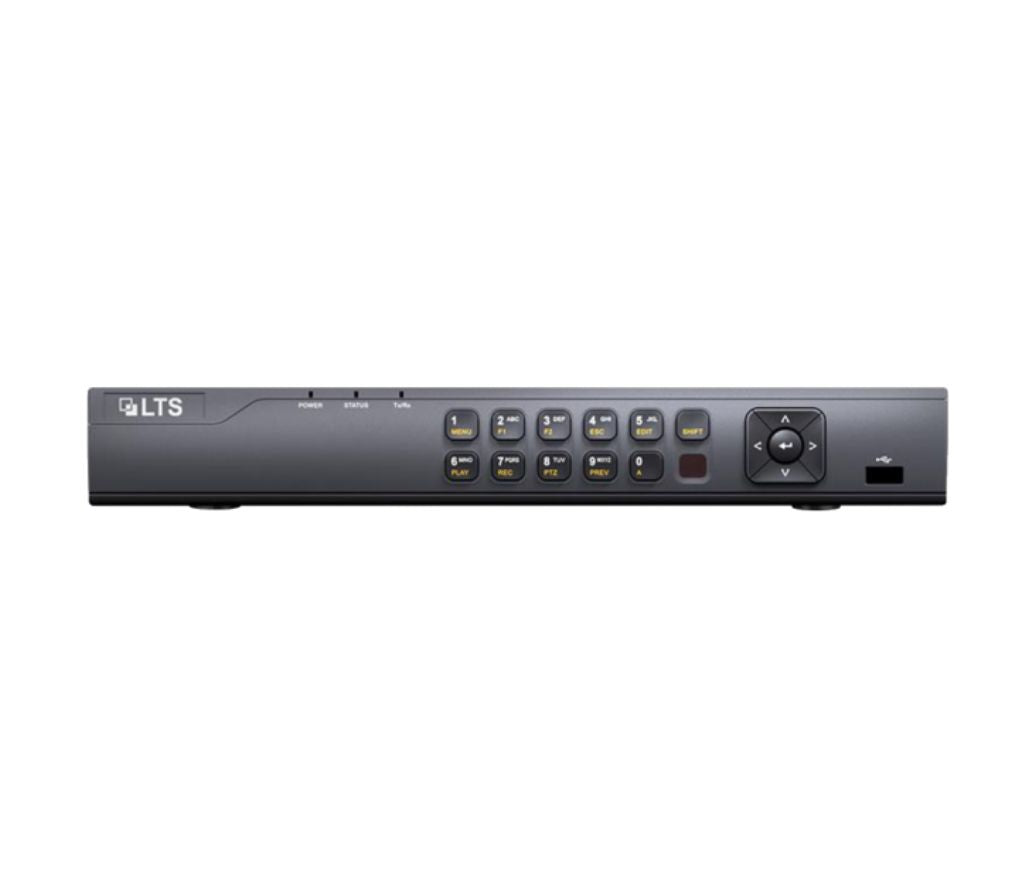

LTS LTD8504M-ST Platinum Turbo Smart DVR
If you want to upgrade an older camera system without replacing every camera, the LTS LTD8504M-ST was built for exactly that situation. This smart DVR lets you keep compatible analog cameras while adding advanced analytics, IP camera expansion, better compression, and modern remote access. Whether you're protecting a home, retail store, office, warehouse, or small commercial property, it helps you get more value from your current system while preparing for future growth. Instead of starting over, you can upgrade intelligently and protect your budget at the same time.
Why Buyers Choose This Model
What This Helps You Avoid
Many buyers assume upgrading security means replacing every camera, rewiring the property, and spending far more than expected. Others keep outdated recorders and deal with false alarms, poor storage efficiency, and limited remote access every day. The LTD8504M-ST helps you avoid both problems by combining legacy camera support with smart analytics, better compression, IP expansion, and modern remote tools in one practical recorder. Instead of wasting money or staying stuck with old limitations, you get a smarter path forward that improves security now and keeps future options open.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
LTS LTD8504M-ST Platinum Turbo Smart DVR
The LTS LTD8504M-ST is a Platinum Turbo Smart DVR designed for users who want to keep existing analog cameras in service while adding smart analytics, flexible camera support, and modern remote access. With deep learning-based motion detection 2.0, perimeter protection, support for multiple analog video formats, and the ability to add up to 8 IP cameras, it gives smaller surveillance systems more room to grow without forcing a full replacement. This model fits well in homes, retail stores, offices, small commercial sites, and mixed analog-plus-IP upgrades where efficient playback, audio over coax, and flexible connectivity matter. If you need a DVR that helps bridge older coax systems with newer smart security features, this model is built for that job.
Ideal Applications
- Upgrading older analog surveillance systems without replacing every camera
- Small businesses and retail stores needing smart event filtering and efficient playback
- Homes and offices using coax-based cameras with room to add IP channels later
- Mixed analog and IP camera installations that need broad video input compatibility
- Sites that benefit from audio over coax, smart search, and remote viewing through LTS Connect
These applications are based on the DVR’s 4 analog inputs, support for HDTVI, AHD, HDCVI, and CVBS sources, enhanced IP mode up to 8 channels, deep learning analytics, audio via coaxial cable, and network management features listed in the datasheet.
Common Uses
- Recording up to 4 analog cameras while expanding with IP channels as needed
- Reducing false alarms with human and vehicle classification on analog channels
- Using line crossing and intrusion detection for perimeter monitoring
- Reviewing footage faster with smart search and quick search by object or event type
- Connecting to a Wi-Fi network through a USB Wi-Fi dongle
- Managing remote viewing and network access through LTS Connect and DDNS
- Using audio over coax to simplify audio support on compatible analog channels
These common uses come directly from the key features and specification sections across pages 1 to 3 of the PDF.
Key Features
Buyer-Focused Summary
This DVR is designed for buyers who want smarter event detection and better storage efficiency without walking away from their current coax camera setup. It blends deep learning analytics, broad analog compatibility, IP expansion, audio support, and practical remote management into a single recorder that helps older systems feel more current. For users trying to get more life, more functionality, and more control out of an existing surveillance setup, it offers a very practical upgrade path.
Model
Motion Detection 2.0
Perimeter Protection
Recording
*8 MP @ 8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Sub-stream: WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
Video and Audio
Enhanced IP mode on: 4 channels (up to 8-ch), each up to 4 Mbps
Up to 8 MP resolution
Supports H.265+ / H.265 / H.264+ / H.264 IP cameras
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI / VGA simultaneous output
HDMI / VGA simultaneous output
4 ch via coaxial cable
Network
Auxiliary Interface
Rear panel: 1 × USB 2.0
General
Physical Interface
Important Notes
Accessories Found in the PDF
No bundled accessories are explicitly listed in the datasheet. The document identifies rear-panel interfaces and mentions compatibility with major Wi-Fi dongle products, but it does not provide a package contents list or name included accessories.
Downloads
Frequently Asked Questions
The LTD8504M-ST has 4 analog video input channels through BNC connections. The datasheet also says it supports IP camera expansion, starting with 2 IP channels and going up to 6, or up to 8 channels total when Enhanced IP mode is enabled. It supports IP cameras up to 8 MP resolution, with each enhanced IP channel supporting up to 4 Mbps. That gives buyers a flexible upgrade path if they want to keep analog cameras now and add IP cameras later.
Yes, the datasheet says deep learning-based motion detection 2.0 is enabled by default for all analog channels. It can classify humans and vehicles, which helps reduce false alarms caused by things like leaves, animals, and lights. The same section also says quick search by object or event type is supported, which can make playback review much faster. For buyers tired of constant nuisance alerts, this is one of the strongest features of this recorder.
Yes, the key features section specifically lists deep learning-based perimeter protection. It also says the smart functions include line crossing and intrusion detection. In the detailed specifications, perimeter protection with human and vehicle analysis is supported on up to 4 channels. That makes the unit useful for users who want more than simple recording and need smarter event-based monitoring.
This model supports multiple analog video formats, which is one of its main advantages for upgrade projects. The datasheet lists HDTVI, AHD, HDCVI, and CVBS input support, along with IP camera support using H.265+, H.265, H.264+, and H.264. That means it can work in mixed-camera environments where not every camera is the same type. For buyers replacing an older recorder, that flexibility can make the transition much easier.
Yes, the datasheet lists audio via coaxial cable as a key feature. In the specifications, audio input is shown as 1 RCA channel plus 4 channels via coaxial cable. It also includes 1 RCA audio output and 1-channel two-way audio using the audio input. That gives users more flexibility when audio is part of the surveillance setup.
The DVR supports video compression formats from H.264 up to H.265 Pro+, according to both the key features and the recording specifications. The datasheet also says H.265 Pro+ improves encoding efficiency and reduces data storage costs. For recording resolution, it supports up to 8 MP, with 8 MP at 8 fps available on channel 1 and 8 MP Lite at 15 fps on channels 2 through 4. That gives users a mix of higher resolution support and more efficient storage use.
The LTD8504M-ST includes 1 SATA interface for hard drive installation. The datasheet states it supports up to 10 TB storage capacity for each disk. Since this is a single-drive unit, buyers should plan their retention needs around one installed HDD. For many small systems, that still provides substantial recording capacity when paired with efficient H.265 Pro+ compression.
Yes, the datasheet lists LTS Connect and DDNS for easy network management, which supports remote access use. It also says the unit can connect to a Wi-Fi network by using a Wi-Fi dongle through the USB interface. On the network side, it supports protocols including TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF. That gives buyers several options for network integration and remote connectivity.
The recorder provides both HDMI and VGA outputs, and the datasheet says they can operate simultaneously. HDMI output supports up to 2K at 2560 × 1440 at 60 Hz, while VGA supports up to 1920 × 1080 at 60 Hz. The unit also supports 4-channel synchronous playback and smart search for efficient playback. That combination helps users review footage locally with better flexibility and less wasted time.
Yes, the datasheet includes two important notes. First, motion detection 2.0 and perimeter protection cannot be enabled at the same time, so enabling one makes the other unavailable. Second, Enhanced IP mode may conflict with smart events such as face picture comparison, motion detection 2.0, and perimeter protection, and the datasheet says to refer to the user manual for details. Those notes are important because they affect how you plan features in mixed analog and IP setups.
