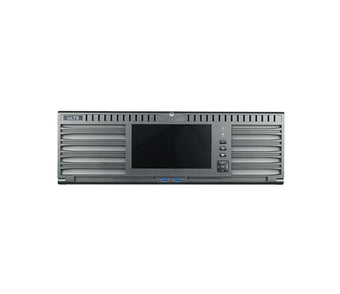

LTN07256-R16 Lts 256ch IP PoE Recorder w/ HDD Platinum 256-Channel Enterprise
LTN07256-R16 Lts 256ch IP PoE Recorder w/ HDD Platinum 256-Channel Enterprise
Out of stock
Description
Description

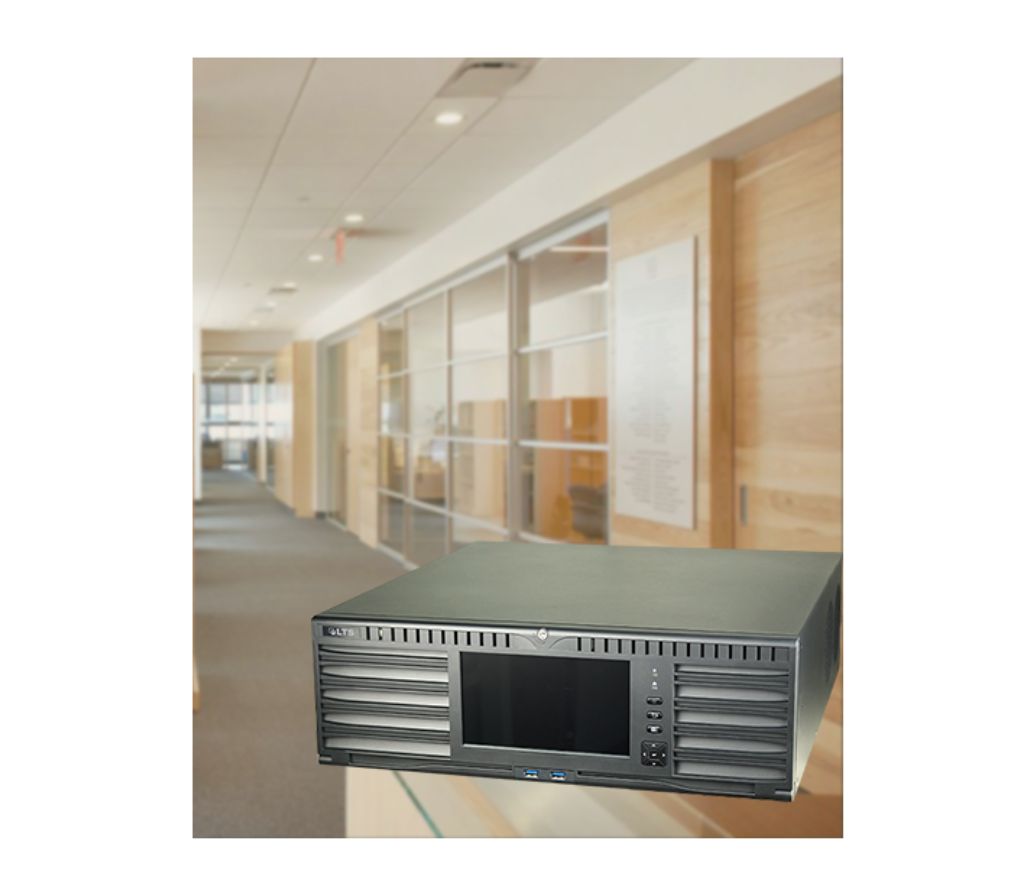

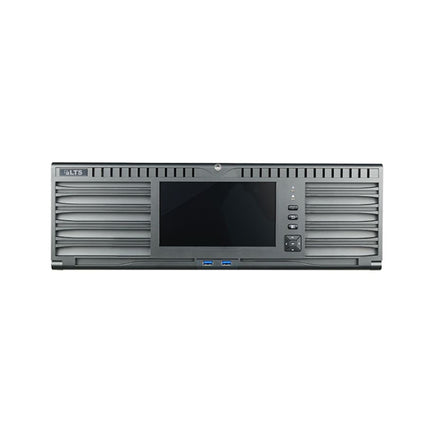

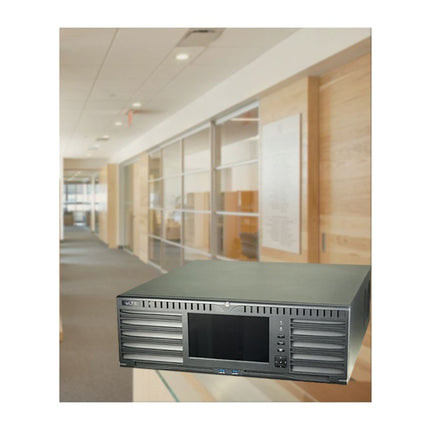

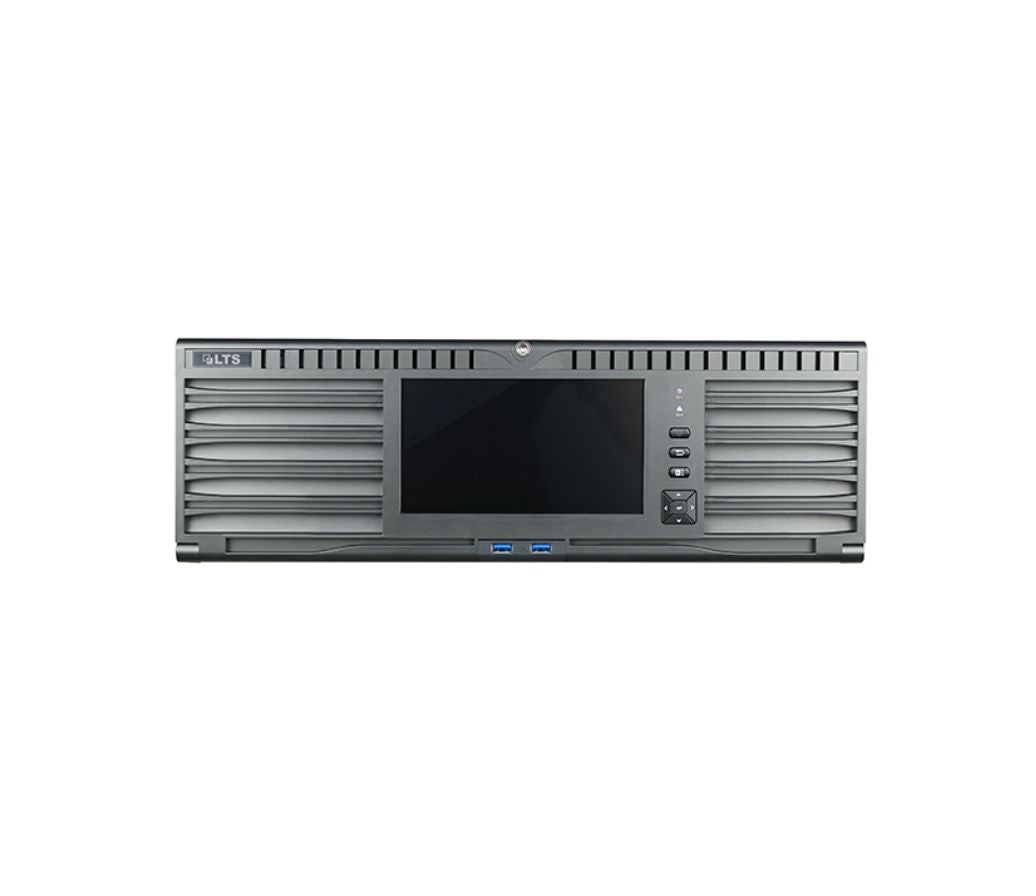

LTS LTN07256-R16 Platinum Enterprise 256-Channel NVR
When you're responsible for hundreds of cameras, the recorder behind the system can determine whether surveillance stays manageable or becomes a constant bottleneck. The LTS LTN07256-R16 is an enterprise-level 3U NVR built to centralize as many as 256 IP cameras while supporting recording, live viewing, and playback at resolutions up to 12 MP.
With 768 Mbps incoming and outgoing bandwidth, extensive RAID storage options, hot-swappable drives, 4K monitoring, and four Gigabit network interfaces, it gives large surveillance systems the infrastructure they need to grow without constantly replacing the recorder.
For facilities where downtime, limited storage, or insufficient channel capacity can create serious operational headaches, this model provides the scalability and storage flexibility expected from an enterprise surveillance platform.
Why Buyers Choose This Model
The question with a large surveillance system isn't simply, “How many cameras can I connect today?” It's whether the recorder can continue supporting the system as camera counts, resolution, storage requirements, and monitoring demands increase.
The LTN07256-R16 combines massive channel capacity, high bandwidth, flexible storage, RAID protection, and professional display capabilities in a single rack-mounted platform—helping reduce the need to manage multiple smaller recorders as the installation grows.
Key Features & Buyer Benefits
256 IP Camera Channels — Manage Large Systems From One Recorder
Connect up to 256 network cameras to one NVR. Instead of dividing a large property across numerous smaller recording systems, you can centralize surveillance management and create a cleaner, more scalable infrastructure.
Up to 12 MP Recording — Preserve the Detail Your Cameras Capture
Supporting live view, storage, and playback at resolutions up to 12 megapixels means your recorder is designed to handle high-resolution surveillance cameras without forcing you to build the system around lower-resolution limitations.
768 Mbps Bandwidth — Built for Heavy Video Traffic
With up to 768 Mbps incoming and 768 Mbps outgoing bandwidth, the recorder is equipped for the substantial network traffic generated by large numbers of IP cameras. That gives system designers significantly more room to build demanding multi-camera installations.
16 SATA Drive Bays — Build Storage Around Your Retention Requirements
The recorder supports up to 16 SATA hard drives, with the provided datasheet specifying support for drives up to 8 TB each. This allows storage capacity to be configured around the number of cameras, recording resolution, and desired retention period rather than being limited by a small number of drive bays.
Hot-Swappable HDDs — Easier Storage Maintenance
Hot-swappable drive support makes managing a large surveillance storage array more practical. When storage maintenance becomes necessary, technicians have greater flexibility to service the system without treating every drive change like a major recorder teardown.
RAID 0, 1, 5, 6 & 10 — More Control Over Storage Strategy
Different surveillance environments have different priorities. Support for RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 gives system designers multiple ways to balance usable capacity, performance, and storage redundancy depending on the installation.
4K Video Output — See More on High-Resolution Displays
Video output reaches up to 4096 × 2160 4K resolution, allowing security personnel to take advantage of high-resolution monitors when reviewing multi-camera layouts and detailed surveillance footage.
Multiple Display Outputs — Better Control-Room Flexibility
HDMI1 and VGA can operate as the main output while HDMI2 serves as an auxiliary output. This gives monitoring stations additional flexibility when information needs to be presented across more than one display.
Video Wall Management — Designed for Serious Monitoring Environments
Dedicated video-wall functionality includes collage, auto-switching, open windows, layer overlay, window roaming, and display of local signal sources. For control rooms and larger monitoring centers, this provides more flexibility in how live surveillance information is arranged and presented.
48-Channel 1080p Video Wall Decoding — Display More Simultaneously
The video-wall section of the recorder supports decoding of up to 48 channels at 1080p, making it better suited to environments where operators need visibility across many camera feeds rather than monitoring only a handful of channels at a time.
Four Gigabit Ethernet Interfaces — More Network Connectivity
Four 10/100/1000 Mbps RJ45 Ethernet interfaces provide the network connectivity expected from an enterprise recorder and give system designers greater flexibility when integrating the NVR into a large surveillance network.
Broad Camera Compatibility — More Freedom When Designing the System
Support includes ONVIF 2.5 along with protocols and integrations for numerous camera manufacturers. This can make the recorder especially useful for larger or mixed-camera installations where equipment may not all come from a single manufacturer.
Modern Video Compression Support — Use Storage More Efficiently
Support for H.265+, H.265, H.264+, H.264 and additional decoding formats gives the system flexibility to work with different camera streams and compression technologies, helping installers optimize video delivery and storage requirements.
16-Channel Synchronous Playback — Investigate Events From Multiple Angles
Review as many as 16 recorded channels simultaneously. When an incident moves through multiple areas, synchronized playback can make it easier to understand what happened across different camera views.
16 Alarm Inputs / 8 Alarm Outputs — Integrate More Than Just Cameras
Physical alarm inputs and outputs allow the recorder to become part of a broader security environment, providing additional integration options for compatible alarm and control devices.
3U Rack-Mount Chassis — Built for Professional Equipment Rooms
The 19-inch rack-mounted 3U chassis fits naturally into professional server and security equipment racks, helping keep enterprise installations organized and easier to service.
What This Helps You Avoid
Imagine building a surveillance system that works perfectly at first, only to discover later that adding cameras means adding another recorder, another management interface, another monitor configuration, and another storage system.
Or imagine installing high-resolution cameras and then realizing that the recorder's bandwidth, decoding capacity, or storage architecture has become the weak point of the entire system.
- Running out of camera channels as the property expands.
- Managing multiple smaller NVRs when one centralized platform could handle the deployment.
- Being restricted by a recorder with only a few internal hard-drive bays.
- Building a large storage system without RAID configuration options.
- Replacing a recorder because higher-resolution cameras exceed its capabilities.
- Limited display options in control rooms and monitoring centers.
- Difficulty reviewing an incident across multiple camera angles.
- Compatibility limitations when working with a mixed IP-camera environment.
The LTS LTN07256-R16 approaches the problem from the opposite direction: start with an enterprise platform capable of supporting hundreds of cameras, substantial network traffic, extensive storage, RAID configurations, and professional monitoring outputs. That gives you room to design the surveillance system around what the property actually needs instead of designing around the limitations of the recorder.
Ideal For
- Enterprise surveillance systems
- Large commercial properties
- Multi-building camera systems
- Corporate campuses
- Warehouses and distribution facilities
- Security command centers
- Control-room and video-wall installations
- Large mixed-brand IP camera deployments
- Applications requiring extensive local video storage
- Projects where future camera expansion is expected
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
LTS LTN07256-R16 Platinum Enterprise Level 256-Channel NVR 3U
The LTS LTN07256-R16 is a high-capacity enterprise network video recorder designed for large-scale surveillance systems requiring centralized management of up to 256 network cameras. It supports live viewing, recording, and playback at resolutions up to 12 MP, provides up to 768 Mbps incoming and outgoing bandwidth, and supports 4K video output for high-resolution monitoring. With 16 hot-swappable SATA drive bays, RAID protection, multiple Gigabit Ethernet interfaces, extensive alarm connectivity, and dedicated video-wall capabilities, it is built for demanding professional security installations.
Key Features
- Supports up to 256 network cameras.
- Live view, storage, and playback at up to 12 MP resolution.
- Up to 768 Mbps incoming / 768 Mbps outgoing bandwidth.
- Simultaneous HDMI1 / VGA main output with HDMI2 auxiliary output.
- Video output resolutions up to 4K / 4096 × 2160.
- Supports HDD quota and group mode.
- Supports up to 16 SATA hard drives.
- Up to 8 TB capacity per HDD.
- Hot-swappable HDD support.
- Supports RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10.
- H.265+, H.265, H.264+, H.264, Zip+, MPEG4, and MJPEG decoding.
- Up to 16-channel synchronous playback.
- Four Gigabit RJ45 network interfaces.
- 16 alarm inputs and 8 alarm outputs.
- Dedicated video-wall management capabilities.
Video / Audio Input
Audio / Video Output
Video & Audio Decoding
Storage
RAID
Network Management
External Interfaces

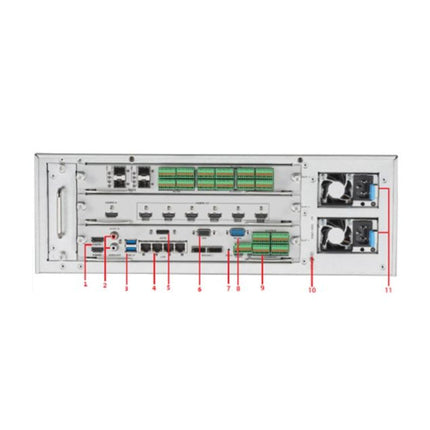

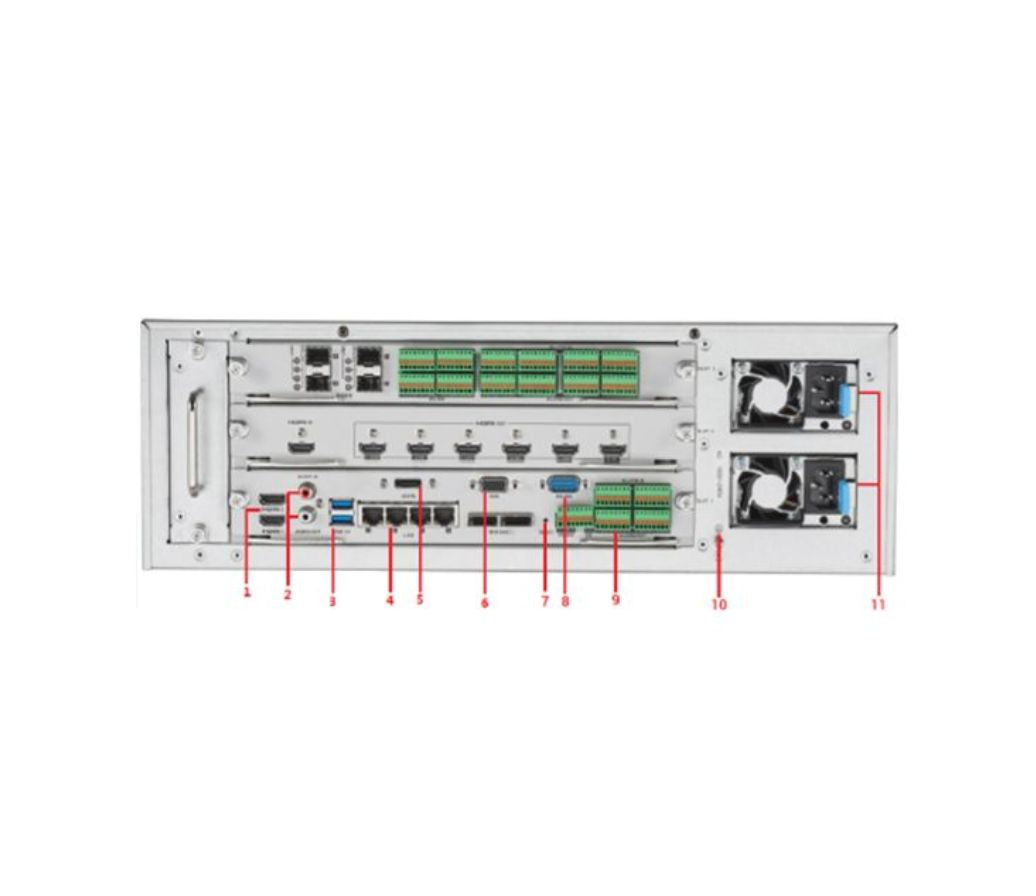

Rear Panel Connections
General
Video Wall Management
Accessories Found
Ideal Applications & Common Uses
- Large multi-camera IP surveillance systems.
- Enterprise security deployments requiring up to 256 network cameras.
- Control rooms and security monitoring centers.
- Video-wall surveillance environments.
- High-resolution surveillance systems using cameras up to 12 MP.
- Large local-storage deployments requiring up to 16 HDDs.
- Applications requiring RAID storage protection and hot-swappable drives.
- Systems requiring extensive alarm input/output integration.
- Multi-brand IP camera deployments using ONVIF and other supported protocols.
Downloads
Frequently Asked Questions
The LTN07256-R16 supports up to 256 IP network cameras, making it suitable for large-scale and enterprise surveillance systems.
The NVR supports live viewing, storage, and playback of connected cameras at resolutions up to 12 MP.
The recorder supports up to 768 Mbps incoming bandwidth and 768 Mbps outgoing bandwidth. The datasheet also specifies 768 / 768 Mbps operation in RAID mode.
The LTN07256-R16 has 16 SATA interfaces and supports up to 16 hard drives. According to the provided datasheet, each HDD can have a capacity of up to 8 TB.
Yes. The recorder supports RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 configurations for flexible storage management and redundancy options.
Yes. The 16 SATA interfaces support HDD hot-swapping, allowing supported drives to be removed or replaced without requiring the recorder to be powered down first.
Yes. The recorder has two independent HDMI outputs and supports video output resolutions up to 4K, including 4096 × 2160 and 3840 × 2160.
The NVR supports H.265+, H.265, H.264+, H.264, Zip+, MPEG4, and MJPEG decoding formats.
Yes. The datasheet lists support for LTS, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF Version 2.5, PANASONIC, PELCO, PSIA, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO, and HIKVISION.
The recorder includes four RJ45 10/100/1000 Mbps self-adaptive Ethernet interfaces, 16 alarm inputs, and 8 alarm outputs. It also includes RS-485, USB, audio, HDMI, VGA, and other external interfaces for enterprise security integration.
