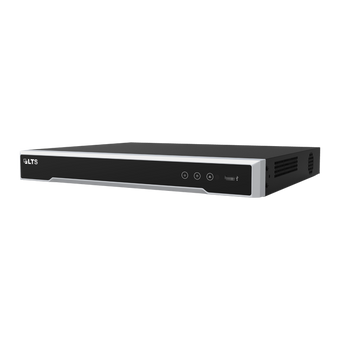

LTN8616-P16N Lts 16ch IP PoE Recorder w/ HDD <h1 Platinum 16-Channel 86 Series
LTN8616-P16N Lts 16ch IP PoE Recorder w/ HDD <h1 Platinum 16-Channel 86 Series
Out of stock
Description
Description

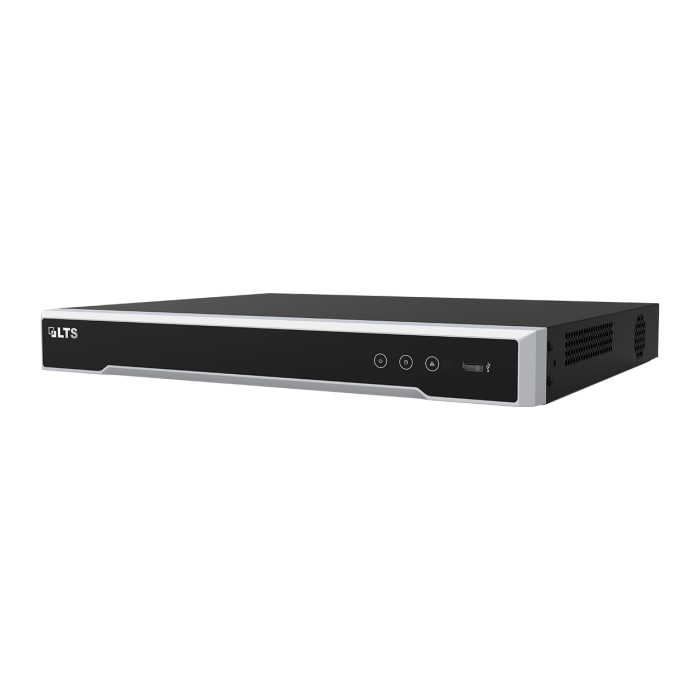

LTS LTN8616-P16N Platinum 86 Series 16-Channel PoE 8K NVR
What happens when your surveillance system grows, but the recorder becomes the part holding everything back? The LTS LTN8616-P16N is built for installations that need room for up to 16 IP cameras, high-resolution recording up to 32 MP, and the bandwidth to handle demanding video streams.
With 16 built-in PoE ports, 256 Mbps incoming bandwidth, 8K HDMI output, and up to 28 TB of supported storage across two drives, it gives you a powerful foundation without forcing you to piece together a complicated recording solution.
Add H.265+ compression, 16-channel synchronous playback, smart-event support, POS integration, and secure streaming, and you have an NVR designed not just to record video—but to make a larger surveillance system easier to manage and review.
Why Buyers Choose the LTN8616-P16N
A security system is only as useful as your ability to reliably record, find, and review what happened. Buyers choose the LTN8616-P16N when they want the capacity for a larger camera system without sacrificing high-resolution recording, storage flexibility, or convenient PoE connectivity.
16 IP Camera Channels — Build a Complete Surveillance System
Connect and manage up to 16 IP cameras from one recorder, giving you the flexibility to cover entrances, parking areas, hallways, offices, warehouses, perimeter areas, and other important locations without needing multiple recorders.
16 Built-In PoE Ports — Simplify Camera Installation
With 16 independent PoE network interfaces, compatible cameras can receive network connectivity and power through their Ethernet connection. That means a cleaner, more centralized installation instead of building the system around separate power connections for every camera.
Up to 32 MP Recording Support — Protect the Detail You Paid For
Installing high-resolution cameras only makes sense if your recorder can support them. The LTN8616-P16N supports recording resolutions up to 32 MP, giving you room to use high-resolution cameras without immediately outgrowing your NVR.
256 Mbps Incoming Bandwidth — Built for Demanding Multi-Camera Systems
With up to 256 Mbps of incoming bandwidth, the recorder is designed to handle substantial video traffic from multiple IP cameras. This gives larger surveillance installations the bandwidth foundation needed to support multiple high-resolution streams.
8K HDMI Output — Get More From a High-Resolution Display
HDMI output supports up to 8K (7680 × 4320) at 30 Hz, along with 4K, 2K, 1080p, and other resolutions. When detailed monitoring matters, you have the output capability to take advantage of a high-resolution display instead of limiting the system at the recorder.
H.265+ Compression — Store More Without Wasting Space
High-resolution surveillance video can consume storage quickly. LTS states that H.265+ compression can reduce required storage space by up to 75%, helping you make more efficient use of your hard drives while maintaining a high-resolution surveillance system.
Up to 28 TB Storage Capacity — Keep More Recorded Video
The recorder includes two SATA interfaces supporting up to 14 TB per HDD. With two maximum-capacity compatible drives, that provides up to 28 TB of total supported storage capacity—giving you substantial room for continuous surveillance footage.
16-Channel Synchronous Playback — Review the Bigger Picture
Instead of reviewing one camera at a time and wondering what happened elsewhere, the NVR supports 16-channel synchronous playback. This makes it easier to follow an incident across multiple camera views and understand the sequence of events.
High Multi-Channel Decoding Capacity — Monitor More at Once
The recorder supports decoding of up to 8 channels at 8 MP/25 fps or 16 channels at 4 MP/30 fps. That gives you practical multi-camera viewing capability for control rooms, businesses, and larger residential systems.
Dual-Stream Recording — Use Bandwidth More Efficiently
Dual-stream recording helps reduce unnecessary bandwidth usage by allowing the surveillance system to work with different video streams for different purposes. The result is a more efficient way to manage a multi-camera network.
Smart Event Support — Make Surveillance More Actionable
The NVR supports multiple VCA events and configurable functions from compatible cameras including motion detection, line crossing, intrusion detection, heat mapping, and LPR. Instead of relying only on hours of ordinary recorded footage, compatible smart cameras can help create a more event-driven surveillance system.
POS Integration — Connect Transactions With Video
For retail and transaction-based environments, the recorder supports POS information overlay on live view and playback, along with POS-triggered recording and alarms. This can make it easier to associate surveillance footage with activity occurring at the point of sale.
Independent HDMI & VGA Outputs — More Flexible Monitoring
Independent HDMI and VGA output gives you greater flexibility when setting up displays and monitoring stations instead of restricting the recorder to a single video-output option.
Stream Over TLS Encryption — Add Security to Video Transmission
Surveillance footage can contain some of the most sensitive information on your property. The LTN8616-P16N supports stream over TLS encryption technology to provide more secure transmission of video streams.
Double Verification — Add Protection to Recorded Evidence
Support for double verification during playback and downloading gives the system another security-focused capability when accessing recorded footage.
Web Access Without a Plug-In — Easier Browser Access
The recorder supports web access without requiring a plug-in, reducing one of the common frustrations associated with accessing older surveillance platforms through a browser.
Up to 128 Remote Connections — Designed for Connected Environments
Support for up to 128 remote connections gives the NVR additional flexibility for environments where multiple authorized connections may need access to the surveillance system.
What This Helps You Avoid
Imagine investing in high-resolution cameras only to discover that your recorder cannot handle the number of cameras, resolution, bandwidth, or storage your system actually needs. Suddenly, expanding coverage means replacing equipment, compromising recording settings, or adding unnecessary complexity.
The LTN8616-P16N is designed to give you more room from the beginning: 16 camera channels, 16 PoE ports, 256 Mbps incoming bandwidth, recording support up to 32 MP, and two HDD bays supporting up to 14 TB each. Instead of designing your security system around the limitations of an undersized recorder, you can build around a platform intended for larger, higher-resolution installations.
And when something does happen, 16-channel synchronous playback and compatible smart-event functions can make reviewing an incident more practical than manually searching through isolated camera recordings. The goal is simple: less time fighting the limitations of your recorder and more confidence that your surveillance system is equipped to capture and manage the footage you installed it for.
Ideal For
- Large residential surveillance systems
- Retail stores and POS-integrated security systems
- Offices and commercial properties
- Warehouses and industrial facilities
- Parking areas and vehicle-monitoring applications
- Perimeter security systems using compatible VCA cameras
- High-resolution multi-camera surveillance installations
- Security rooms and centralized monitoring stations
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
LTS LTN8616-P16N Platinum 86 Series 16-Channel PoE 8K Network Video Recorder
The LTS LTN8616-P16N Platinum 86 Series NVR is a professional 16-channel network video recorder designed for high-resolution IP surveillance systems. With 16 built-in PoE camera connections, support for cameras up to 32 MP, up to 256 Mbps incoming bandwidth, and HDMI output up to 8K, it provides the performance needed for demanding residential and commercial security installations.
H.265+ compression can reduce storage requirements by up to 75%, while two SATA interfaces support hard drives up to 14 TB each. Advanced functions including VCA events, line crossing, intrusion detection, heat mapping, LPR support, POS integration, dual-stream recording, and 16-channel synchronous playback make this recorder suitable for systems that need more than basic video recording.
Key Features
- 16-channel IP camera support with camera resolutions up to 32 MP.
- 16 built-in PoE ports for direct IP camera connectivity.
- Up to 256 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth.
- Up to 8K HDMI video output at 7680 × 4320/30 Hz.
- H.265+, H.265, H.264+ and H.264 video compression support.
- H.265+ compression can reduce storage requirements by up to 75%.
- 8-ch @ 8 MP or 16-ch @ 4 MP decoding capability.
- 16-channel synchronous playback for reviewing multiple cameras simultaneously.
- Dual-stream recording to help reduce bandwidth requirements.
- Two SATA interfaces supporting up to 14 TB per hard drive.
- Independent HDMI and VGA outputs.
- Advanced VCA support including compatible camera functions such as motion, line crossing, intrusion, heat map and LPR.
- POS integration with information overlay on live view and playback plus POS-triggered recording and alarms.
- Stream over TLS encryption for more secure video-stream transmission.
- Double verification support for playback and downloading.
- Web access without a plug-in.
- 128 remote connections.
- 4 alarm inputs and 1 alarm output.
- IEEE 802.3af/at PoE support.
Video & Audio
4K (3840 × 2160)/60 Hz;
4K (3840 × 2160)/30 Hz;
2K (2560 × 1440)/60 Hz;
1920 × 1080/60 Hz;
1600 × 1200/60 Hz;
1280 × 1024/60 Hz;
1280 × 720/60 Hz;
1024 × 768/60 Hz
1600 × 1200/60 Hz;
1280 × 1024/60 Hz;
1280 × 720/60 Hz;
1024 × 768/60 Hz
Decoding & Recording
Network
PoE
Storage & Auxiliary Interfaces
Smart & Security Functions
General
Certifications
EN IEC 61000-3-2:2019+A1:2021;
EN 61000-3-3:2013+A1:2019;
EN 50130-4:2011+A1:2014;
EN 55035:2017+A11:2020
Physical Interfaces
Accessories Found in Datasheet
Ideal Applications & Common Uses
Based on the recording, PoE, analytics and POS capabilities listed in the manufacturer datasheet, the LTN8616-P16N is well suited for surveillance installations requiring up to 16 IP cameras and high-resolution recording.
- Homes and large residential properties: Centralized recording for multi-camera PoE surveillance installations.
- Retail stores: Particularly useful where POS information overlay and transaction-triggered recording can be used with the surveillance system.
- Offices and commercial buildings: Suitable for monitoring entrances, parking areas, hallways and other important areas across a multi-camera system.
- Warehouses and industrial facilities: 16-camera capacity, high incoming bandwidth and large storage capability make it suitable for larger surveillance deployments.
- Parking lots and vehicle monitoring: Supports compatible camera smart functions including LPR, line crossing and intrusion detection.
- Perimeter security: Compatible smart-camera analytics can be used for line-crossing and intrusion events.
- High-resolution surveillance systems: Supports IP cameras up to 32 MP and decoding of up to 8 channels at 8 MP or 16 channels at 4 MP.
- Security rooms and monitoring stations: 8K HDMI output, independent HDMI/VGA outputs and 16-channel synchronous playback support detailed multi-camera monitoring.
Downloads
Frequently Asked Questions
The LTN8616-P16N supports up to 16 IP camera inputs and includes 16 independent PoE network interfaces for connecting compatible PoE cameras.
The NVR supports IP camera input and recording resolutions up to 32 MP.
The recorder has two SATA interfaces and supports up to 14 TB of storage per hard drive, allowing up to 28 TB across two drives when using the maximum supported capacity per drive.
Yes. The HDMI output supports resolutions up to 8K (7680 × 4320) at 30 Hz. It also supports 4K, 2K, 1080p and additional output resolutions.
The recorder supports H.265+, H.265, H.264+ and H.264 video formats. According to the datasheet, H.265+ can reduce storage requirements by up to 75%.
The NVR can decode up to 8 channels at 8 MP at 25 fps or up to 16 channels at 4 MP at 30 fps.
Yes. The recorder supports 16-channel synchronous playback, allowing recorded video from multiple channels to be reviewed simultaneously.
Yes. The NVR supports multiple VCA events and configurable compatible-camera smart functions including motion detection, line crossing, intrusion detection, heat mapping and license plate recognition (LPR).
Yes. The datasheet lists support for PT Cloud, DDNS, smooth streaming and web access without a plug-in. It also specifies support for up to 128 remote connections.
Yes. The recorder supports POS information overlay on live view and playback, as well as POS-triggered recording and alarms.
