NVR301-04X-P4
NVR301-04X-P4
Out of stock
Description
Description

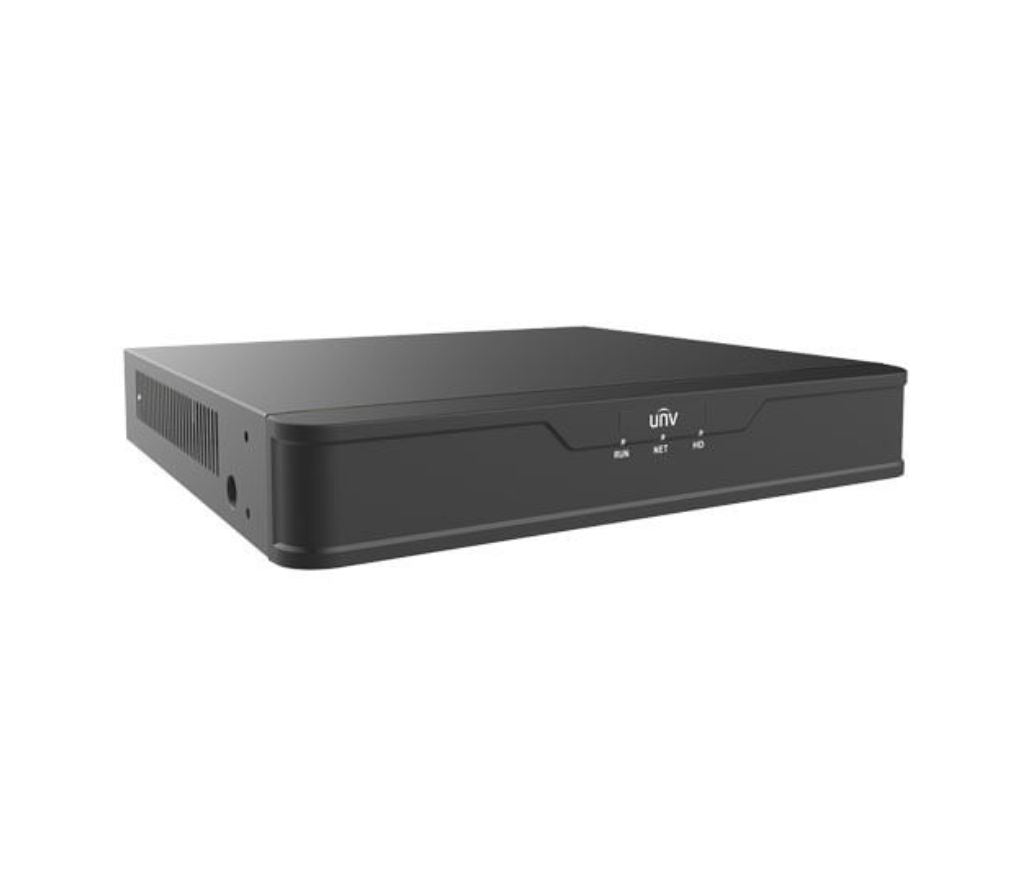

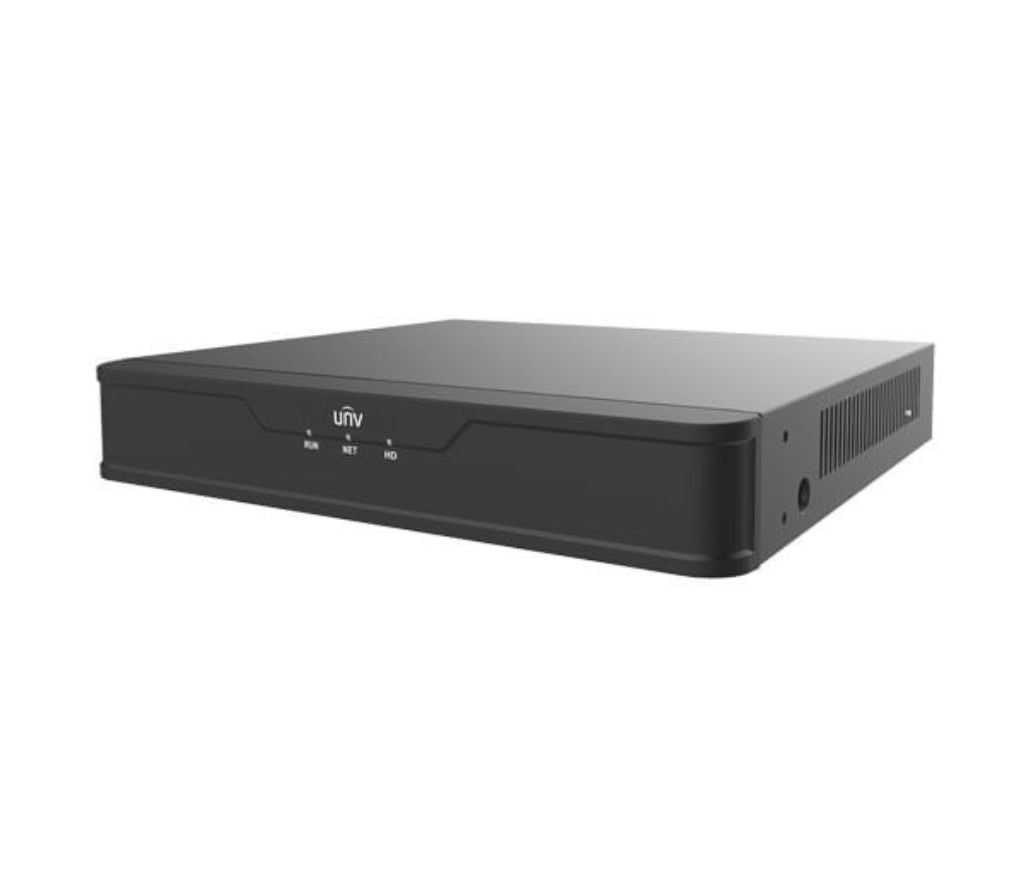

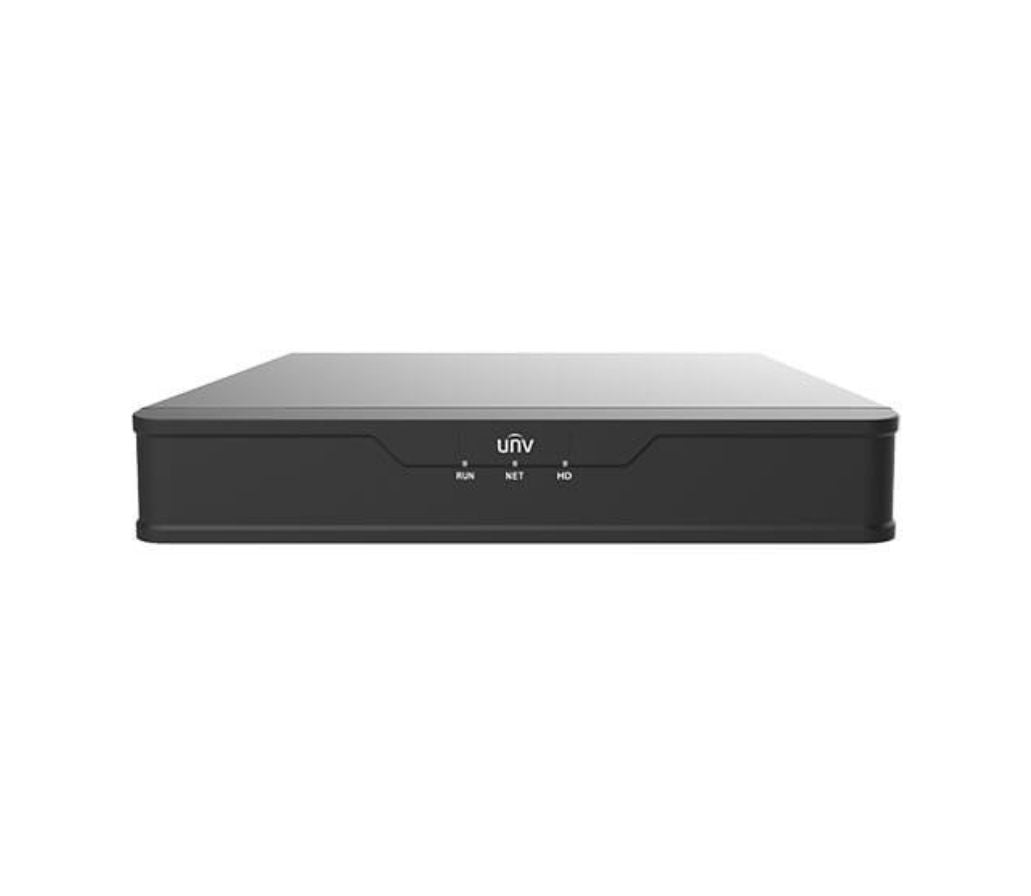

NVR301-X-P Series
Network Video Recorder
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
NVR301-X-P Series
Network Video Recorder
Features
Support Ultra 265/H.265/H.264 video formats
4/8?channel input
Plug & Play with 4/8 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1?ch HDMI, 1?ch VGA,HDMI at up 4K(3840x2160) resolution
HDMI and VGA simultaneous output
Up to 4K resolution recording
Support cloud upgrade
Specifications
Decoding Description
2
DATASHEET
Decoding Format Ultra 265, H.265, H.264
Decoding Capability
NVR301-04X-P4:2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30
NVR301-08X-P8:2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080P@30
Audio Compression G.711A, G.711U
Network Description
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP
Browser(Plugin) Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above),
Edge(version 79 and above)
Video/Audio Input Description
IP Video Input
NVR301-04X-P4:4-ch
NVR301-08X-P8:8-ch
RCA Audio Input 1-ch
Video/Audio Output Description
HDMI Output HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz,
1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
RCA Audio Output 1-ch
Liveview Display
NVR301-04X-P4:1/4
NVR301-08X-P8:1/4/6/8/9
Corridor Mode Screen
NVR301-04X-P4:3/4
NVR301-08X-P8:3/4/5/7/9
Two-way Audio Description
Two-way Audio 1-ch, RCA(Using the audio input and output)
Snapshot Description
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Recording Description
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local
NVR301-04X-P4:4-ch
NVR301-08X-P8:8-ch
Smart Description
VCA Detection by IPC
Face Detection;People Counting(People Flow Counting, Crowd Density
Monitoring);SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra
Motion Detection(UMD)
VCA Search Motor Vehicle Search;Non-Motor Vehicle Search;Human Body Search;General
Search;People Counting Report
Smart by IPC
NVR301-04X-P4:Total 4-ch(Face Detection, SIP, UMD)
NVR301-08X-P8:Total 8-ch(Face Detection, SIP, UMD)
Alarm Description
General Alarm Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto
3
DATASHEET
Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm
Input;Audio Detection
Alert Alarm IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk
Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUI Language Description
GUI Language
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai,
Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French,
German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic,
Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish,
Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk Description
SATA 1 SATA Interface
Capacity Up to 10TB for each HDD(The maximum HDD capacity varies with environment
temperature and hard disk size)
External Interface Description
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Rear panel: 1 x USB3.0, 1 x USB2.0
RS485 N/A
RS232 N/A
Alarm In N/A
Alarm Out N/A
Power Supply
NVR301-04X-P4:DC 48V/1.35A
NVR301-08X-P8:DC 52V/1.8A
PoE Description
Interface
NVR301-04X-P4:4 RJ45 10M/100M self-adaptive Ethernet Interface
NVR301-08X-P8:8 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power
NVR301-04X-P4:Max 30W for single port, Max 54W in total
NVR301-08X-P8:Max 30W for single port, Max 75W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
Working Environment Description
Working Temperature -10 ?C ~ 55 ?C (14 ?F ~ 131 ?F)
Working Humidity ? 90% RH (non-condensing)
Power Consumption (without HD
D) ? 9W
Dimensions Description
Weight (without HDD) ? 1.1Kg (2.43lb)
Dimensions 260mm ? 240mm ? 47mm (10.2"?9.4"?1.9")
Certification Description
Certification CE;FCC;UL;RoHS;WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
